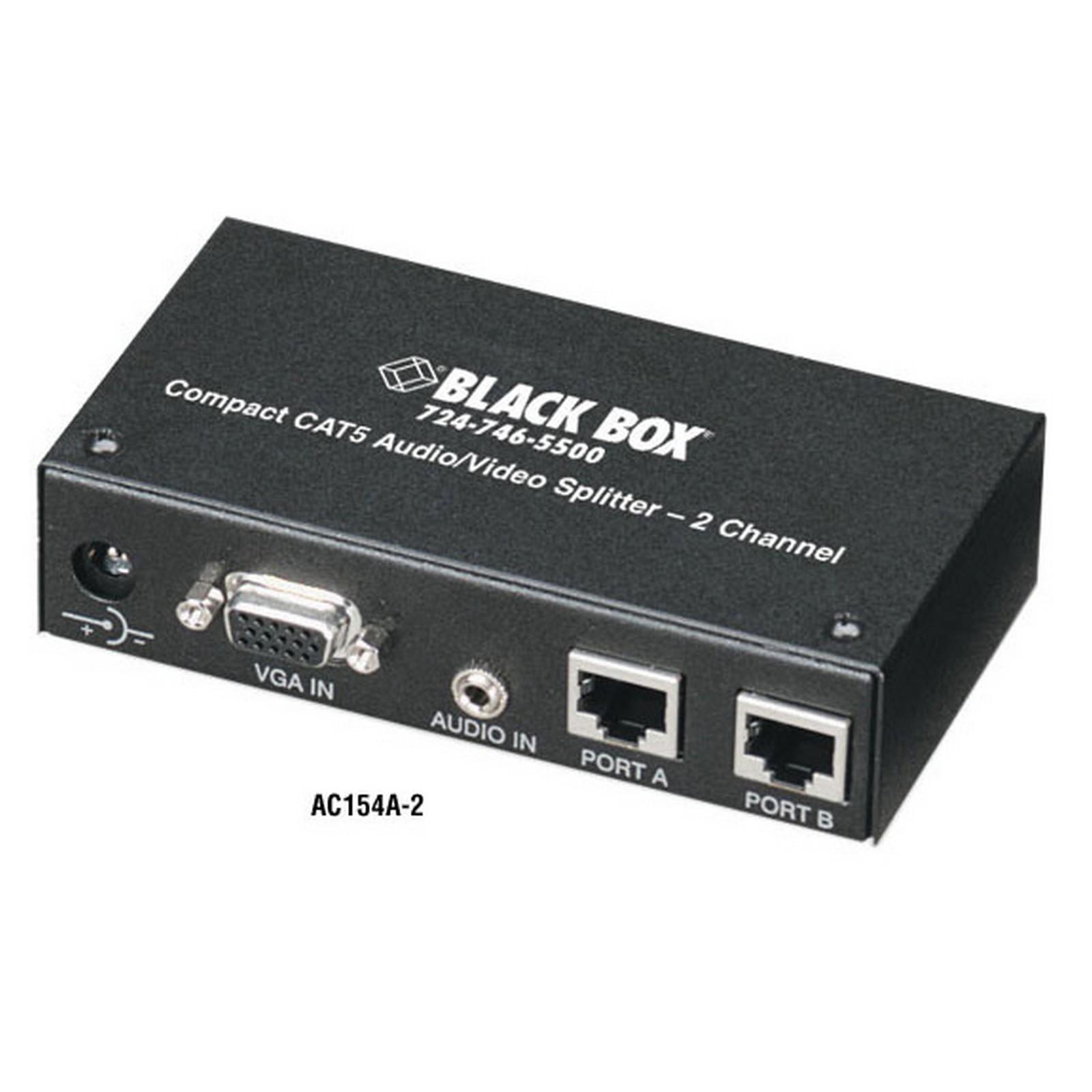

Installation couldn't be easier. Just order a splitter to locate at the CPU end and a receiver for each remote station, plug in the cables and you're ready to go! There's no software to install and no switches to set. Because the Compact CAT5 Audio/Video Splitter uses CAT5 cable (shielded CAT5 is recommended), you may even be able to use it on the cabling you already have installed.
The splitter comes in both a 2-channel and an 8-channel version. If you need to broadcast to more than eight monitors, you can easily cascade splitters. The solution for a wide range of applications Uses for the versatile Compact CAT5 Audio/Video Splitter is limited only by your imagination.
| Compliance | |
| UL | 0 |
| General | |
| Connectors | (2) RJ-45, (2) HD15 video, (2) 3.5-mm mini stereo jacks |
| Dimensions | 3.H1 x 12.2W x 6.6D cm |
| Distance (Maximum) | 152.4 m over standard CAT5 cable |
| Power | 115 VAC/60 Hz, external; 230 VAC/50 Hz version on request |
| Resolution | 1280 x 1024 at refresh rates of 60–85 Hz |
| Weight | 0.4 kg |
Product Includes:
NOTE(s):
Please order one remote unit for each active splitter channel.
| Name | Type | Version | Release Date | |
| Compact CAT5 Audio/Video Splitter with 220V Power Supply - 2-Channel | Manual | 13 May 2021 |
