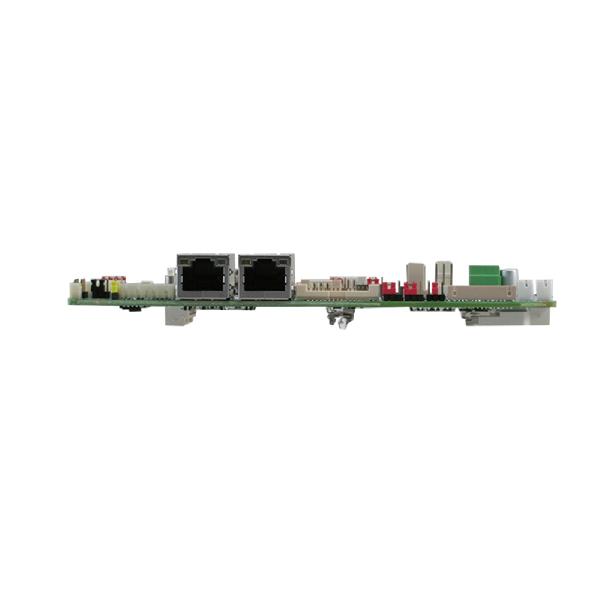

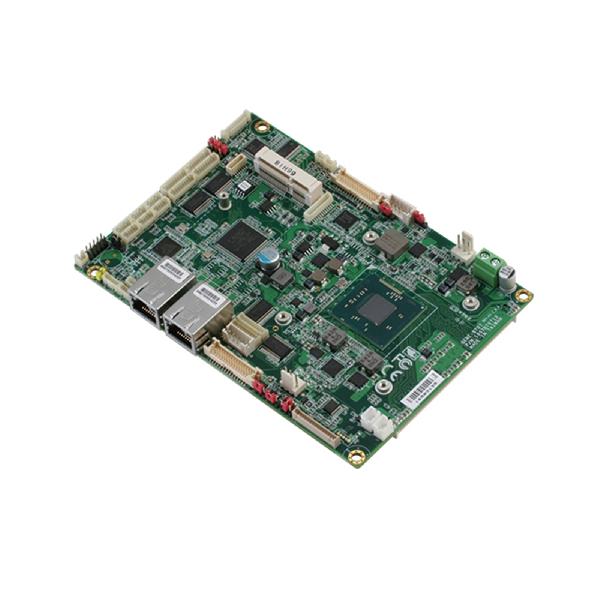

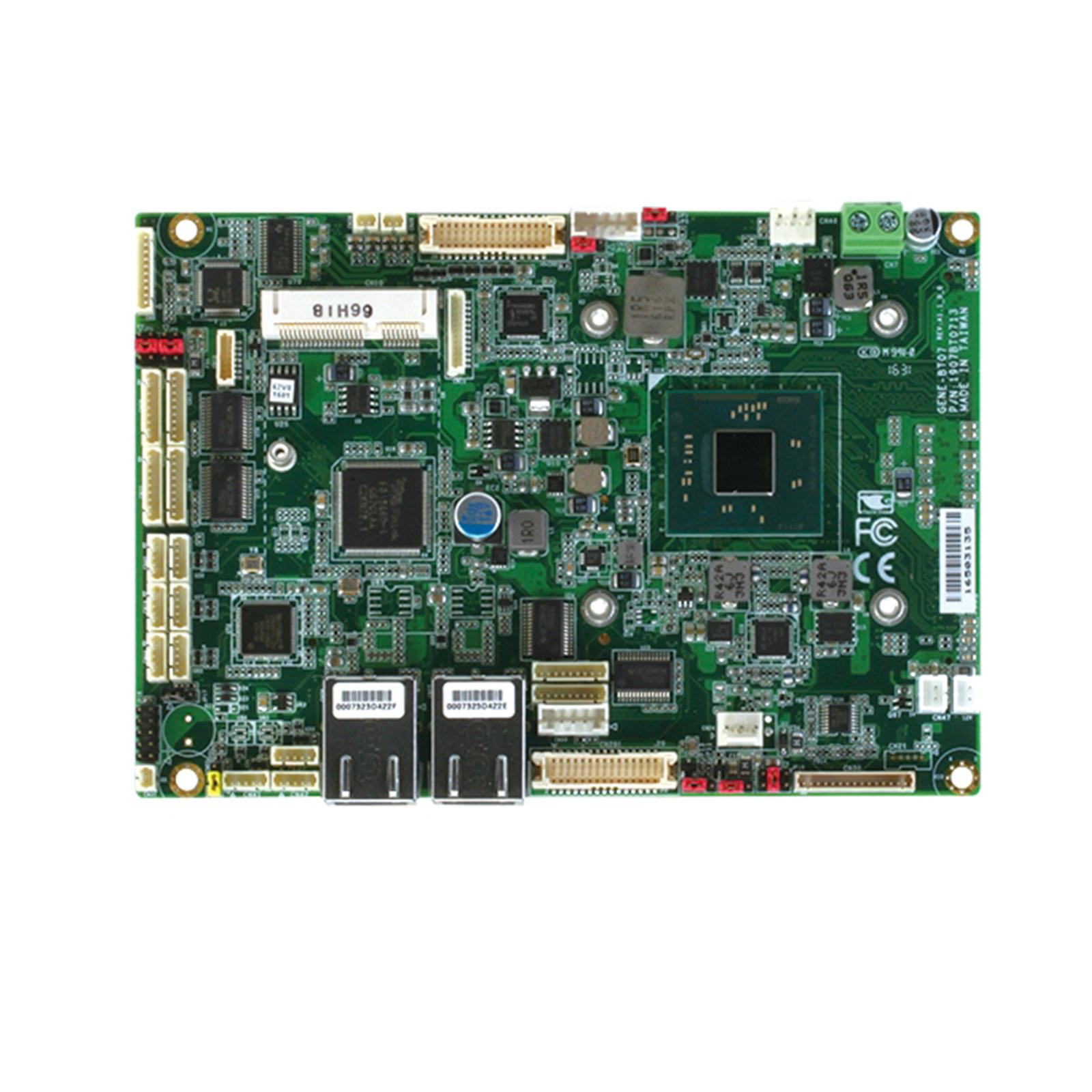

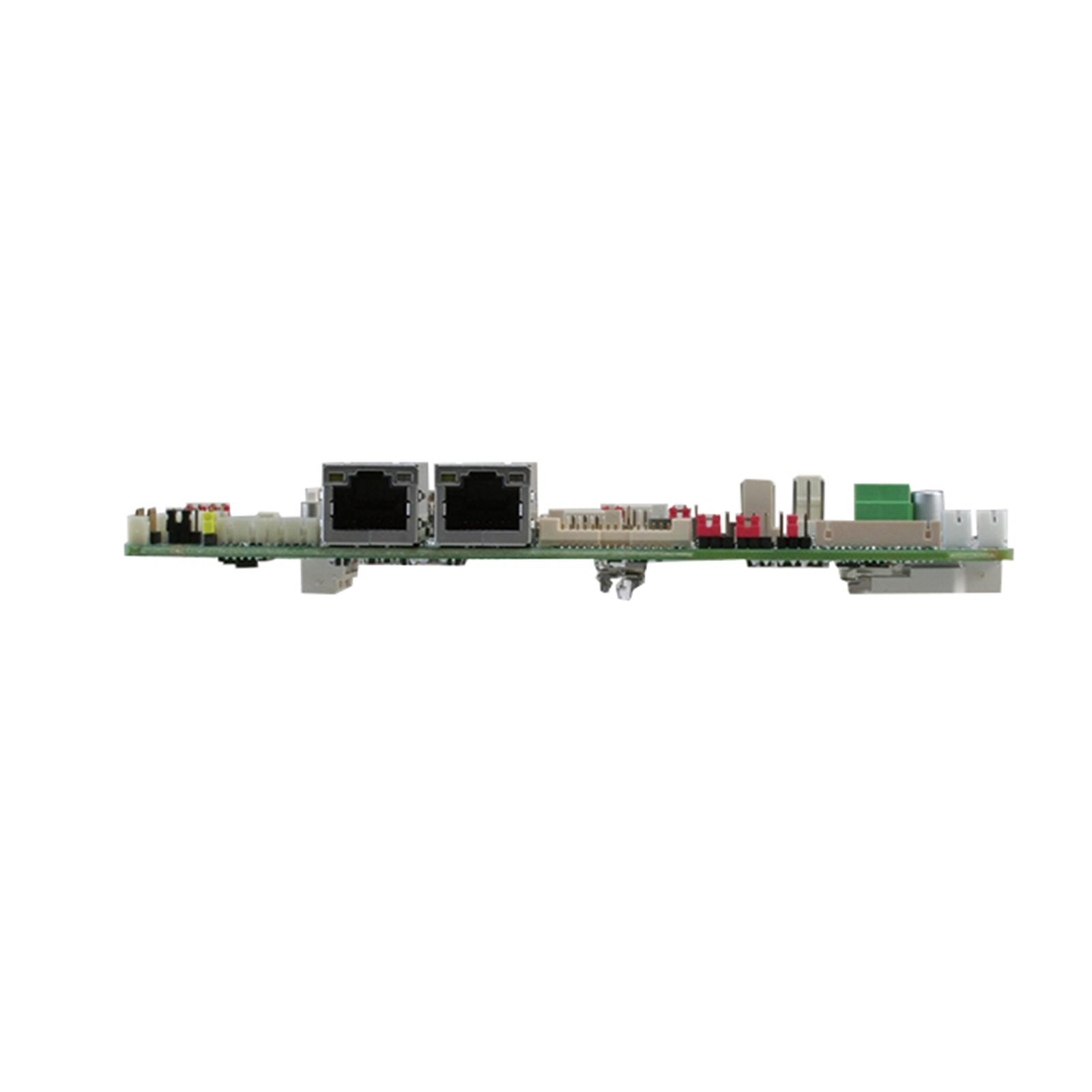

3.5” SubCompact Board with Intel® Celeron® J1900 Processor SoC
SYSTEM | |
| FORM FACTOR | 3.5" SubCompact Board |
| CPU | Intel® Celeron® J1900 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® Celeron® J1900 Processor SoC |
| MEMORY TYPE | DDR3L 1333MHz SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ ATX Mode |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® J1900, DDR3L 1600MHz 8G, 1.06A@+12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | 40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 204,000 |
| CERTIFICATION | CE/FCC |
DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Celeron® J1900 Processor SoC |
| VIDEO OUTPUT | VGA, LVDS, eDP (optional, support by BOM change) |
| BACKLIGHT INVERTER SUPPLY | 18/24-bit dual channel LVDS LCDs |
I/O | |
| ETHERNET | RTL8111E, RJ-45 x 2 |
| AUDIO | Realtek ALC892 CODEC, MIC-In AMP TI3113, Support 8ohm/4W speaker |
| USB PORT | USB2.0 x 9 |
| SERIAL PORT | RS-232 x 6 |
| PARALLEL PORT | — |
| HDD INTERFACE | — |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (half size) |
| EXPANSION SLOT | Mini-Card x 1 (Full-size) |
| DIO | — |
| SIM | — |
| TPM | — |
| TOUCH | Reserve USB2.0 x 1 connector to expend |
