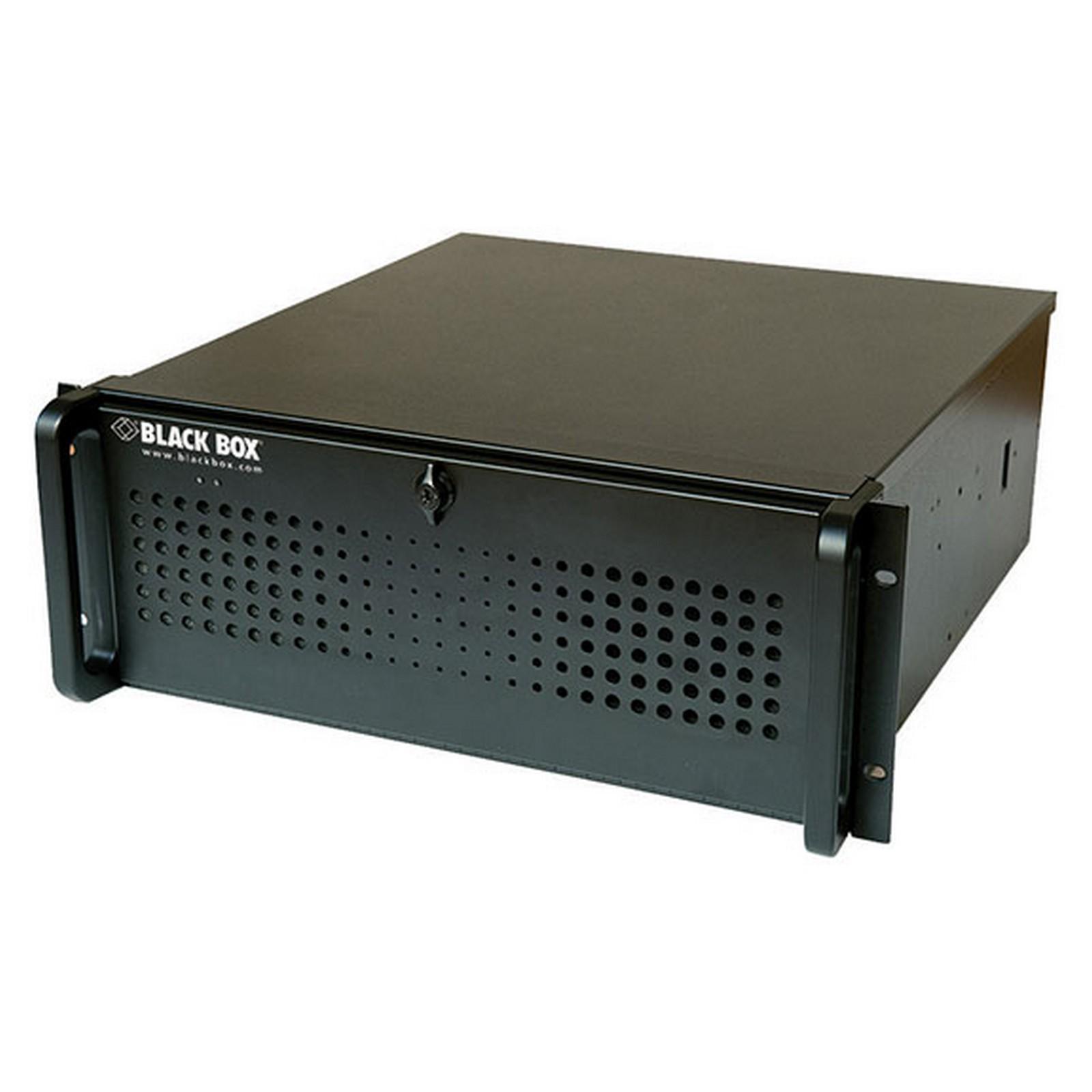

Radian Flex Video Wall Processor Chassis - Intel Core i7, Windows 10, 600 Watt PSU, 16 Gb RAM, 9-Slot

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

Easy to use—drag, drop, resize, and scale.

Product Feature

  • Mix live capture, ip streams, and local media in one application
  • Real-time, multi-user wall control
  • Ability to run software applications on the wall control processor
  • Expandable with multiple chassis configuration
  • Supports hundreds of video inputs and up to 64 video outputs
  • Position any source anywhere on the video wall
  • True 4K 60 input and output support via DP
  • Wide range of input cards for any video format: component, composite, SDI, HDMI, VGA, DP, DVI, IP (H264)
  • Outputs include DP, DVI, andHDMI

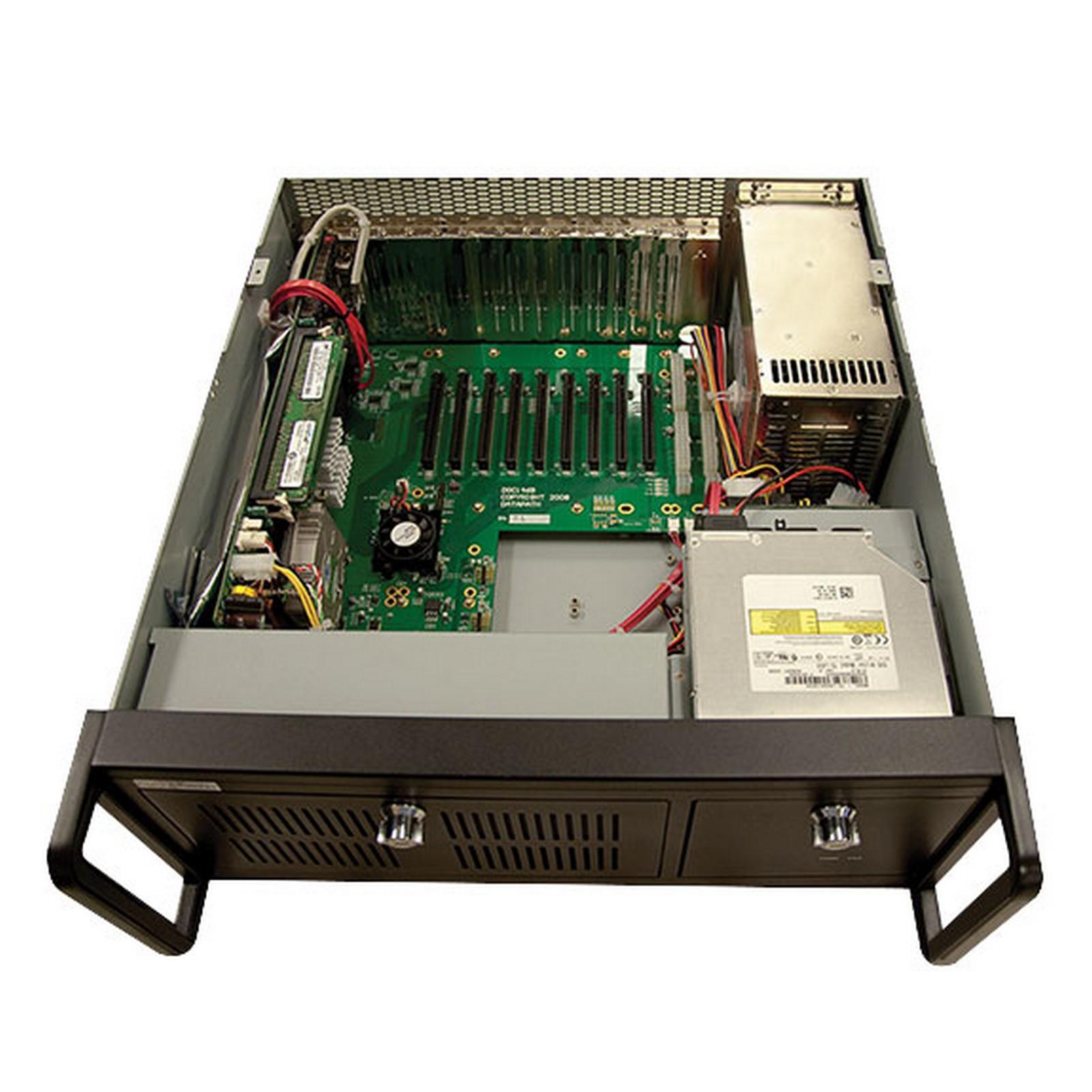

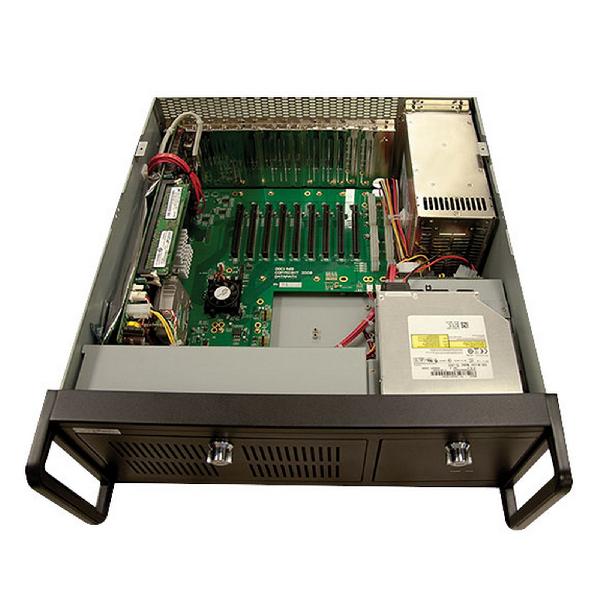

The heart of the Radian Flex system is the 4-, 9- or 11-slot controller chassis. They use a high-performance enterprise-grade motherboard that connects to a Radian PCIe backplane. The backplane contains 4. 9 or 11 half-length PCIe slots for use with compatible Radian cards, including video capture, graphics and IP decoding cards.

General
Storage (SSD)(2) 240 GB;
Upgrade option: (2) 480 GB SSD
Relative Humidity5 to 90% noncondensing
Noise48.6 dB (A) up to 67.9 dB (A), dependent on system config and ambient temp
Operating SystemWindows 10 LTSB
Clock Speed3.6 GHz, 8 MB cache
ComplianceFCC, CE, RoHS, UL, CCC
EthernetDual 10/100/1000BASE-T
Memory16 GB as standard, 32 GB available on request
MotherboardPortwell ROBO8113-Q170
On-board GraphicsHDMI and DisplayPor t for control screen
Operating Temperature32 to 95° F (0 to 35° C)
Power600 watt ATX
ProcessorLatest generation Intel® Core i7
RS-232For control
Storage Temperature-4 to +158° F (-20 to +70° C)
Item Specifications
Connectors (USB)(2) USB 3.0 (back panel);
(6) USB 2.0 (2 front, 2 back, 2 internal)
Dimensions6.9" H x 19" W x 19.6" D (17.5 x 48.2 x 50 cm)
WeightProduct weight: 41.8 to 55 lb. (19 to 25 kg);
Shipping weight: 66 to 72.6 lb. (30 to 33 kg)
Name Type Version Release Date
Radian Chassis and Modules Datasheet 27 May 2021
Radian Chassis and Modules Manual 27 May 2021
