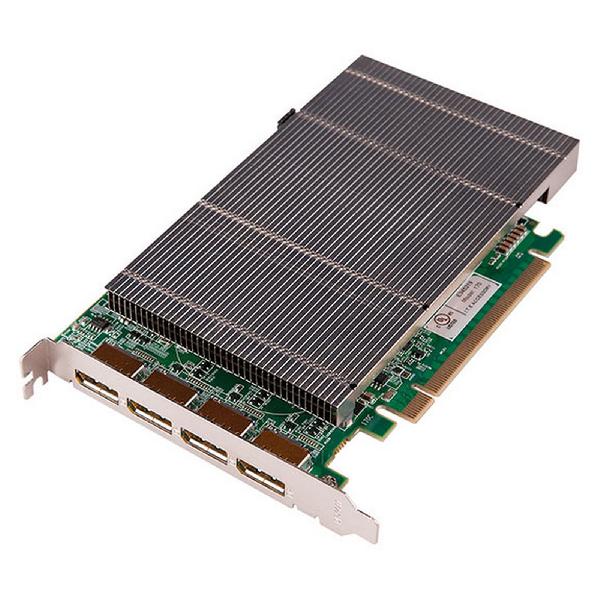

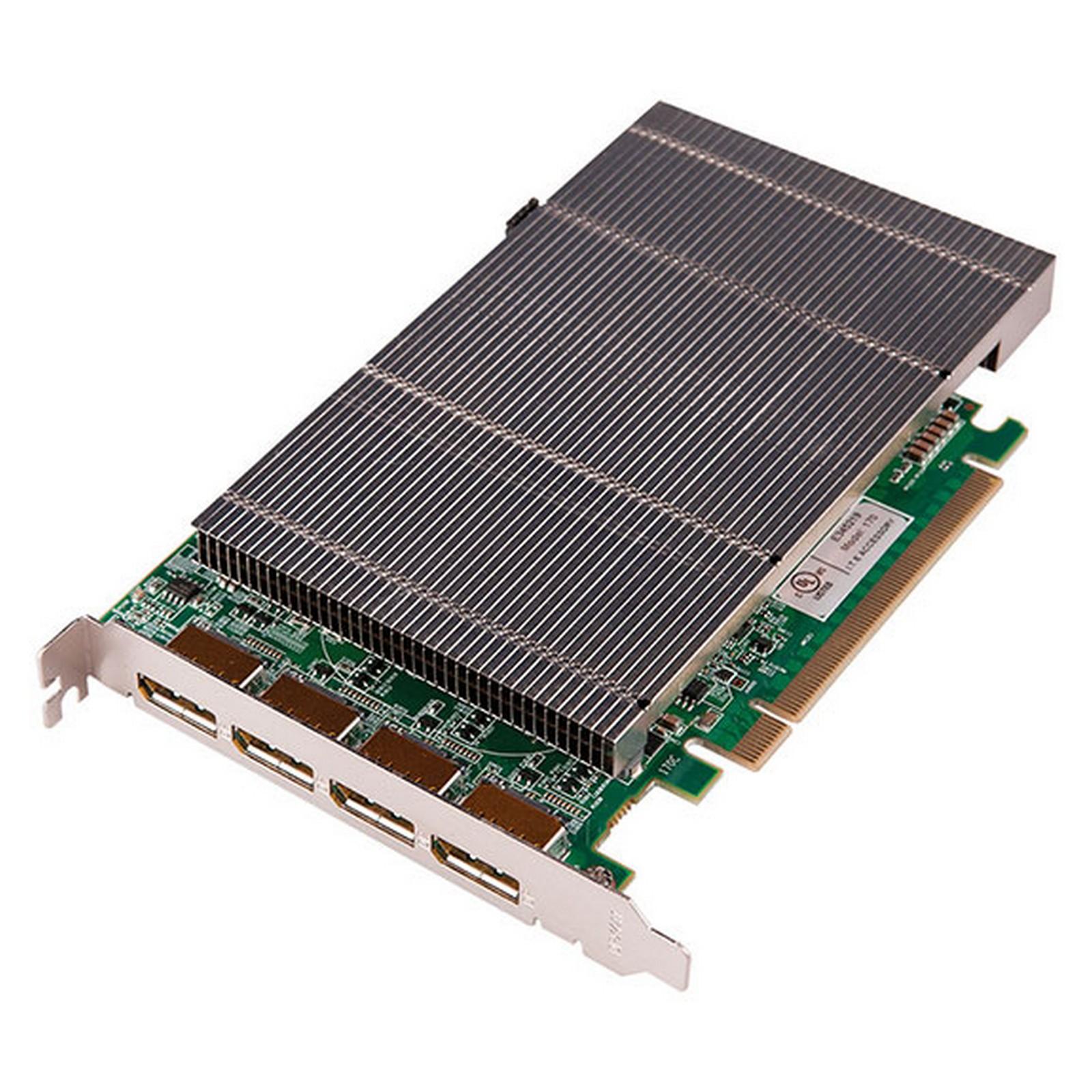

Radian Video Wall Processor Output Graphics Card

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

Get four high-resolution outputs.

Product Feature

  • Use in all Radian Video Wall Chassis.
  • Supports digital video capture windows.
  • Features a powerful PCIe 2.1 graphics card that supports x4, x8, and x16 lane widths.
  • Use two ways: four outputs with video resolutions of 2560 x 1600 at 60 Hz.
  • Or convert four outputs to two, each supporting resolutions of 3849 x 2160 at 30 Hz.
  • Optimized for use with Radian Video Capture cards for systems requiring SD, HD, RGB, DVI, and 3G-SDI video overlays.
  • To create video walls of up to 64 screens, use with Radian Video Capture cards and 9- or 11-slot Radian Video Wall Processor chassis.
  • To use 3 or more cards, you must use the 9-slot or 11-slot Radian Video Wall Processor chassis.
  • Support for Windows Server 2008, and Windows 7
  • HDCP supported.
General
Board16-lane PCI Express
CardsMaximum 16 per system (64 display channels)
Memory/Graphic Card512 MB total
Operating Temperature32 to 96° F (0 to 35° C);
PowerCurrent: (4) 2560 x 1600 @ 60 Hz maximum (1.8 A when powering four channels);12 V @ 1.2 A maximum;Thermal dissipation: 15 W maximum
ResolutionOutput: (4) 2560 x 1600 @ 60 Hz maximum (max. 359 Mpixels);(2) 3840 x 2160 @ 30 Hz maximum
Storage Temperature-4 to +158° F (-20 to +70° C)
Item Specifications
Connectors(4) DisplayPort
Dimensions4.3"H x 6.9"D (11 x 17.7 cm), including heat sink

Product Includes:

  • Radian Video Wall Processor Graphics Card - 4-Port
  • Installation CD
Name Type Version Release Date
Radian Chassis and Modules Datasheet 27 May 2021
Radian Chassis and Modules Manual 27 May 2021
