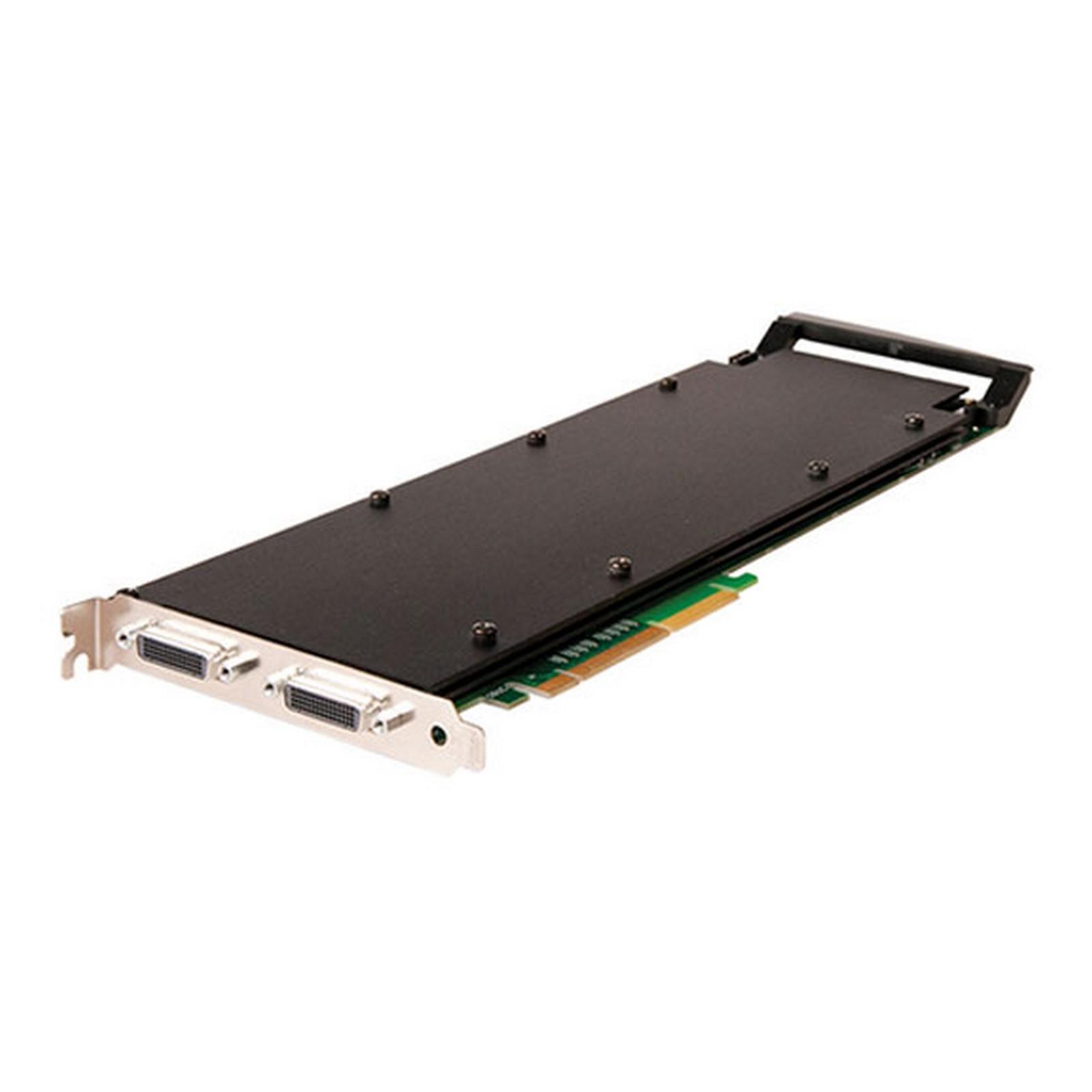

Radian Video Wall Processor Capture Card - HD/DVI with Splitter Cables, 4-Channel

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

Capture four HD video channels simultaneously.

Product Feature

  • Use with Radian Video Wall Processor chassis.
  • Large 6.4 Gbps bandwidth enables the capture of more pixels.
  • Multiple cards can be used in a single system.
  • Offers embedded audio capture.

This professional audio and video capture card supports up to two 4K (UHD) channels at 30 Hz and two HD channels at 60 Hz. Ideal for use in capturing multiple video channels on a single-card. Ideal for use in medical and machine-vision captures, military applications, and security/surveillance systems. The card also has embedded audio support across all four channels. It ships with DVI splitter cables.

Compliance
FCC
General
Board8-lane PCIe interface; 4.3” x 6.9” (11 x 17.7 cm)
Capture ResolutionMaximum: Channels 1 and 3: (2) 3840x260p @ 30 Hz; Channels 2 and 4: (2) 1920x1080p at 60 Hz
Frame Buffer Memory768 MB
Operating System SupportWindows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux (not audio)
Operating Temperature32 to 96° F (0 to 35° C);
Pixel Transfer FormatRGB: 5:5:5; 5:6:5; 8:8:8 (24-bit/32-bit); YUV: 4:2:2; Mono: 8-bit
Power3.3 V at 0.45 A; 12 V at 85 A; Thermal dissipation: 18 W, max.
Storage Temperature-4 to +158° F (-20 to +70° C)
Update RateChannels 1 and 3: 297 Mpps; Channels 2 and 4: 165 Mpps
Item Specifications
Connectors(2) DSM59 high-density; (2) DVI adapters

Product Includes:

  • Capture Card
  • (2) DVI splitter cables
Name Type Version Release Date
Radian Chassis and Modules Datasheet 01 June 2021
Radian Chassis and Modules Manual 01 June 2021
