Radian Rackmountable Video Wall Processor Chassis

Home  >   Black Box  >   VIDEO WALLS  >
Control Room Video Walls

The right chassis for smaller video walls with up to 16 HD displays and 16 HD/32 SD inputs.

Product Feature

  • Create video walls to improve situational awareness and operator response time.
  • Designed for smaller command centers, control rooms, and other mission-critical operations centers.
  • Easy to use – drag, drop, resize, and scale.
  • Freely position any source anywhere on the video wall.

Mission-critical applications Create smaller video walls to visualize mission-critical information and to improve situational awareness, decision making, and response times in the following applications:

  • Broadcast and media
  • Defense
  • Public safety
  • Industry

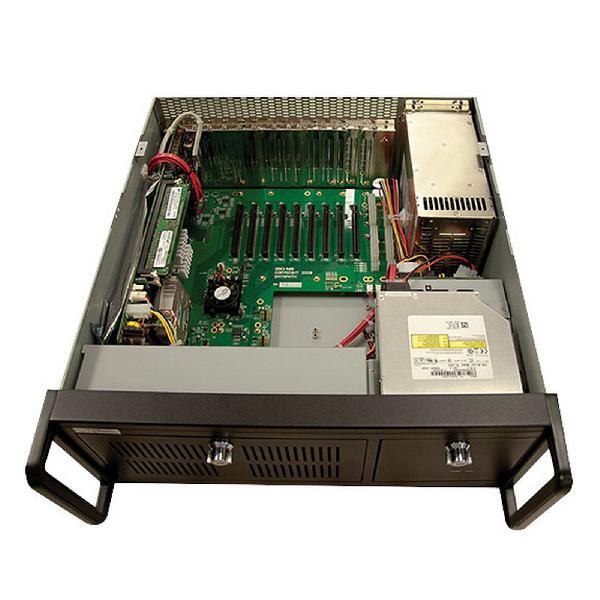

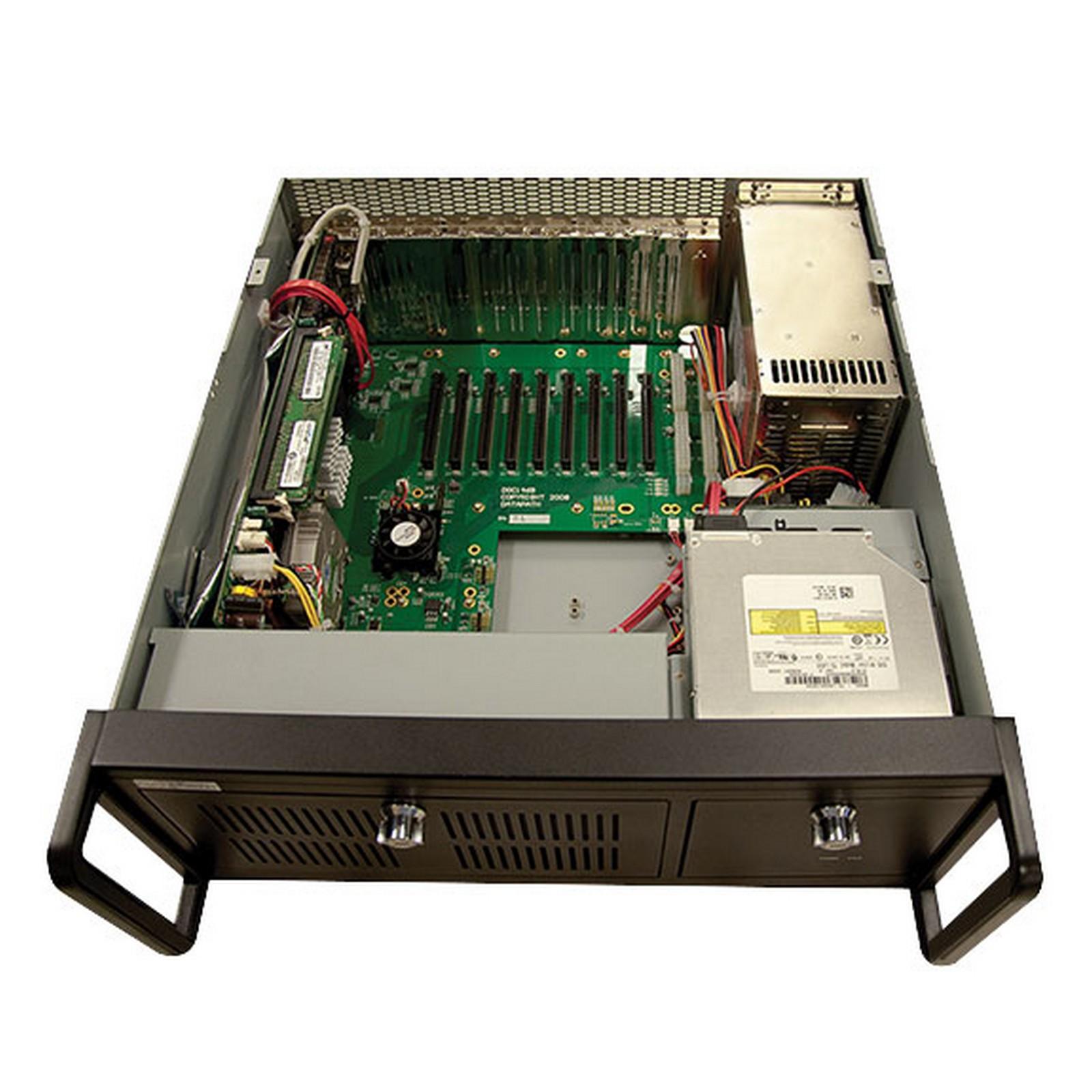

The chassis
The heart of the system is the four-slot controller chassis. It incorporates an ASUS motherboard with four high-performance PCIe slots. Each x16 mechanical slot has been configured for x8 electrical performance giving up to 8GB/s bi-directional bandwidth. The chassis also includes an Intel® Core i5 (4570s) processor offering 6 MB of cache. It can provide up to 16 HD outputs or 16 HD/32 SD inputs or a combination of the two. Combine two Graphics cards and two Video Capture cards to provide eight HD outputs and eight HD inputs.

Any Video, Anywhere
Freely position content from any source, anywhere on the video wall. Then you can easily drag, drop, resize, and scale in real-time.

Any video format
Radian supports a wide range of video input cards: composite, component, SDI, HDMI, VGA, DP, DVI, and IP. It decodes and displays standard-based IP video streams (H.264) and supports 4K at 60 Hz transmission via DisplayPort. It's also designed to display uncompressed video with no latency for faster operator response times.

Redundant power
The Chassis includes two hot-swappable 600 Watt redundant power supplies for seamless failovers.

Management
Web-based management is done from the included software from any PC over the network. The optional Video Wall Control Software enables remote control of the video wall layout, inputs, and positioning of elements.

An integrated solution - ships fully assembled
Radian is a hybrid hardware and software solution. It;s part of a complete solution that includes the chassis, graphics cards, video capture cards, expansion cards, and software. To help you get the right combination of chassis and cards for your specific application, Black Box offers free application engineering and 24/7 free tech support. Talk to one of our technical experts and we'll design a solution for you. And, we'll ship the chassis fully loaded with cards and software.

Compliance
FCC
General
Backplane3rd generation PCIe switched fabric; (1) x11 slot, 8-Gbps uplink and downlink
Cache8 MB
Clock Speed3.1 GHz
ComplianceCE, RoHS
Disk StorageHDD: (2) Western Digital RED 750 GB; Optical Drive; DVD/RW combo drive
EnvironmentalRelative Humidity: 5 to 90%, non-condensing; Noise: 48.6 dB (A) up to 67.9 dB (A)
Ethernet10/100/1000BASE-T
Expansion(4) PCIe 3.0/2.0 connectors; (16) dual x16 or x16/x8/x8 or (8) quad; Factory configured for (4) x8 slots
Memory8 GB RAM
MotherboardASUS ATX
Operating System SupportWindows® Ultimate, 64-bit
Operating Temperature32 to 95% F (0 to 35% C);
Power600 Watt dual-redundant
ProcessorIntel Core i5 Haswell
RS-232For control
SATA Drives(2) Removable
Storage Temperature-4 to +158% F (-20 to +70% C)
Item Specifications
ConnectorsUSB 3.0: (2) rear panel; USB 2.0: (2) front, (2) rear, (2) internal for security dongles; RJ-45: (2) 10/100/1000BASE-T ; (1) Mini-DisplayPort output; (1) HDMI output; (1) DisplayPort output; (1) 6-pin Mini DIN (PS/2 Mouse/Keyboard); (6) audi
Dimensions6.8"H x 19"W x 19.7"D (17.5 x 48.2 x 50 cm), including handles
IndicatorsLEDs: (1) Power, (1) HDD; (2) RJ-45 Ethernet
WeightProduct: 41.8–55 lb. (19–25 kg); Shipping: 66–72.6 lb. (30–33 kg)

Product Includes:

  • Radian chassis, 4-slot
  • Mouse
  • Keyboard
  • Software Installation Suite
  • (2) Power cables
Name Type Version Release Date
Radian Video Wall Processor User Datasheet Datasheet 01 June 2021
