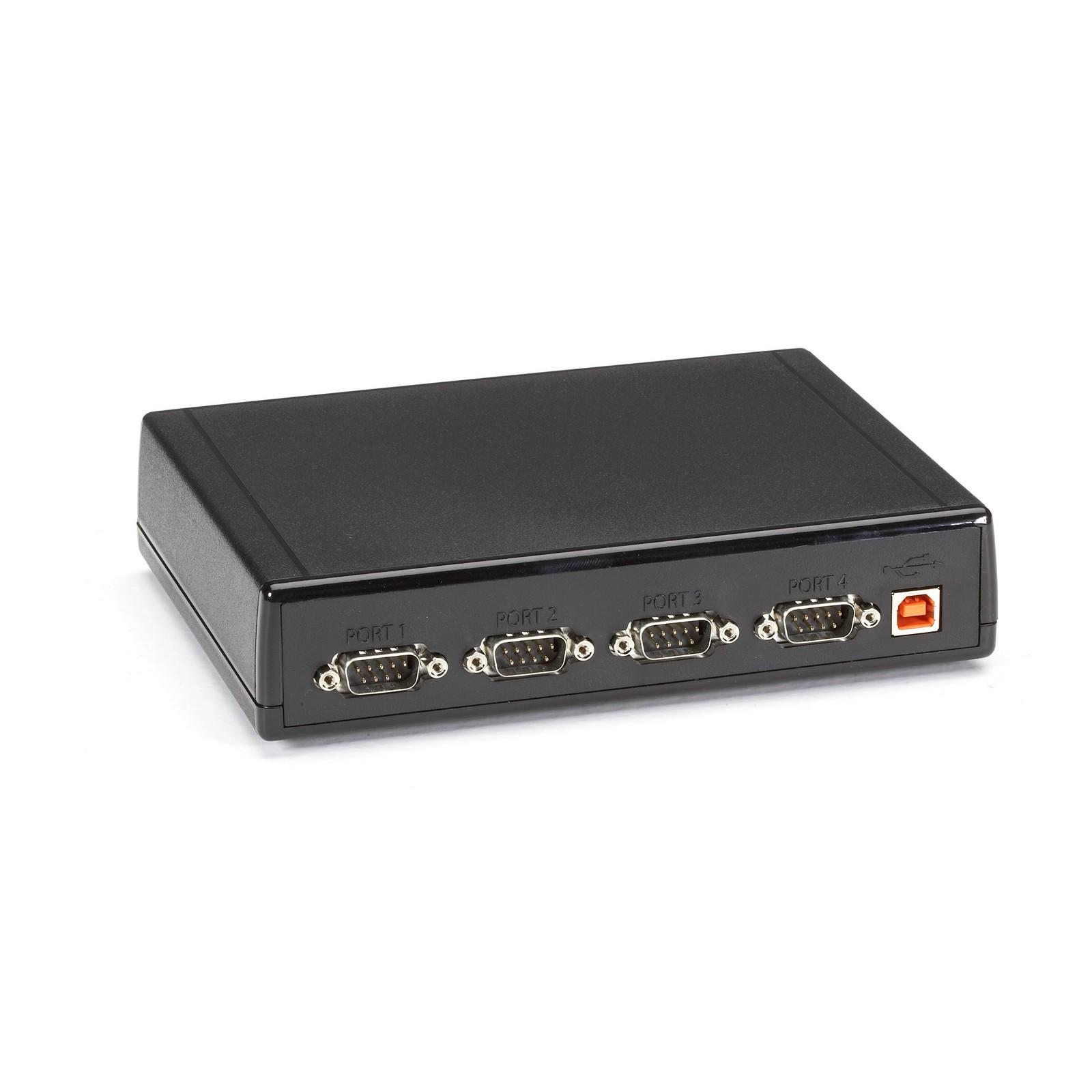

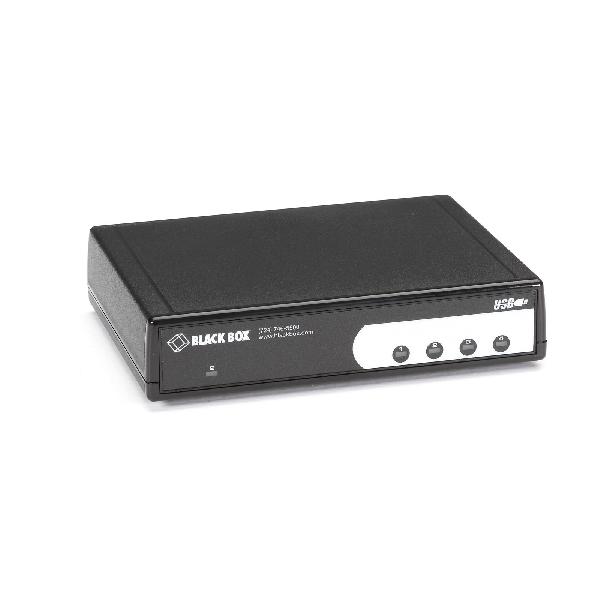

USB to RS232/422/485 Converter - DB9, 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Adapters & Converters

The USB to RS232, RS422/485 converter allows you to connect four non-USB RS232 or RS422/485 DB9 devices to your USB bus.

Product Feature

  • Use an external USB connection to get the extra COM ports you need.
  • Make serial connections easy by putting your peripherals on your PC's USB bus.
  • No more internal serial adapters. Keep your serial peripheral connections on your PC's exterior.
  • Data rates up to 460.8 kbps for RS-232 and 921 kbps for RS-422/RS-485.Plug-and-play.
  • Powered by the USB bus.
  • Plug-and-play.
  • Support USB version 1.1.
  • Powered by the USB bus.
  • Data rates up to 460.8 kbps for RS-232 and 921 kbps for RS-422/RS-485.
  • No I/O ports or IRQs required.

Windows® 98/Me/XP and Windows 2000 compatible.

Why install an internal serial adapter to get extra COM ports when using an external USB connection makes more sense? Our USB Hub converts your serial devices to USB-adaptable peripherals without sacrificing serial connection speeds.

The hub features high-speed UARTs with 128-byte FIFO transmit buffers and 384-byte FIFO receive buffers. With data rates of up to 921 kbps for RS-422/485 and 460 kbps for RS-232, this hub is among the fastest USB serial devices in the industry!

It's also ideal for connecting devices in harsh environments where communication lines may be affected by noise and voltage spikes. Not only does the USB Hub give you industrial-quality serial connections, but it also supports automatic RS-485 data enable/disable and includes a DB9 connector that's backward-compatible with PCI and ISA RS-422 products.

The USB Hub connects easily to peripheral serial devices in external plug-and-play fashion. Because tit's hot-swappable, you can install it without having to power down your PC.

Each hub comes with all necessary drivers, utilities, and help files for quick setup in Windows 98, Windows Me, Windows 2000, and Windows XP operating systems. Simply load the included software drivers, then connect the hub to your USB port and a serial device (printer, bar-code scanner, etc.). The hub even autoconfigures itself, enabling hassle-free, seamless integration into your existing application.

Choose from three models. You can configure each of the ports individually using internal DIP switches.

General
CE ApprovalYes
Communication ChipHigh-speed, USB-to-serial interface (128-byte FIFO transmit, 384-byte FIFO receive)
Distance (Maximum)RS-232: 50 ft. (15.2 m); RS-422/RS-485: 4000 ft. (1219.2 m)
Operating EnvironmentTemperature: 32 to 158° F (0 to 70° C); Humidity: 10 to 90% noncondensing
PowerFrom the USB bus (as long as the device is connected directly to a powered PC or hub)
SpeedRS-232: 460.8 kbps; RS-422/RS-485: 921 kbps
Item Specifications
ConnectorsSerial: (2), (4), or (8) DB9 M; USB: (1) Type B F

Product Includes:

  • CD that includes user's manual plus software for setup in Windows 98, Windows Me, Windows 2000, and Windows XP
  • (1) 6-ft. (1.8-m) USB cable
Name Type Version Release Date
USB Hub Data Sheet Datasheet 25 June 2021
