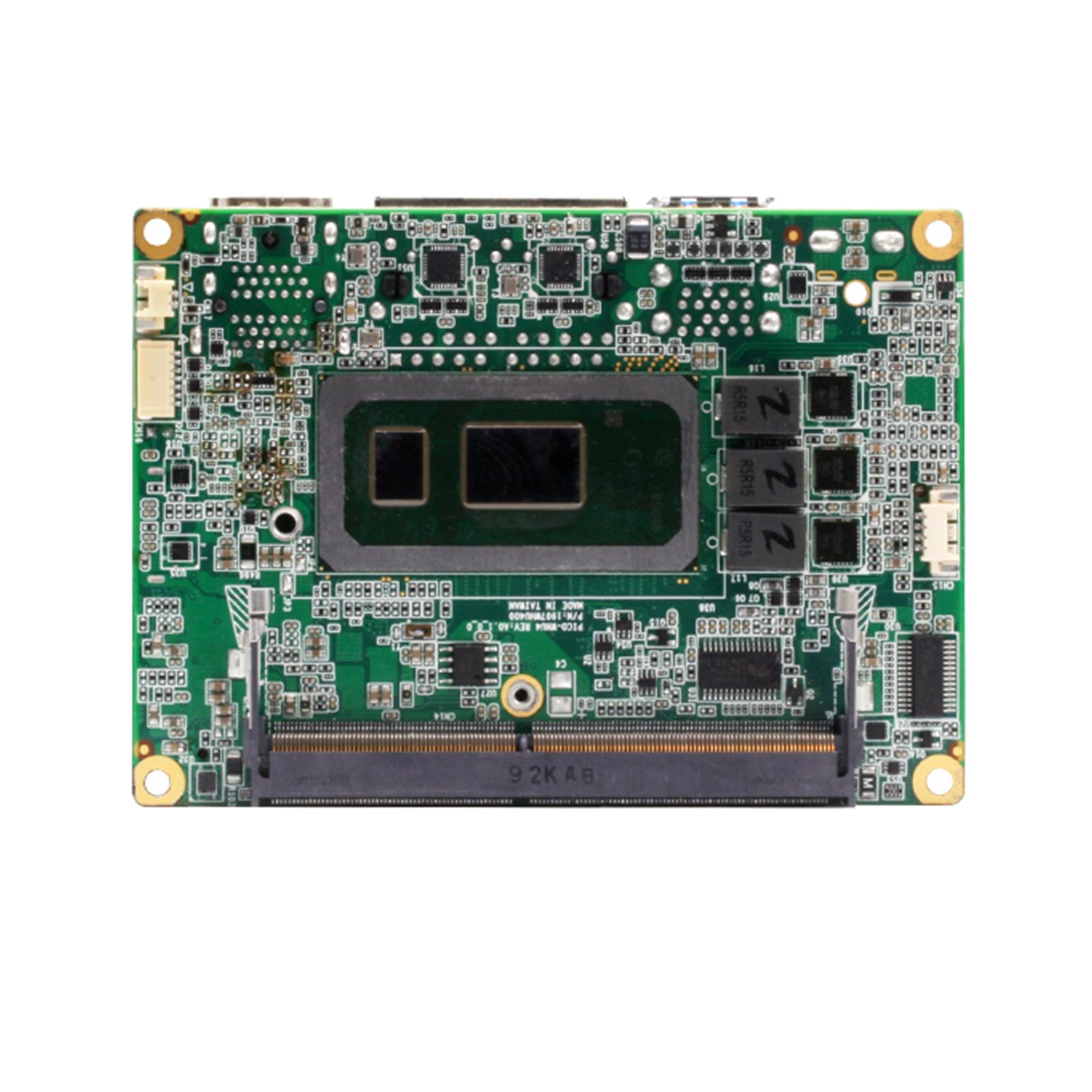

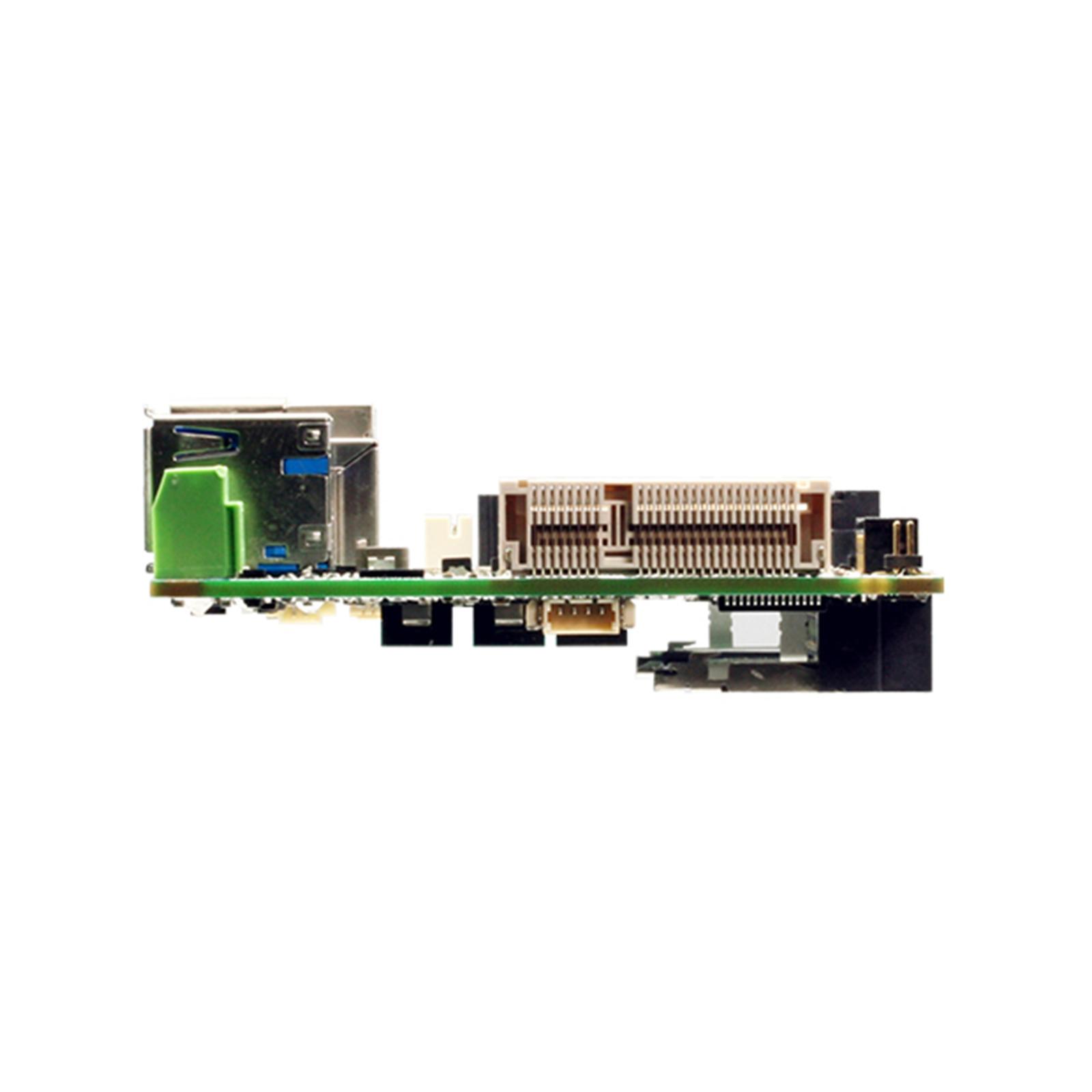

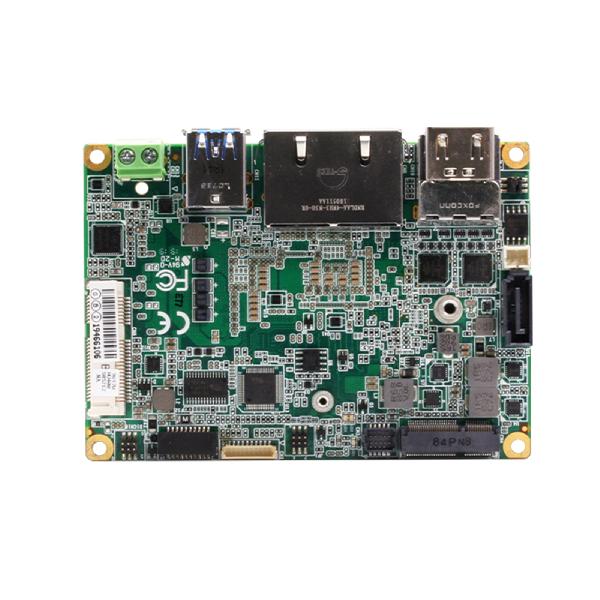

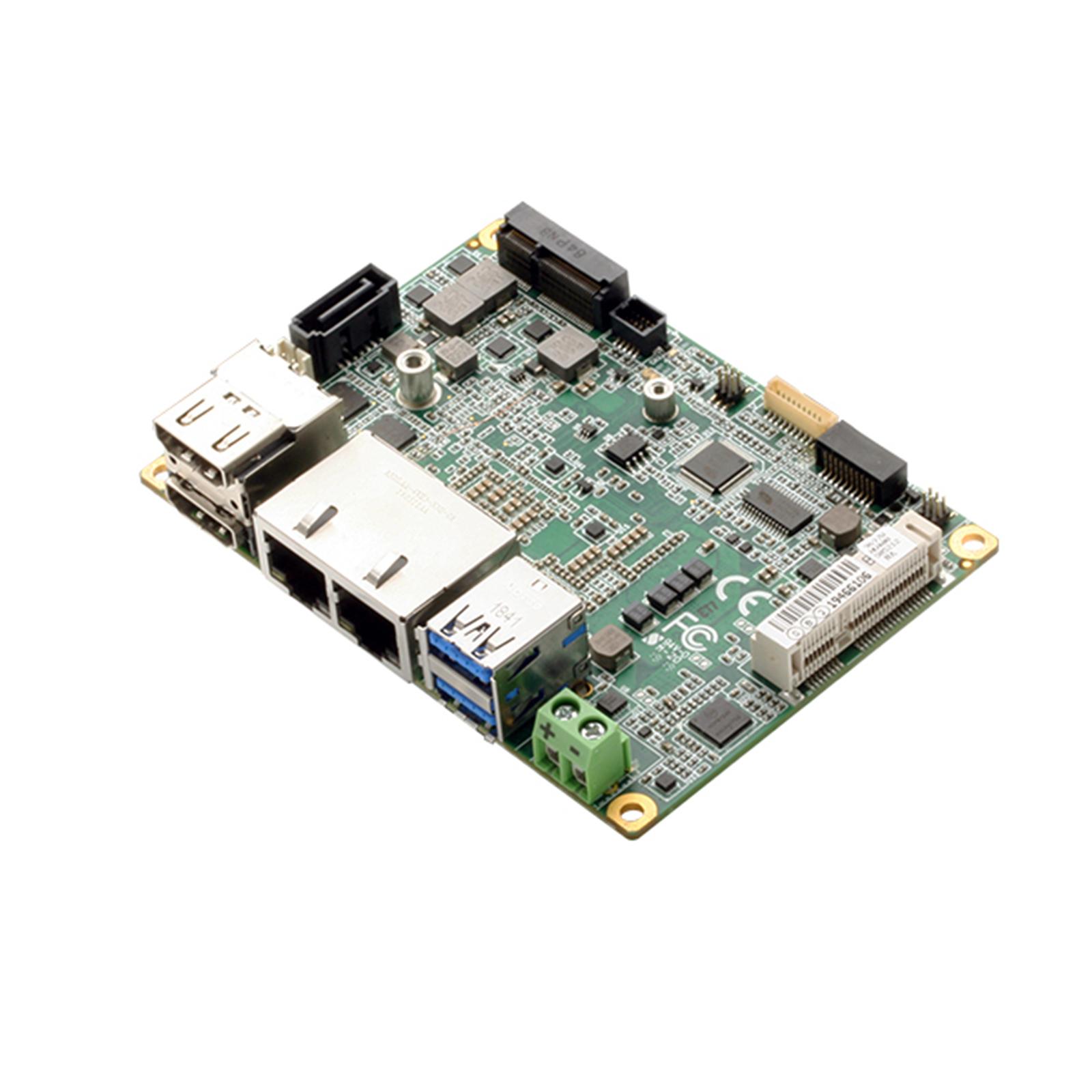

PICO-WHU4

Home  >   AAEON  >   Embedded Boards  >
Embedded Single Board Computers  >   Pico-ITX Boards

Pico-ITX Board with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC

Product Feature

  • 8th Intel® Core™ i7/i5/i3/Celeron Processor SoC
  • Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
  • Dual HDMI ports (HDMI 1.4b)
  • GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 4
  • USB 3.2 Gen 2 x 2 (Rear), USB 2.0 x 2 Pin header, RS-232/422/485 x 2
  • Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
  • 12V Only (Terminal block and DC barrel co-design)

PICO-WHU4 is a compact PICO-ITX board featuring 8th Generation Intel® Core™ Processors designed for AI and Edge Computing.

The PICO-WHU4 from AAEON is the latest in compact embedded computing from AAEON. Powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake) and supporting up to 16 GB of RAM, this compact PICO-ITX board is capable of powering a range of AI and Edge Computing applications from Smart Retail to Smart City. PICO-WHU4 offers I/O features to allow flexibility for easy integration into existing systems and projects.

Powered by Intel®

PICO-WHU4 is powered by the 8th Generation Intel® Core™ i3/i5/i7 and Celeron® processors (formerly Whiskey Lake), providing high computing performance on a compact board.

Compact Embedded Board

The PICO-ITX form factor is perfect for projects which require high performance from a small board. PICO-WHU4 also offers wide operating temperature range (0°C-60°C) so it can work almost anywhere.

Built for AI@Edge

PICO-WHU4 is built to power AI and edge computing applications, with support for a range of frameworks. PICO-WHU4 also supports expansion cards like AI Core X with Intel® Movidius® Myriad™ X for even more AI@Edge processing power.

I/O Flexibility

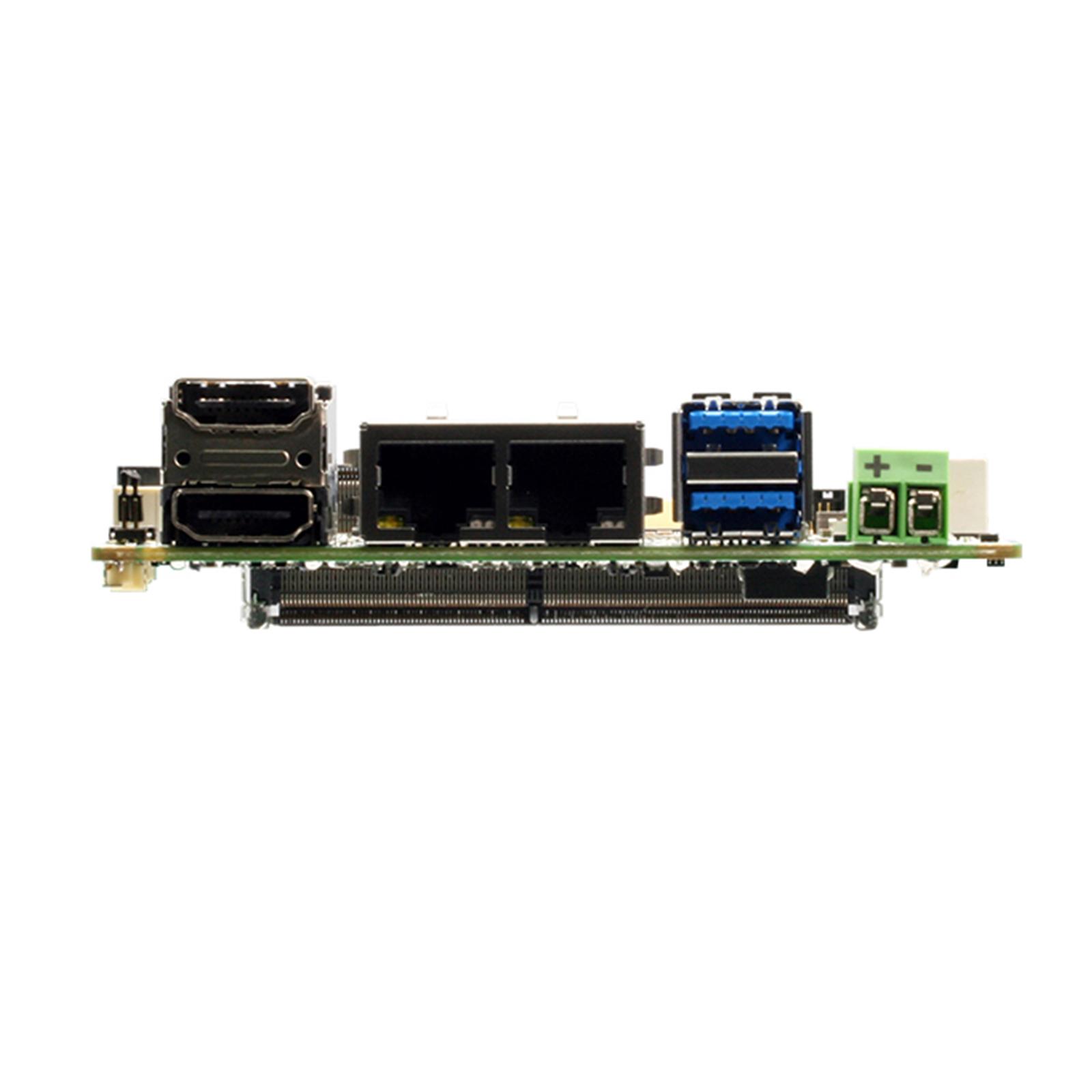

PICO-WHU4 features a host of I/O ports perfect for embedded operations or powering AI@Edge applications, including four USB ports (two USB 3.2 Gen 2 ports and two USB 2.0 headers), two Ethernet ports, and two COM headers.

Turn Key System

AAEON offers customers the ability to customize their PICO-WHU4, including the turn-key PICO-WHU4-SEMI embedded system, allowing you to get your project up and running quickly.

SYSTEM

FORM FACTORPICO-ITX
CPUIntel® 8th Generation Core™ i7/i5/i3/Celeron SoC
i7-8665UE (4C, 1.7GHz, up to 4.4GHz)
i5-8365UE (4C, 1.6GHz, up to 4.1GHz)
i3-8145UE (2C, 2.2GHz, up to 3.9GHz)
4305UE (2C, 2GHz)
CPU FREQUENCYUp to 4.4GHz
CHIPSETIntel® 8th Generation Core™ i7/i5/i3/Celeron SoC
i7-8665UE (4C, 1.7GHz, up to 4.4GHz)
i5-8365UE (4C, 1.6GHz, up to 4.1GHz)
i3-8145UE (2C, 2.2GHz, up to 3.9GHz)
4305UE (2C, 2GHz)
MEMORY TYPEDDR4 2400MHz SODIMM x 1, Max. 16 GB
MAX. MEMORY CAPACITYUp to 16GB
BIOSUEFI only
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENT+12V AT/ATX (default)
POWER SUPPLY TYPELockable & phoenix Terminal co-lay
POWER CONSUMPTION (TYPICAL)TBD
SYSTEM COOLINGHeat-spreader, cooler optional
DIMENSION3.94" x 2.84" (100mm x 72mm)
GROSS WEIGHTTBD
OPERATING TEMPERATURE32˚F ~ 140˚F (0˚C ~ 60˚C)
STORAGE TEMPERATURE-40˚F ~ 176˚F (-40˚C ~ 80˚C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)TBD
CERTIFICATIONCE, FCC

DISPLAY

CHIPSETIntel® 8th Generation Core™ i7/i5/i3/Celeron SoC
i7-8665UE (4C, 1.7GHz, up to 4.4GHz)
i5-8365UE (4C, 1.6GHz, up to 4.1GHz)
i3-8145UE (2C, 2.2GHz, up to 3.9GHz)
4305UE (2C, 2GHz)
RESOLUTIONHDMI 1.4b up to 3840 x 2160 x 2
LCD INTERFACE

I/O

STORAGE/SSDmini-PCIe(Full) x 1 ( PCIe[x1]x1, USB 3.2 Gen 1/2.0,SATA)
SATA 6.0Gb/s x 1, (5V Power)
ETHERNETRealtek 8111G*2 10/100/1000Mbps
USB PORTUSB 3.2 Gen 2 (10Gbps) x 2
USB 2.0 x 2 Pin header
SERIAL PORTRS-232/422/485 x 2
AUDIO
DIO4-bit
EXPANSION SLOTM.2 2230 E key x 1 (For WIFI/BT, PCIe/USB signal only)
SMBUS/I2C/LPC/eSPI x 1
SIM
