Industrial USB 2.0 Hub - 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Hubs

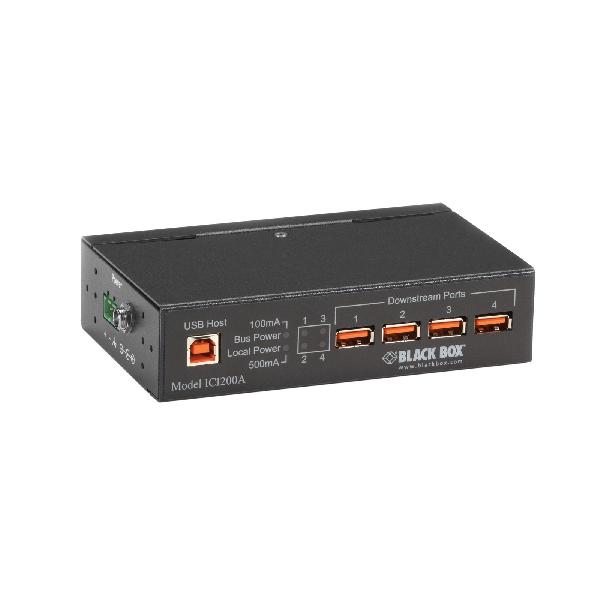

Now you can connect four USB 2.0 devices in industrial settings without worrying about accidental disconnects or ESD damage to your connected USB devices. This Industrial USB 2.0 Hub features high-retention ports that ensure a tight connection—even in high-vibration environments.

Product Feature

  • UL® listed for use in Class 1 Division 2 hazardous areas.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible.
  • Supports USB speeds of 480 Mbps.
  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).

Now you can connect four USB 2.0 devices in industrial settings without worrying about accidental disconnects or ESD damage to your connected USB devices. This Industrial USB 2.0 Hub features high-retention ports that ensure a tight connection—even in high-vibration environments. The ports require a hefty 3.4 pound of force to disconnect. Don't worry about special cables either. This hub works with regular USB cables. The hub operates at speeds of 480 Mbps. It provides true USB 2.0 transmission through each port, even during heavy load applications. And, to make your life easier, it's plug-and-play with no drivers to load. A great choice for factory, utility, engineering, and even healthcare applications.

General
CE ApprovalYes
MTBF211,773 hours (MIL 217F parts count reliability calculated)
Operating EnvironmentTemperature: -40 to 176° F (-40 to 80° C); Humidity: 0 to 95%, noncondensing

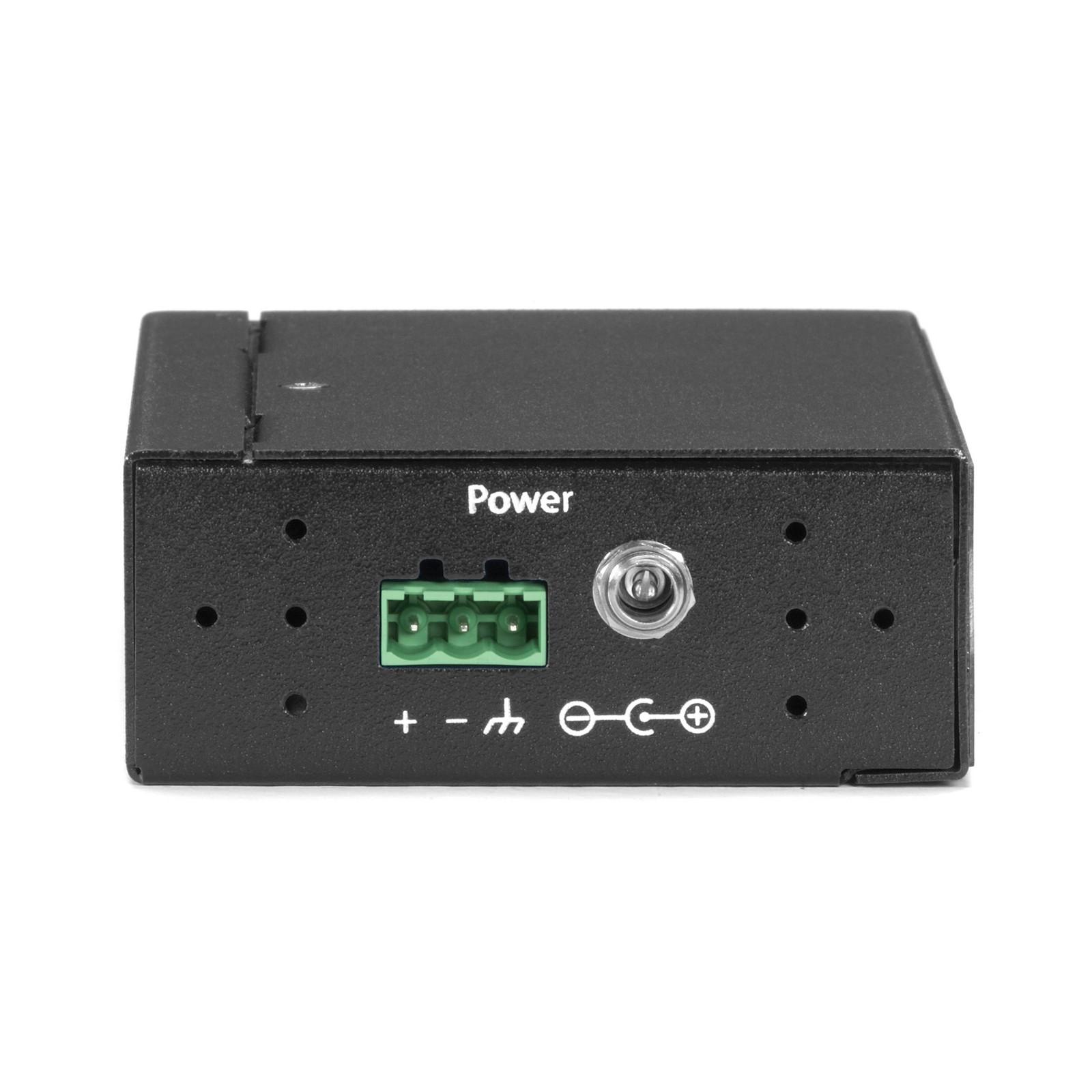

PowerInput: From the USB bus or from separate external 10-30 VDC power supply* (via a terminal block or locking barrel plug input); Output: 5 VDC
StandardsUSB 1.1, USB 2.0
USB Interface ESD15 kV (air), 8 kV (contact)
USB Interface Surge Protection+/- 0.5 kV (DC ports), +/- 1 kV (signal ports)
USB Speed (Maximum)480 Mbps
Item Specifications

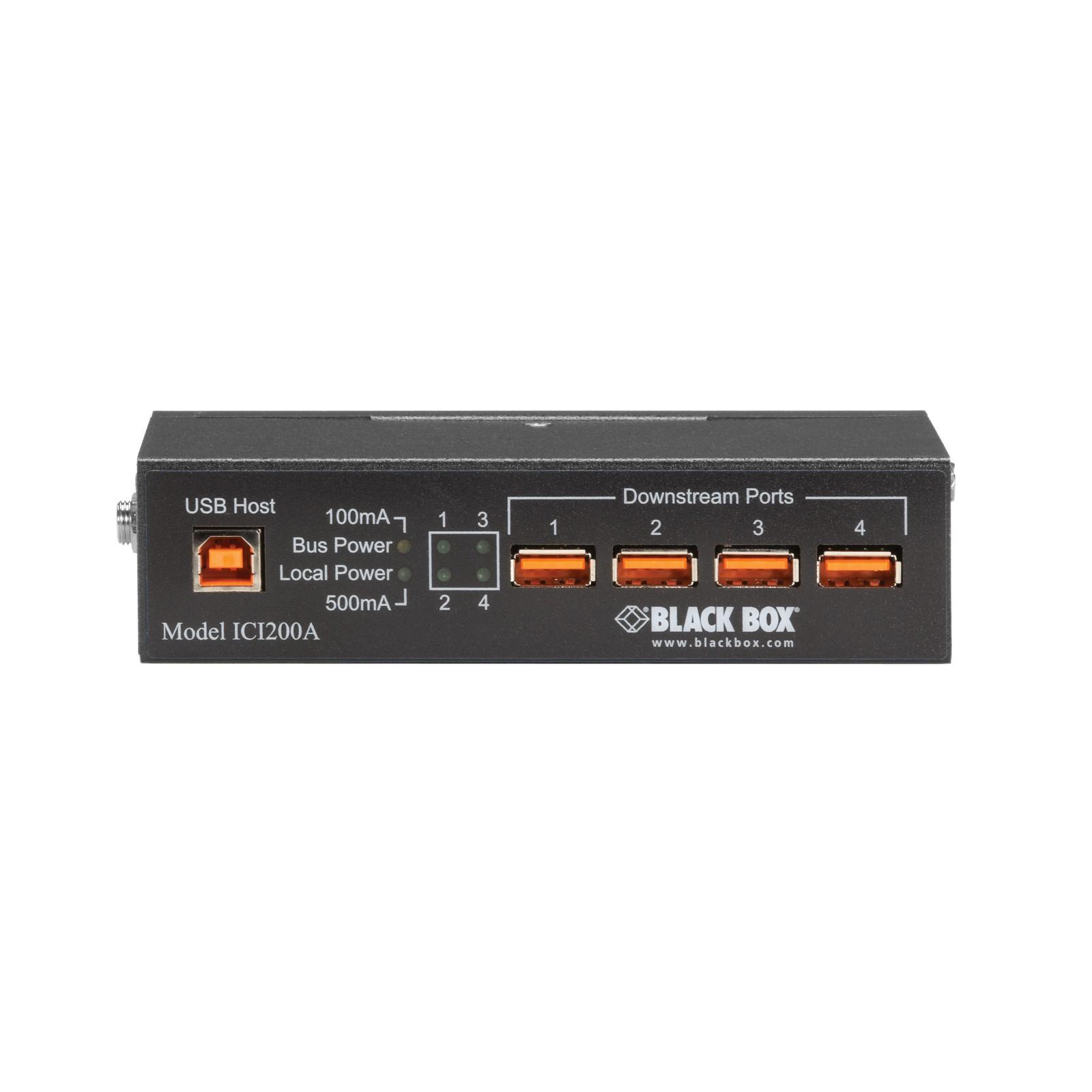

ConnectorsUpstream port: (1) USB Type B F (high retention with withdrawal of >15 N); Downstream ports: (4) USB Type A F (high retention with withdrawal of >15 N)
Dimensions1.4"H x 5.5"W x 3.5"D (3.6 x 14 x 8.8 cm)
Indicators(6) LEDs: (1) USB Bus Power, (1) External Power, (4) USB Port Ready
Weight1.4 lb. (0.6 kg) * NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.

Product Includes:

  • Industrial-Grade USB Hub
  • (1) 1.8-m (6-ft.) USB Type A/Type B cable
  • (2) panel-mount adapters with (4) mounting screws
  • DIN rail adapter with (3) mounting screws
  • Quick-start guide
Name Type Version Release Date
4-Port Industrial-Grade USB Hubs User Manual Manual 22 July 2021
