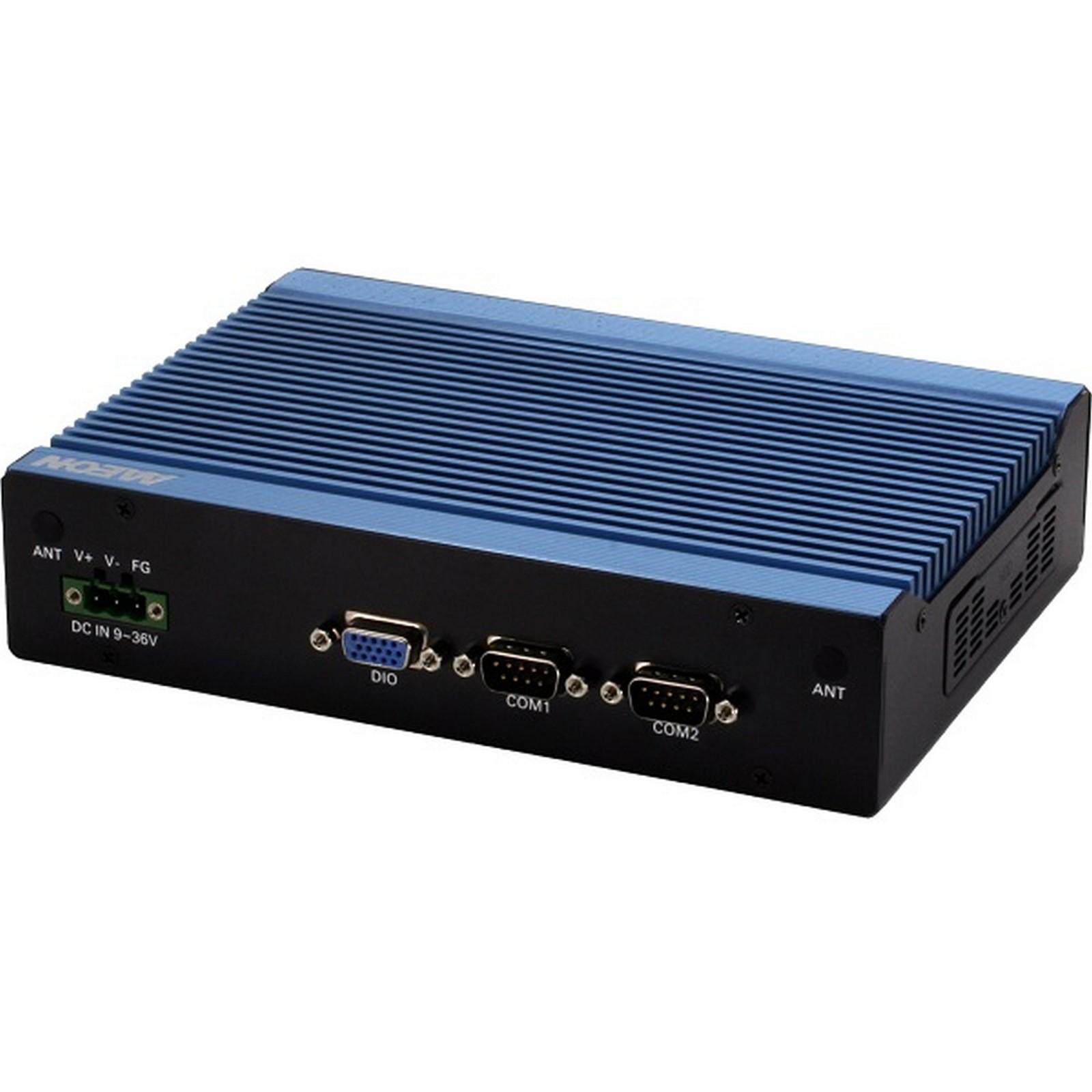

BOXER-6643-TGU

Home  >   AAEON  >   Computing Systems  >
Fanless Embedded Box PC  >   Entry-level Box PC

Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor

Product Feature

  • Extreme Computing Power with Intel® SoC Processor
  • DDR4 slot x2, up to 64GB
  • Support High Speed NVMe storage (M.2 2280)
  • GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
  • Supports M.2 3052 B Key for 5G module
  • Wide Range 9-36V DC input
  • Wide Range -20~65 °C Operating Temperature

Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor

SYSTEM
CPUIntel® Core™ i7-1185G7E
Intel® Core™ i5-1145G7E
Intel® Core™ i3-1115G4E
CHIPSETIntel® SoC
SYSTEM MEMORYDDR4 SO-DIMM x 2, up to 64GB
DISPLAY INTERFACEHDMI 1.4 x 2
STORAGE DEVICEM.2 2280 M key slot x 1 (PCIex4),
2.5” SATA SSD/HDD bay x 1
ETHERNETIntel® i219 x 1, i225 x 1
I/OHDMI x 2
RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1)
USB 3.2 Gen 2 x 4
DB-9 x 2 for RS-232/422/485
DB15 x1 Male for Digital I/O 8-channel
Line out x 1
3 pin 9~36V Power Input x 1
Power Button with LED x 1
EXPANSIONM.2 2280 M Key x 1
M.2 3052 B Key x 1 (for 5G module)
Full-Size Mini Card x1 (mSATA/PCIe Auto Switch)
SIM x 1
INDICATORPower / System LED
OS SUPPORTWindows® 10 IoT Enterprise 64-bit
Linux Ubuntu 20.04.2 / Kernel 5.8
POWER SUPPLY
POWER REQUIREMENT9-36V DC-in with 3-pin terminal block
MECHANICAL
MOUNTINGWall mount kit
DIMENSIONS (W X H X D)250 x 143 x 51.5 (with bracket)
200 x 143 x 44.5 (w/o bracket)
GROSS WEIGHT1.5 (kg)
NET WEIGHT-
ENVIRONMENTAL
OPERATING TEMPERATURE-20°C ~ 65°C, according to IEC68-2-14 with 0.5 m/s AirFlow
STORAGE TEMPERATURE-40°C ~ 80°C
STORAGE HUMIDITY5 ~ 95% @ 40C, non-condensing
ANTI-VIBRATION2 Grms/ 5 ~ 500Hz/ operation
ANTI-SHOCK-
CERTIFICATIONCE/FCC Compliance
Name Type Version Release Date
Bios QIG 27 July 2021
