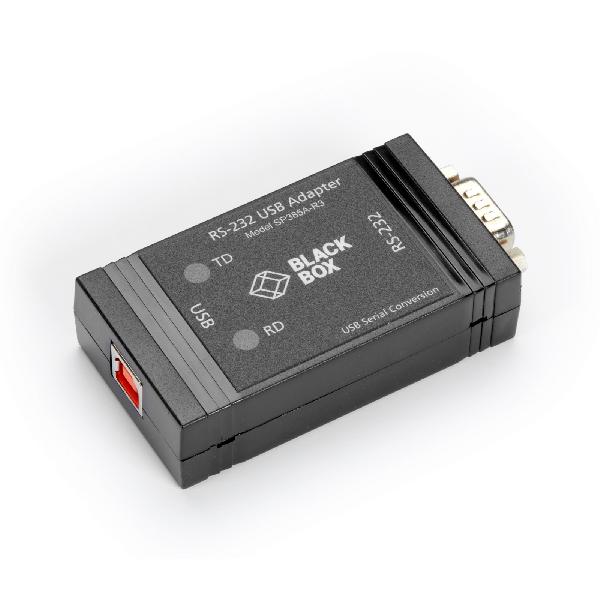

USB to RS232 Opto-Isolated Converter

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Hubs

Connect an RS-232 device to a USB port and gain isolation from voltage spikes and ground loops.

Product Feature

  • Connects an RS-232 device to a PC's USB port
  • Protect your computer and RS-232 devices from voltage spikes and ground loops

This compact opto-isolator enables you to attach an RS-232 device to a USB port and gain isolation from voltage spikes and ground loops. It doesn't require PCI or ISA slots, or IRQs. Using an optional USB Type A - Type B cable, simply plug the opto-isolator into the USB port and Windows will configure the device as an additional COM port.

General
CE ApprovalYes
Isolation2001 volts RMS
Operating EnvironmentOperating temperature: 32° to 158° F (0° to 70° C);
Operating Relative Humidity: 0 to ~95% non-condensing;
Storage temperature: -40° to 185° F (-40° to 85° C)
Operating Systems SupportedWindows OS
PowerFrom the USB bus
RoHSYes
SpeedSerial port data rate: 460.8 Kbps;
USB port speed: 12 Mbps (full)
Item Specifications

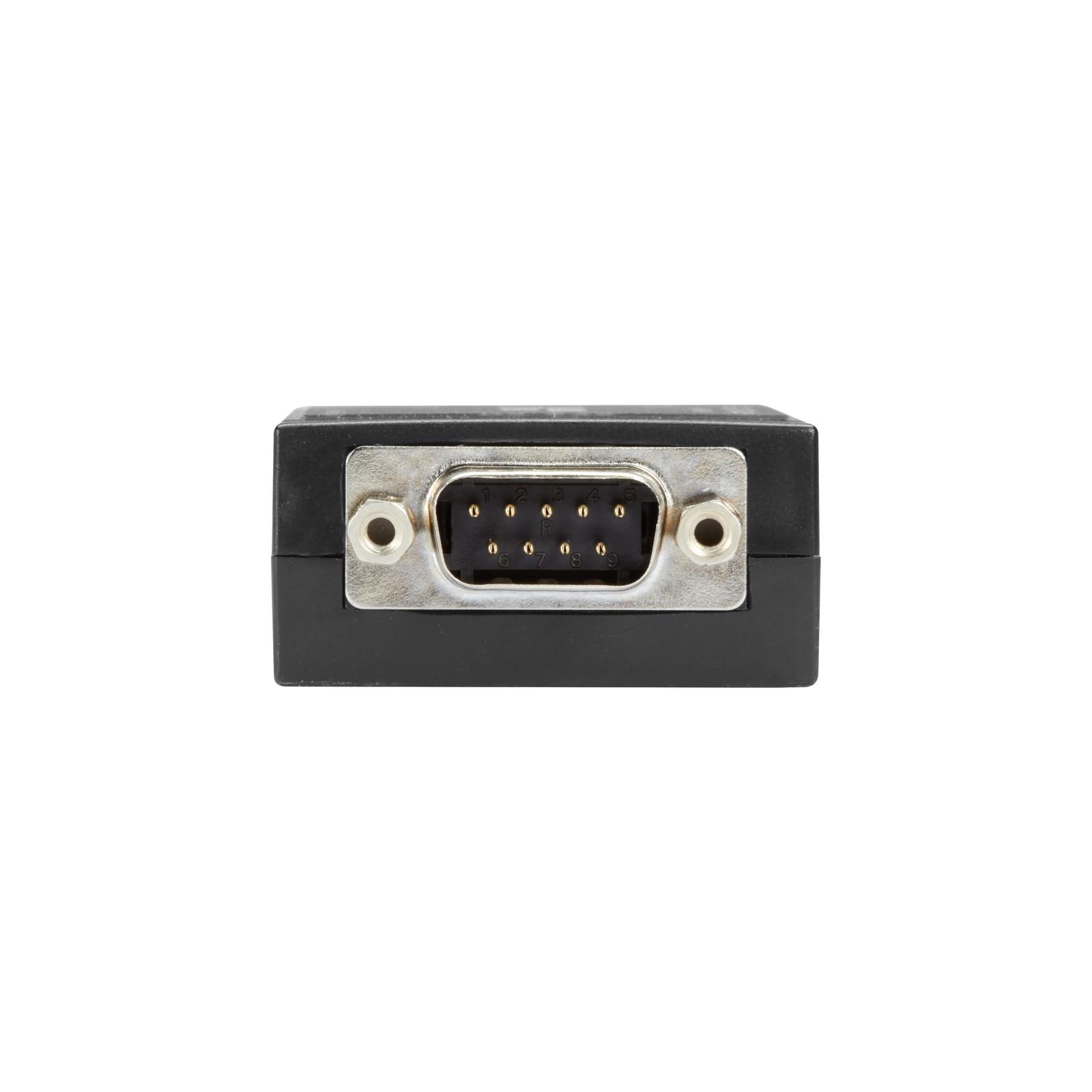

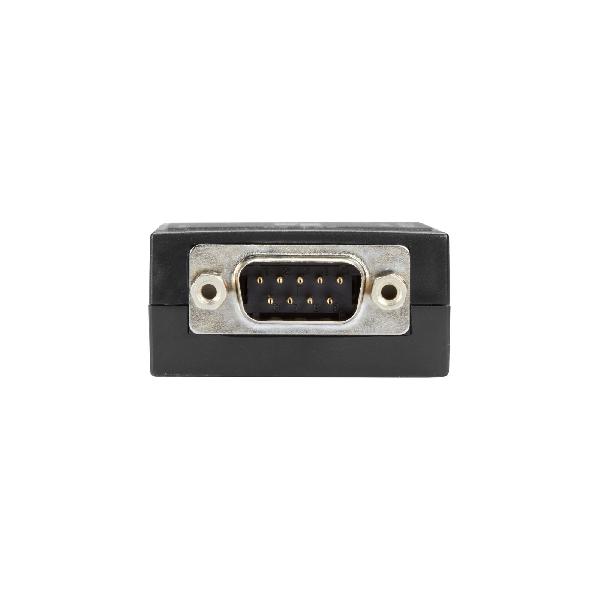

Connectors(1) DB9 M, (1) USB Type B
Dimensions0.79"H x 1.68"W x 3.0"D (2.0 x 4.2 x 7.6 cm)
IndicatorsLEDs: (1) RD, (1) TD
Weight6.4 oz. (0.18 kg)
ReplacesSP385A-R2

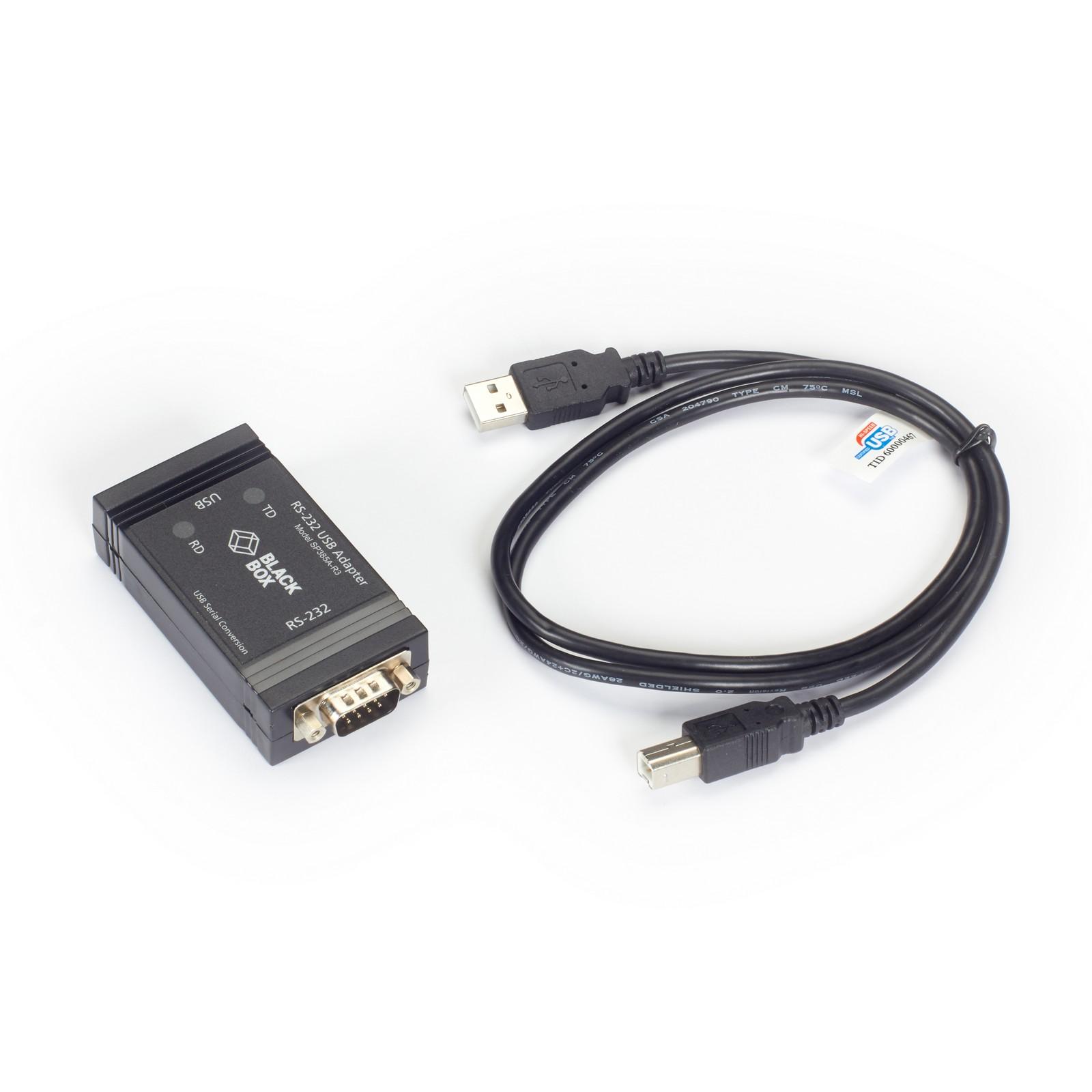

Product Includes:

  • (1) USB to RS-232 Converter with Isolation
  • (1) USB cable (3-ft.)
  • Drivers on CD
  • Quick Start Guide
Name Type Version Release Date
USB to RS-232 or RS-422/485 Isolated Converter Datasheet 03 August 2021
Opto-Isolated Converter User Manual Manual 03 August 2021
USB to RS-232 or RS-422/485 Isolated Converter QIG 03 August 2021
