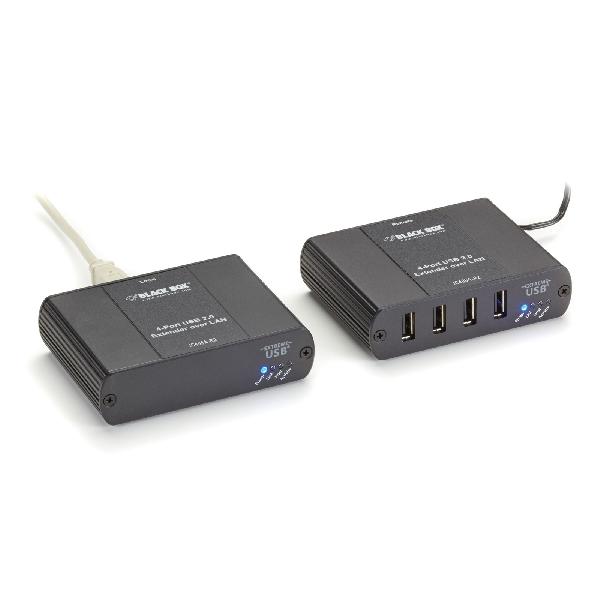

USB 2.0 Extender - CATx/LAN, 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals.

Product Feature

  • Transmits up to 328 feet (100 m) over CATx or over a LAN.
  • Includes a local unit and remote unit with four USB 2.0 ports.
  • Supplies 1A max power to the USB devices.
  • Extends USB signals at speeds up to 480 Mbps.
  • Plug and play. No drivers to install on your computer.
  • Works with Windows®, Mac® OS X®, and Linux® systems.

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control, KVM extension, Digital Sinage, Remote Desktop USB connections, Security web cameras and access control, Medical device connectivity, USB Web device sharing: printing scanning , storage. The extender can be used in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.



Part No. IC408A-R2

General
CE ApprovalYes
DistanceBetween local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
Network OperationWhen used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
Operating Humidity20 to 80%, noncondensing
Operating Temperature32 to 122° F (0 to 50°C)
Power InputFrom 100-240 VAC, 50-60 Hz adapter (included)
Power Output24 VDC
RoHSYes
SpeedsUp to 480 Mbps*
StandardsFCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
Storage Humidity10 to 90%, noncondensing
Item Specifications

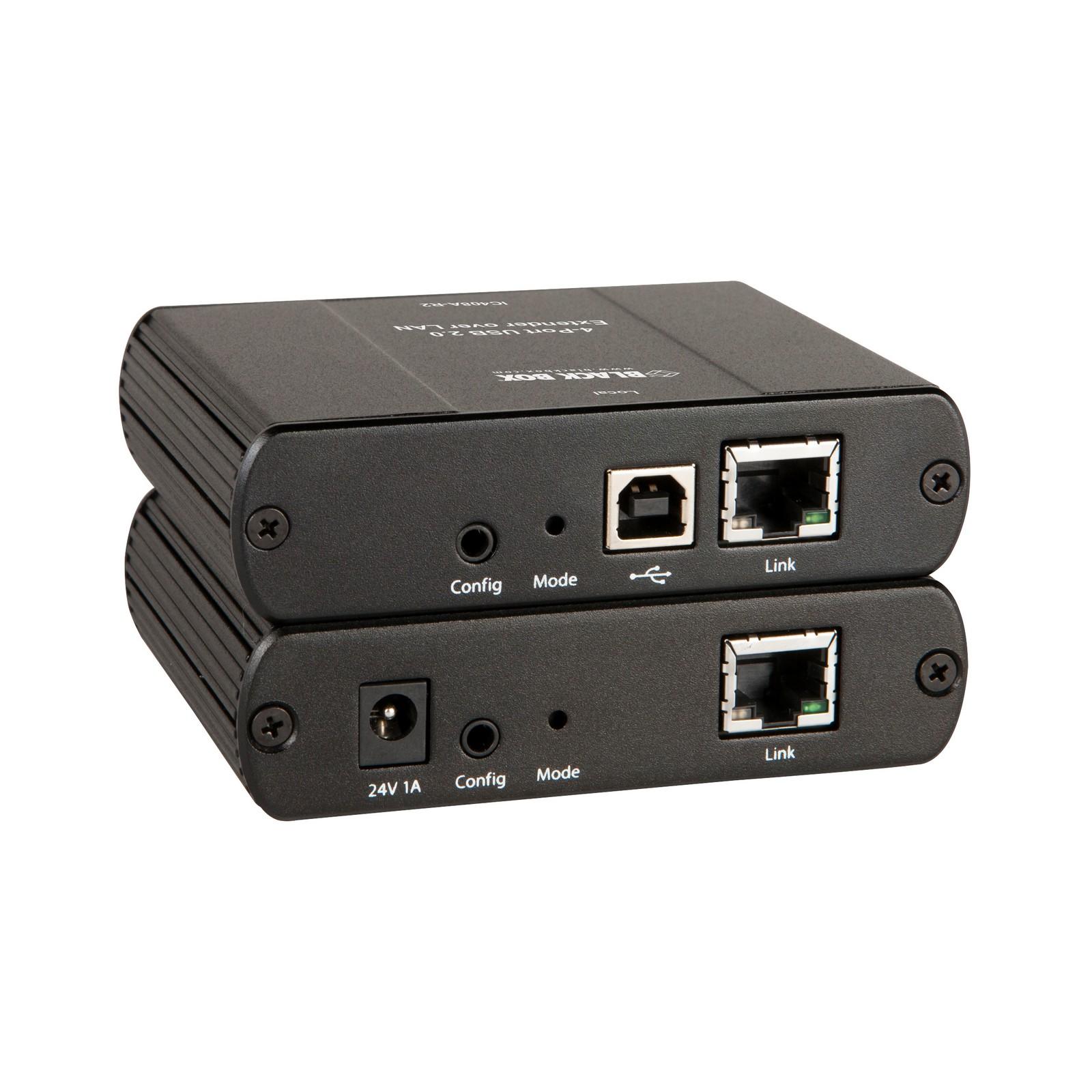

ConnectorsLocal unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
Dimensions1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)

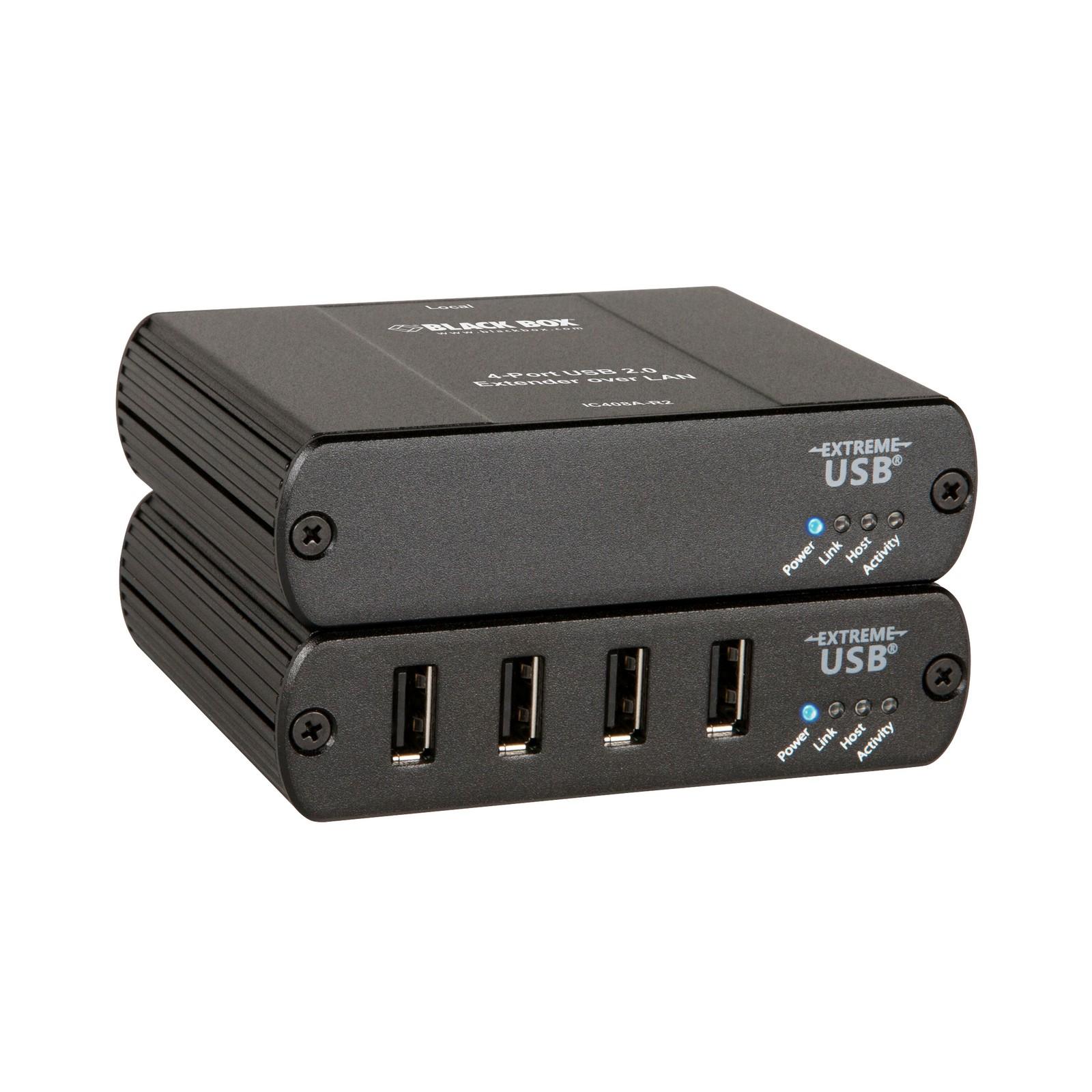

IndicatorsOn each unit: (4) LEDs (Power, Link, Host, Activity)
Weight3.1 lb (1.4 kg)

Product Includes:

  • Local extender unit
  • Remote extender unit
  • USB cable
  • Power adapter
  • US Power cord
  • Quick start guide
Name Type Version Release Date
USB 2.0 Extender over LAN (4-Port) Datasheet Datasheet 04 August 2021
4-Port USB 2.0 Extender over LAN Version 2 (IC408A-R2) Manual 04 August 2021
USB 2.0 Extender over LAN (4-Port) QIG 04 August 2021
