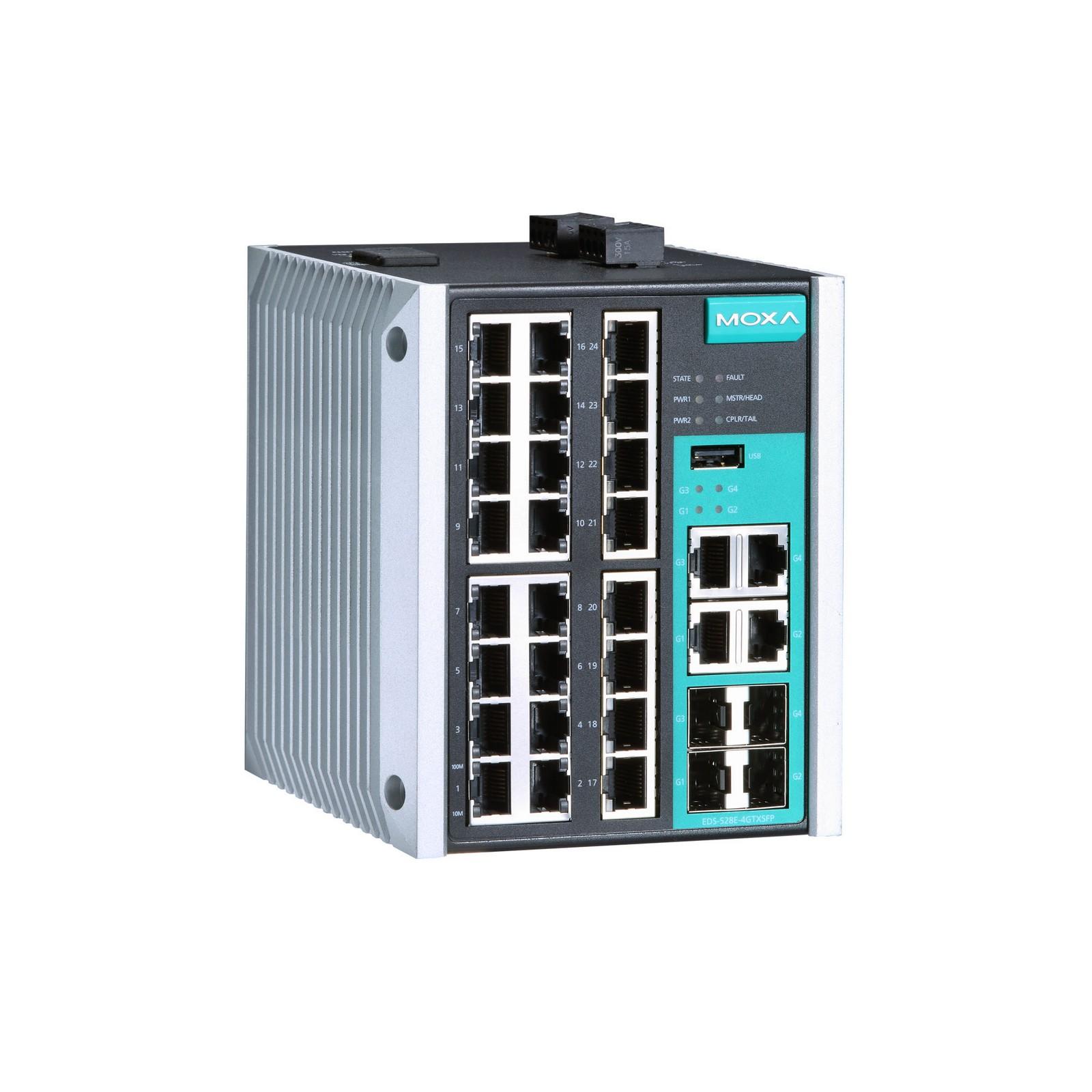

EDS-528E Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

24+4G-port Gigabit managed Ethernet switches

Product Feature

  • 4 Gigabit plus 24 fast Ethernet ports for copper and fiber
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),RSTP/STP, and MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

The EDS-528E standalone, compact 28-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 24 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-528E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies, Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, increase the system reliability and availability of your network backbone. The EDS-528E also supports advanced management and security features.

In addition, the EDS-528E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.



Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through email and relay output
  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade

Input/Output Interface

Alarm Contact Channels1, Relay output with current carrying capacity of 1 A @ 24 VDC
ButtonsReset button
Digital Input Channels1
Digital Inputs+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)24
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)4
10/100/1000BaseT(X) Ports (RJ45 connector)Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP, Port-based VLAN
Industrial ProtocolsEtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
Management

LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option

66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP,

RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy ProtocolsLink Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security

Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB

authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock,

RADIUS, SSH, SMTP with TLS

Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups2048
MAC Table Size16 K
Max. No. of VLANs64
Packet Buffer Size1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

USB Interface

Storage PortUSB Type A

LED Interface

LED Indicators

PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit

combo port, MSTR/HEAD, CPLR/TAIL

Serial Interface

Console PortUSB-serial console (Type B connector)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

ConnectionEDS-528E-4GTXSFP-HV Series: 1 removable 4-contact and 1 removable 5-contact terminal block
EDS-528E-4GTXSFP-LV Series: 2 removable 4-contact terminal block(s)
Input CurrentEDS-528E-4GTXSFP-LV Series: 0.47 A @ 24 VDC
EDS-528E-4GTXSFP-HV Series: 0.11/0.055 A @ 110/220 VDC, 0.21/0.13 A @ 110/220 VAC
Input VoltageEDS-528E-4GTXSFP-LV Series: 12/24/48/-48 VDC, Redundant dual inputs
EDS-528E-4GTXSFP-HV Series: 110/220 VDC/VAC, Single input
Operating VoltageEDS-528E-4GTXSFP-LV Series: 9.6 to 60 VDC
EDS-528E-4GTXSFP-HV Series: 88 to 300 VDC, 85 to 264 VAC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 in)
Weight1850 g (4.08 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureEDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F)
EDS-510E-3GTXSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyUL 61010-2-201, EN 60950-1 (LVD)
EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Power SubstationIEC 61850-3, IEEE 1613
RailwayEN 50121-4
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
VibrationIEC 60068-2-6

MTBF

Time774,634 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-528E Series Datasheet V1.1 27 August 2019
