R2000 Dual

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

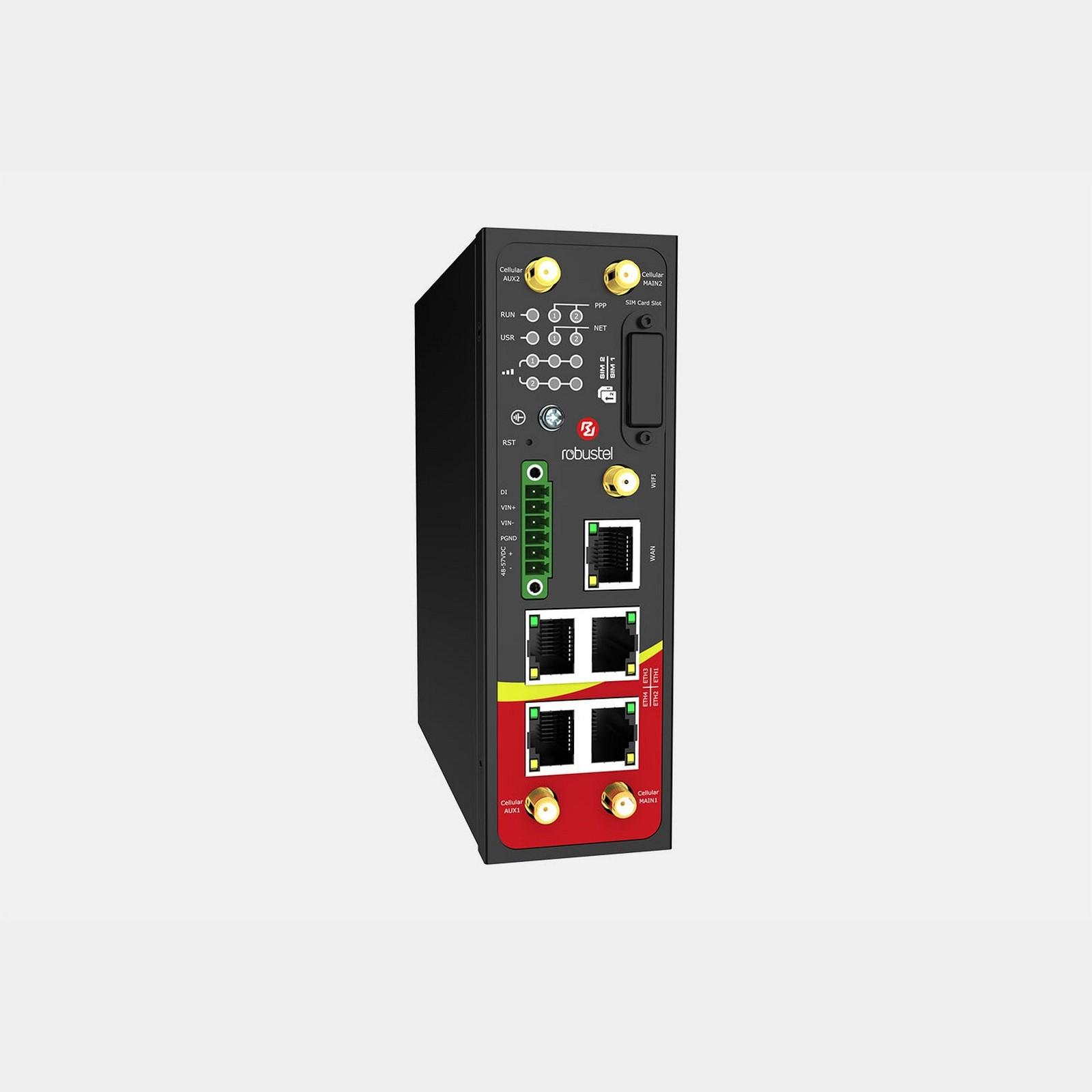

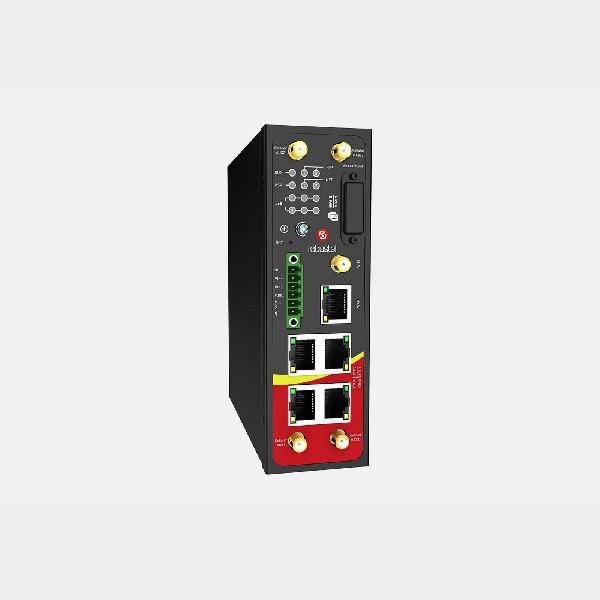

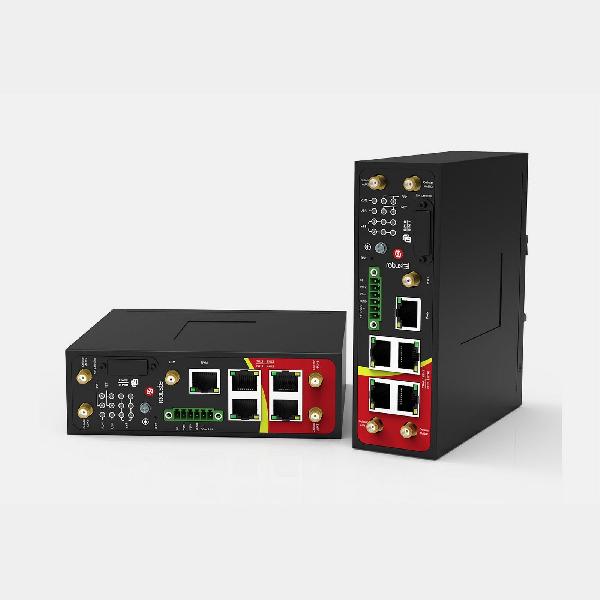

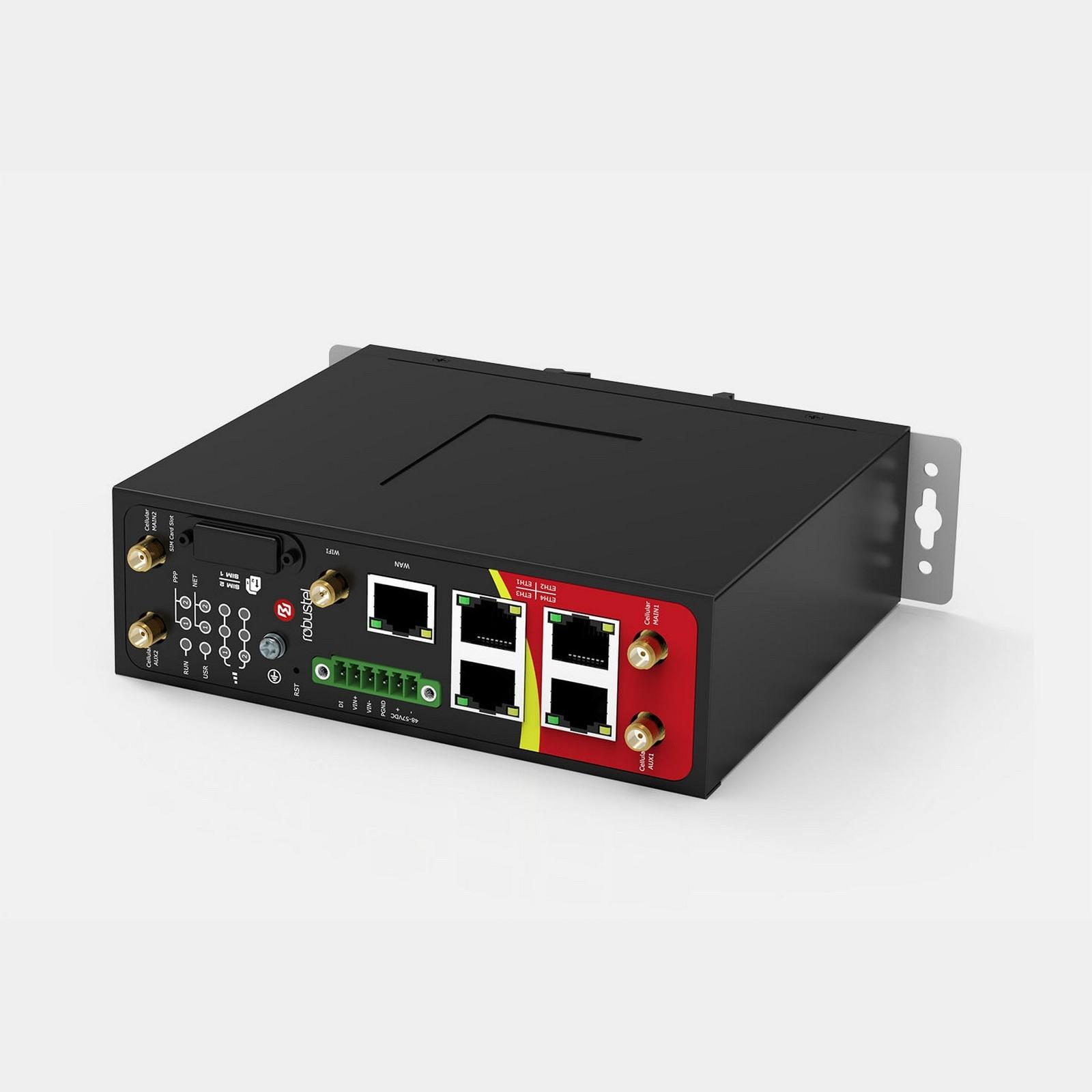

Industrial Dual Module Cellular VPN Router with Power over Ethernet.

Product Feature

  • Embedded dual module supporting two SIM cards online simultaneously
  • Four fast Ethernet LAN port supporting Power over Ethernet 12.95 W of POE/30 W of POE+ shared across the four LAN ports
  • Supports Cellular, WAN, WLAN link backup and ICMP detection; also supports cold backup, warm backup and load balancing
  • WAN – Static/PPPOE/DHCP Client
  • Wi-Fi supporting AP mode and Client mode
  • VPN tunnel – IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Auto reboot via SMS/Timing
  • Supports RCMS Cloud
  • Management and upgrading via web user interface/SMS/CLI/RCMS
  • Supports various APP like QoS, DDNS, VRRP, Captive Portal, SNMP, WLAN multi, multi-language
  • Easy wall or DIN rail mounting options

INTRODUCTION

Robustel’s R2000 Dual Industrial Dual Module Cellular VPN Router with Power over Ethernet provides fast and reliable communication for monitoring and controlling remote equipment. The added new feature, Power over Ethernet, makes installing or expanding much simpler and cheaper for both power and data transmission.

The R2000 Dual router adds the Power over Ethernet (POE) function, which can provide DC power to such devices while transmitting data signals to some IP-based terminal devices. Not only save network construction costs, reduce manpower and material resources, but also facilitate installation and management.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong. The main application areas of the R2000 Dual router are: ATMs, vending machines, telephone booths and other terminals; branches, convenience stores, fast food restaurants, digital signage, IP video surveillance, etc.

Cellular Interface

StandardsGSM/GPRS/EDGE/UMTS/WCDMA/HSPA/HSDPA/HSUPA/HSPA+/DC-HSPA+/LTE
FDD LTEmax. 150/50 Mbps (DL/UL) @20M BW cat4
TDD LTEmax. 100/50 Mbps (DL/UL)
DC-HSPA+42/5.76 Mbps (DL/UL)
HSPA+max. 21.6/5.76 Mbps (DL/UL)
WCDMA384/384 kbps (DL/UL)
EDGE236.8 kbps (DL/UL)
GPRS85.6 kbps (DL/UL)
SIM2 (3 V & 1.8 V)
ConnectorSMA-K (2 x MAIN + 2 x AUX)

Ethernet Interface

Number of ports1 x WAN and 4 x LAN (10/100 Mbps)
Magnet isolation protection1.5KV

WLAN Interface

Standard802.11b/g/n, supporting AP and Client mode
Data speed150 Mbps
Frequency band2.412 – 2.485 GHz
SecurityWEP, WPA, WPA2
Encryption64/128 AES, TKIP
ConnectorRP-SMA, female

Device Interface

POE (4 x LAN)Four ports power supply output
IEEE802.3 at/af standard compatibility
Maximum power output up to 30 W per port
Power management function
Voltage Range: 48 to 57V DC
Digital Input (DI)When router is used in in-vehicle networks, DI function makes router enter a state of low power
consumption which can avoid the battery excessive consumption of the vehicle.

System

1 x Reset button
LED indicators: 1 x RUN, 2 x PPP, 1 x USR, 2 x NET, 6 x RSSI

Software

Network protocolsPPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, SSH,
Telnet, SNMP, AAA etc.
VPN tunnelIPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
FirewallSPI, anti-DoS, Filter, Access Control
ManagementWeb, SMS, CLI

Power Supply and Consumption

Connector3.5 mm terminal block
Input voltage9 to 57V DC
Power consumption100 mA@12 V
Data link: 800 mA (peak)@12 V
With ground screw

Physical Characteristics

Housing & WeightMetal, 750 g
Dimension145 x 130 x 46 mm
InstallationFlat surface placement, wall mounting and 35 mm DIN rail mounting
Approvals
RegulatoryRCM, CE, EAC,
EnvironmentalRoHS2.0, WEEE
EMIEN 55032: 2015/AC: 2016 (CE & RE) Class B
EMSIEC 61000-4-2 (ESD) Contact Level 2; Air Level 3
IEC 61000-4-3 (RS) Level 2
IEC 61000-4-4 (EFT) Level 2
IEC 61000-4-5 (Surge) Level 3
IEC 61000-4-6 (Cs) Level 2
Name Type Version Release Date
R2000 Dual Datasheet Datasheet V1.1 24 July 2020
