TN-5900 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Secure Routers  >   Secure Routers

EN 50155 16-port NAT router

Product Feature

  • Designed for rolling stock backbone networks
  • Dual bypass relay
  • Isolated power input range from 24 to 110 VDC
  • Complies with all EN 50155 mandatory test items
  • -40 to 75°C operating temperature range
  • Turbo Ring and RSTP/STP for network redundancy




Introduction

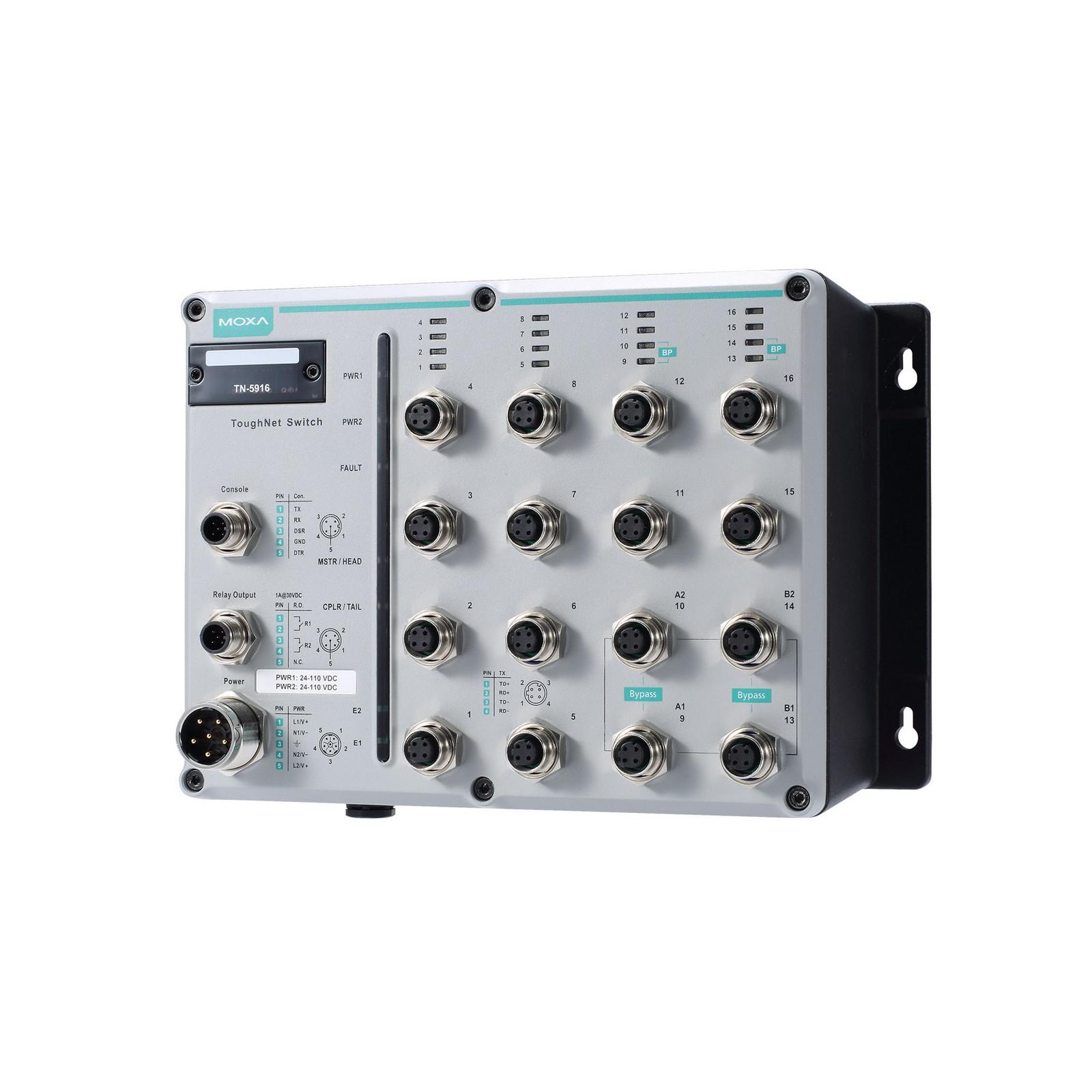

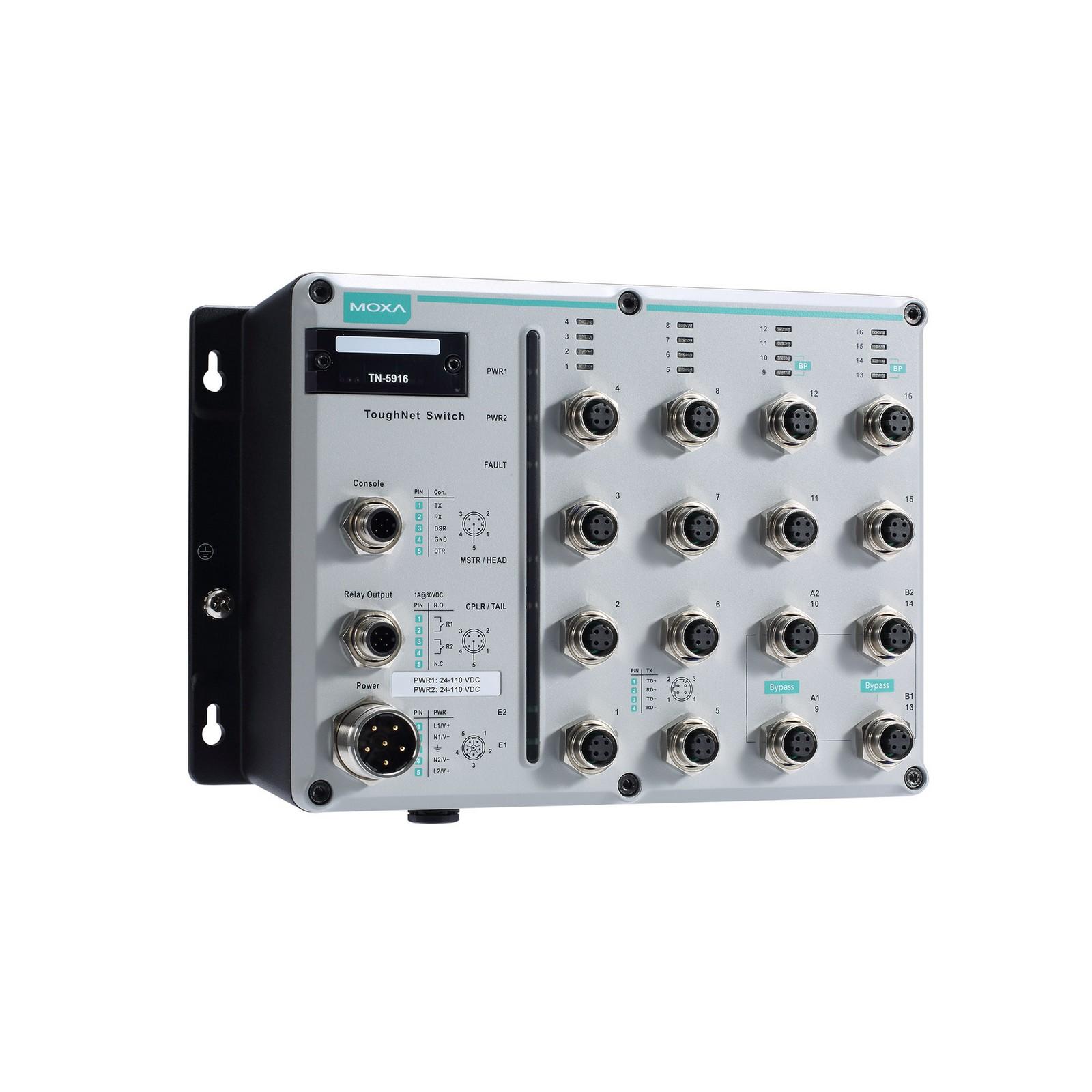

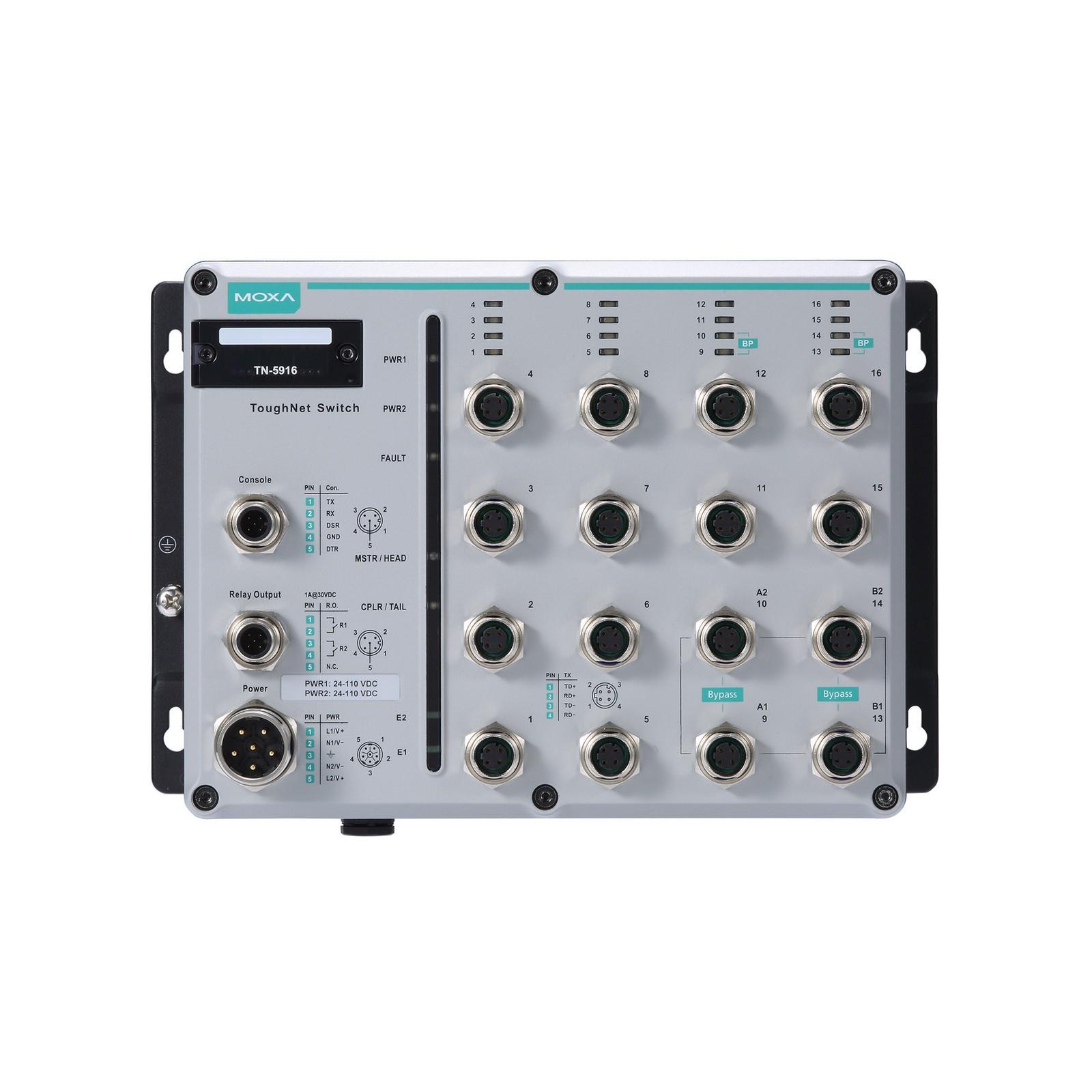

The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.



Additional Features and Benefits

  • Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
  • NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
  • Leading EN 50155 Ethernet router for rolling stock applications
  • Turbo Ring and RSTP/STP for network redundancy
  • IGMP V1/V2 snooping for filtering multicast traffic
  • IEEE 802.1Q VLAN to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
  • Panel mounting or DIN-rail mounting installation capability
  • SNMPv3, HTTPS, and SSH to enhance network security
  • SNMP v1/v2c/v3 for different levels of network management
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • Line-swap fast recovery
  • Automatic recovery of connected device’s IP addresses
  • LLDP for automatic topology discovery in network management software
  • Configurable by web browser, Telnet/serial console, and CLI Windows utility

Input/Output Interface

Alarm Contact Channels2 x relay output in one M12 A-coded 5-pin male connector with current
carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)12
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector
with bypass relay)
4
StandardsIEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.3 for 10BaseT
IEEE 802.3ad for Static Port Trunk
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control

Ethernet Software Features

Configuration OptionsCommand Line Interface (CLI), Command Line Interface (CLI) through
Serial/Telnet/SSH, Web Browser (HTTP/HTTPS), Windows Utility
Filter802.1Q, IGMP v1/v2, Static Multicast
ManagementBack Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP,
Port Mirror, QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap,
SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management
MIBRFC1213
Redundancy ProtocolsLink Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2
Routing RedundancyVRRP
SecurityBroadcast storm protection, HTTPS/SSL, Local Account Accessibility,
TACACS+ , Port Lock, SSH
Time ManagementNTP Server/Client, SNTP
Unicast RoutingStatic Route, RIPV1/V2

Switch Properties

IGMP Groups256
MAC Table Size8 K
Max. No. of VLANs16
VLAN ID RangeVID 1 to 4094

LED Interface

LED IndicatorsSTATE, PWR1, PWR2, FAULT, 10/100M

NAT

Features1-to-1, N-to-1, Port forwarding

Serial Interface

Console PortM12 A-coded male connector

Power Parameters

Input Current0.85 A @ 24 VDC, 0.17 A @ 110 VDC
Input Voltage24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2
Operating Voltage16.8 to 137.5 VDC
Overload Current ProtectionSupported
Power ConnectorM23 connector
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP54
Dimensions250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in)
Weight4,030 g (8.88 lb)
InstallationDIN-rail mounting (optional), Wall mounting
ProtectionTN-5916-WV-CT-T: PCB conformal coating

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Altitude2000 m

Standards and Certifications

EMCEN 55032/24
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
FreefallIEC 60068-2-31
Radio FrequencyFCC
RailwayEN 50121-4, EN 50155, IEC 60571
Railway Fire ProtectionEN 45545-2
SafetyIEC 60950-1, UL 61010-2-201
ShockIEC 60068-2-27, IEC 61373, EN 50155
VibrationIEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

Time556,025 hrs
StandardTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for TN-5900 Series Datasheet V1.0 12 November 2018
