USB Extenders

The ADDERLink X-DVI PRO high performance KVM extender delivers uncompressed video signals up to 50m in real-time

Product Feature

AdderLink X-DVI PRO is a high performance KVM (Keyboard, Video and Mouse) extender that
enables you to locate your critical computing hardware in a secure and temperature controlled
environment, away from the user work station environment, whilst maintaining the same user
experience. It can transmit a Single Link DVI video stream, USB 2.0 and analog audio over a
single CATx cable.

  • Plug and play,
  • 50 meter extension distance,
  • 1920 x 1200 @ 60Hz maximum resolution,
  • USB 2.0 Low and Full speed,
  • Keyboard, mouse tablet and touch.

Part of the ADDERLink® X-DVI PRO range, the high performance X-DVI PRO digital video and USB extender enables
you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed
digital video and audio is distributed in real-time and with zero latency, allowing the user to maintain an at-the-PC
experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.

Hardware compatibility

All computers with DVI-D, USB and audio - requirement dependent.

DVI-D Interface – digital only

The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz.

USB 2.0 Low and Full speed

Transparent USB 2.0 (Low and Full speed)
that supports HID and mass storage
devices to a maximum of 50 meters.
You may need to reduce maximum
cable length by 5 meters if a USB hub is
connected to the receiver unit.


The system delivers analog stereo audio
(Line Out). 8 channels of HDMI audio
are supported with sample sizes of 16,
20 or 24 bits at 32kHz, 44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, or 192kHz
(simultaneously with the jack audio).

Software compatibility

All known operating systems.

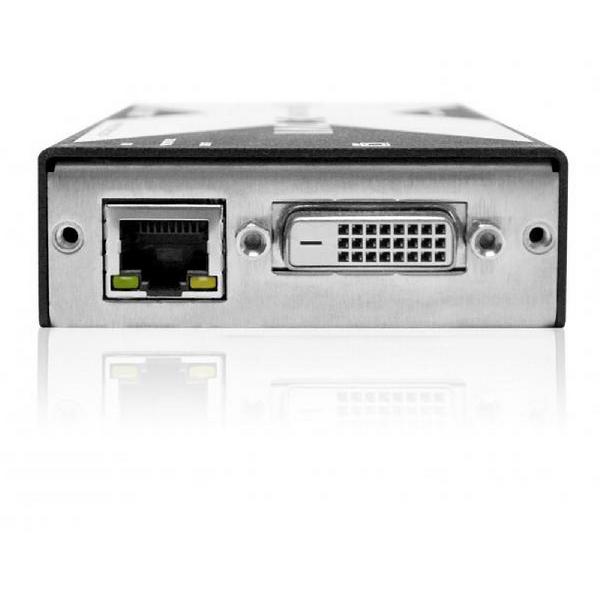

Computer connections Transmitter (TX)

DVI-D, audio 3.5mm in, USB type B.

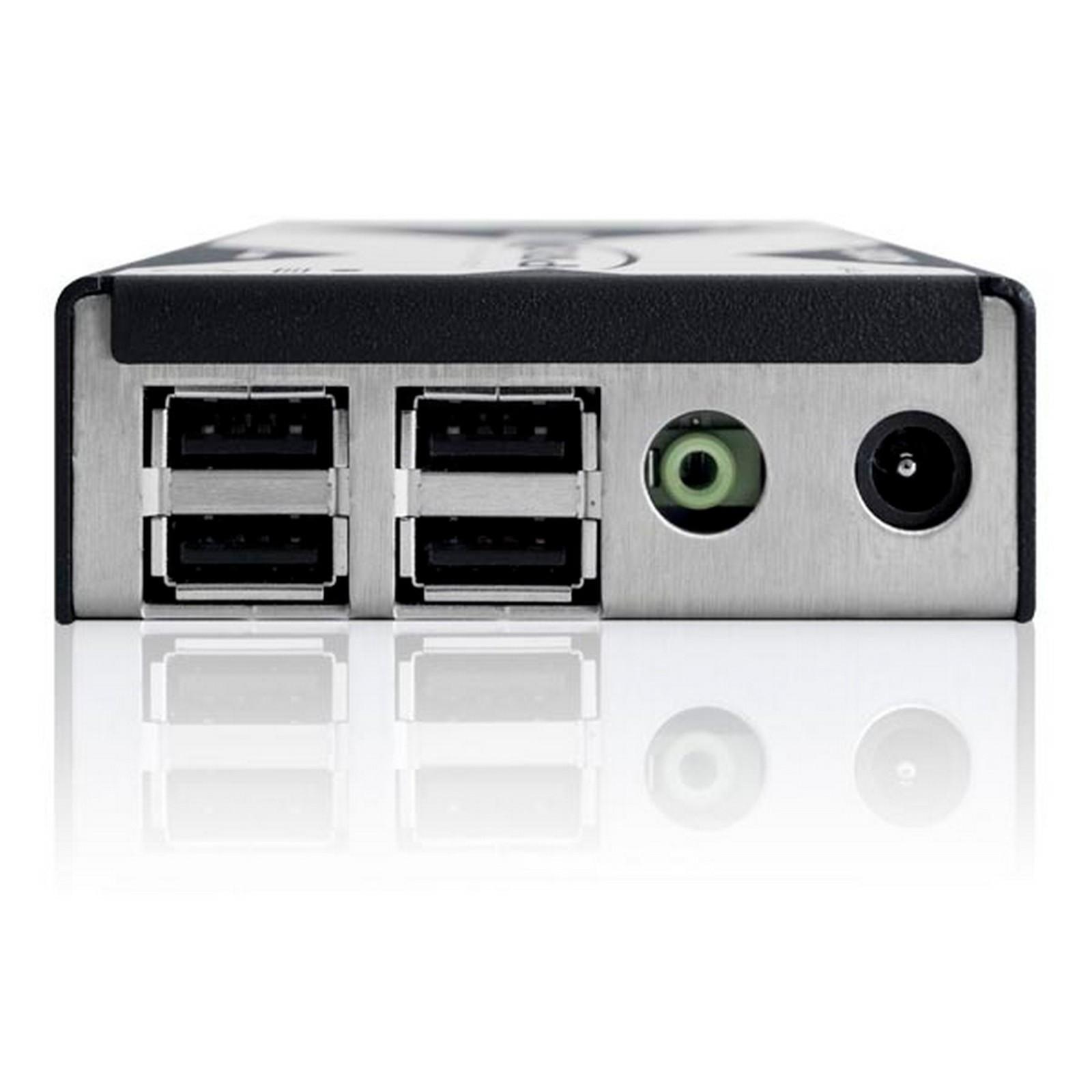

Computer connections Receiver (RX)

DVI-D, audio 3.5mm out, USB type A x 4.

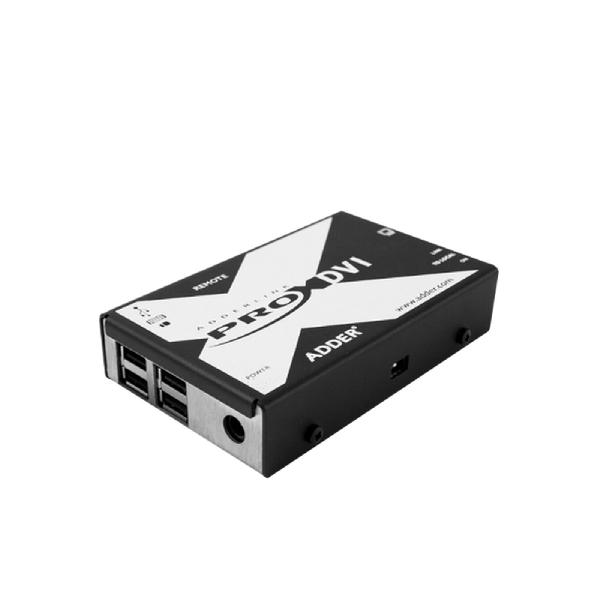

Physical design

Compact case, robust metal construction
120mm / 4.7’’ (w) x 75mm / 3’’(d) x
26mm / 1’’ (h) 320g / 0.7 lb.


Rx: 2.5mm DC jack (power adapter
included),100-240VAC 50/60Hz, 0.4A,
input to power adapter, 5VDC 12.5W
output from power adapter.
Tx: Powered from single USB connection.
Optional 2.5mm DC jack (power adapter
not included.

Operating temperature

0 to 40ºC / 32 to 104ºF.


Name Type Version Release Date
ADDERLink X-DVI PRO Datasheet Datasheet V3.0 03 August 2020
