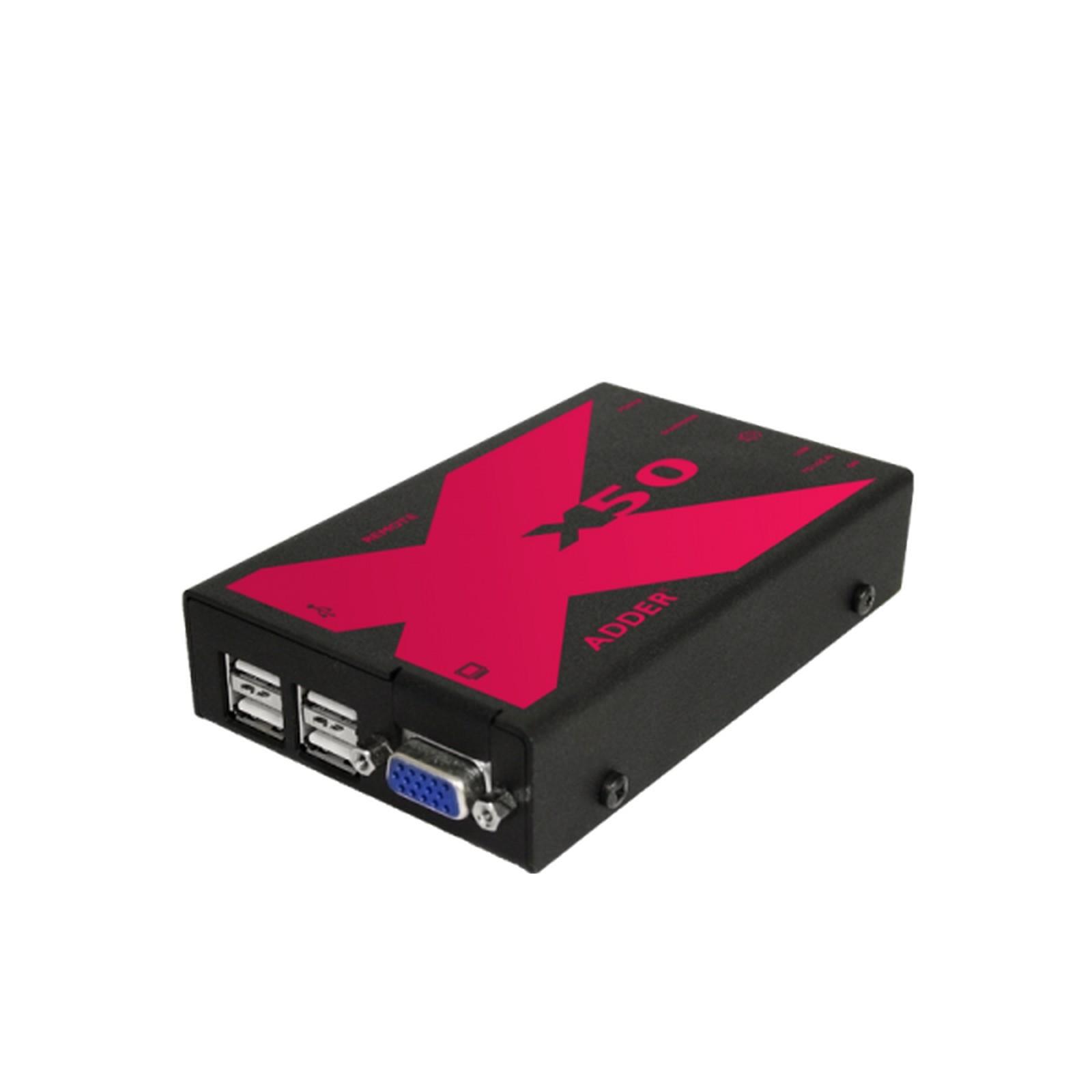

ADDERLink X50

Home  >   Adder  >   Extenders  >
USB Extenders

The ADDERLink® X50 KVM extender delivers sharp, bright, high resolution video to single user consoles up to 50m / 150ft away

Product Feature

  • Fully transparent Low/Full speed USB: delivers the highest possible levels of USB compatibility through a unique USB communication method. Integrated 4 port hub to support all USB 1.1 and 2.0 Low/Full speed devices.
  • High-performance video: industry leading video quality at high resolutions of 1920 x 1200 @ 60Hz over 50m (150ft)
  • Video compensation: broad range of ultra smooth, fine adjustments to video picture
  • True DDC Emulation: full supports 2-page Display Data Channel (DDC) ensuring all possible resolutions are supported
  • Fully platform independent: support for all common hardware platforms, and their associated peripherals, through fully transparent USB connections

ADDERLink® X50 is compact in size and delivers uncompressed, lossless extension of USB peripherals including Keyboards, Video and
Mice (KVM) up to 50m (150ft) over a single CAT5 or higher UTP cable. Sharp, bright and ultra high-resolution video plus digital stereo
audio are delivered over a VGA interface to a single screen with total USB 2.0 compatibility, regardless of the computer being
controlled or the peripheral being extended.

Video resolutions

1920x1200 x 60Hz at distances up to 50m / 150ft

Extension Distance

Up to 50m / 150 ft. using CATx cable
(x=5,5e,6)

Devices Supported

Supports all computers with USB style
keyboards and mice, HDD15 video
connectors and audio through 3.5 mm
audio jack. Supports all USB devices

O/S Compatability

All known software and operating
systems including Windows (all),
DOS, Linux, Unix, BSD, Sun OS, Solaris,
Mac OS, NetWare etc.

Connectors (local / computer)

ADDERLink X50: Video input/output: HDD15,
Keyboard/Mouse/USB devices USB type B,
Audio input/output: 3.5mm jack, CATx: RJ45
connector, Power: 2.5mm DC jack
ADDERLink X50-MultiScreen: Same as X50
plus extra Video input/output: HDD15 and
Serial: DB9tor

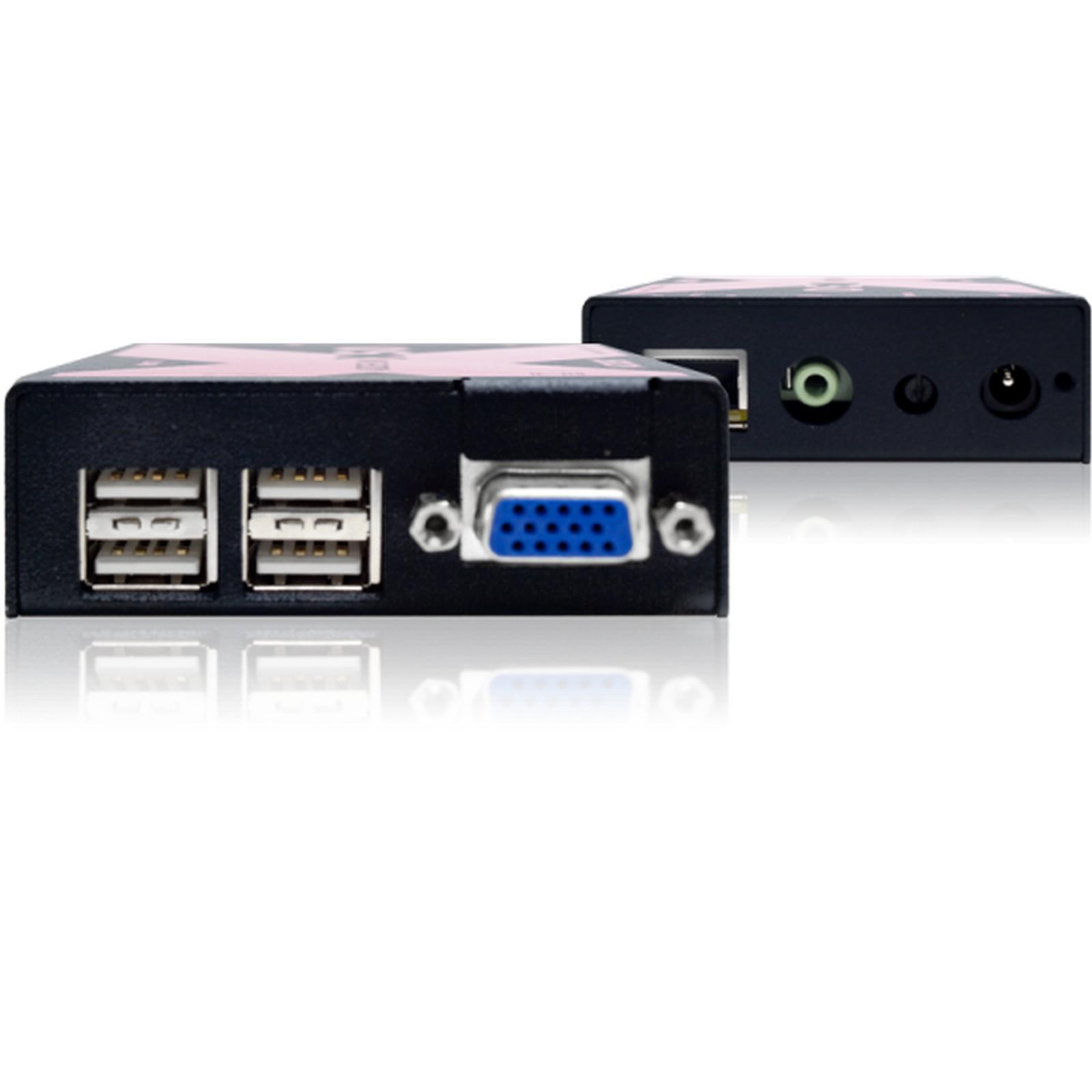

Connectors (remote / console)

ADDERLink X50: Video: HDD15,
Keyboard/Mouse/USB devices: USB Type A hub,
Audio: 3.5mm jack, CATx: RJ45 connector,
Power: 2.5mm DC jack
ADDERLink X50-MultiScreen: Same as X50
plus extra Video: HDD15 and Serial: DB9

Physical (local / computer)

ADDERLink X50: All metal case, 120mm / 4.7’’ (w)
x 75mm / 3’’(d) x 26mm / 1’’ (h) 430g / 1 lb.
ADDERLink X50-MultiScreen: All metal case, 120mm /
4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1 lb.

Physical (remote / console)

ADDERLink X50: All metal case, 120mm / 4.7’’ (w)
x 75mm / 3’’(d) x 26mm / 1’’ (h) 430g / 1 lb.
ADDERLink X50-MultiScreen: All metal case, 120mm /
4.7’’ (w) x 75mm / 3’’(d) x 44mm / 1.7’’ (h) 430g / 1 lb.

Power (remote only)

100 - 240VAC, 10W , 50-60Hz

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC
Name Type Version Release Date
ADDERLink X50 Datasheet Datasheet V3.0 05 August 2020
