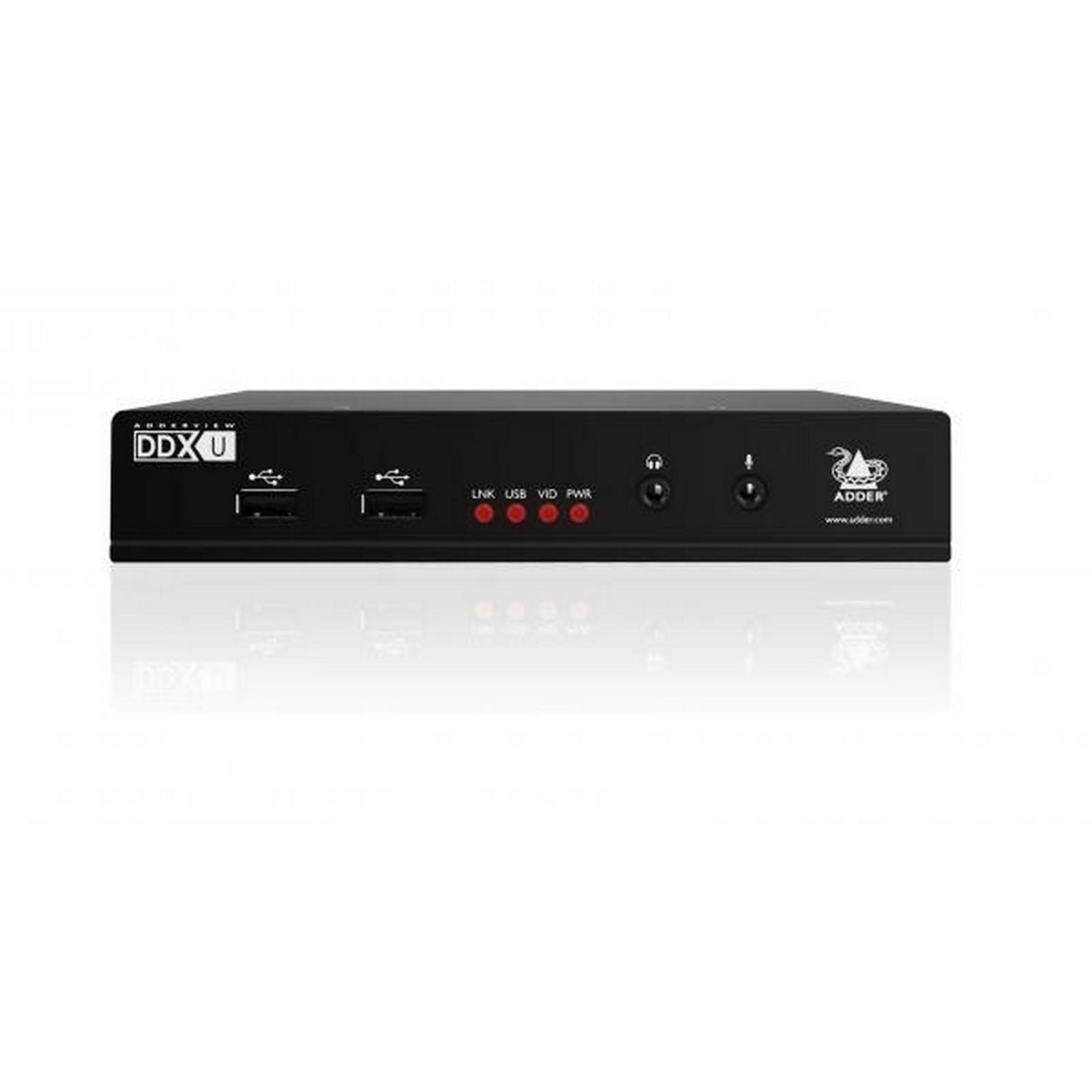

ADDERView DDX USR

Home  >   Adder  >   Matrix  >
Direct Connect Matrix

User station for the DDX range

Product Feature

  • Perfect digital video: uncompressed video technology provides ultra-low latency and pixel perfect digital video up to 24 bits per color at a maximum of 1920 x 1200 over 60Hz, including 1080p, with real time control
  • EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
  • Plug and Play: delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • Simple CATx cabling: analog audio, video and USB2.0 HID pass through a widely available SFTP cable, which also connects the central switch to the user console (up to 50m) and computer dongles (up to 10m)

Part of the ADDERView® DDX® range, the DDX USR is the user station for the DDX range, a high performance KVM Matrix that provides powerful functionality inside small, compact form factors. When connected directly to the DDX CAM, it creates a KVM extender. When combined with the DDX10 or DDX30, it forms an integral part of a KVM Matrix.

  • User Station for the Direct Connect Matrix system: hardware can be removed from desks up to 50m away from user console, reducing noise levels and increasing employee comfort and productivity
  • Easily expand your installation: for each new computer system and user, simply add a USR and CAM module, safeguarding your investment
  • High Quality video: lossless HD video in real-time

Hardware compatibility

All computers with DVI, VGA or display port video, and USB.

Video interface

The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz. Display port
version requires source to be DisplayPort Dual-Mode (DP++) compliant.

USB

Support simple USB HID (Human Interface Device) only. Keyboards, mice and
Windows supported touchscreens.

Software compatibility

All known operating systems.

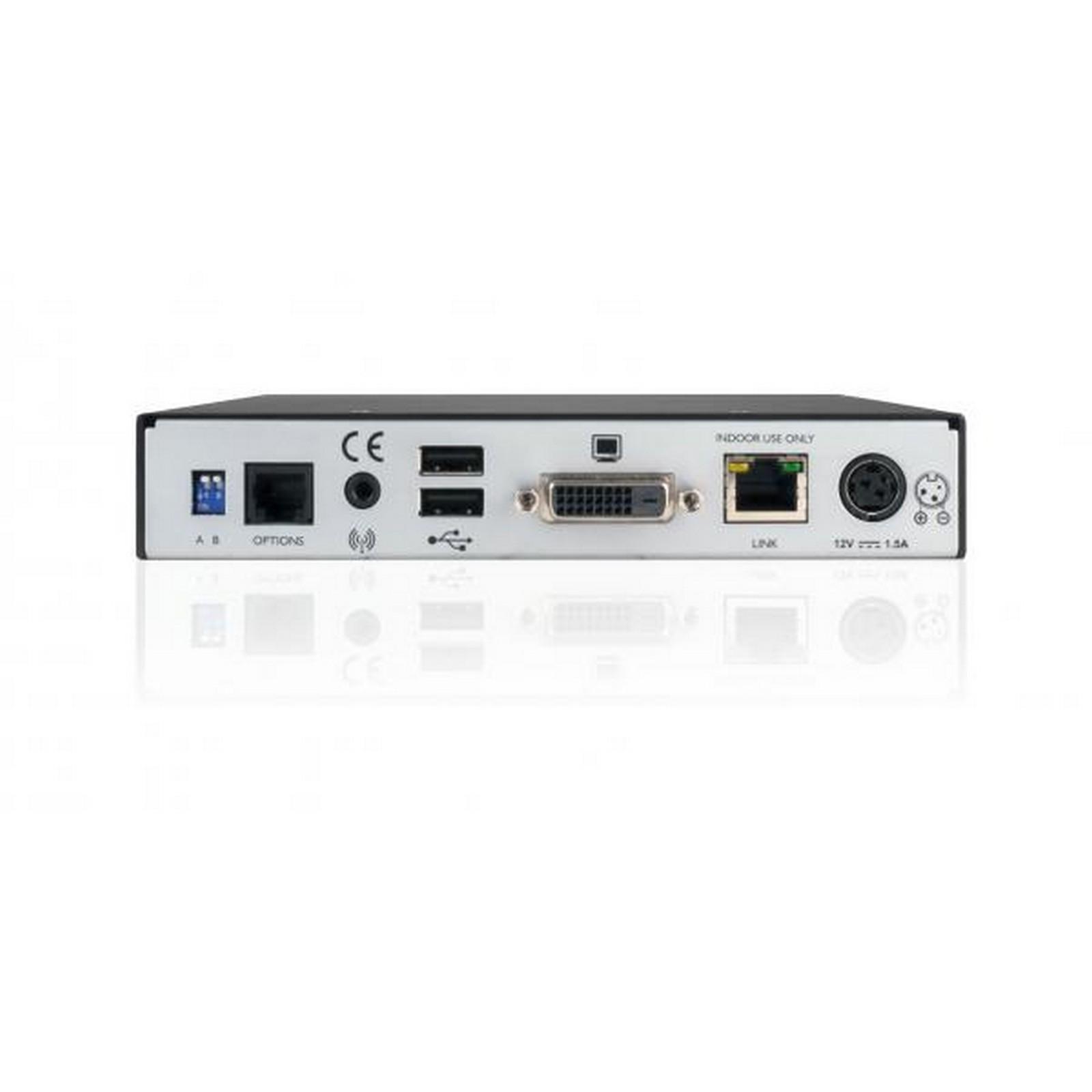

Peripheral connections (USR)

DVI-D, USB type A x 4, 6p6c options port, 3 x 3.5mm jack sockets for headphone out,
microphone in and line out.

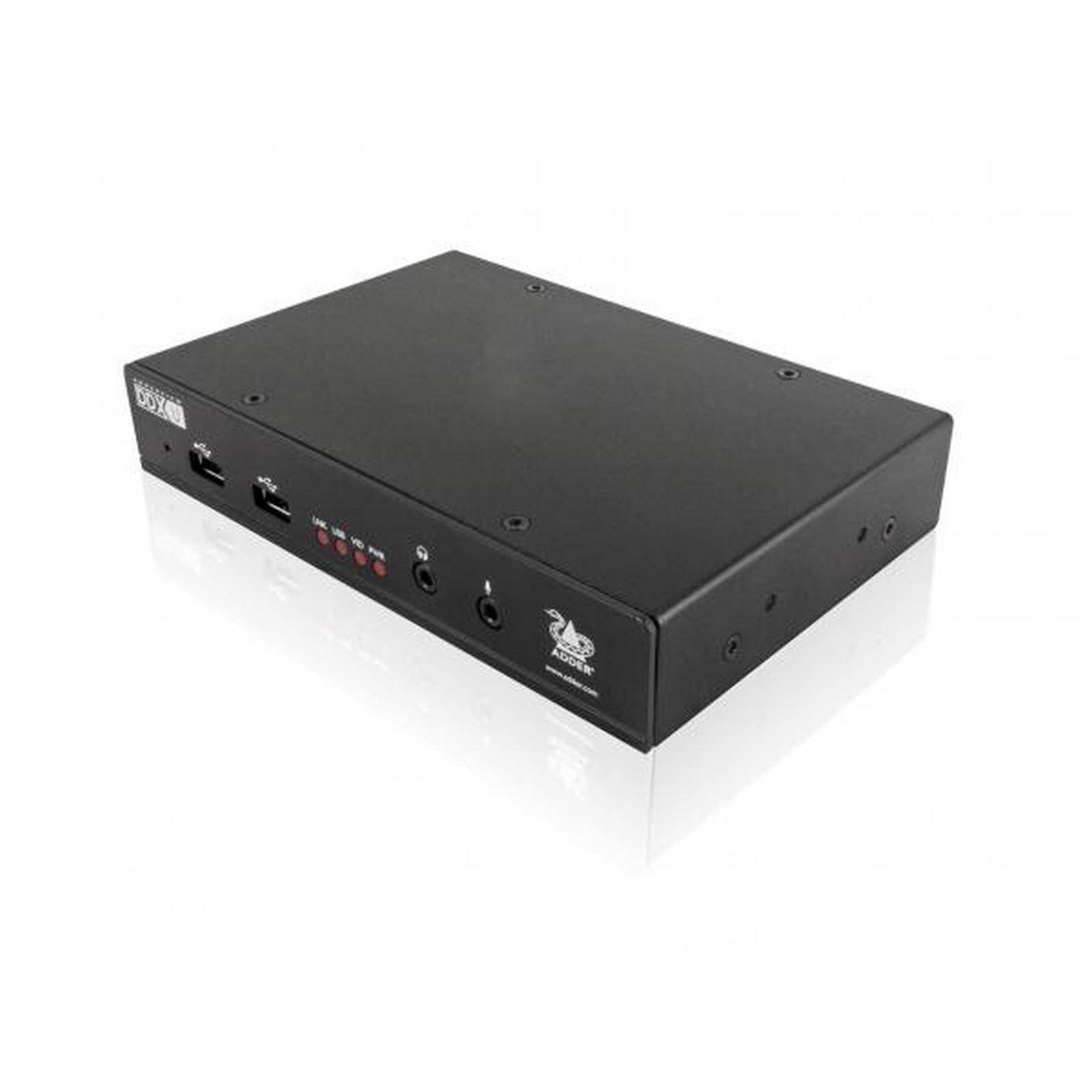

Physical design

Compact case, robust metal construction.
170mm/6.65” (w), 31mm/1.22” (h),
120mm/4.8” (d), 0.6kg/1.3lbs.

Power (USR unit)

Locking 3-pin DC jack, 100-240VAC
50/60Hz, 0.7A, input to power adapter,
12VDC 18W output from power adapter.

Power (CAM unit)

USB powered (Max 500mA @ 5V)

Operating/storage conditions

Operating temperature: 0 to 40ºC/32 to 104ºF. Mean Time Between Failure (MTBF): DDX-USR: 800,000 hours;
DDX-CAMXX: >1.9M hours, calculated to Telecordia standard SR-332 issue 4 March 2016. @55ºC

Important extension distance details

A minimum specification of Shielded Twisted Pair (STP) cables must be used with the DDX30,
DDX10, DDX CAM and DDX USR. Recommended cables are
STFP:

 Daetwyler 7702 Flexible patch cable
 Daetwyler 7120 Bulk cable

Res (@60Hz) Cable Patches Dist
 1920 x 1200 SFTP 0 50m
 1920 x 1200 SFTP 2 40m
Name Type Version Release Date
ADDERView DDX USR Datasheet Datasheet V1.9 07 August 2020
