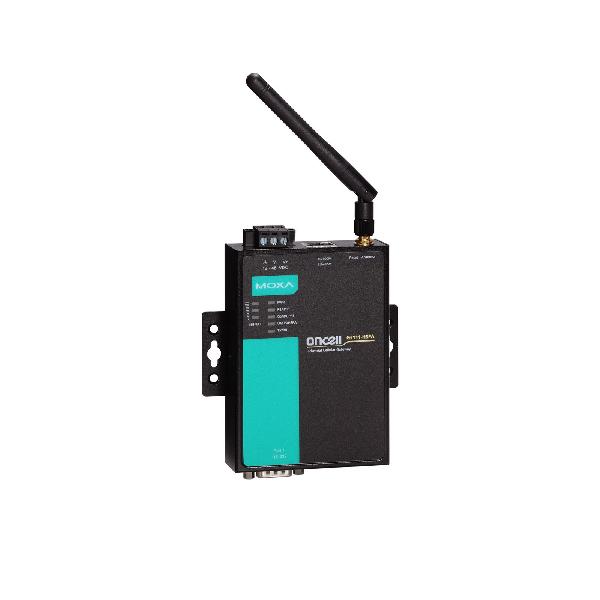

OnCell G3101-HSPA Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Cellular Gateways/Routers/Modems  >   Cellular Gateways

Compact five-band GSM/GPRS/EDGE/UMTS/HSPA IP gateways

Product Feature

  • Five-band UMTS/HSPA 800/850/900/1900/2100 MHz
  • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • GuaranLink for reliable cellular connectivity
  • Ethernet, serial, and cellular communication
  • Centralized private IP management software with OnCell Central Manager
  • Industrial-grade design for high device reliability

Introduction

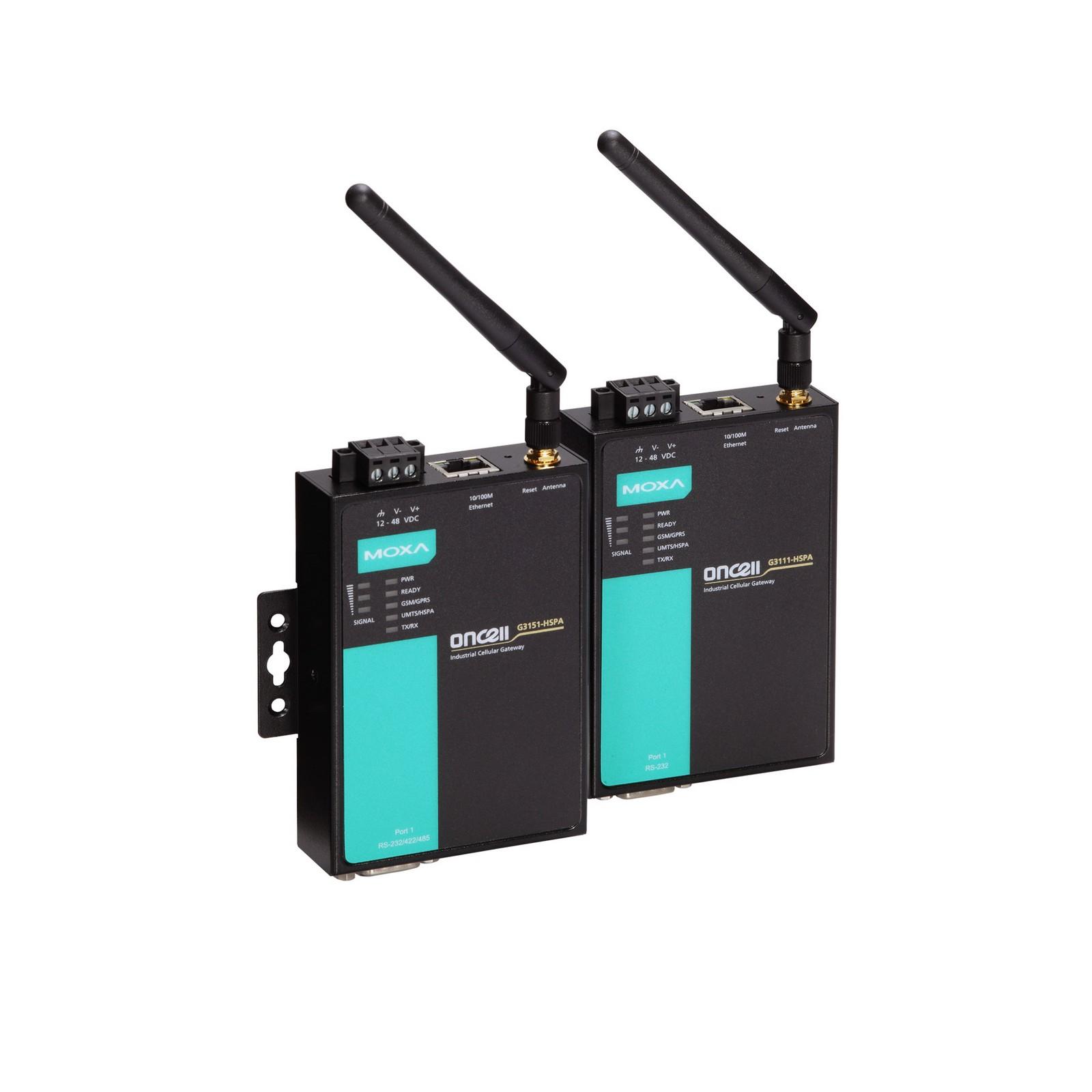

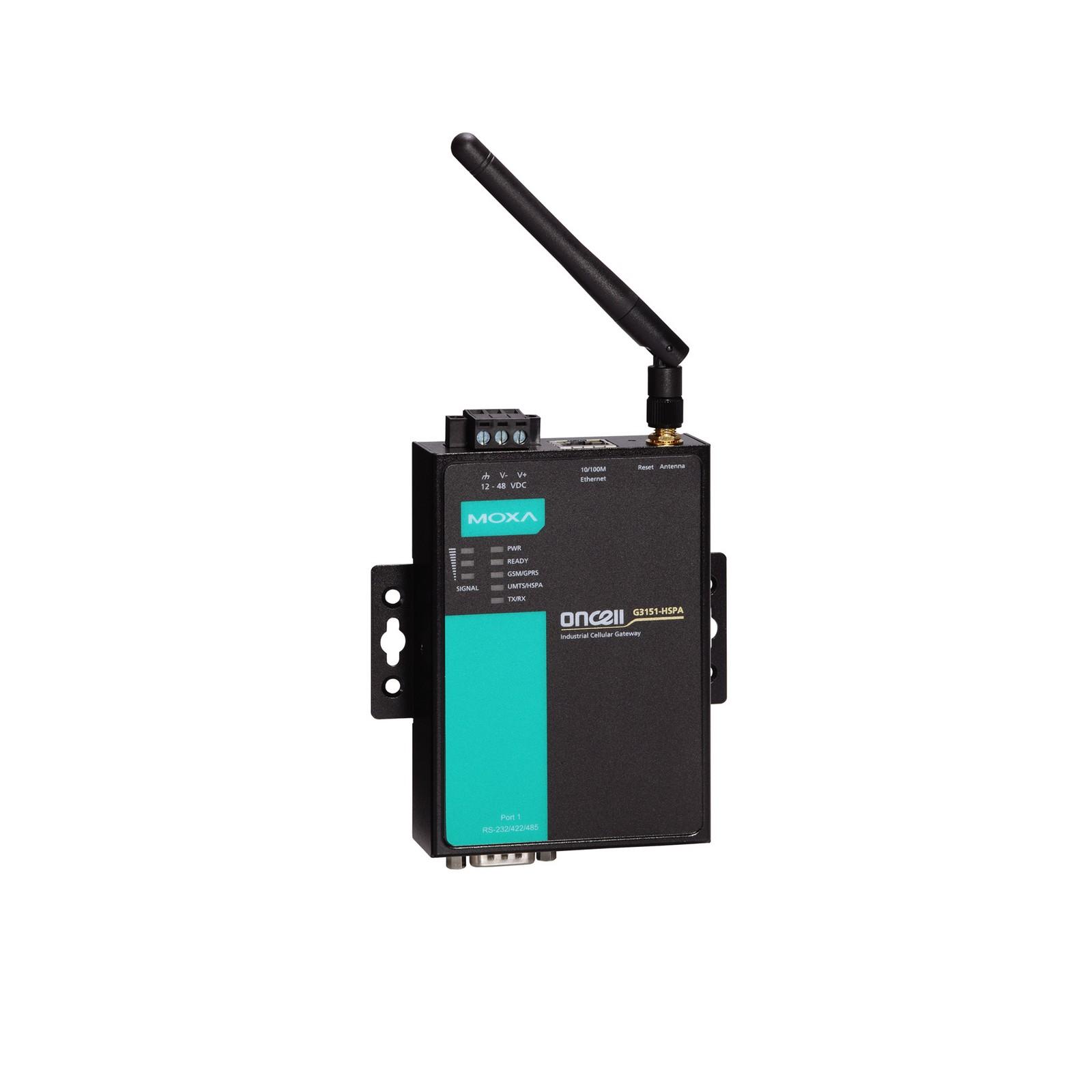

The OnCell G3111/G3151-HSPA Series consists of cellular IP gateways that can conveniently and transparently connect your existing Ethernet and serial devices to a 3G cellular network. With the integrated GuaranLink feature, you can be confident that your device will always stay connected or will recover from any unexpected interference. With Moxa’s industrial design, higher EMS levels are tested to ensure the highest reliability for any harsh environment. The G3111/G3151-HSPA cellular IP gateways are the most compact, simple and robust industrial 3G solution.



Universal Band Support

Five-band UMTS/HSPA 850/800, 900, 1900, 2100 MHz

Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz



Simple, Flexible, and Reliable

Ethernet/serial/cellular co-existence for simple and flexible communication

OnCell Central Management for private IP communication and centralized management

Industrial-grade design for high device reliability

GuaranLink for reliable cellular connectivity

Cellular Interface

Cellular StandardsGSM, GPRS, EDGE, UMTS, HSPA
Band OptionsUMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
HSPA Data Rates14.4 Mbps DL, 5.76 Mbps UL
EDGE Data Rates237 kbps DL, 237 kbps UL
EDGE Multi-Slot Class12
EDGE Terminal Device ClassClass B
GPRS Data Rates85.6 kbps DL, 85.6 kbps UL
GPRS Multi-Slot Class12
GPRS Terminal Device ClassClass B
GPRS Coding SchemesCS1 to CS4
Cellular Antenna Connectors1 SMA female
No. of SIMs1
SIM Control Voltage3 V

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)1

Ethernet Software Features

Network ProtocolsARP, DDNS, DHCP Server/Client, BOOTP, DNS Relay, HTTP, SMTP, SNMPv1/v2c/v3,
TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console,
Remote SMS Control, OnCell Central Manager, GuaranLink
SecurityHTTPS/SSL, SSH
Time ManagementSNTP
RoutingNAT, Port forwarding

Security Functions

FirewallWAN IP Filtering

Firewall

FilterICMP

Serial Interface

Serial StandardsOnCell G3111-HSPA: RS-232 (DB9 male connector), OnCell G3151-HSPA:
RS-232/422/475 (DB9 male connector)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Baudrate50 bps to 921.6 kbps
Flow ControlRTS/CTS, XON/XOFF

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Operation Modes

StandardsEthernet Modem mode
Real COM mode
Reverse Real COM
RFC2217 mode
TCP Client mode
TCP Server mode
UDP mode
SMS Tunnel

Physical Characteristics

HousingAluminum
IP RatingIP30
Dimensions77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Weight170 g (0.38 lb)

Environmental Limits

Operating Temperature-30 to 55°C (-22 to 131°F)
Storage Temperature (package included)-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Power Parameters

Input Current0.9 A @ 12 VDC, 0.23 A @ 48 VDC
Input Voltage12 to 48 VDC
Power ConnectorTerminal block
Reverse Polarity ProtectionSupported

Standards and Certifications

SafetyUL 60950-1
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
FreefallIEC 60068-2-31
Radio FrequencyEN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908, FCC Part 22H, FCC Part 24E

MTBF

Time1,815,281 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for OnCell G3101-HSPA Series Datasheet V1.2 29 August 2019
