MXview Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Network Management Software

Industrial network management software designed for converged automation networks

Product Feature

  • Discovers and visualizes network devices and physical connections automatically
  • Central management of configurations and firmware for Moxa devices
  • Multiple options for events and notifications with self-defined threshold and duration
  • Supports third-party devices with MIB compiler and MIB browser
  • Comprehensive reports, including inventory, traffic, and availability reports
  • Generates OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications
  • Provides a virtual demonstration network that lets you experience the software without connecting any devices
  • Supports MXview ToGo mobile app for remote monitoring and notifications—anytime, anywhere
  • Provides RESTful API and web widget to embed MXview into industrial applications

Introduction

Moxa’s MXview network management software is designed for configuring, monitoring, and diagnosing networking devices in industrial networks. MXview provides an integrated management platform that can discover networking devices and SNMP/IP devices installed on subnets. All selected network components can be managed via a web browser from both local and remote sites—anytime and anywhere.

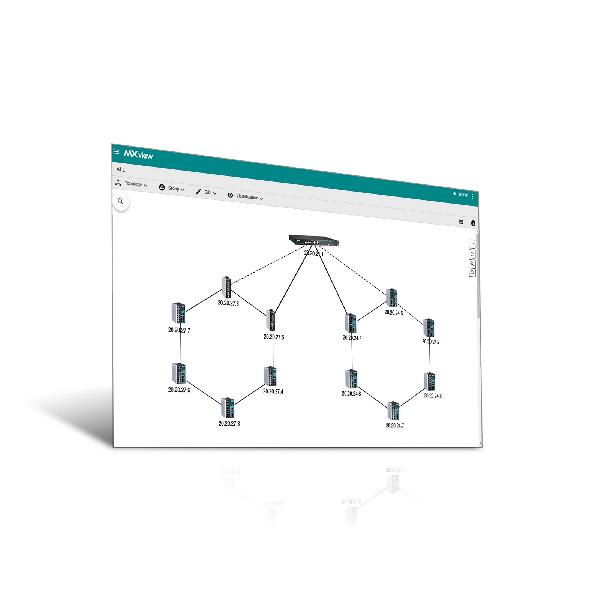

Visualization

  • Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range
  • Visualization of redundant link status and device roles of network redundancy protocols
  • Visualization of graphic VLAN groups
  • Security view for the security status of network devices with industrial security standard
  • Visualization of network traffic loading with color-coded links
  • Device front panel visualization, including ports and LED indicators
  • Visualization of managed PoE device power consumption
  • Wireless dashboard shows relationship between wireless APs and Clients
  • Displays third-party device icons
  • A network management dashboard to view the network status quickly





Network Diagnostics and Event Notification

  • Detect problems in real time with SNMP trap/inform, or periodic polling
  • Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places
  • Event Playback records network events and replays past network incidents
  • Supports Syslog server for centralized message management
  • Configurable event notification alarms sent through SMS, email, and SNMP trap, or locally through program notification, message box, and audio alerts
  • Multiple options for events and notifications with self-defined threshold and duration
  • Generate OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications
  • Group health OPC tag represents entire network status
  • Real-time device availability monitoring
  • Supports third-party devices with MIB compiler and MIB browser
  • Collaborate with third-party NMS through SNMP traps
  • Provides RESTful API and web widget for integrating MXview into the existing system



Comprehensive Reports

  • Maintain device availability reports and record for up to 90 days
  • Generate an inventory report for each device on the network
  • Compile comprehensive device properties report
  • Generate network traffic trend reports



Centralized Configuration and Firmware Management

  • Bulk deployment of device configurations and firmware
  • In one click, back up the entire MXview database, including topology, job scheduling, events, and device properties
  • Scheduling for periodic configuration backup
  • Save history of configuration changes
  • Comparison tool for checking differences between 2 configurations



Mobile App for Network Monitoring

  • MXview ToGo mobile app for remote monitoring and notification—anytime, anywhere
  • Smart Device Identification with QR Code enhances operational efficiency
  • Device Locator with mobile app reduces searching time at field sites





Hardware Requirements

CPU2 GHz or faster dual-core CPU
RAM4 GB
Hardware Disk Space10 GB
OSWindows 10 (64-bit),
Windows Server 2016 (64-bit),
Windows 7 with Service Pack 1 (64-bit),
Windows Server 2012 R2 (64-bit)

System Requirements

Supported DevicesRead more
Name Type Version Release Date
Datasheet for MXview Series Datasheet V2.2 28 November 2019
