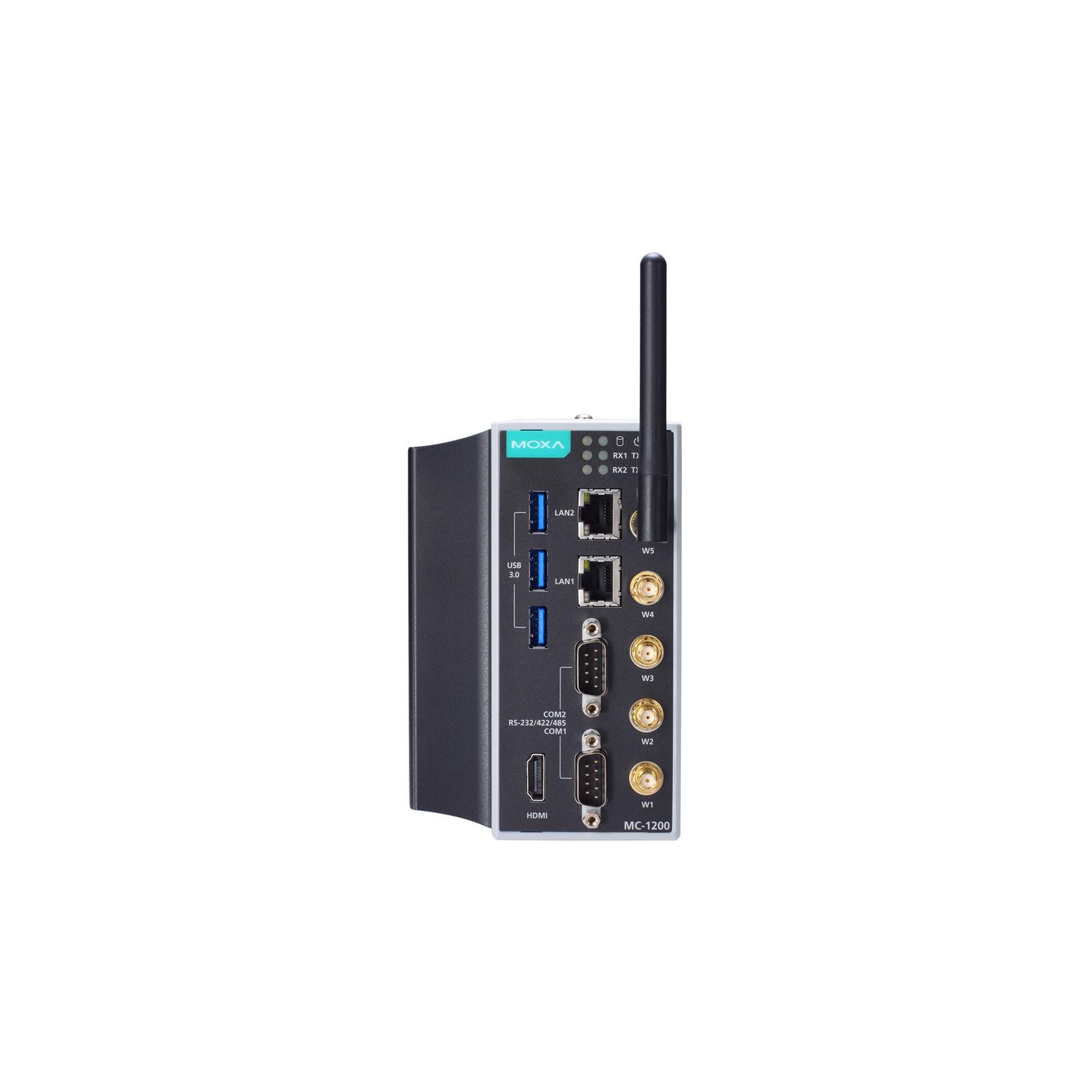

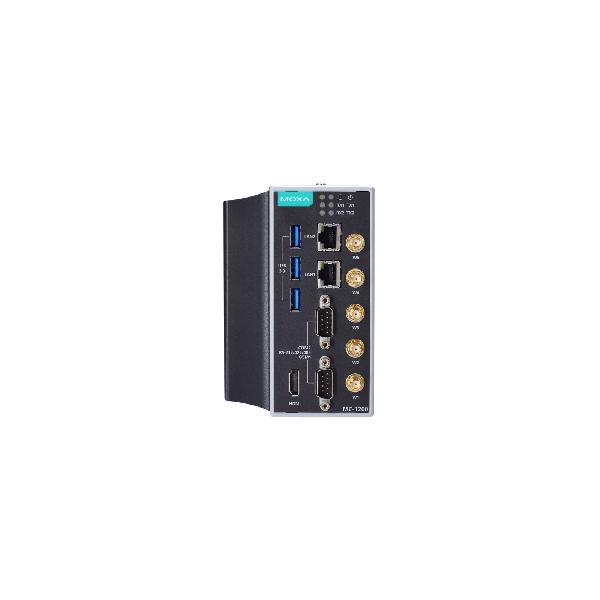

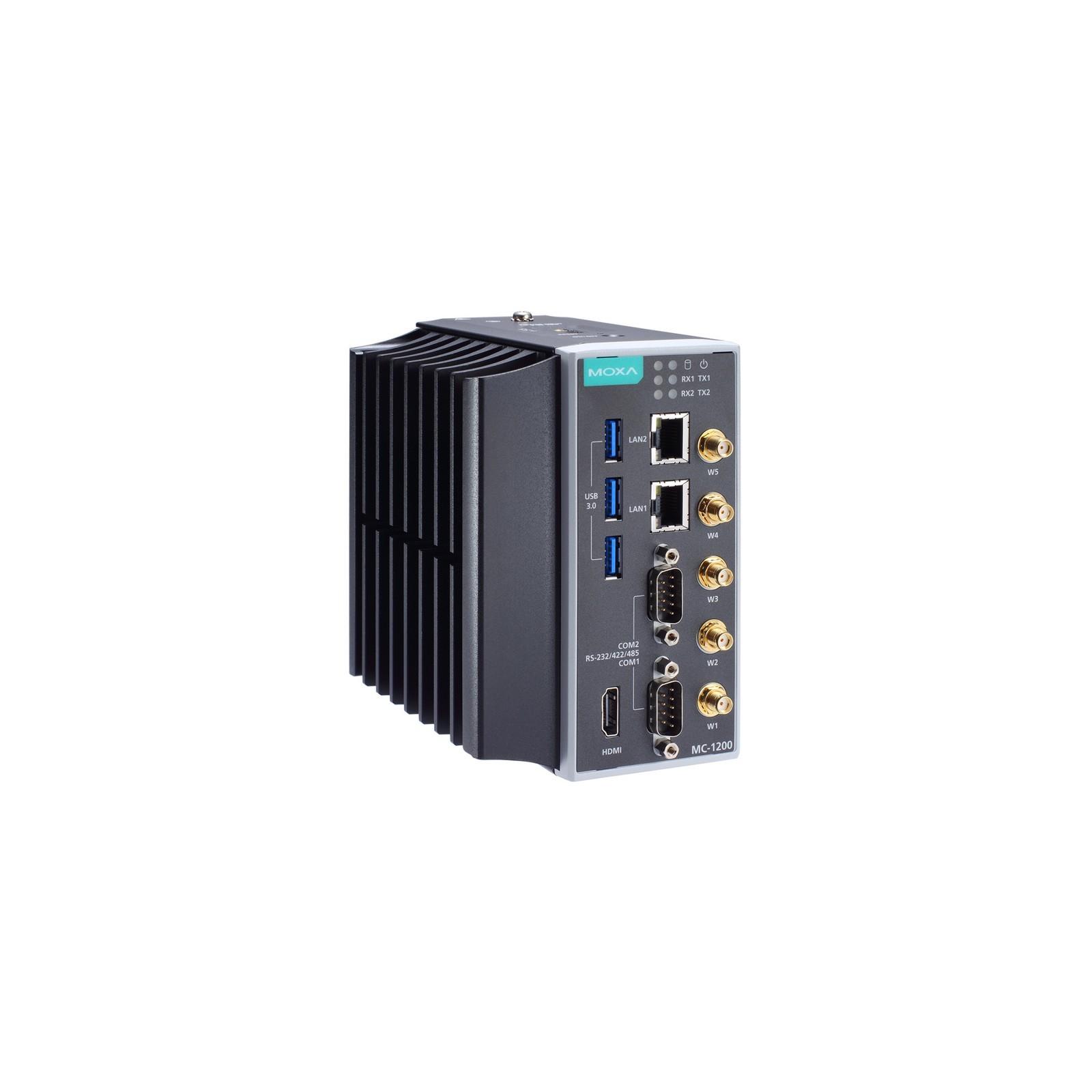

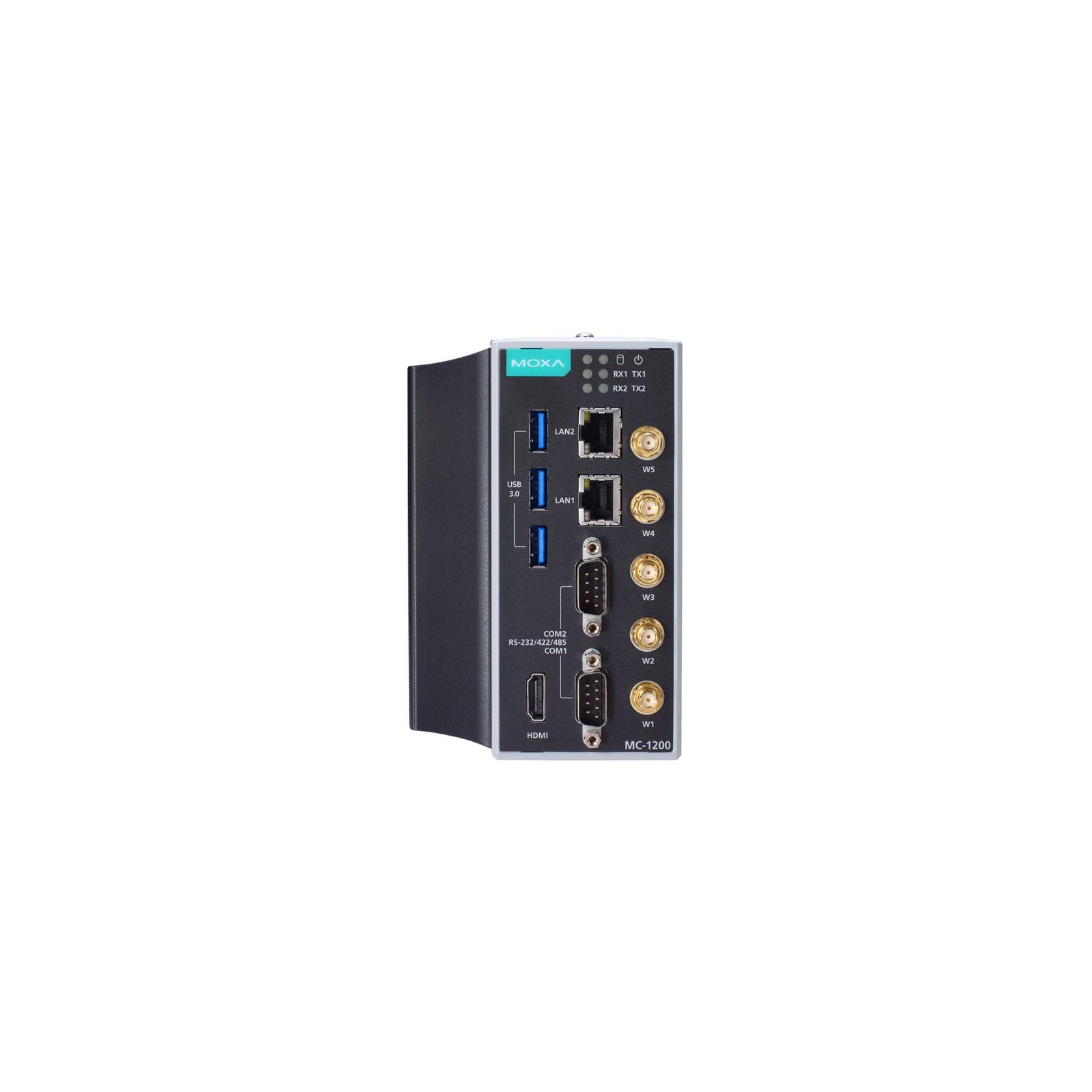

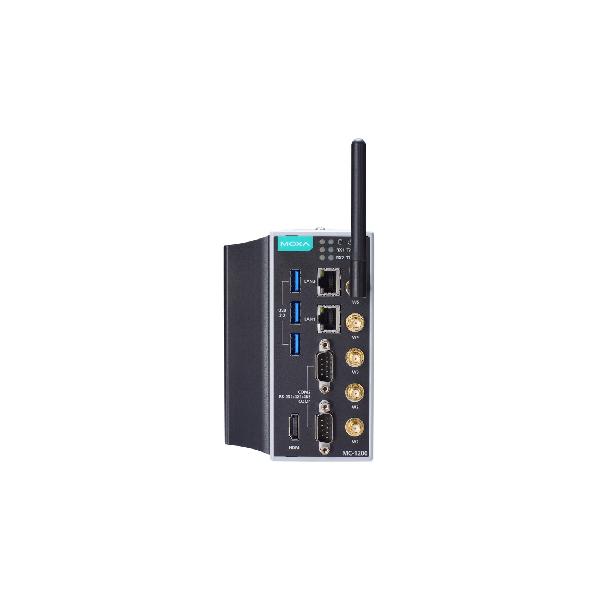

MC-1200 Series

Home  >   MOXA  >   Industrial Computing  >
x86 Computers

Ultra-compact rugged edge computers with Intel® Core™ i7 processor, designed for IIoT, AI, and machine learning applications

Product Feature

  • 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
  • 7th Gen Intel® Core™ processor (Kaby Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • ATEX and IECEx Zone 2 compliance
  • Built-in TPM 2.0 module
  • Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports

Introduction

The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.

Additional value and convenience is provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.

With UL Class 1 Division 2, ATEX and IECEx Zone 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances.

Class 1 Division 2 (C1D2) certification indicates that a device is deemed safe to operate in specific hazardous environments under abnormal circumstances. This means that in a worst case scenario, the MC-1200 computer will not ignite the substances around it causing a fire, explosion, or other catastrophe.

The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.



Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Computer

CPUMC-1220-KL7-T-S: Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz)
MC-1220-KL5-T-S: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)
MC-1220-KL1-T-S: Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
MC-1220-KL5-T: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)
Storage SlotmSATA slots x 1, SATA 3.0, internal mini-PCIe socket
System Memory SlotSODIMM DDR4 slot x 2, up to 32 GB max.
Supported OSLinux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
Graphics ControllerMC-1220-KL7-T-S: Intel® HD Graphics 620
MC-1220-KL5-T-S: Intel® HD Graphics 620
MC-1220-KL1-T-S: Intel® HD Graphics 610
MC-1220-KL5-T: Intel® HD Graphics 620

Computer Interface

Video InputHDMI x 1, up to 3840 x 2160 resolution at 30 Hz
USB 3.0USB 3.0 hosts x 3, type-A connectors
ButtonsReset button

Serial Interface

ConnectorDB9 male
Serial StandardsRS-232/422/485 (software selectable)
Serial Ports2 x RS-232/422/485
Flow ControlRTS/CTS, XON/XOFF
Baudrate50 bps to 115.2 kbps
ESD Protection4 kV contact, 8 kV air

Ethernet Interface

Magnetic Isolation Protection1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45
connector)
2

LED Indicators

SystemPower x 1
LAN2 per port (Tx, Rx)

Serial Signals

RS-232TxD, RxD, RTS, CTS, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Physical Characteristics

InstallationWall mounting (with optional kit), DIN-rail mounting
HousingMetal
Dimensions134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
WeightProduct only: 1.40 kg (0.63 lb)

Declaration

Green ProductRoHS, CRoHS, WEEE

Power Parameters

Power ButtonON/OFF (rear panel)
Reset button
Input Voltage9 to 36 VDC

Environmental Limits

Storage Temperature-40 to 75°C (-40 to 185°F)
Operating Temperature-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity5 to 95% (non-condensing)
ShockIEC 60068-2-27

Standards and Certifications

SafetyUL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
EMCEN 55032/35, CISPR 32, FCC Part 15B Class A

Reliability

Alert ToolsBuilt-in RTC (real-time clock) with lithium battery backup

Warranty

Warranty Period3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MC-1200 Series Datasheet V1.0 29 June 2020
