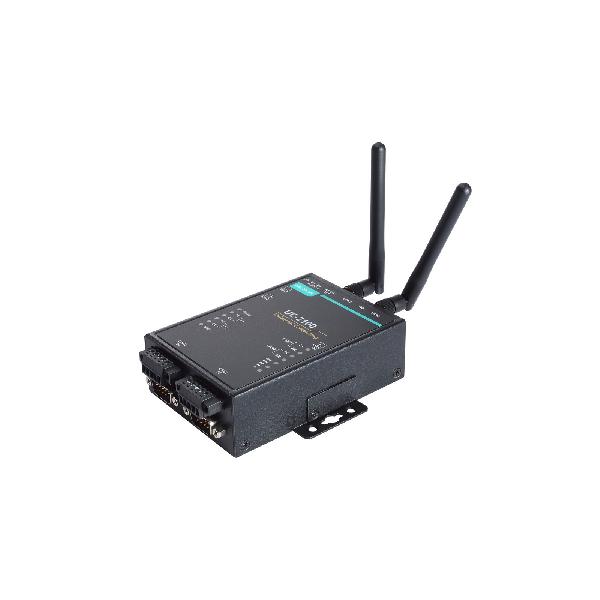

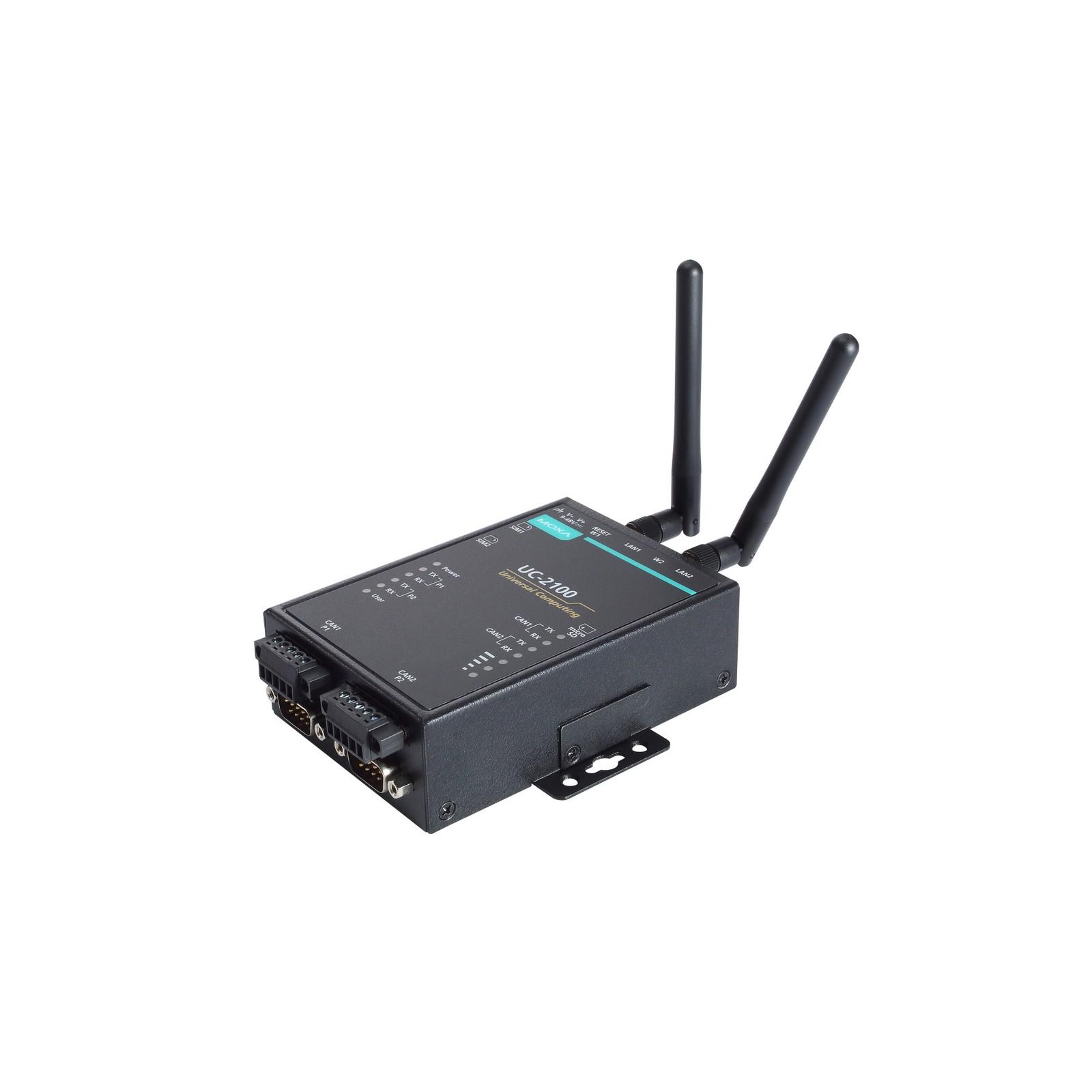

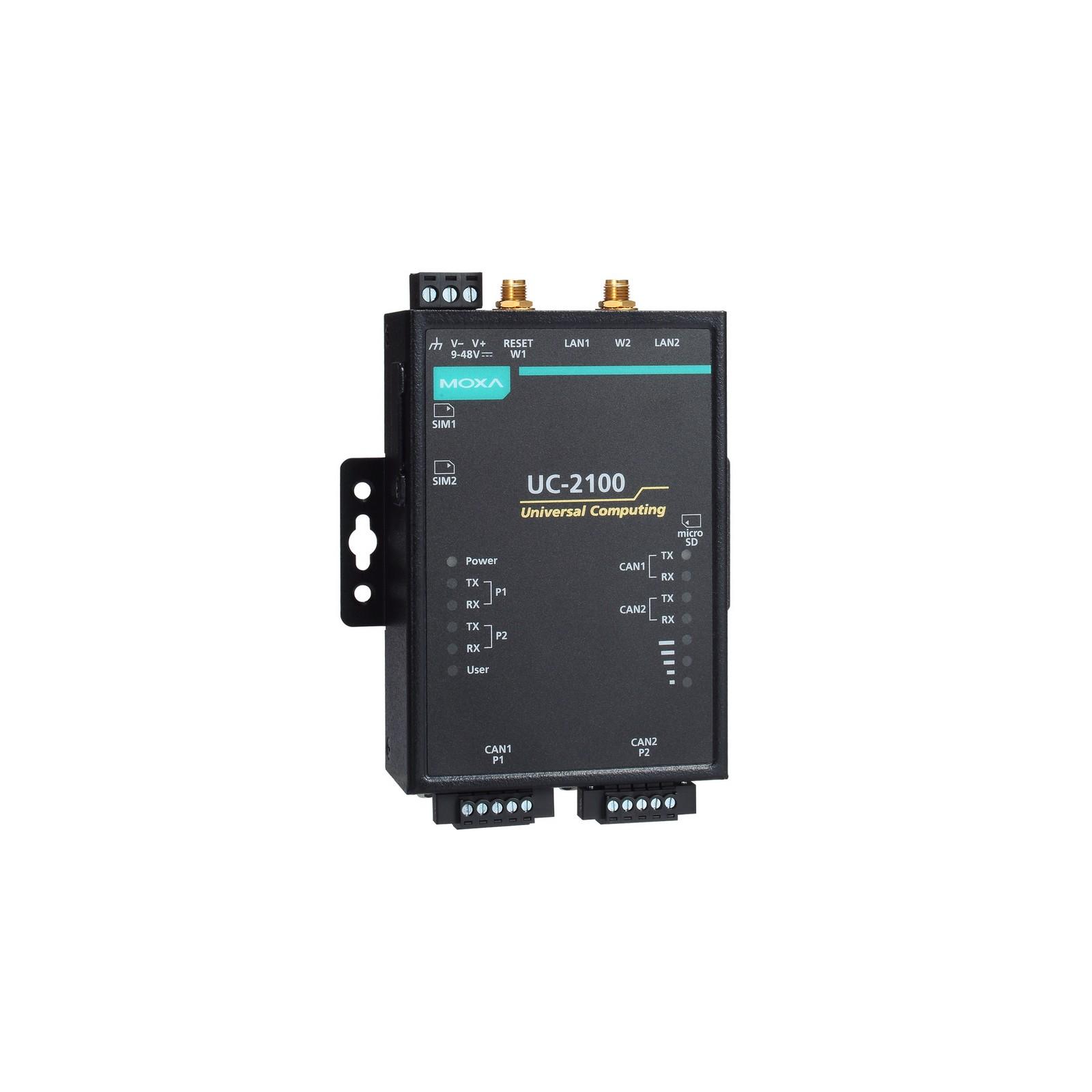

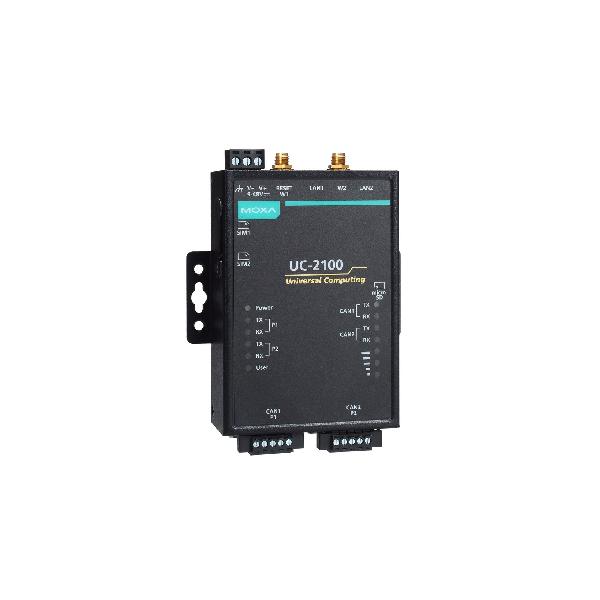

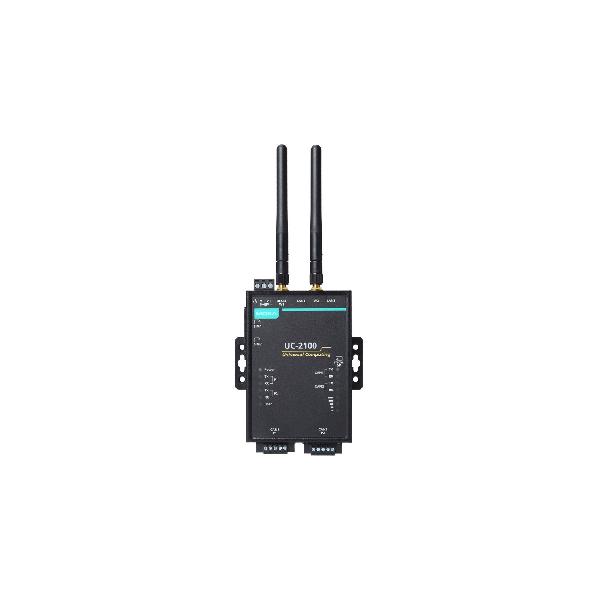

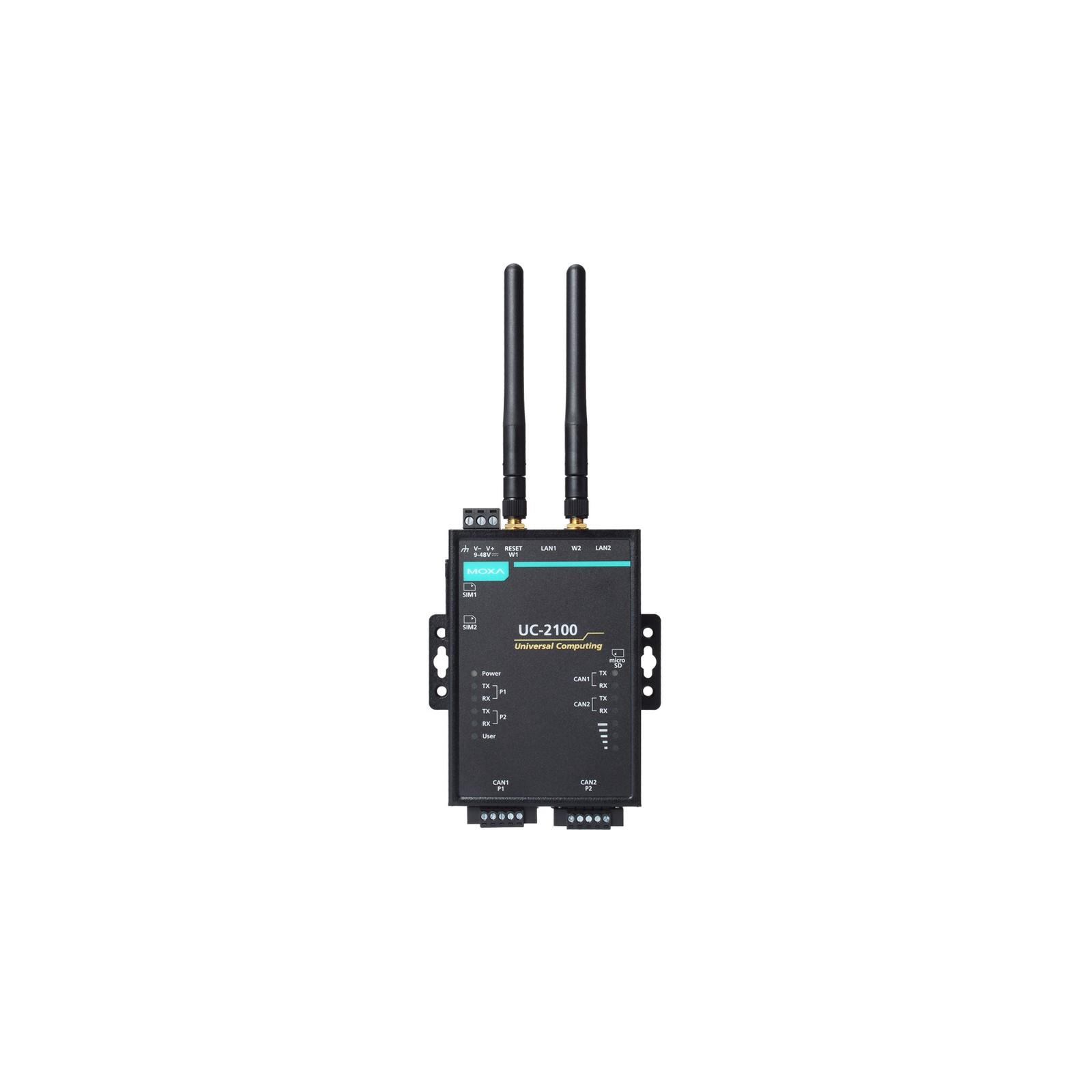

UC-2100-W Series

Home  >   MOXA  >   Industrial Computing  >
Arm-Based Computers

Arm Cortex-A8 1 GHz palm-sized IIoT gateway with built-in LTE Cat. M1/NB-IoT module

Product Feature

  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated LTE NB-IoT/Cat. M1 module with global band support
  • Dual-SIM slots
  • Moxa Industrial Linux with 10-year long-term support
  • Dual auto-sensing Ethernet ports (10/100 Mbps and 10/100/1000 Mbps)
  • Dual CAN ports with industrial CAN 2.0 A/B protocol supported
  • microSD socket for storage expansion
  • Programmable LEDs and a programmable button for easy installation and maintenance
  • -40 to 75°C operating temperature range

Introduction

The UC-2100-W Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual LAN ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as serial and LAN ports, and wireless connections. The versatile communication capabilities allow users to efficiently adapt the UC-2100-W Series for a variety of complex communications solutions running on a compact palm-sized computer.

The UC-2100-W Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide-temperature applications are available for extreme environments such as those found in the Oil and Gas industry. Furthermore, all models use Moxa’s industrial-grade Linux platform, which provides optimized software features and superior long-term support.

Computer

CPUArmv7 Cortex-A8 1 GHz
DRAM512 MB DDR3
Storage Pre-installed8 GB eMMC
Pre-installed OSMoxa Industrial Linux (Debian 9, Kernel 4.4)

Computer Interface

Storage SlotMicro SD Slot x 1
Ethernet PortsAuto-sensing 10/100 Mbps ports (RJ45 connector) x 1
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
Serial PortsRS-232/422/485 ports x 2, software-selectable (terminal block)
CAN PortsCAN 2.0 A/B x 2 (5-pin terminal block)
Cellular Antenna ConnectorSMA x 1
GPS Antenna ConnectorSMA x 1
Number of SIMs2
SIM FormatNano
Console PortRS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
ButtonsReset button

Ethernet Interface

Magnetic Isolation Protection1.5 kV (built-in)

Serial Interface

Baudrate50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
ESD Protection4 kV, for all signals
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485,
RTS Toggle (RS-232 only)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

CAN Interface

Industrial ProtocolsCAN 2.0A, CAN 2.0B
Baudrate10 to 1000 kbps
SignalsGND, CAN_L, CAN_SHLD, CAN_H, CAN_V+
Isolation2 kV (built-in)

Cellular Interface

Band OptionsLTE Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700 MHz)
/ Band 5 (850 MHz) / Band 8 (900 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 18 (850 MHz)
/ Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) / Band 28 (700 MHz)
 Carrier Approval: Verizon, AT&T

LED Indicators

SystemPower x 1
Programmable x 1
LAN2 per port (10/100 Mbps)
Serial2 per port (Tx, Rx)
Wireless Signal Strength3
CAN2 per port (Tx, Rx)

Power Parameters

Input Voltage9 to 48 VDC
Power Consumption5.8 W
Input Current0.6 A @ 9 VDC, 0.12 A @ 48 VDC

Reliability

Alert ToolsExternal RTC (real-time clock)
Automatic Reboot TriggerExternal WDT (watchdog timer)

Physical Characteristics

HousingMetal
Dimensions (with ears)111 x 99 x 34.5 mm (4.37 x 3.90 x 1.36 in)
Weight396 g (0.87 lb)
InstallationWall-mounting, DIN-rail mounting (with optional kit)

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature
(package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 62368-1, UL 62368-1
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
ShockIEC 60068-2-27
Vibration2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
(without any USB devices attached)
Hazardous LocationsClass I Division 2, ATEX, IECEx
Green ProductRoHS, CRoHS, WEEE

MTBF

TimeUC-2114-T-LX : 533,149 hrs
UC-2116-T-LX : 496,650 hrs
StandardsTelcordia (Bellcore) Standard

Warranty

Warranty Period3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for UC-2100-W Series Datasheet V1.4 21 January 2020
