UPort 404/407 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
USB-to-Serial Converters/USB Hubs  >   Industrial-Grade USB Hubs

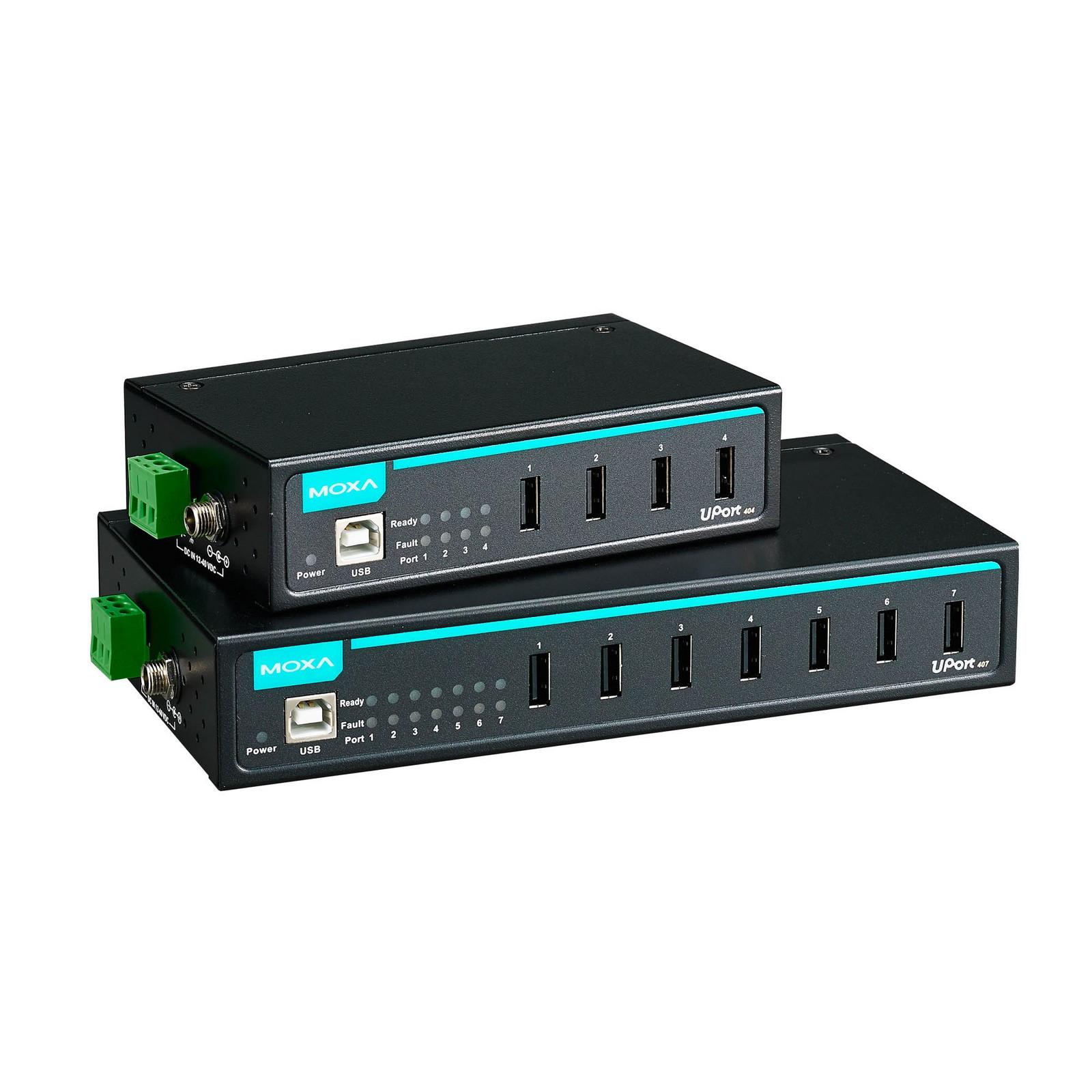

4 and 7-port industrial-grade USB hubs

Product Feature

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • USB-IF certification
  • Dual power inputs (power jack and terminal block)
  • 15 kV ESD Level 4 protection for all USB ports
  • Rugged metal housing
  • DIN-rail and wall-mountable
  • Comprehensive diagnostic LEDs
  • Chooses bus power or external power (UPort 404)

Introduction

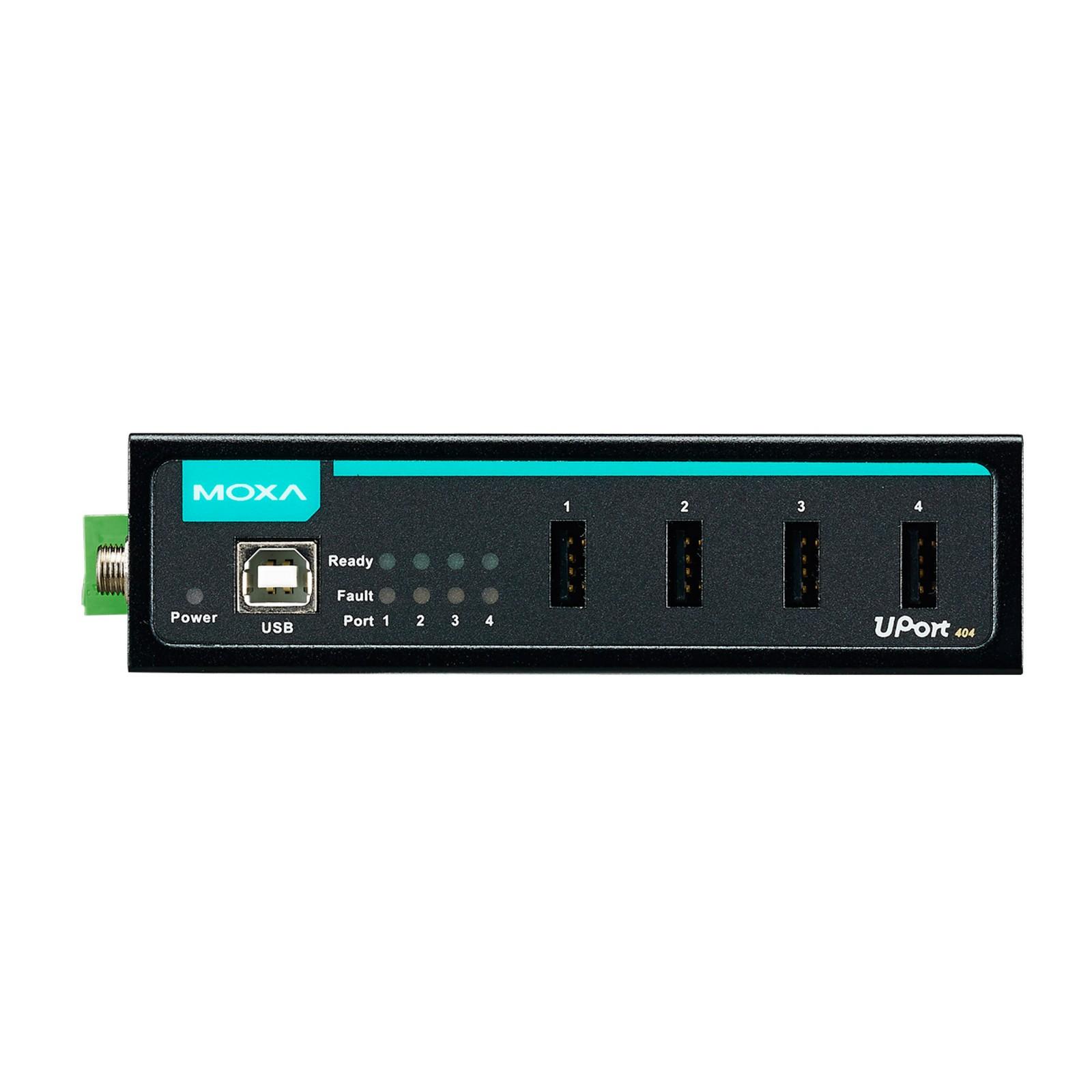

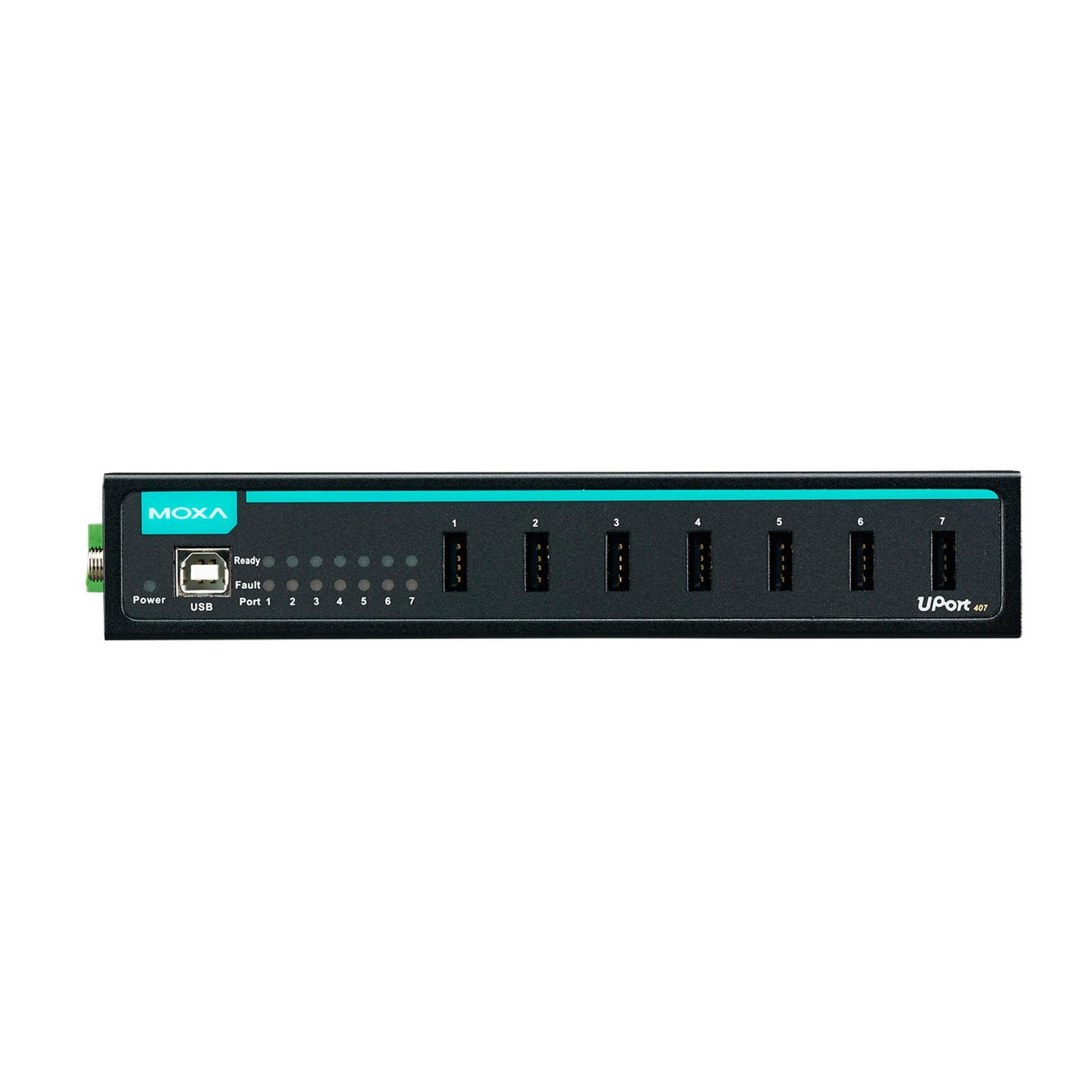

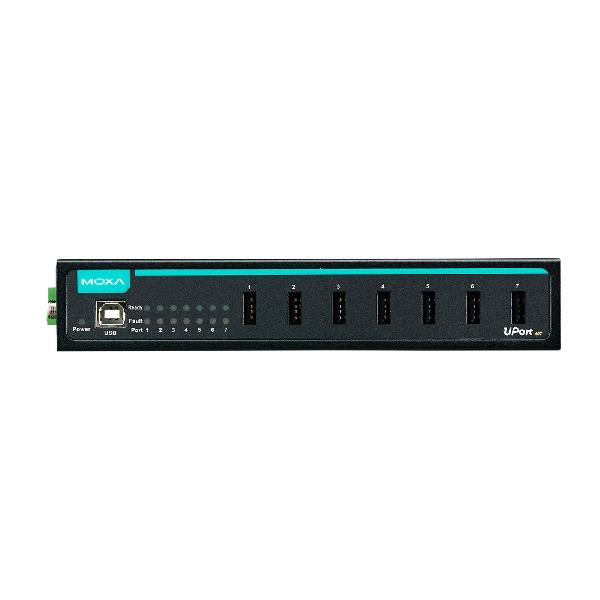

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs’ support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.



USB-IF Certification

The UPort® 404 and UPort® 407 USB 2.0 industrial-grade USB hubs have received the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort® 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to high-speed operation from the suspended state.



ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 404/407 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.

USB Interface

Speed12 Mbps, 480 Mbps
USB ConnectorUSB Type B
USB StandardsUSB 1.1/2.0 compliant
No. of USB PortsUPort 404 Series: 4
UPort 407 Series: 7

Power Parameters

Input CurrentUPort 404 Series: 1.3 A @ 12 VDC
UPort 407 Series: 2.3 A @ 12 VDC
Input Voltage12 to 40 VDC

Physical Characteristics

HousingAluminum
DimensionsUPort 404 Series: 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
UPort 407 Series: 100 x 35 x 192 mm (3.94 x 1.38 x 7.56 in)
WeightPackaged:
UPort 404 Series: 855 g (1.88 lb)
UPort 407 Series: 965 g (2.13 lb)

Product Only:
UPort 404 Series: 850 g (1.87 lb)
UPort 407 Series: 950 g (2.1 lb)
InstallationWall mounting, DIN-rail mounting (optional)

Environmental Limits

Operating TemperatureStandard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)
Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
SafetyUL 508
FreefallIEC 60068-2-34

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeUPort 404 Series: 1,490,340 hrs
UPort 407 Series: 1,111,361 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for UPort 404/407 Series Datasheet V2.1 04 May 2020
