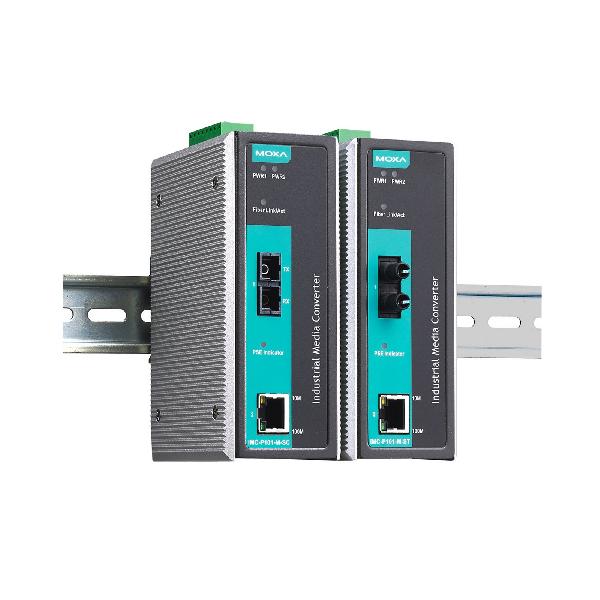

IMC-P101 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Media Converters

IEEE 802.3af PoE Ethernet-to-fiber media converters

Product Feature

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • IEEE 802.3af-compliant PoE PSE equipment
  • Power failure alarm by relay output
  • Supports store-and-forward mode and pass-through mode
  • -40 to 75°C operating temperature range (-T models)
  • Redundant dual DC power inputs

Introduction

IMC-P101 Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), and when used in this way, they provide up to 15.4 watts to IEEE 802.3af-compliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.

Ethernet Interface

100BaseFX Ports (multi-mode
SC connector)
IMC-P101-M-SC Series: 1
100BaseFX Ports (multi-mode
ST connector)
IMC-P101-M-ST Series: 1
100BaseFX Ports (single-mode
SC connector)
IMC-P101-M-ST Series: 1
100BaseFX Ports (single-mode
ST connector)
IMC-P101-M-ST Series: 1
Optical FiberRead more
Magnetic Isolation Protection1.5 kV (built-in)
PoE Ports (10/100BaseT(X),
RJ45 connector)
1

Power Parameters

Input Current430 mA @ 46 to 57 VDC
Input Voltage46 to 57 VDC
Overload Current ProtectionSupported
Power Consumption430 mA @ 46 to 57 VDC

Physical Characteristics

HousingMetal
Dimensions144.5 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in)
Weight710 g (1.56 lb)
InstallationDIN-rail mounting

Environmental Limits

Operating TemperatureStandard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Environmental TestingIEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, UL 60950-1
VibrationIEC 60068-2-6

MTBF

Time435,210 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for IMC-P101 Series Datasheet V1.1 21 May 2020
