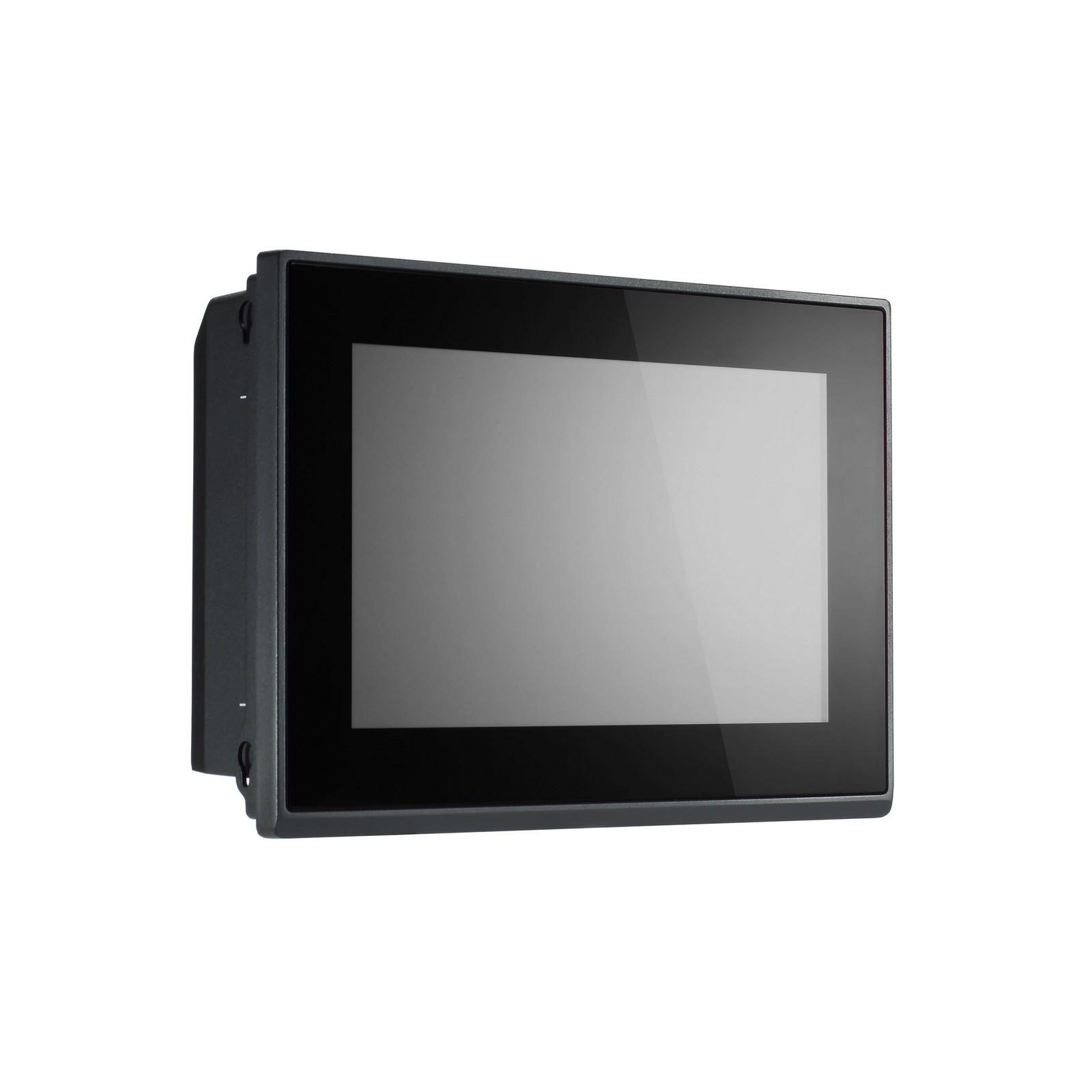

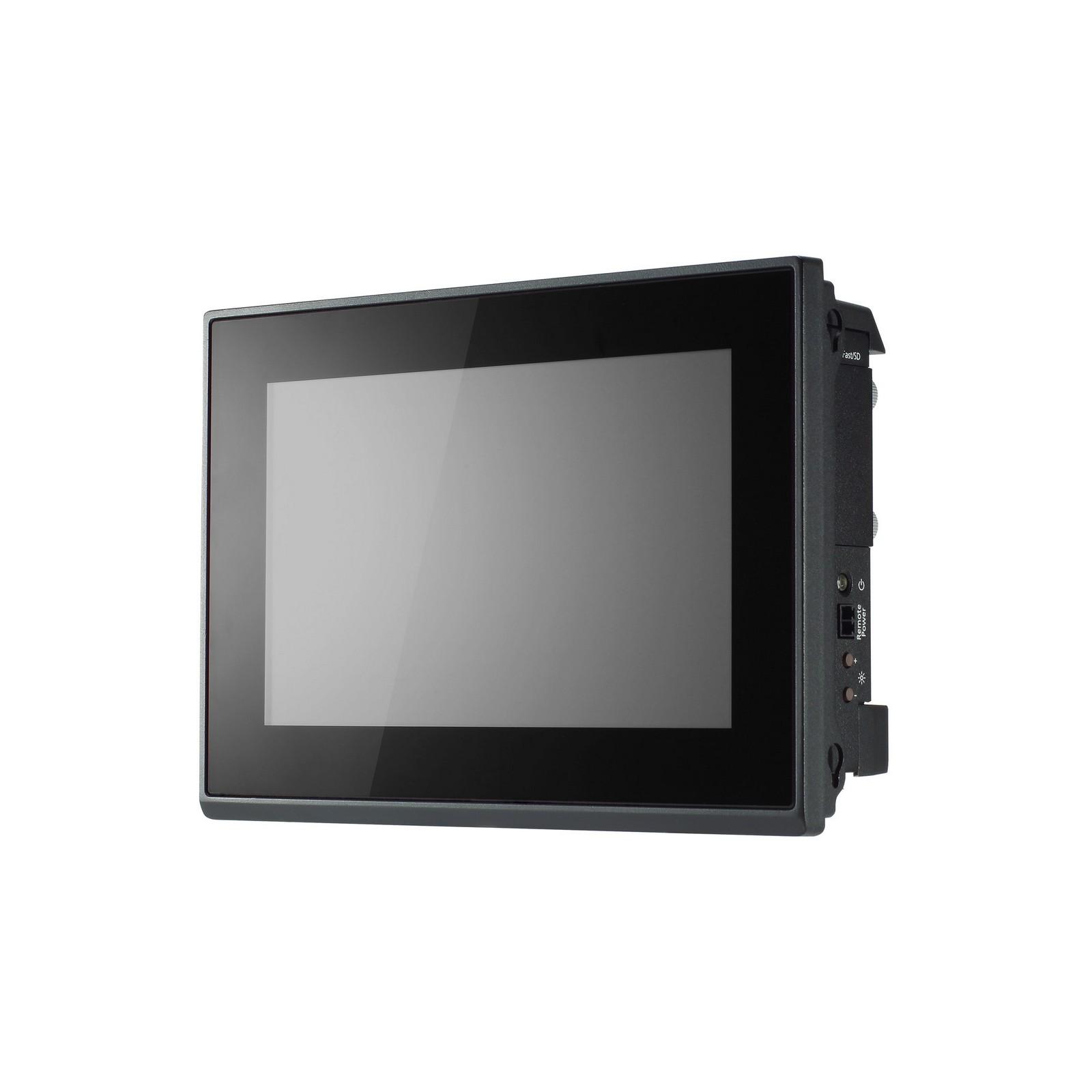

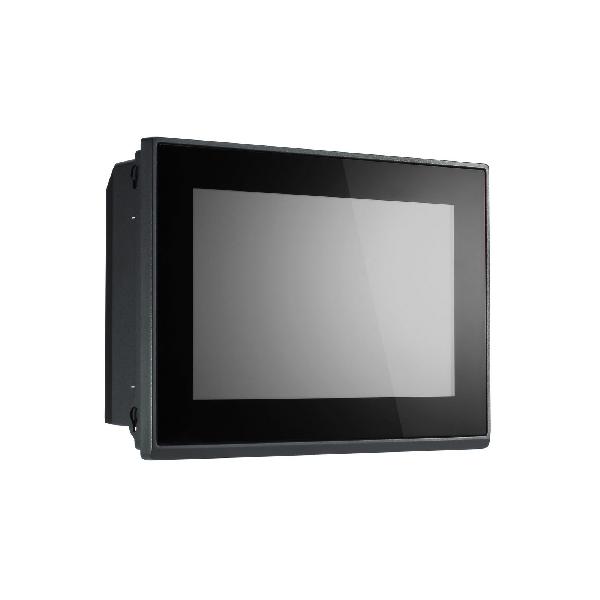

MPC-2070 Series

Home  >   MOXA  >   Industrial Computing  >
Panel Computers & Displays

7-inch industrial fanless panel computers

Product Feature

  • 7-inch panel computer
  • Intel Atom® processor E3826 1.46 GHz
  • -40 to 70°C wide-temperature design, no fan or heater
  • 1000-nit sunlight-readable LCD
  • Glove-friendly, multi-touch screen
  • Class 1 Division 2, ATEX Zone 2, and IECEx compliant
  • Wide-range 10 to 36 VDC power input

Introduction

The MPC-2070 7-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2070 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the MPC-2070 Series one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for outdoor applications._newline

Computer

CPUIntel Atom® Processor E3826 (1M Cache, 1.46 GHz)
Graphics ControllerIntel® HD Graphics
System Memory Pre-installed4 GB DDR3L
System Memory SlotSODIMM DDR3/DDR3L slot x 1
Pre-installed OSMPC-2070-E2-T/MPC-2070-E2-LB-T: OS is not pre-installed
MPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: OS is pre-installed
Supported OSWindows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Storage SlotCFast slot x 1
SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Storage Pre-installedMPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: 32 GB CFast card pre-
installed

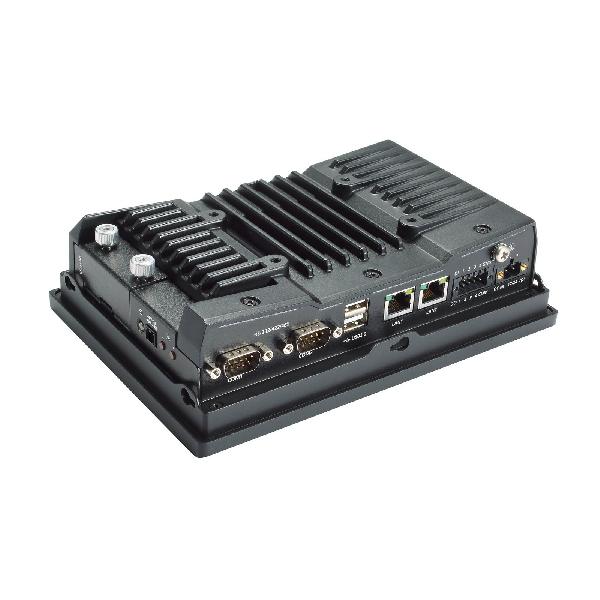

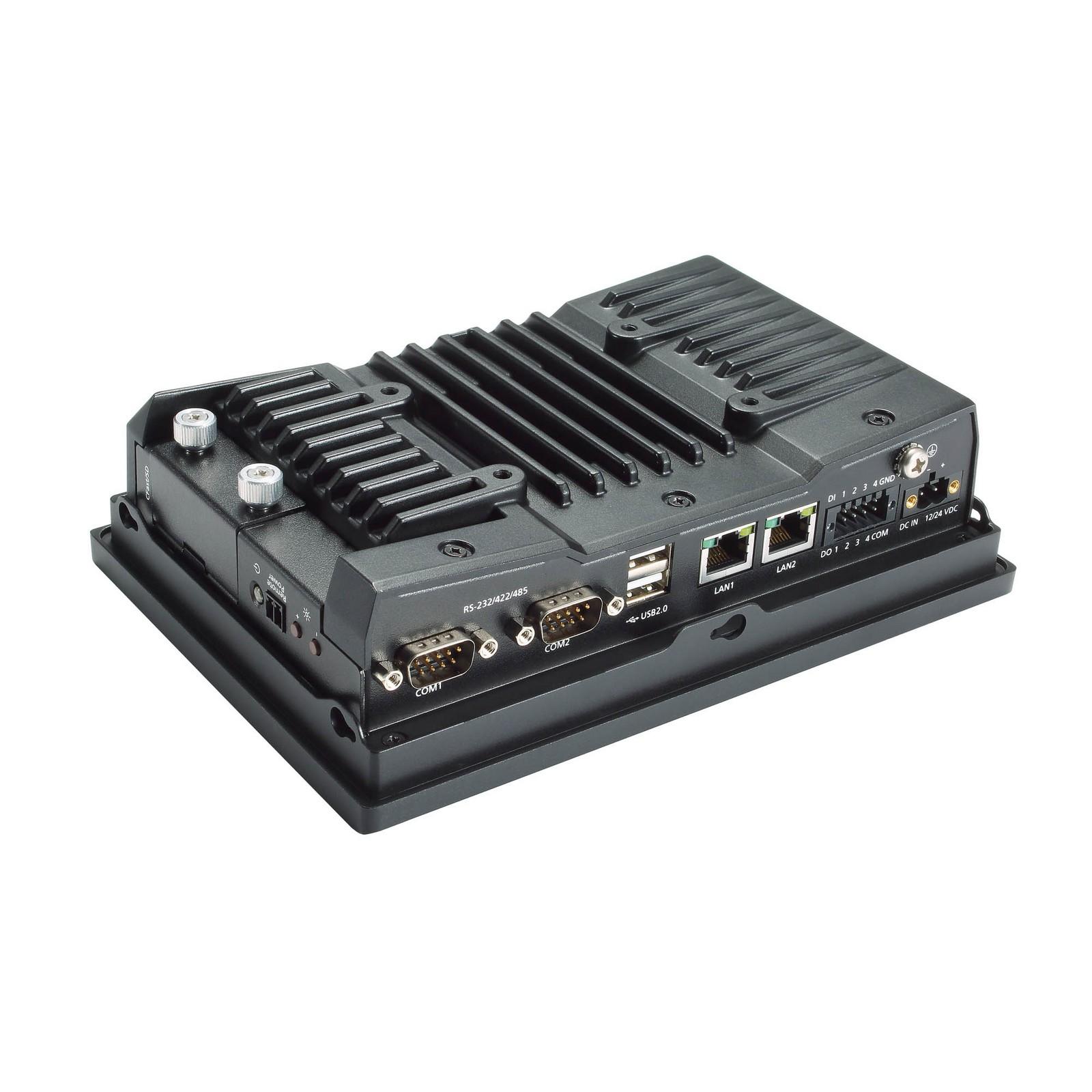

Computer Interface

Ethernet PortsAuto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial PortsRS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0USB 2.0 hosts x 2, type-A connectors
Digital InputDIs x 4
Digital OutputDOs x 4

LED Indicators

SystemPower x 1
LAN2 per port (10/100/1000 Mbps)

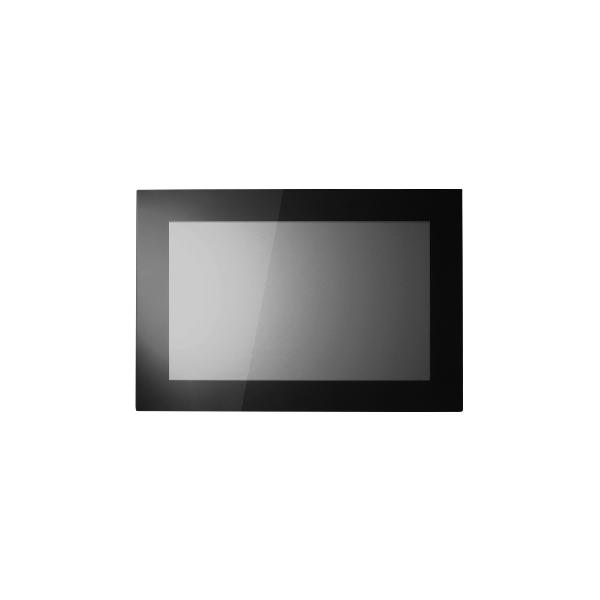

Display

Active Display Area152.4 (H) x 91.44 (V) mm
Contrast Ratio600:1
Light Intensity (Brightness)MPC-2070-E2-T Series: 1000 cd/m2
MPC-2070-E2-LB-T Series: 350 cd/m2
Max. No. of Colors16.2M (8-bit/color)
Panel Size7-inch viewable image
Panel TypeTN
Pixel Pitch (RGB)0.1905 (H) x 0.1905 (V) mm
Pixels800 x 480
Response Time5 ms (gray to gray)
Viewing Angles140°/120°

Touch Function

Touch TypeCapacitive Touch (PCAP)
Touch Support Points4 points
Glove SupportYes

Serial Interface

Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-
485, RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage10 to 36 VDC
Power Consumption40 W (max.)

Physical Characteristics

HousingMetal
IP RatingIP66, front
IP20, rear
Dimensions200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in)
Weight1,400 g (3.09 lb)

Environmental Limits

Operating Temperature-40 to 70°C (-40 to 158°F)
Storage Temperature (package
included)
-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
Hazardous LocationsATEX, Class I Division 2, IECEx
MaritimeDNV-GL
Mechanical Protection RatingIEC 60529, IP code
SafetyEN 60950-1, IEC 60950-1, UL 60950-1
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-
CG-0339

Declaration

Green ProductRoHS, CRoHS, WEEE

Warranty

Warranty PeriodLCD: 1 year
System: 3 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MPC-2070 Series Datasheet V1.3 22 April 2020
