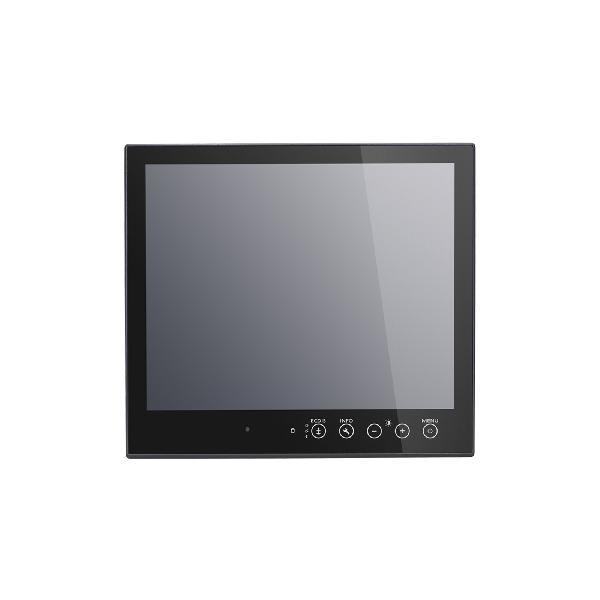

MPC-2190 Series

Home  >   MOXA  >   Industrial Computing  >
Panel Computers & Displays

19-inch ECDIS color calibrated, fanless panel computers

Product Feature

  • Third-generation Intel® processor (Intel® Core™ i7 3517UE 1.7 GHz or Celeron® 1047UE, 1.40 GHz)
  • 19-inch panel computer
  • Color calibrated for ECDIS compliance (available by CTOS)
  • SavvyTouch display controls
  • Fanless system design
  • Built-in NMEA 0183 and 3-in-1 software selectable RS-232/422/485 interfaces
  • Multiple power supplies (AC & DC)

Introduction

MPC-2190 panel computers feature an Intel® 3rd generation processor matched to 4 GB of system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its two RS-232/422/485 serial ports, four NMEA 0183 ports, and two Gigabit Ethernet ports, the MPC-2190 panel computer supports a wide variety of serial and marine-specific interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2190 Series comes with a range of standard display enhancements useful in industrial environments (including full range dimming, wide viewing angles, and optional optical bonding), as well as a few innovations especially deployed for maritime environments: user-friendly OSD controls, called SavvyTouch, featuring a proximity sensor for convenient adjustment in dark situations, immediate BIOS-level reports on hardware status (useful for determining why a machine will not boot up), and a quick-switch ECDIS button (for color-calibrated ECDIS models only) that allows instant brightness adjustments to any of the three pre-set calibrations dictated by the ECDIS standard. In addition to all of this, the MPC-2190 Series features a modular design that makes device integration into either new or existing industrial systems much simpler, reducing deployment costs and overall time-to-market.

The MPC-2190 panel computers are compliant with several industrial marine standards, including IEC 60945, IEC 61162, IEC 61174, DNV, and IACS E10, verifying their resilience for maritime operations. The IP54 (front panel) and IP22 (rear panel) rated unibody shell provides strong additional protection against the harsh conditions found in marine environments.

Color-calibrated ECDIS models are available upon request, providing an ideal HMI alternative for ECDIS charting and navigation stations.

Computer

CPUMPC-2190Z-W7E/2190X/2190Z: Intel® Celeron® Processor 1047UE (2M
Cache, 1.40 GHz)
MPC-2197X/2197Z: Intel® Core™ i7-3517UE Processor (4M Cache, up to
2.80 GHz)
System ChipsetMobile Intel® HM65 Express Chipset
Graphics ControllerIntel® HD Graphics 520
System Memory Pre-installed4 GB DDR3/DDR3L
System Memory SlotSODIMM DDR3/DDR3L slot x 1
Pre-installed OSWindows Embedded Standard 7 (WS7P) 64-bit
Supported OSWindows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
Storage Slot2.5-inch HDD/SSD slots x 2

Computer Interface

Ethernet PortsAuto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial PortsRS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0USB 2.0 hosts x 4, type-A connectors
Audio Input/OutputLine in x 1, Line out x 1, 3.5 mm phone jack
PS/2Keyboard PS/2 x 1, Mouse PS/2 x 1
Video OutputDVI-D x 1, 29-pin DVI-D connectors (female)
VGA x 1, 15-pin D-sub connector (female)
NMEA PortNMEA 0183 ports x 4 (terminal block)

LED Indicators

SystemPower x 1
LAN2 per port (10/100/1000 Mbps)

Display

Active Display Area376.32 (H) x 301.06 (V) mm
Aspect Ratio5:4
Contrast Ratio2000:1
Light Intensity (Brightness)300 cd/m2
Max. No. of Colors16.7M (8-bit/color)
Panel Size19-inch viewable image
Panel TypeMVA
Pixel Pitch (RGB)0.294 (H) x 0.294 (V) mm
Pixels1280 x 1024
Response Time20 ms (gray to gray)
Viewing Angles178°/178°

Touch Function

Touch TypeMPC-2190Z/2197Z: Capacitive Touch (PCAP)
MPC-2190X/2197X: None
Touch Support PointsMPC-2190Z/2197Z: 4 points

Serial Interface

Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-
485, RTS Toggle (RS-232 only)
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 1.5, 2
NMEA InterfaceSerial Standards:
NMEA 0183: RS-422
NMEA 2000: CAN bus (available on request)
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Serial Standards: NMEA 0183v2 (NMEA 2000 available on request)
Stop Bits: 1, 1.5, 2
Voltage Differential: -6 V to +6 V (maximal differential level)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage100 to 240 VAC, 18 to 34 VDC

Physical Characteristics

HousingMetal
IP RatingIP54, front
IP20, rear
Dimensions429 x 387 x 74.5 mm (16.89 x 15.24 x 2.93 in)
Weight8,658 g (19.09 lb)

Environmental Limits

Operating Temperature-15 to 55°C (5 to 131°F)
Storage Temperature (package
included)
-20 to 60°C (-4 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
Environmental TestingIEC 60068-2-1, DNVGL-CG-0339
IEC 60068-2-2, DNVGL-CG-0339
IEC 60068-2-2, IEC 60945
IEC 60068-2-30, IEC 60945
MaritimeABS, CCS, DNV-GL
SafetyEN 60950-1, IEC 60950-1, UL 60950-1
VibrationIEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339

Declaration

Green ProductRoHS, CRoHS, WEEE

Warranty

DetailsSee www.moxa.com/warranty
Warranty PeriodLCD: 1 year
System: 3 years
Name Type Version Release Date
Datasheet for MPC-2190 Series Datasheet V1.4 19 March 2020
