UP Core Plus (UP Developer Boards)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP Developer Boards

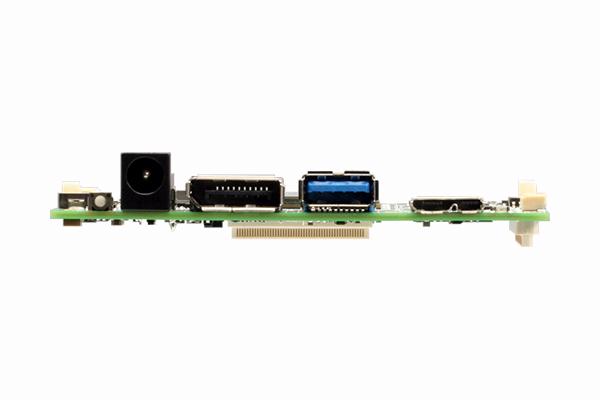

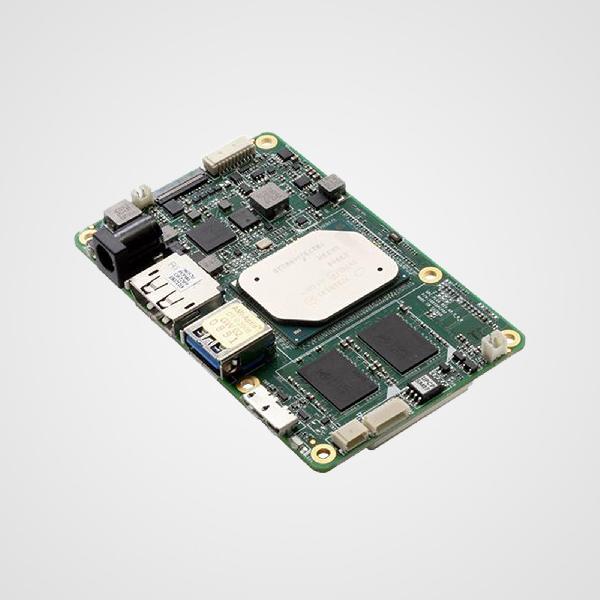

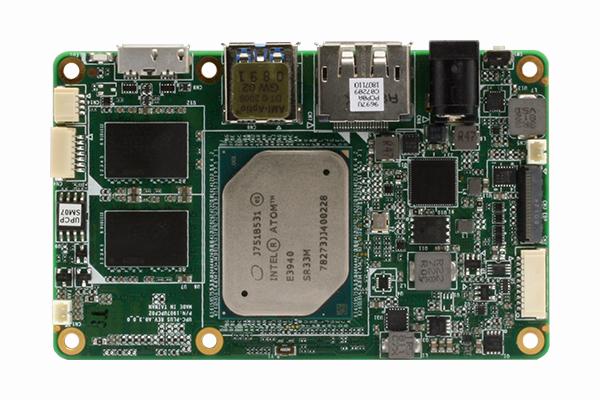

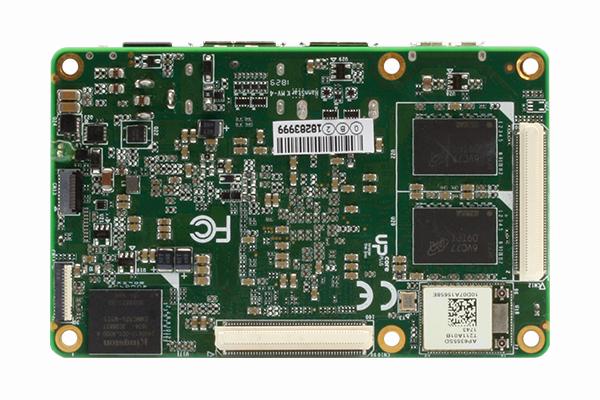

UP Core Plus Developer Board with Intel® Atom™ x5-E3930/x5-E3940/x7-E3950 Processor SoC

Product Feature

  • Intel® Atom™ x5-E3930/x5-E3940/x7-E3950 Processor SoC
  • Onboard LPDDR4 Memory up to 8GB
  • Onboard eMMC Storage up to 64GB
  • USB 2.0 pin header x 2, USB 3.0 x 1, USB3.0 OTG x 1
  • 12V DC-in
  • DP/eDP x 1
  • MIPI-CSI 4-Lane x 1, 2-Lane x 1
  • 100pin docking connector x 2
  • Wi-Fi + Bluetooth

UP Core Plus is the 2nd Generation of modular developer boards from AAEON. The UP Core Plus developer board features a range of Intel processors to choose from including the Atom x5/x7, Celeron, and Pentium, formerly Apollo Lake. The UP Core Plus couples together up to 8 GB LPDDR4 memory and up to 128 GB of onboard eMMC storage, adding up to a low-power high-performance compact package. With support for WiFi and Bluetooth built in, the UP Core Plus is perfect for mobile applications.

The UP Core Plus give users and developers unmatched flexibility. It can be deployed as a standalone board, or paired up with carrier boards thanks to its two 100-pin connectors. With these two connectors, developers can add more power and capability to the UP Core Plus board with Net Plus and UP Vision Plus X boards from AAEON.

ProcessorIntel® Atom™ x5-E3930/x5-E3940/x7-E3950 Processor SoC
GraphicsIntel® HD 500 Graphics / x5-3900 Series
Intel® HD 505 Graphics / x7-3900 Series
I/OeDP x 1, DP x 1
Audio Port via HDMI and I2S (from docking)
CameraCSI 2-Lane x 1
CSI 4-Lane x 1
USBUSB 2.0 pin header x 2
USB3.0 OTG x 1
USB3.0 x 1
Expansion100pin docking connector x 2 including:
USB 2.0, USB 3.0, 6 PCI-E Lane, SATA, I2C, I2S, SPI, PWM, LPC, SDIO,
HSUART, ISH, GPIO
RTCYES
Power12V DC-in @ 3A -5A 5.5/2.1mm jack
Dimension56 mm × 90 mm
Memory2GB (single channel) LPDDR4
4GB/8GB (dual channel) LPDDR4
StorageeMMC 32 GB / 64 GB/ 128GB
Display InterfaceeDP x 1, DP x 1
Ethernet
OS supportMicrosoft Windows 10 Professional, Microsoft Windows 10, IoT Core, Linux
(Ubuntu, Yocto), Android 7.0
Operating Temperature32°F ~ 140°F (0°C ~ 60°C)
Operating Humidity10% ~ 80% relative humidity, non-condensing
certificateCE/FCC Class A, RoHS Compliant, REACH
