UP Board (UP Developer Boards)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP Developer Boards

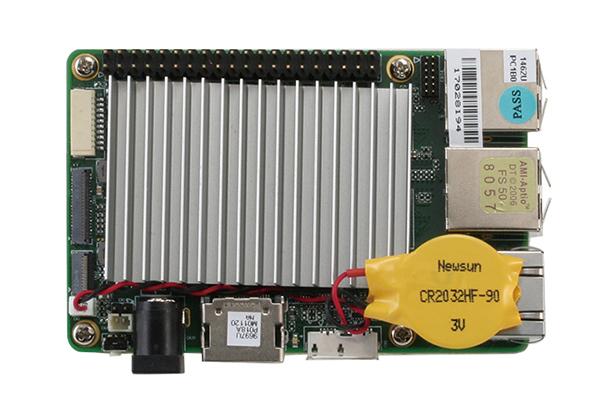

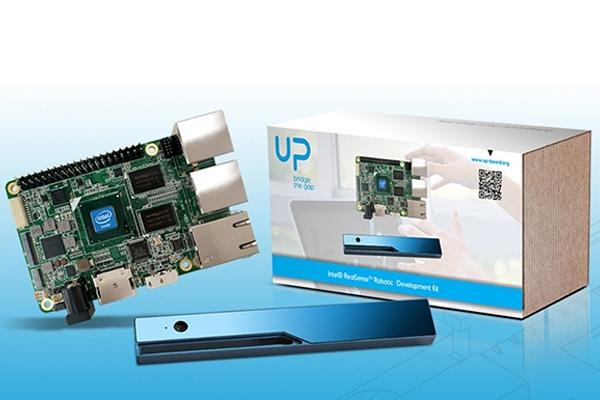

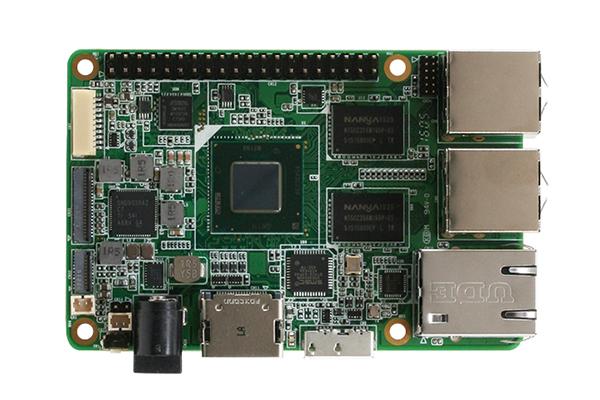

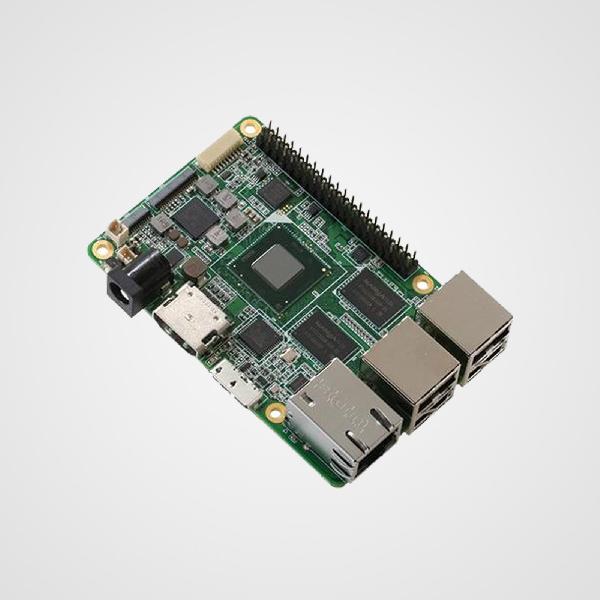

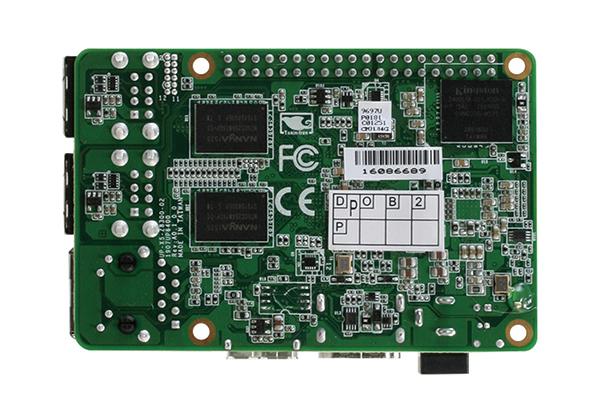

UP Developer Board with Intel® Atom™ x5-Z8350 Processor SoC

Product Feature

  • Intel® Atom™ x5-Z8350 SoC
  • Onboard DDR3L Memory up to 4GB
  • Onboard eMMC Storage up to 64GB
  • Gigabit LAN x 1, USB 2.0 x 4, USB 3.0 x 1, HDMI x 1
  • 5V DC-in
  • 40 pin GPIO x 1
  • DSI/eDP x 1
  • MIPI-CSI x 1

UP is the computer board for Professional Makers and Industrial Applications

The extensive features included within UP make it the perfect solution for applications such as Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars and Internet Of Things (IoT) solutions.

We created UP, the product, the community, and the shop to help professional makers and industrial customers create their products and be able to move to the next level: volume production. Thanks to the core of the embedded business, the UP board provides 2-years longevity and customization for the embedded customers.

UP is produced by AAEON, industrial embedded company of ASUS group. The UP team can access to all the necessary resources to modify UP in accordance with your requirements or to help you in transferring your project to UP platform.

ProcessorIntel® Atom™ x5-Z8350 Processor SoC
GraphicsIntel® HD 400 Graphics, 12 EU GEN 8, up to 500MHz Support DX*11.1/12,
Open GL*42, Open CL* 1.2 OGL ES3.0, H.264, HEVC(decode), VP8
I/OHDMI x 1
I2S Audio port x 1
CameraMIPI-CSI (4 MEGA pixel)
USBUSB 2.0 x4
USB 2.0 pin header (10 pins in total) x 2
USB3.0 OTG x 1
Expansion40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
RTCYes
Power5V DC-in @ 4A 5.5/2.1mm jack
Dimension3.37”x 2.22”( 85.6mm x 56.5mm)
Memory1GB/ 2GB/ 4GB DDR3L-1600
StorageeMMC 16GB / 32GB/ 64GB
Display InterfaceDSI/ eDP
EthernetGb Ethernet (full speed) RJ-45 x 1
OS supportWin 10
Linux (ubilinux, Ubuntu, Yocto)
Android Marshmallow
Operating Temperature32°F ~ 140°F (0°C ~ 60°C)
Operating Humidity10% ~ 80% relative humidity, non-condensing
certificateCE/FCC Class A, RoHS Compliant
