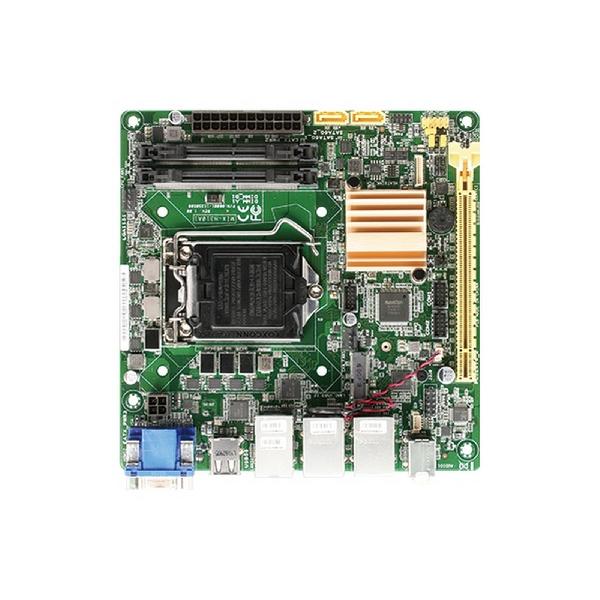

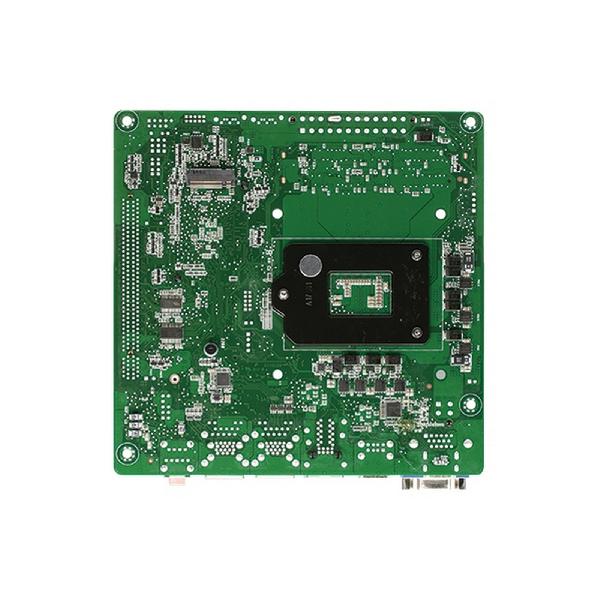

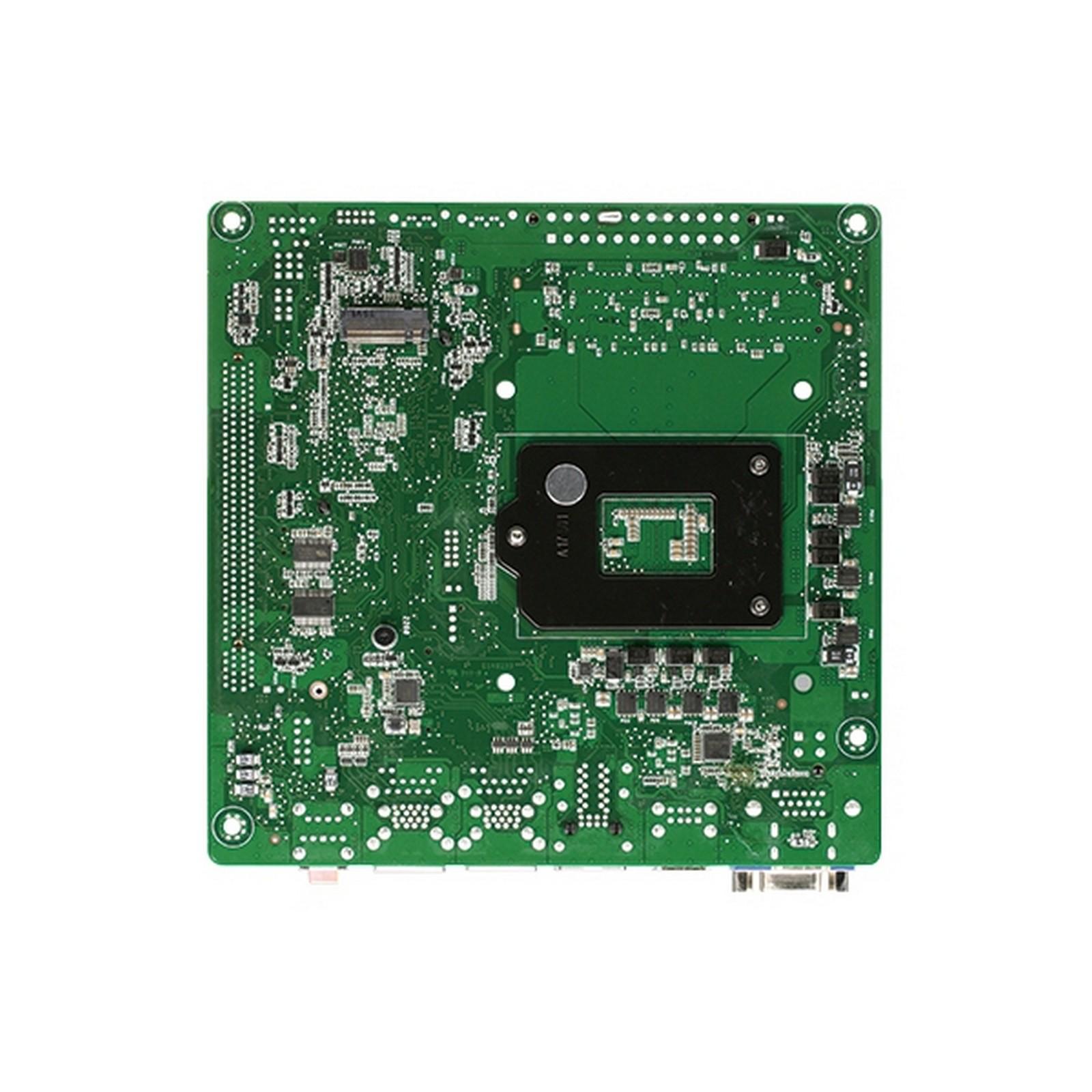

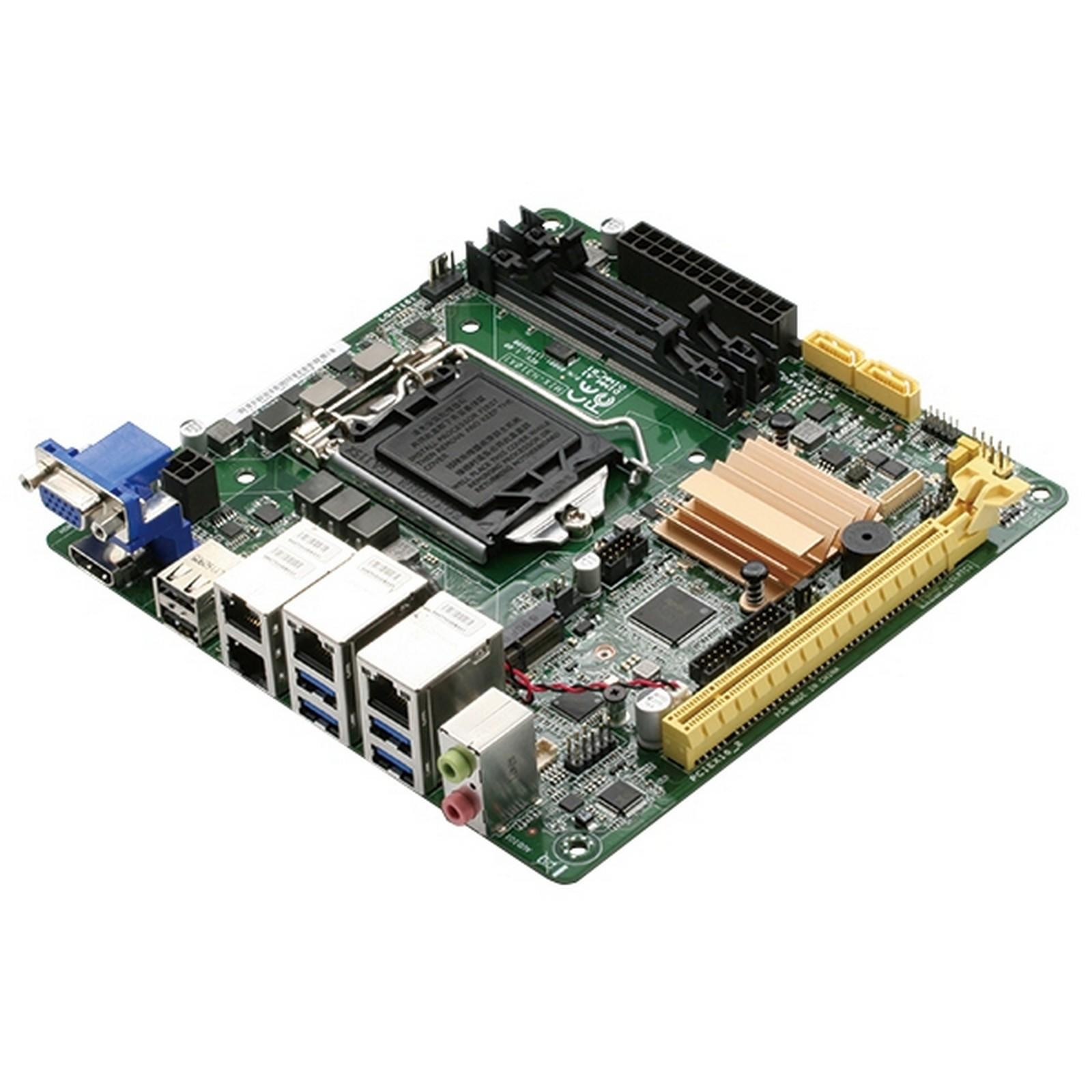

MIX-Q370A1

Home  >   AAEON  >   Embedded Boards  >
Industrial Motherboards  >   Mini-ITX Motherboards

Mini-ITX with 8th/9th Gen Intel® Core™ Processor Family, Max. 65W TDPs, Giga-LAN x 4

Product Feature

  • 8th/9th Gen. Intel® Core™ LGA1151 Processor
  • DDR4 DRAM Support, 2666MHz, Max. 32GB
  • M.2 Slot (M key- SATA only) x 1, M.2 Slot (E key) x 1
  • USB 3.2 Gen 2 Port x 4, USB 2.0 Port x 4
  • Intel® LAN 211AT x 3, 219LM for iAMT 12.0 x 1
  • SATA 6.0 Gb/s x 2
  • PCI-Express [x16] (Gen3) x 1
  • ATX Power

The MIX-Q370A1 mini-ITX board from AAEON offers the power of 8th Generation Intel Core Processors (Coffee Lake) on a compact form factor designed for embedded applications like smart displays, kiosks, and CNC machine controllers. With a powerful compliment of I/O features including USB 3.1 and Intel Gigabit LAN ports, the MIX-Q370A1 is the flexible solution for a wide range of embedded applications.

SYSTEM
PROCESSOR8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs
CHIPSETIntel® Q370 Express Chipset
MEMORYDDR4 2666/2400/2133 MHz SODIMM x 2, Up to 32GB, Non-ECC,
Un-buffered Memory, Dual channel memory architecture
I/O CHIPSETNCT6793D
ETHERNETIntel® PCIe Gb LAN 219LM x 1, Intel® PCIe Gb LAN i211AT x 3
AUDIORealtek® ALC887 with Amp.
TPMNPCT650ABBYX TPM2.0 (default: No)
EXPANSION SLOTPCIe3.0 [x16] x 1
M.2 E-key(22x30mm; Support CNVi)
BIOS256Mbit Flash ROM, AMI BIOS
H/W MONITORTemperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan/ Chassis Fan
WAKE ON LAN/ PXEYes (WOL / PXE)
POWER STATES3, S4, S5
GRAPHICS
GRAPHICS CHIPSETIntel® UHD Graphics
GRAPHICS MULTI DISPLAYHDMI+VGA
VGAUp to 1920 x 1200 @ 60 Hz
DVI
HDMIUp to 4096 x 2160 @30Hz(HDMI 1.4)
DISPLAYPORT
LVDS
EDP
BACKLIGHT CONTROL
ENVIRONMENTAL & POWER & ME
BATTERYLithium battery
POWER REQUIREMENTATX
OPERATING TEMPERATURE32°F ~140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~185°F (-40°C ~85°C)
OPERATING HUMIDITY0%~90%RH, non-condensing
CERTIFICATIONCE & FCC
FORM FACTORMini-ITX: 6.7” x 6.7” (170mm x 170mm)
WEIGHT1.1 lb (0.5 Kg)
MTBF (HOURS)

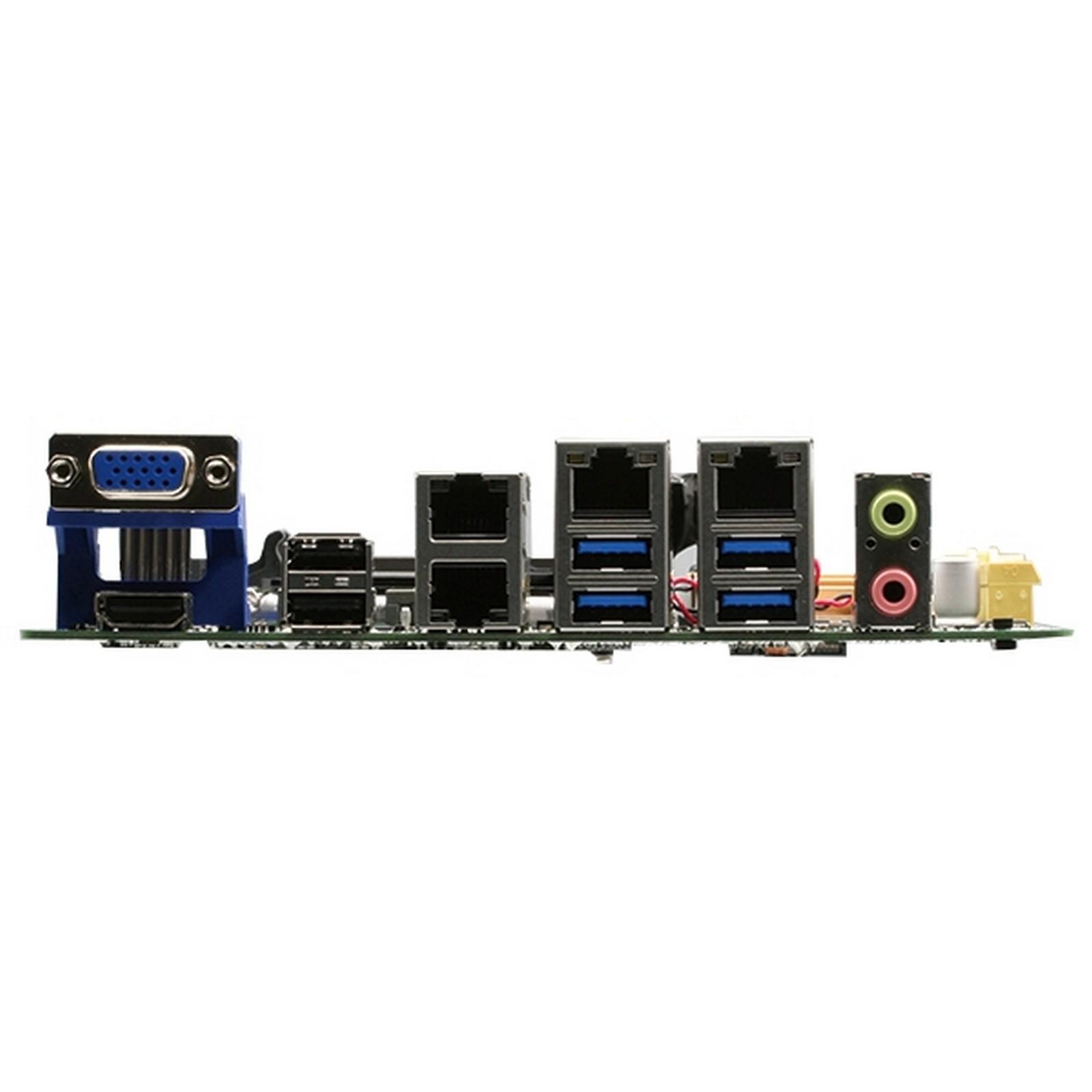

REAR I/O PORTS
USBUSB 3.2 Gen 2 (10 Gbps) x 4, USB 2.0 x 2
DISPLAY I/OVGA x 1, HDMI x 1
AUDIO I/OMic-in x 1, Line-out x 1
LAN I/OLAN (RJ-45) port x 4
SERIAL PORT
PS/2 PORT
OTHERS
INTERNAL I/O CONNECTORS
STORAGESATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80mm) at bottom side x 1(SATA only)
USBUSB 2.0 (2 x 5-pin, 2.00mm) x 1 ports support additional 2 USB.
DISPLAY I/O
AUDIO I/OAAFP x 1, Speaker x 1
SERIAL PORTBoxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1
PS/2 PORT
PARALLEL PORT
DIODigital I/O box header x 1
FAN4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1
POWER
OTHERSFront Panel connector x 1, Chassis Intrusion x 1,
Buzzer onboard x 1, CMOS jumper x 1
OS
OS SUPPORTWindows® 10 64-bit, Linux Ubuntu18.04. 64bit
Name Type Version Release Date
MIX-Q370A1 Datasheet Datasheet V2.0 23 July 2020
