AI Core XM 2280 (UP AI Modules)

Home  >   AAEON  >   UP Boards and UP Systems  >
UP Boards  >   UP AI Modules

AI Edge Computing Module with Intel® Movidius™ Myriad™ X VPU, 2 x Intel® Movidius™ Myriad™ X VPUs

Product Feature

  • Intel® Movidius™ Myriad™ X VPU
  • 2x MYDX on M.2 2280 B+M key
  • Intel® Vision Accelerator Design SW SDK
  • Supported Framework: TensorFlow, Caffe, MXNET
  • Ubuntu 16.04, Windows® 10

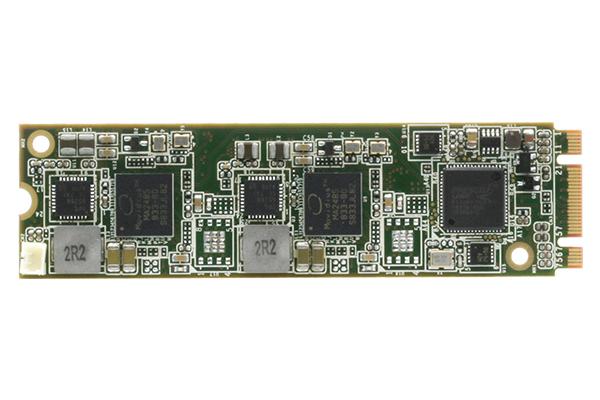

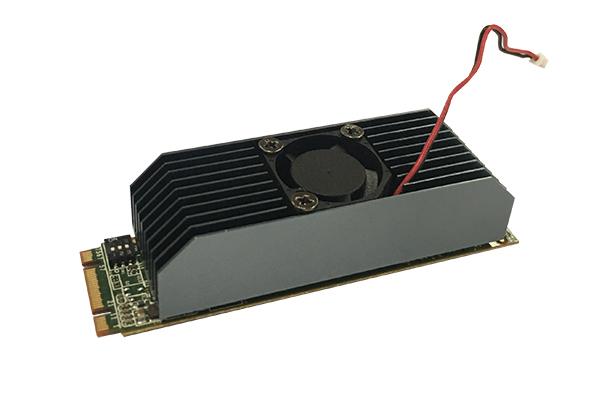

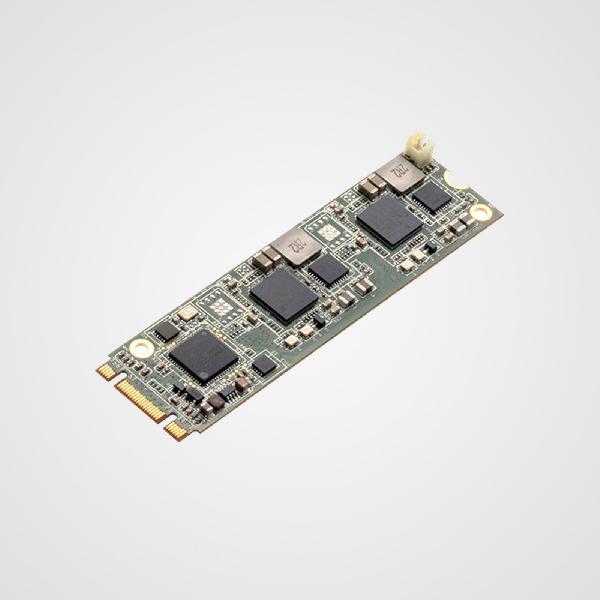

The AI Core XM2280 is a compact m.2 AI module powered by Intel® Movidius™ Myriad™ X. It features two Intel® Movidius™ Myriad™ X VPUs, which together are capable of up to 200 fps (160 fps typical) and over 2 trillion floating point operations per second as a dedicated neural network accelerator. The AI Core XM2280 is compatible with Intel® Distribution of OpenVINO toolkit and supports Tensorflow and Caffe frameworks.

The Intel® Movidius™ Myriad™ X is built to have high performance with low power consumption. Together with the AI Core XM2280’s compact m.2 22x80mm size, the AI Core XM2280 is perfect for applications that are mobile or rely on battery power, such as drones or remote camera sensors.

The AI Core XM2280 is part of AAEON’s package of AI solutions, and can be readily used with UP maker boards such as the Up Extreme, or with a wide range of embedded boards and systems in the AAEON catalogue.



By working closely with Intel, AAEON has developed a wide range of AI solutions powered by Intel® Movidius™ Myriad™ X. Please learn more here.

system

ICIntel® Movidius™ Myriad™ X VPU x 2, MA2485
Supported FrameworksTensorflow, Caffe, MXNET

others

Form FactorM.2 2280 B+M KEY
Dimension3.15" x 0.87" (80 mm x 22 mm)
CertificationCE/FCC Class A
Operating Temperature32°F ~ 122°F (0°C ~ 50°C)
Operating Humidity10% ~ 80% relative humidity, non-condensing
