FWS-8600

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Rackmount Network Appliance

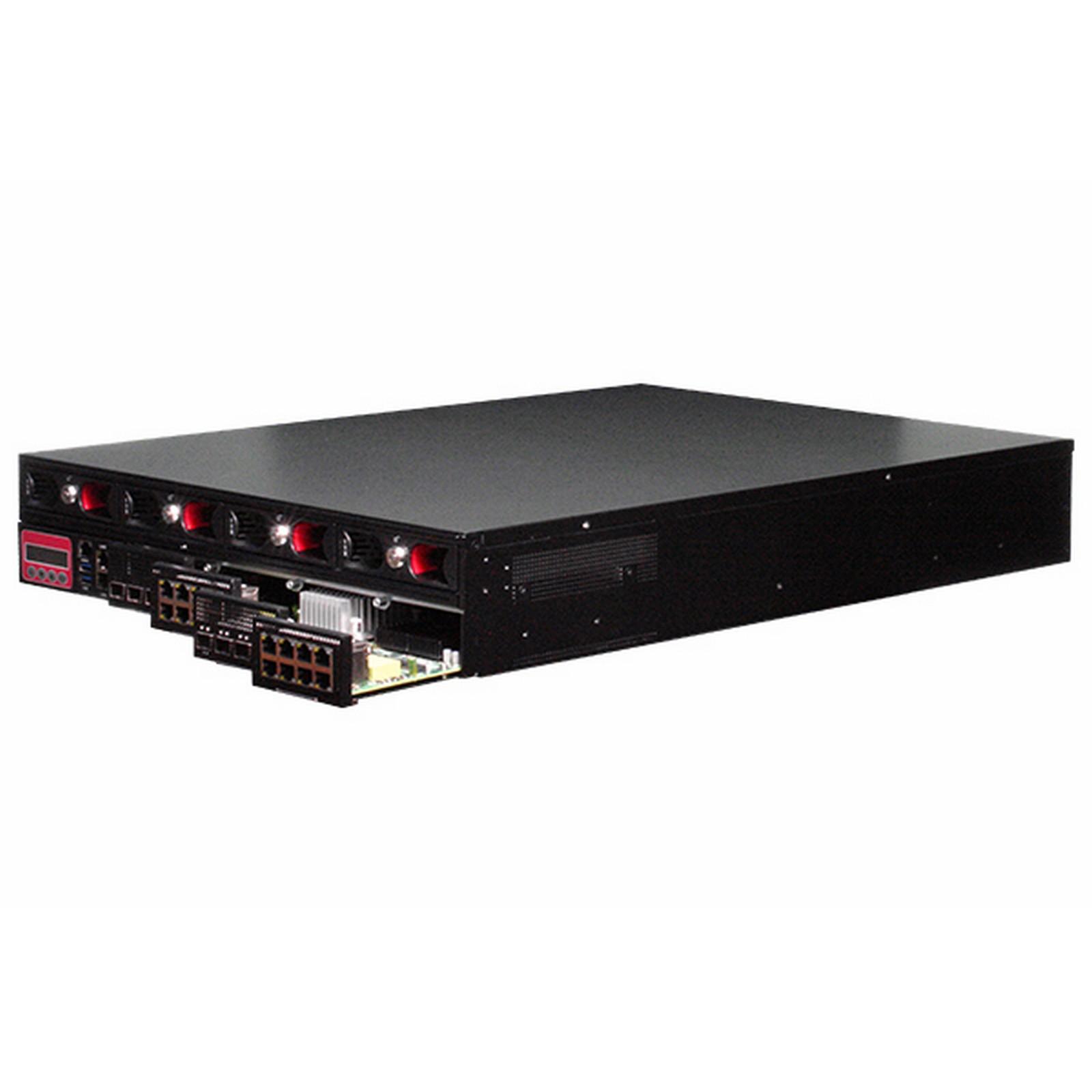

2U Rackmount Network Appliance with Dual 2nd Gen Intel® Xeon® Scalable Processors

Product Feature

  • 2U Rackmount Network Appliance
  • Dual 2nd Gen Intel® Xeon® Scalable Processors
  • Intel® C621 Chipset
  • DDR4 2133/2400/2666 MHz RDIMM x 16, up to 512GB
  • 1GbE RJ45 Intel® i211 x 2, NIM slot x 4 (Project based up to 8 slots)
  • IPMI supported by AAEON Module
  • External Hotswappable 3.5” HDD Bay x 4, Internal 3.5” HDD Bay x 1
  • Mini-Card slot x 1, M.2 2260 M-key x 1
  • RJ-45 Console x 1, USB 3.2 Gen 1 x 2
  • 550W ~ 600W Redundant Power

The FWS-8600 2U Rackmount Network Appliance is built to handle powerful network applications, including UTM, SDN and NFV. Additionally, it features support for the Second Generation Intel Xeon Scalable Processor (formerly Cascade Lake) with Intel Deep Learning Boost, allowing the FWS-8600 to meet the high-data needs of AI edge and cloud networks, including AIOT.

The FWS-8600 can support LAN throughput up to 300~400 Gbps, according to AAEON testing. It also features four lockable hard drive bays, support for up to 512GB of RDIMM ECC RAM, and four NIM slots. With manufacturer support from AAEON, the FWS-8600 can be configured and built to your network needs. The FWS-8600 is the solution for your AI driven IoT network needs.

Xeon Scalable Processors

Powered by Second Gen. Intl Xeon Scalable Processors. Whether it's Bronze, Silver, Gold or even Platinum, the FWS-8600 can power your project.(Xeon SP Platinum offered on per project basis)

Non-stop Operation

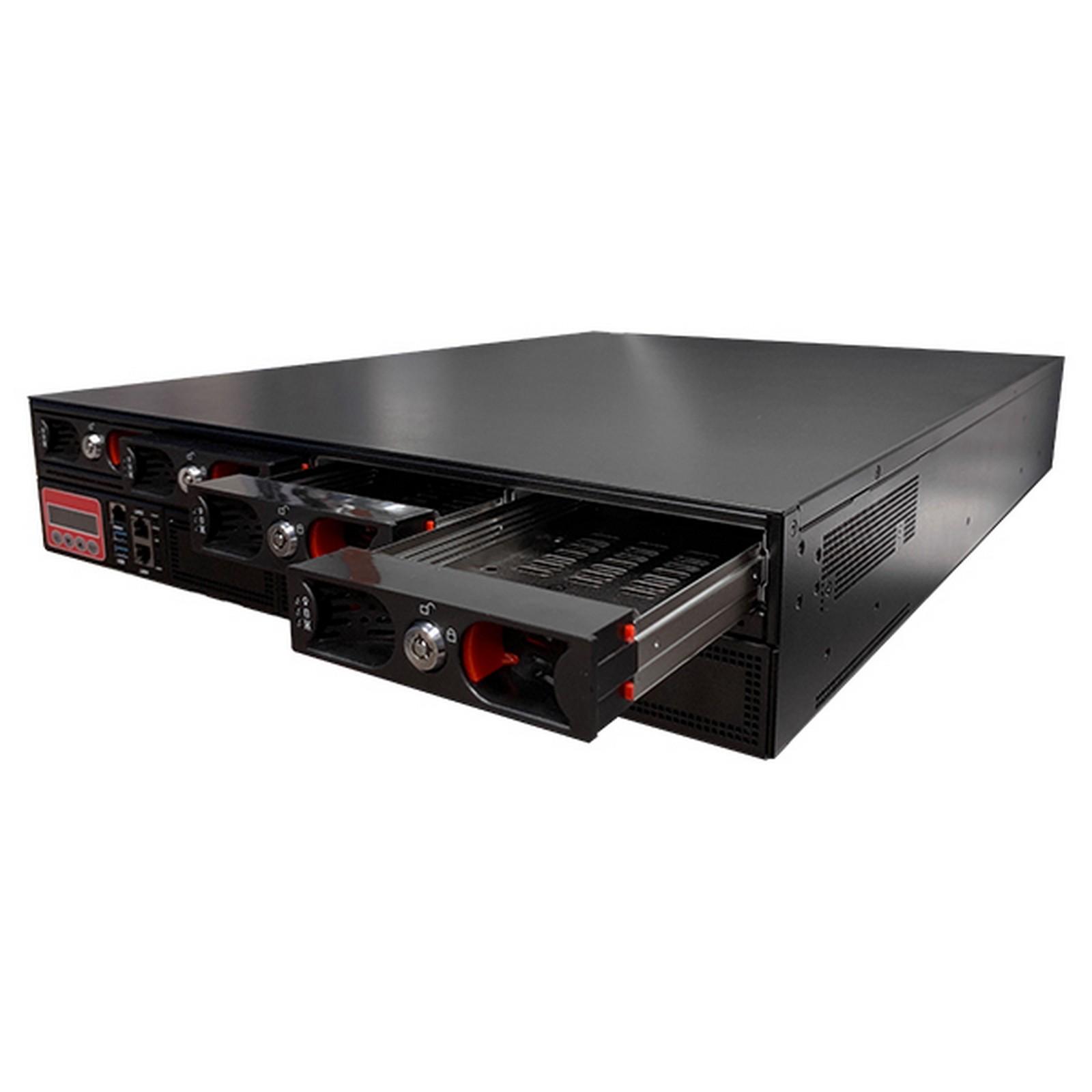

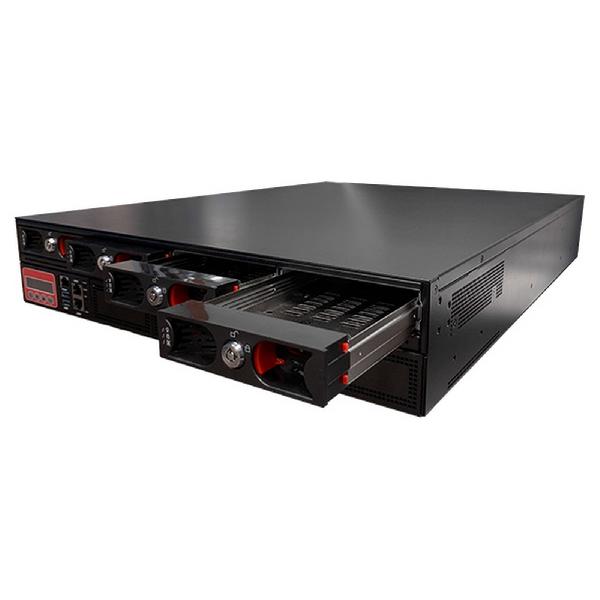

The FWS-8600 has several hot-swappable components including fans, HDD trays with locks, and power supplies, providing easy maintenance and continuous 24/7 operation even while being worked on.

Customizable for you

The FWS-8600 offers almost unlimited options for customization, tailoring its power and flexibility to fit your exact needs, from SDN, Storage, Data Center or server, AAEON can customize to order.

Optimized for AI

With high-performance and high throughput, the FWS-8600 can power any project. With Intel Deep Learning Boost with Xeon SP processors, the FWS-8600 is optimized for AI.

PLATFORM
FORM FACTOR2U Rackmount Network Platform
PROCESSORDual 2nd Gen Intel® Xeon® Scalable Processors, up to 56 cores, 112 threads
CHIPSETIntel® C621 Chipset
SYSTEM MEMORYDDR4 2133/2400/2666 R-DIMM x 16 (8 DIMM per CPU), Up to 512 GB
NETWORK
ETHERNETIntel® i211 Gigabit Ethernet x 2
BYPASSDepend on NIM module
NIM SLOTNIM x 4 (Project based up to 8 slots)
DISPLAY
GRAPHICS CONTROLLEROptional support via Mini-PCIe module or IPMI
CONNECTOROptional VGA port via module
STORAGE
HDDSATA III Port x 6
External Hotswappable 3.5" HDD Bay x 4
Internal 3.5" HDD Bay x 1, option with 2.5" HDD Bay x 2
CF/CFAST/MSATAM.2 2260 M-key x 1
mSATA slot x 1 (share same slot with Mini-Card)
EXPANSION/INTERNAL INTERFACE
PCIE SLOTOptional PCIe [x16] slots x 2, via riser card
MINI-CARDMini Card slot (full-size) x 1 (PCIe/SATA, USB2.0)
IPMIOptional IPMI via AAEON Module (Project based)
KB MOUSE
USBUSB 3.2 Gen1 x 2 (Optional 2*10 pin USB 3.2 Gen1 x 2 Box Header 2.0mm)
MISCELLANEOUS
RTCInternal RTC
WATCHDOG TIMER1~255 steps by software programmable
SOFTWARE BUTTONGPIO Programmable push button x 1
TPM(Optional TPM2.0 9665 on board)
GPIO(4 bits input, 4 bits output optional)
FAN5 x Hotswappable FAN
MTBF (HOURS)192,691 Hours
COLORBlack
PHYSICAL & ENVIRONMENTAL SPEC

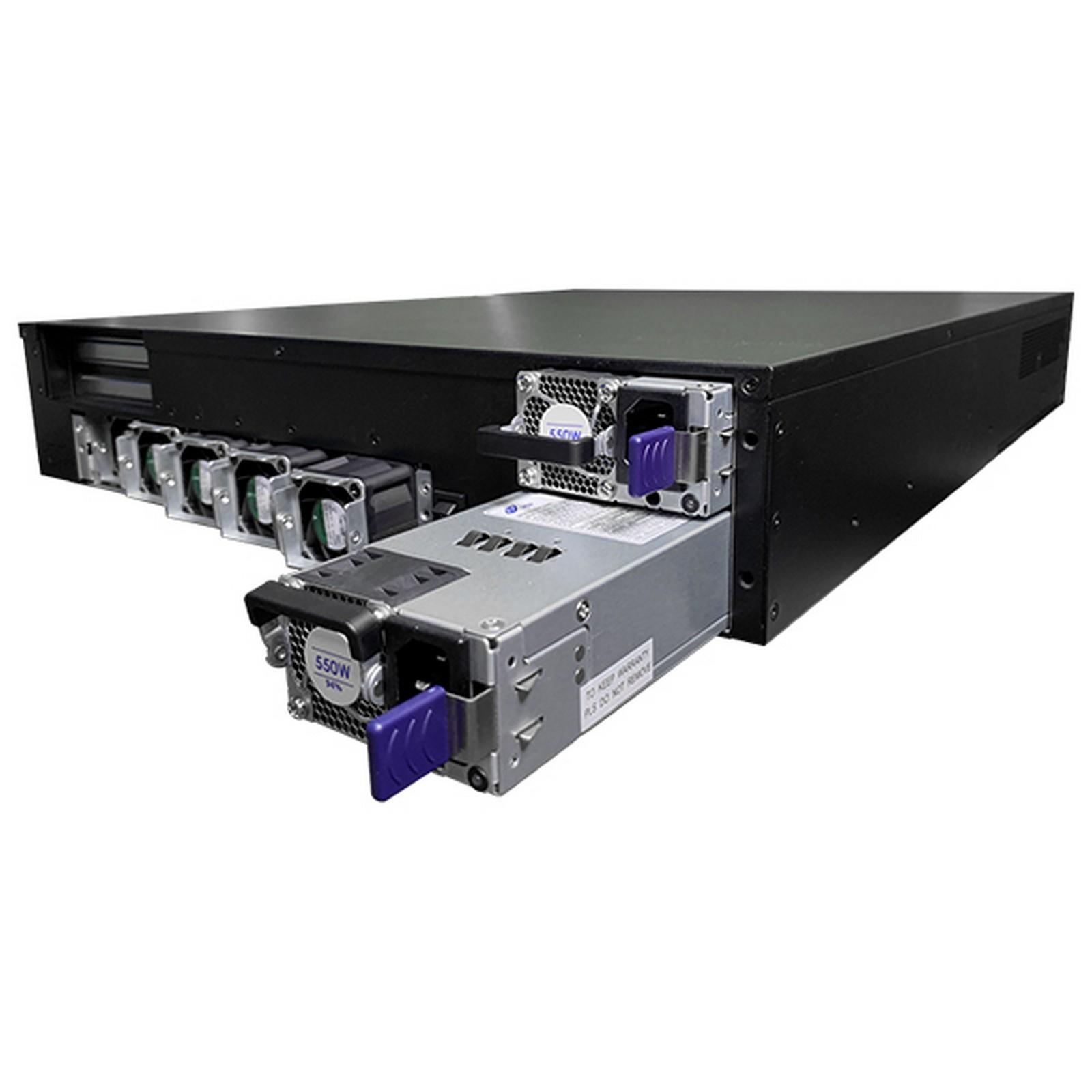

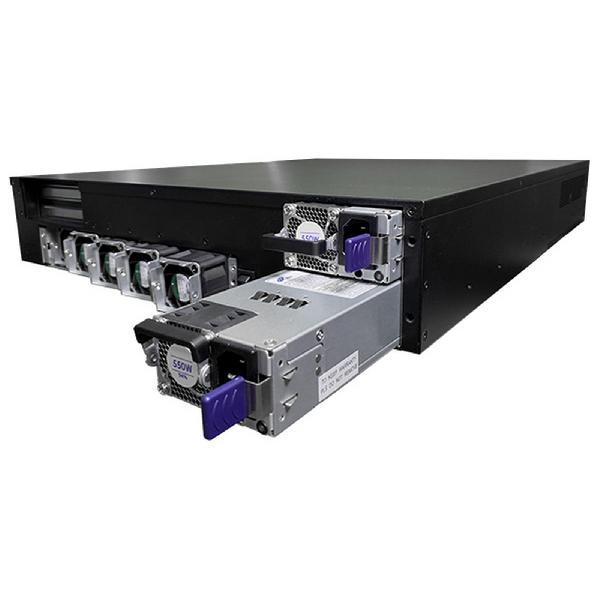

POWER REQUIREMENT550 ~ 600W Redundant Power
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C )
STORAGE TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY10%~80% relative humidity, non-condensing
STORAGE HUMIDITY10%~80% @40°C; non-condensing
VIBRATION0.5 Grms/ 5 ~ 500Hz / operation (3.5” Hard Disk Drive x 5)
1.5 Grms/ 5 ~ 500Hz / non operation
SHOCK10 G peak acceleration (11 m sec. duration), operation
20 G peak acceleration (11 m sec. duration), non operation
DIMENSION (W X D X H)17.48" x 22.83" x3.46" (444mm x 580mm x 88mm)
I/O INTERFACE

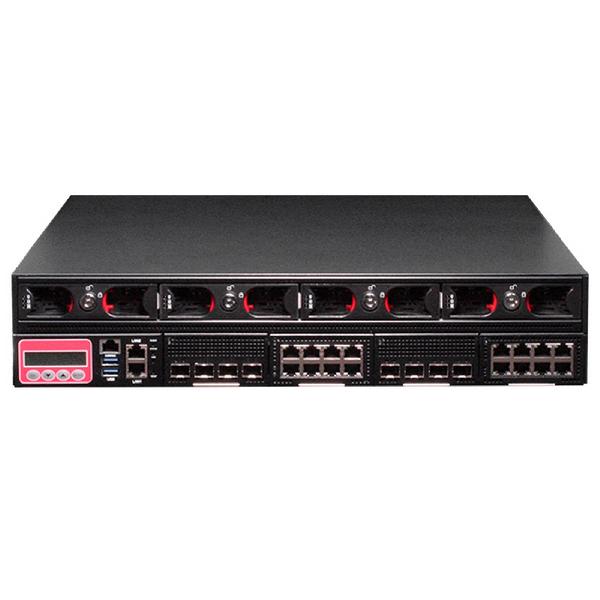

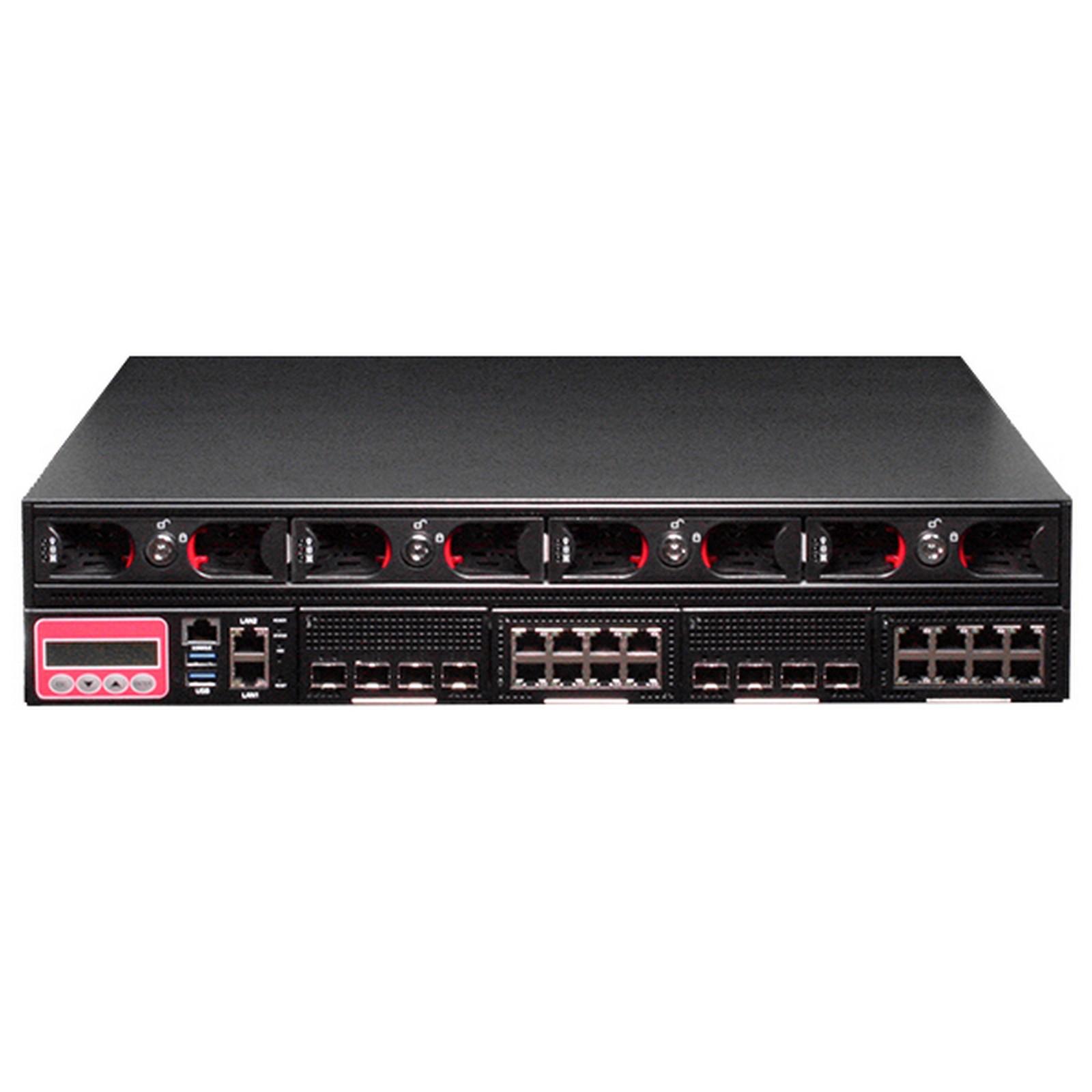

FRONT PANELPower LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.2 Gen 1 Ports x 2
RJ-45 Console x 1
Parallel LCM display and 4 keypad x 1
Software Programmable Button x1
RJ-45 LAN x 2
IPMI x 1 (Project based)

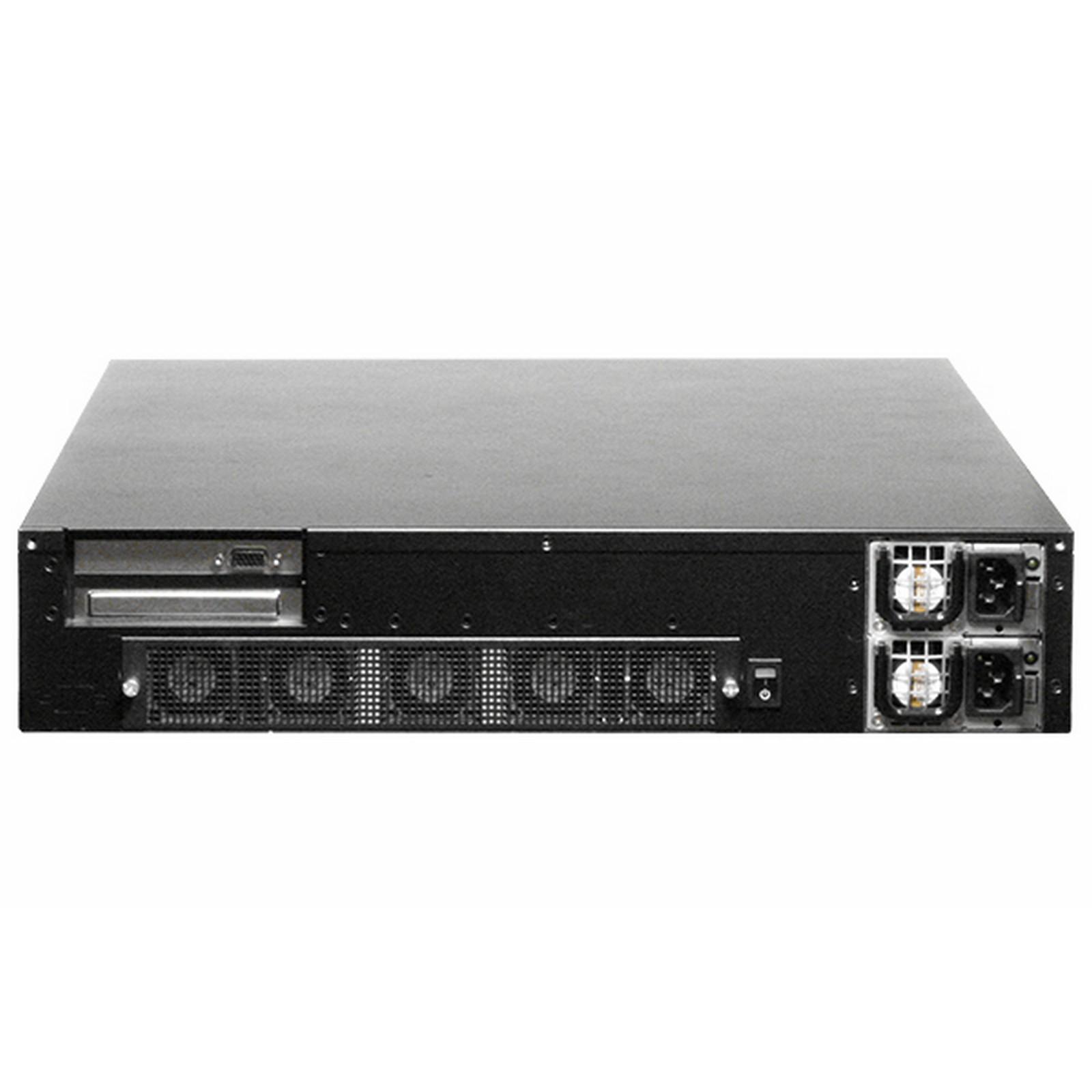

REAR PANELAC Power Input x 2, Power Switch x 1,
VGA port (Optional), Rear Expansion Slot x 2 ( PCIe [x16] Optional)
Name Type Version Release Date
FWS-8600, datasheet Datasheet V1.0 26 Febuary 2019
