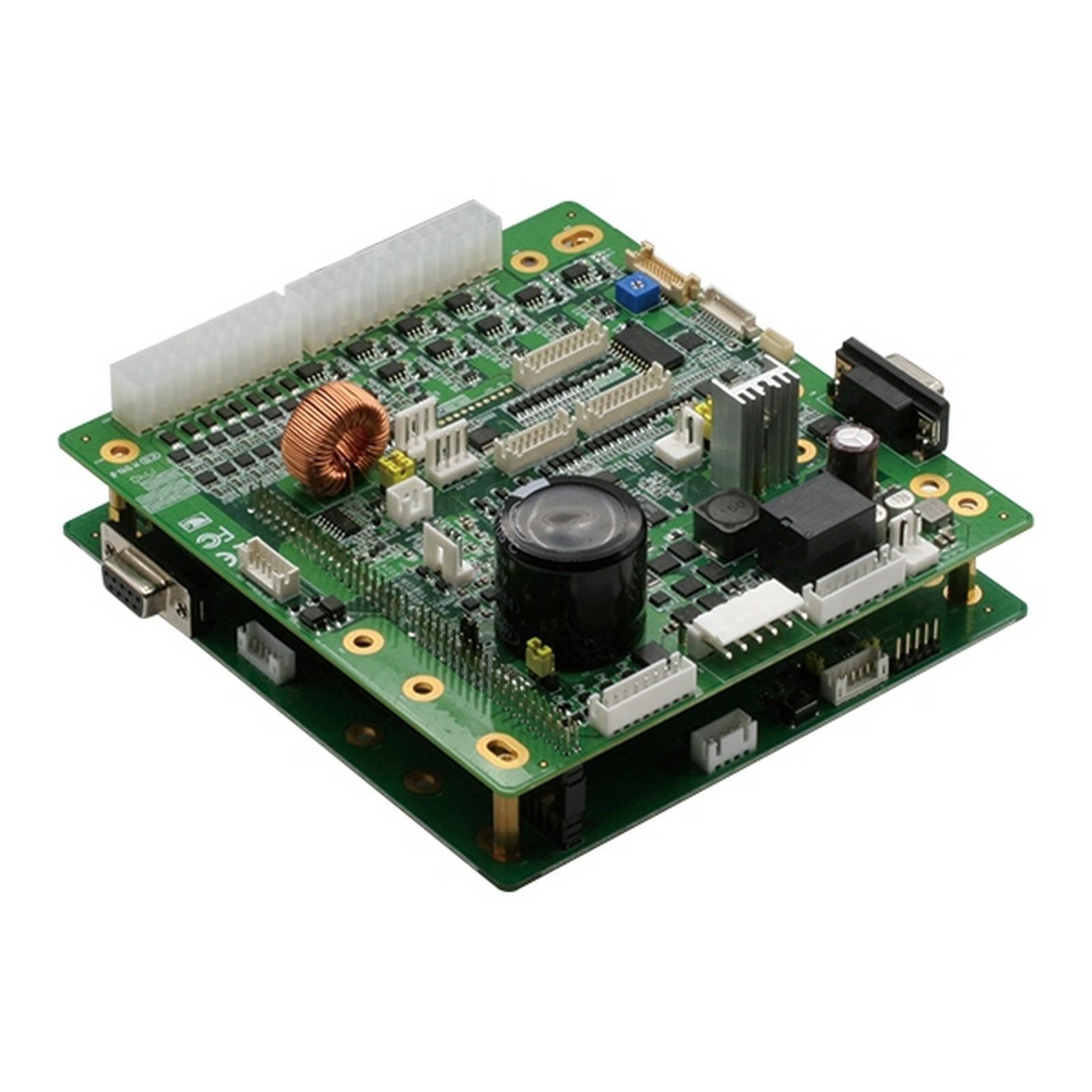

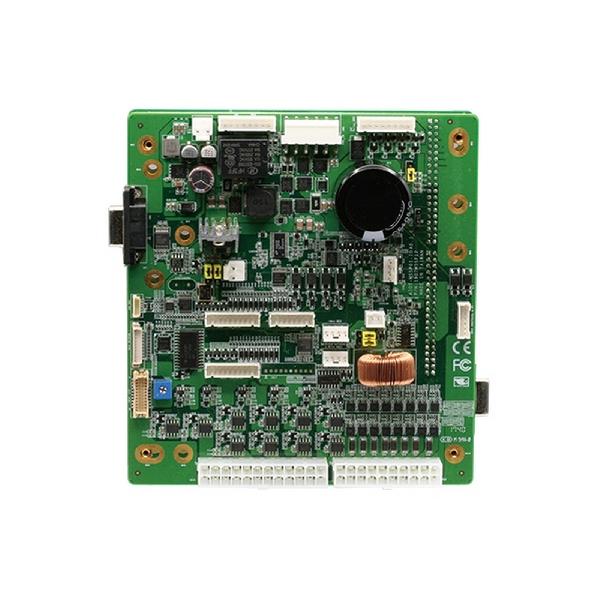

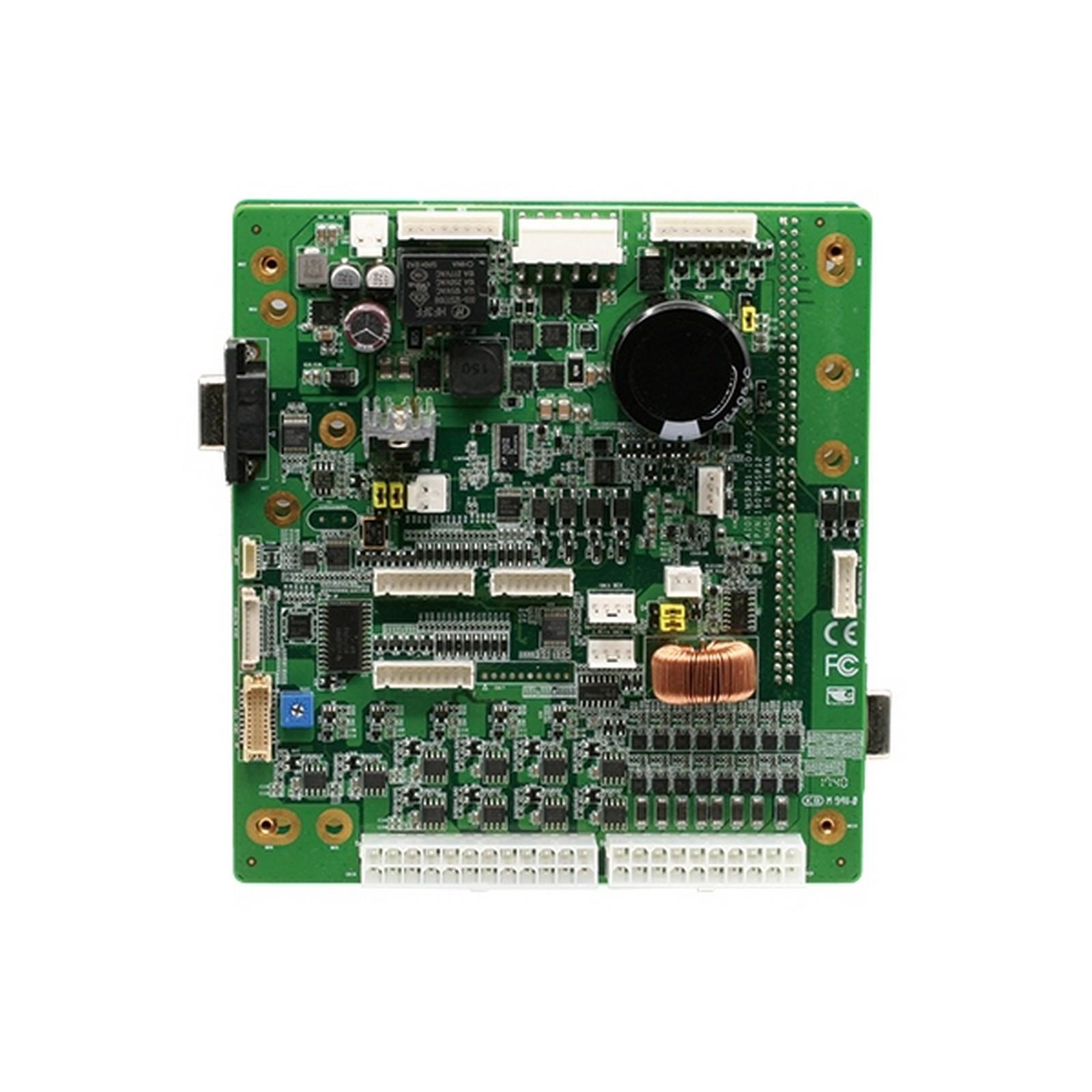

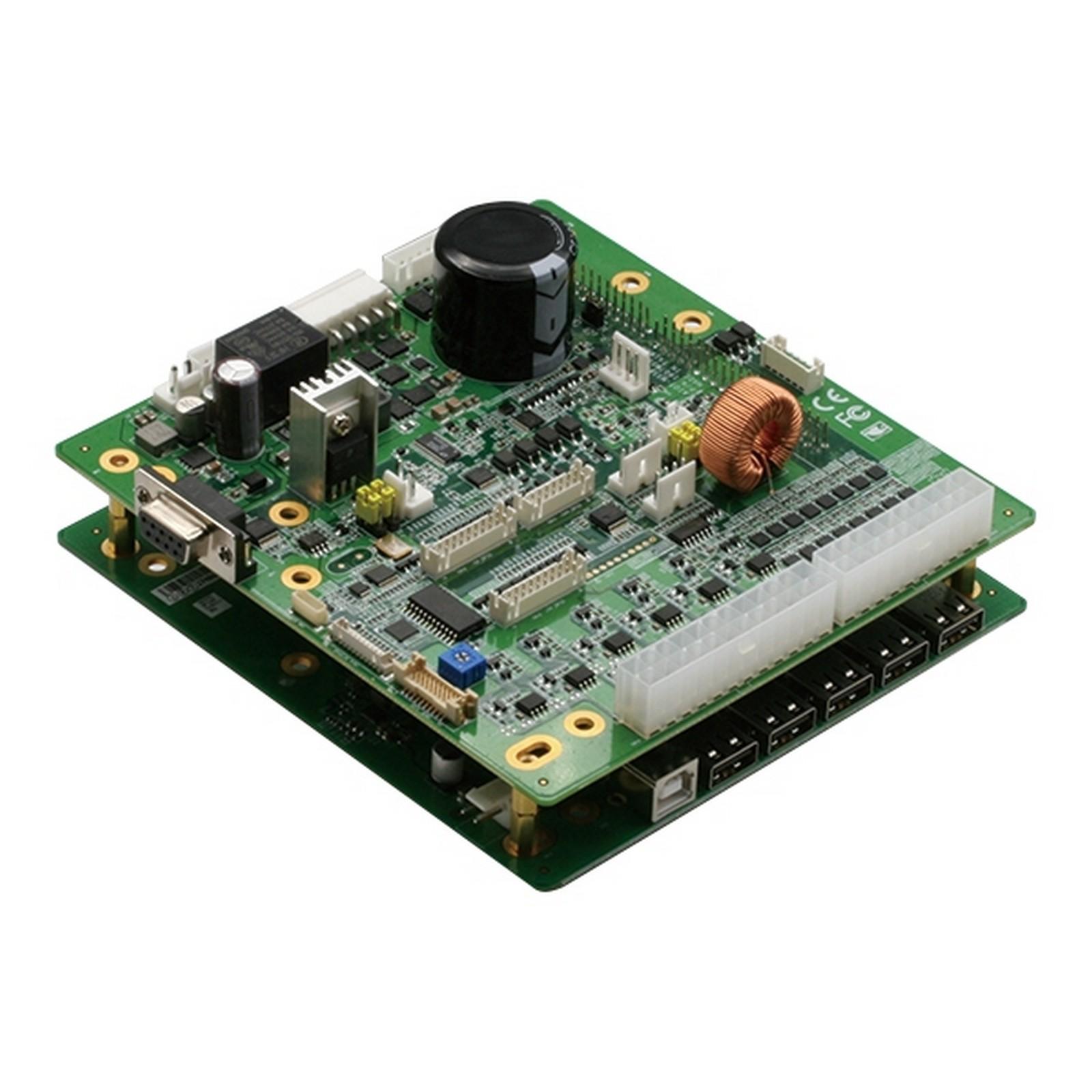

Mini SSP Vending Control Board

Product Feature

  • Intel® Intelligent Vending Based
  • MDB, EXE and USB Support For Vending Devices
  • Flexible Motor Control: 24V or 12V, Supports GPIO, DC, PWM Type, Supports up to 160 DC Motors
  • Supports LCD and Keypad Feature

Mini SSP Vending Control Board

EXTERNAL CONNECTOR
USBUSB 2.0 type A connector x 5 (via USB HUB)
USB 2.0 type B connector x 1 (USB HUB Host)
INTERNAL CONNECTOR
MDBMDB x 1
1-WIRE1-WIRE x 1
DEXDEX x 1
PROTOCOLProtocol A (EXE) x 1
KEYPAD8 Bit Keypad x 1 (subject to support 4 x 4 keypad)
LCDLCD x 1
ADC4-channel ADC x 1
RELAY GPIO4-channel Relay GPIO for 12V & 5V by switch x 1
GPIO16-Bit GPIO x 2
GPI8-Bit 24V GPI x 1
ANALOG VOLTAGE SENSE24V Analog voltage sense x 1
POWER INPUT24V AC/DC Power Input x 1
MOTOR SWITCHSelect motor 24Vdc or 12Vdc switch (Motor supports GPIO, DC, PWM type) x 1
MOTOR CONTROLFull bridge motor control x 5
Low side motor control x 16
EXPANSION HEADER2* 20 PIN header x 2
OTHERS
FORM FACTOR5.91" x 5.51" (150 mm x 140 mm)
POWER SOURCE24V AC @ 50Hz, 24V DC
OPERATING TEMPERATURE32 °F ~ 140 °F (0 °C ~ 60 °C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
CERTIFICATIONCE, FCC
Name Type Version Release Date
AIOT-MSSP01, datasheet Datasheet V1.0 23 December 2019
