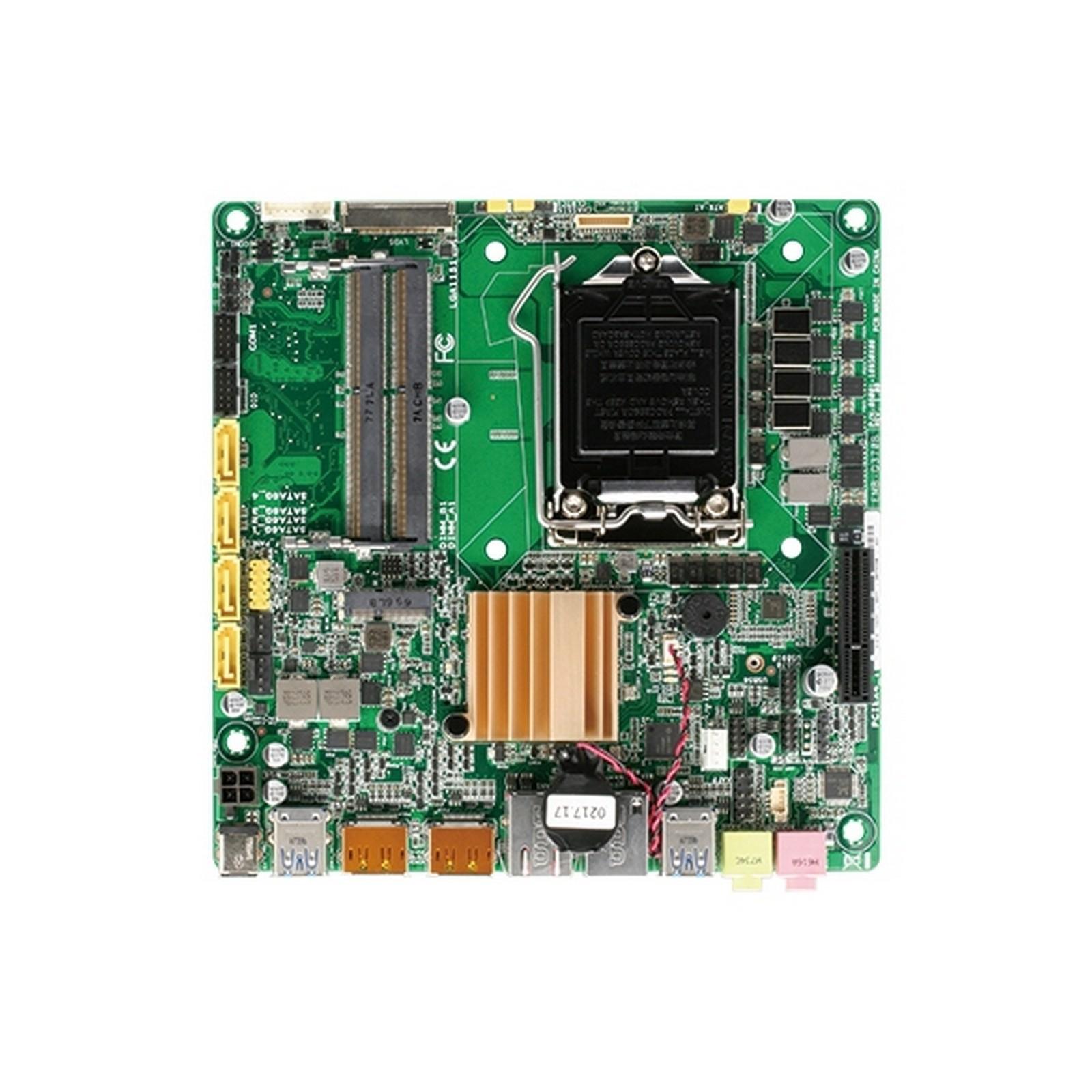

MIX-Q370D1

Home  >   AAEON  >   Embedded Boards  >
Industrial Motherboards  >   Mini-ITX Motherboards

Mini-ITX with 8th/9th Gen Intel® Core™ Processor Family, DDR4 DRAM, USB x 10, Max. 65W TDPs

Product Feature

  • DDR4 SODIMM x 2, Up to 32 GB
  • Three Independent Display: DP x 2, eDP x 1, LVDS x 1
  • Intel® LAN 210AT x 1, 219LM for iAMT 12.0 x 1
  • M.2 Slot (M-key) x 1
  • M.2 Slot (E-key) x 1
  • USB 3.2 Gen 2 x 4, USB 2.0 x 6
  • PCIe [x4] x 1
  • Low Profile
  • 12V DC Power Input
  • Support Intel® NVMe M.2 SSD

Mini-ITX with 8th/9th Gen Intel® Core™ Processor Family, DDR4 DRAM, USB x 10, Max. 65W TDPs

SYSTEM
PROCESSOR8th/9th Generation Intel® Core™ i7/ i5 /i3, Pentium® LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs
CHIPSETIntel® Q370 Express Chipset
MEMORYSODIMM x 2, Max. 32GB, DDR4 2666/2400 MHz, Non-ECC, Un-buffered Memory, Dual channel
I/O CHIPSETNCT6793D
ETHERNETIntel® PHY i219LM Giga LAN (support Intel® AMT 12.0) x 1 Intel® i210AT Giga LAN x 1
AUDIORealtek® ALC887
TPMNuvoton TPM version 2.0
EXPANSION SLOTPCIe 3.0 [x4] x 1
M.2 M key (22 x 80mm) x 1 at Bottom side, SATA & PCIe [x4]
M.2 E key (22 x 30mm) x 1 for Wireless-wifi module (PCIe+USB)
BIOS256M bit Flash ROM, AMI BIOS
H/W MONITORTemperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on Chassis
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan/Chassis Fan
WAKE ON LAN/ PXEYes (WOL/PXE)
POWER STATES3, S4, S5
GRAPHICS
GRAPHICS CHIPSETIntel® UHD Graphics
GRAPHICS MULTI DISPLAYThree Independent Display
VGA
DVI
HDMI
DISPLAYPORTUp to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio, DP++ supported
LVDSLVDS Up to 1920 x 1200 @ 60 Hz, Dual Channel 18/24 bit (via Chrontel 7511)
EDPeDP UP to 4096 x 2304 @ 60Hz
BACKLIGHT CONTROLVoltage/PWM
ENVIRONMENTAL & POWER & ME
BATTERYLithium battery
POWER REQUIREMENT12V DC
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% R/H, non-condensing
CERTIFICATIONCE & FCC (Class A)
FORM FACTORMini-ITX: 6.7” x 6.7” (170mm x 170mm)
WEIGHT1.1 lb (0.5 Kg)
MTBF (HOURS)256310

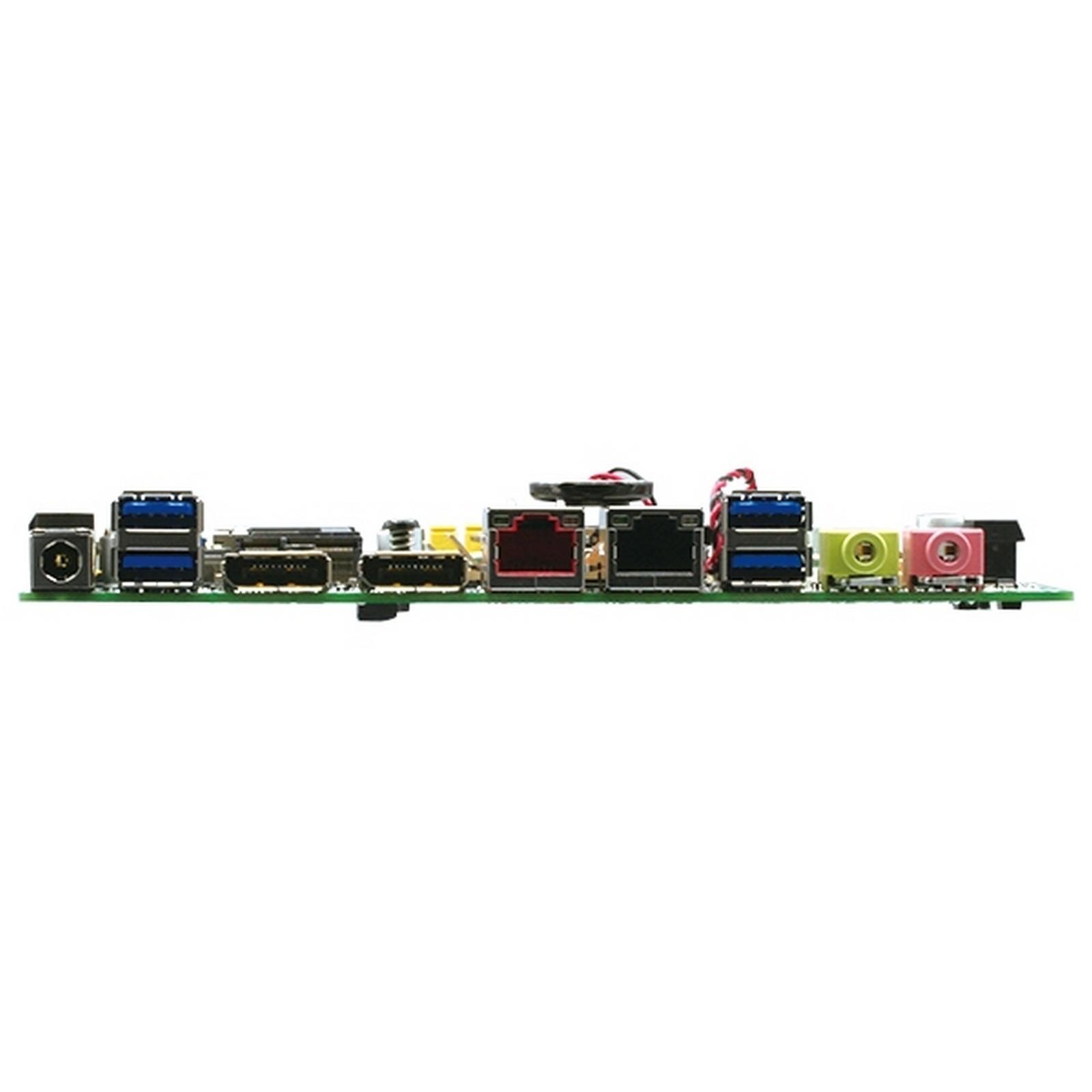

REAR I/O PORTS
USBUSB 3.2 Gen 2 (10 Gbps) x 4
DISPLAY I/ODP x 2
AUDIO I/OMic-in x 1, Line out x 1
LAN I/OLAN (RJ45) port x 2
SERIAL PORT
PS/2 PORT
OTHERSDC Jack
INTERNAL I/O CONNECTORS
STORAGESATA 6.0Gb/s x4
M.2 M key (22x80mm) x1 (Support Intel® NVMe M.2 SSD)
USB3 x USB 2.0 pin header support additional 6 USB ports
DISPLAY I/O40-pin LVDS connector x 1
40-pin eDP connector x 1
LCD backlight connector (inverter) x 1
AUDIO I/OSpeaker for 2W/4Ω x 1
AAFP follow ASUS pin out x 1
SERIAL PORTBoxer header x 1 for COM (COM1: RS-232/422/485 supports 5V/12V/RI)
PS/2 PORT
PARALLEL PORT
DIO8-bit x 1 (In/Out programmable)
FAN4-pin Chassis Fan connector x 1
4-pin CPU Fan connector x 1
POWER12V DC Power jack x 1
OTHERSFront panel header x 1
Clear CMOS jumper x 1
AT/ATX select jumper x 1
Chassis Intrusion x 1
4-pin SATA power x 1
OS
OS SUPPORTWindows® 10 64 bit, Ubuntu 16.04 LTS
Name Type Version Release Date
MIX-Q370D1 Datasheet Datasheet V2.0 21 July 2020
