ADDER RED-PSU

Home  >   Adder  >   Accessories  >
Power Management

19 inch rack mountable power distribution unit with optional redundancy, available with 8 or 16 outputs

Product Feature

  • Secure connection: HTTP digest authentication (RFC 2617) ensure web security,  requiring username and password
  • Power integrity: a central microprocessor manages the output of power and ensure power consistency to the multiple devices
  • Adaptable to suit your needs: available in 8 or 16 ports, limited at 20 Watts at 12V
  • Integrated redundancy: removes single points of failure, increasing the reliability of your installation

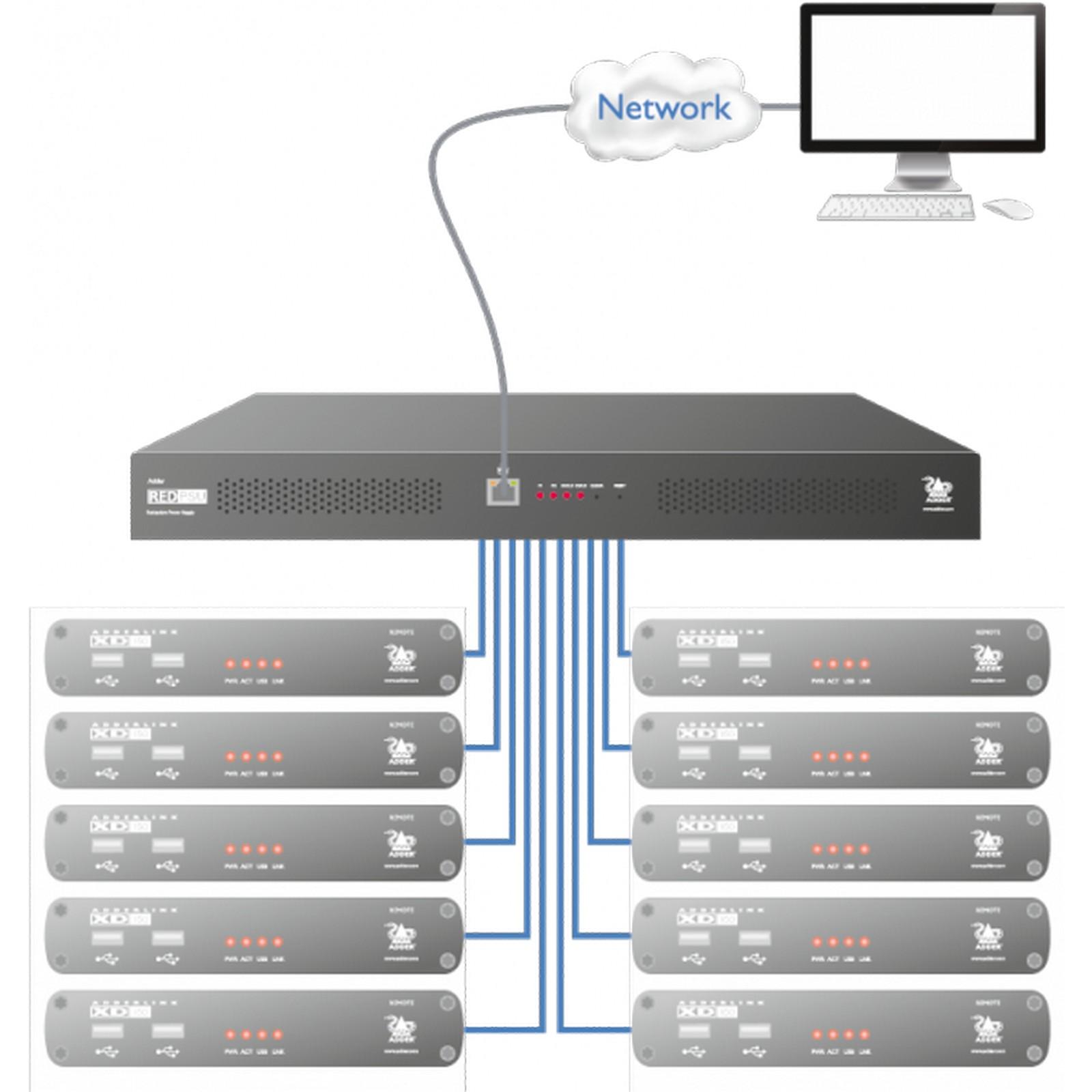

  • Remotely manage your devices: monitor, troubleshoot and power on and off your devices from your desk

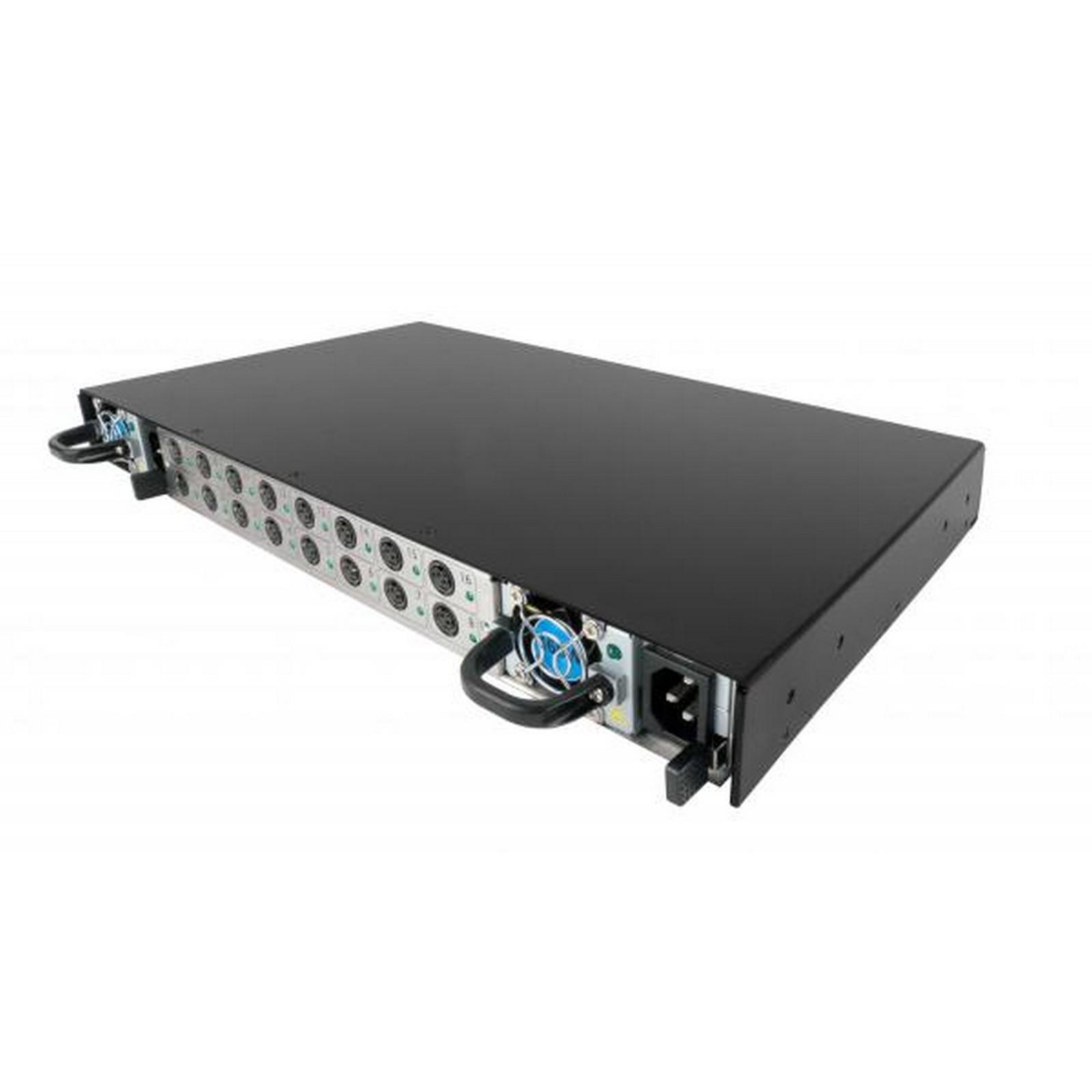

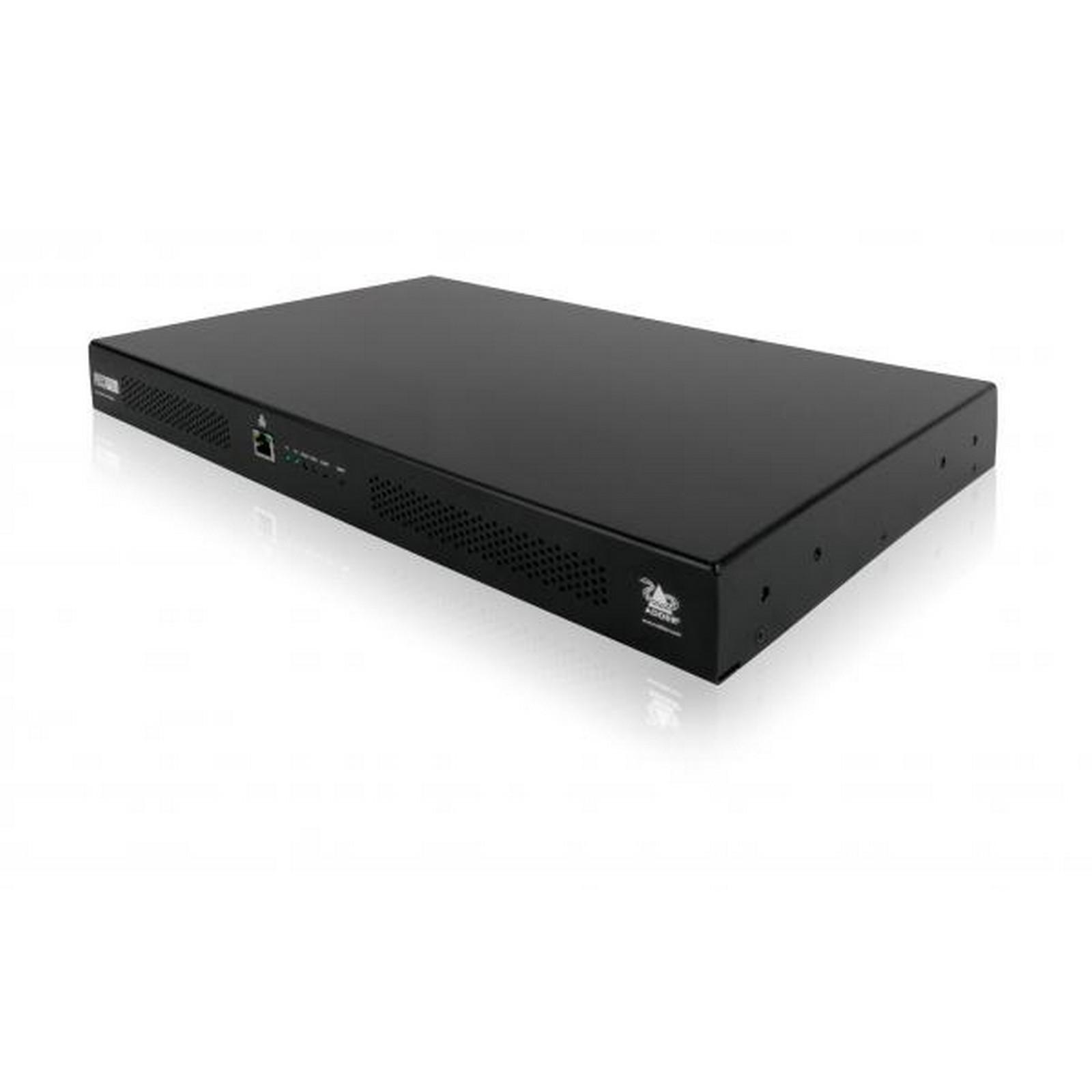

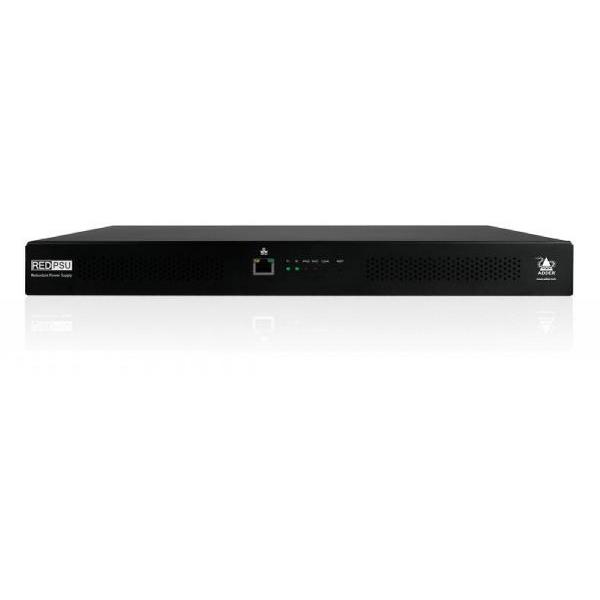

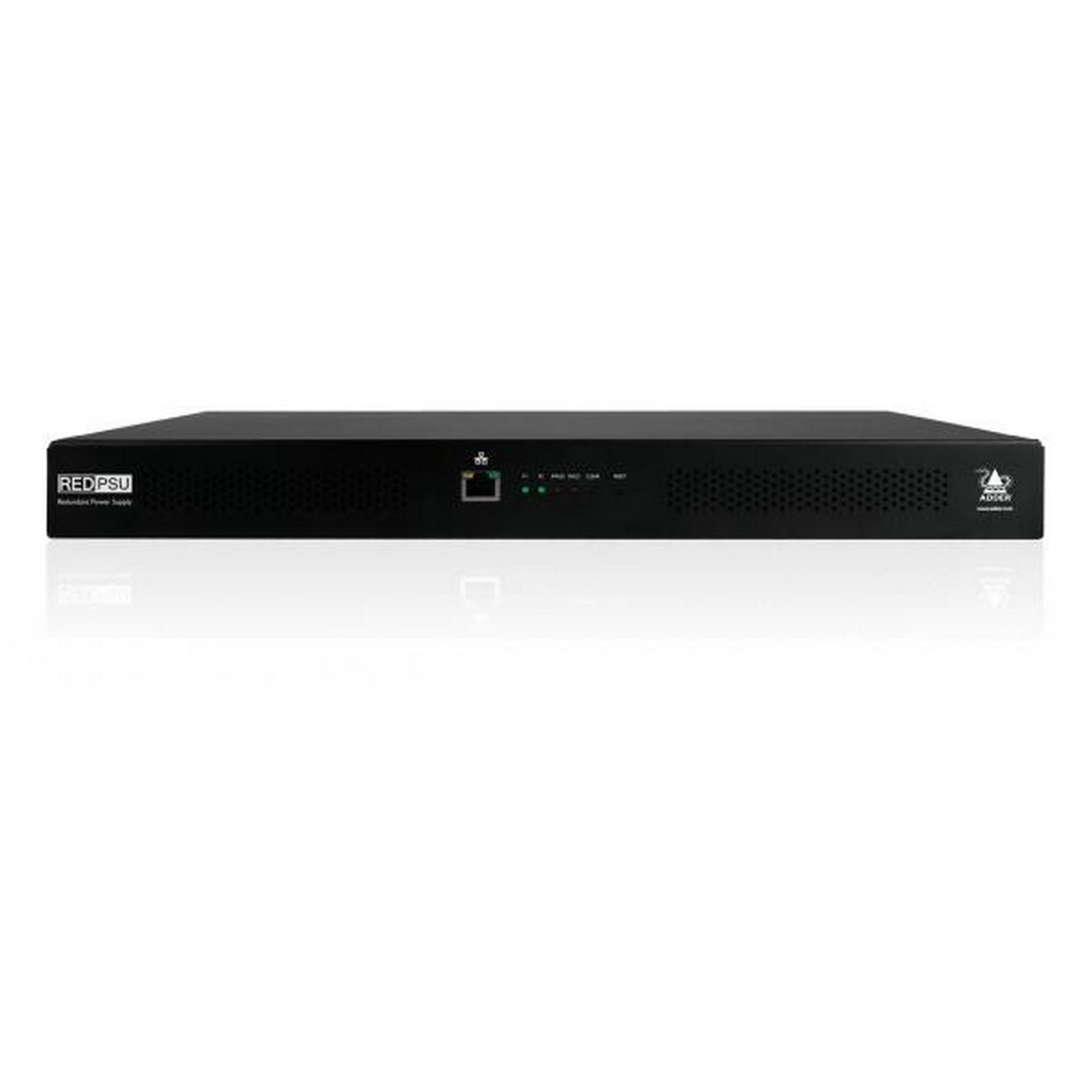

The ADDER® Redundant Power Supply (RED-PSU) provides your installation with the power to grow on demand. Housed within a 1U 19-inch rack mount module, RED-PSU delivers up to sixteen lockable power 12VDC outputs, hot-swappable power modules and remote management.

  • Resilient: equipped with lockable power units which guard against accidental disconnection
  • Robust yet lightweight: small form factor, rack mountable device 1U
  • Ergonomically optimized: all cables and connections can be individually controlled remotely, removing potential points of failure and facilitating the maintenance of your equipment
  • Easy installation: dispense with the need for mains sockets and power distribution units (PDUs), reducing installation time

Approvals / Compliance

  • CE
  • FCC
  • UL

Environmental

Temperature: 0 to 50ºC / 32 to 122ºF

Humidity: 5 – 90% non condensing

Altitude: <2000Meters / 6500ft

MTBF: 500,000hrs at full load @50oC

Connectors – Local Unit

2 x IEC 90-264VAC 47/63Hz input

Efficiency 92%

Power Factor 0.99 typical

Connectors – Remote Unit

1x 8p8c for 10/100 Ethernet connection

Mechanical

Compact case, robust metal construction. Designed for 19 inch rack mounting: 435mm/17.13” (w), 44mm/1.73” (h), 275mm/10.8” (d), 4.5kg/9.9lbz

Power

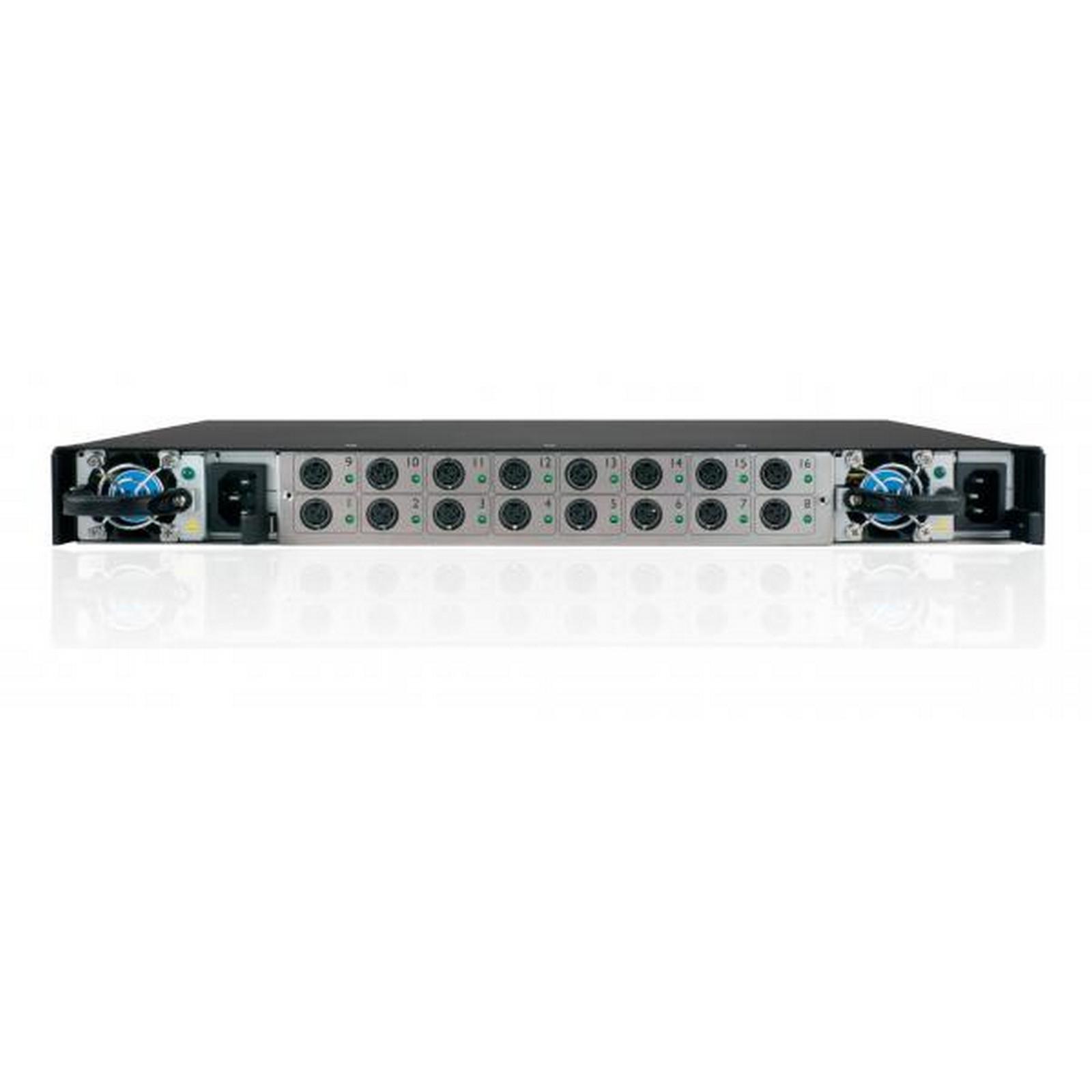

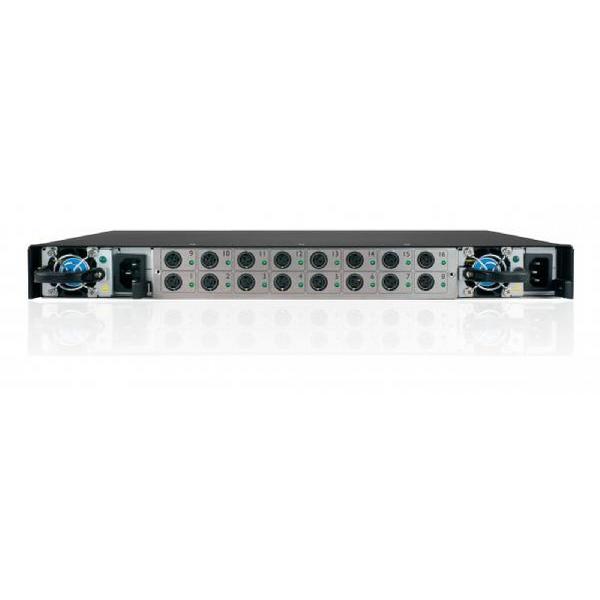

8 or 16 x locking 3-pin DC connector, 12VDC 20W output. Each output is a Limited Power Service (LPS) to IEC 60950-1

Software

Browser versions

Internet Explorer® 10,11

Firefox 24 ESR and above Chrome 43

Name Type Version Release Date
ADDER RED-PSU Manual 1.0 21 January 2021
ADDER RED-PSU Datasheet 1.0 21 January 2021
