OMNI-3175-BT

Home  >   AAEON  >   Computing Systems  >
Panel PC  >   Modular HMI Panel PC/ Display

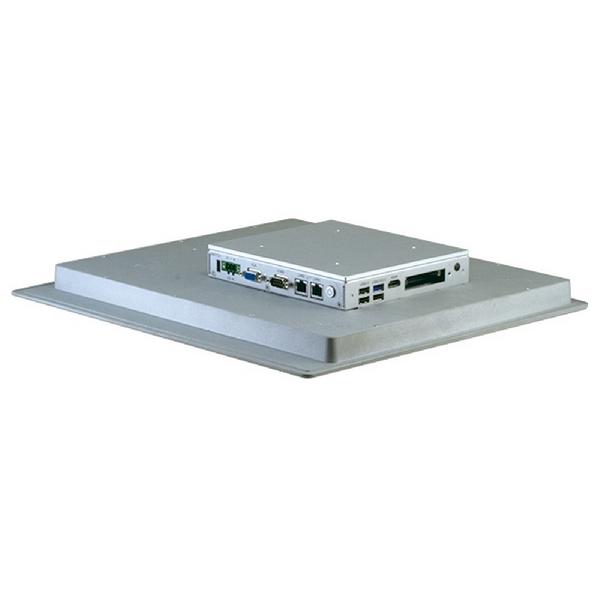

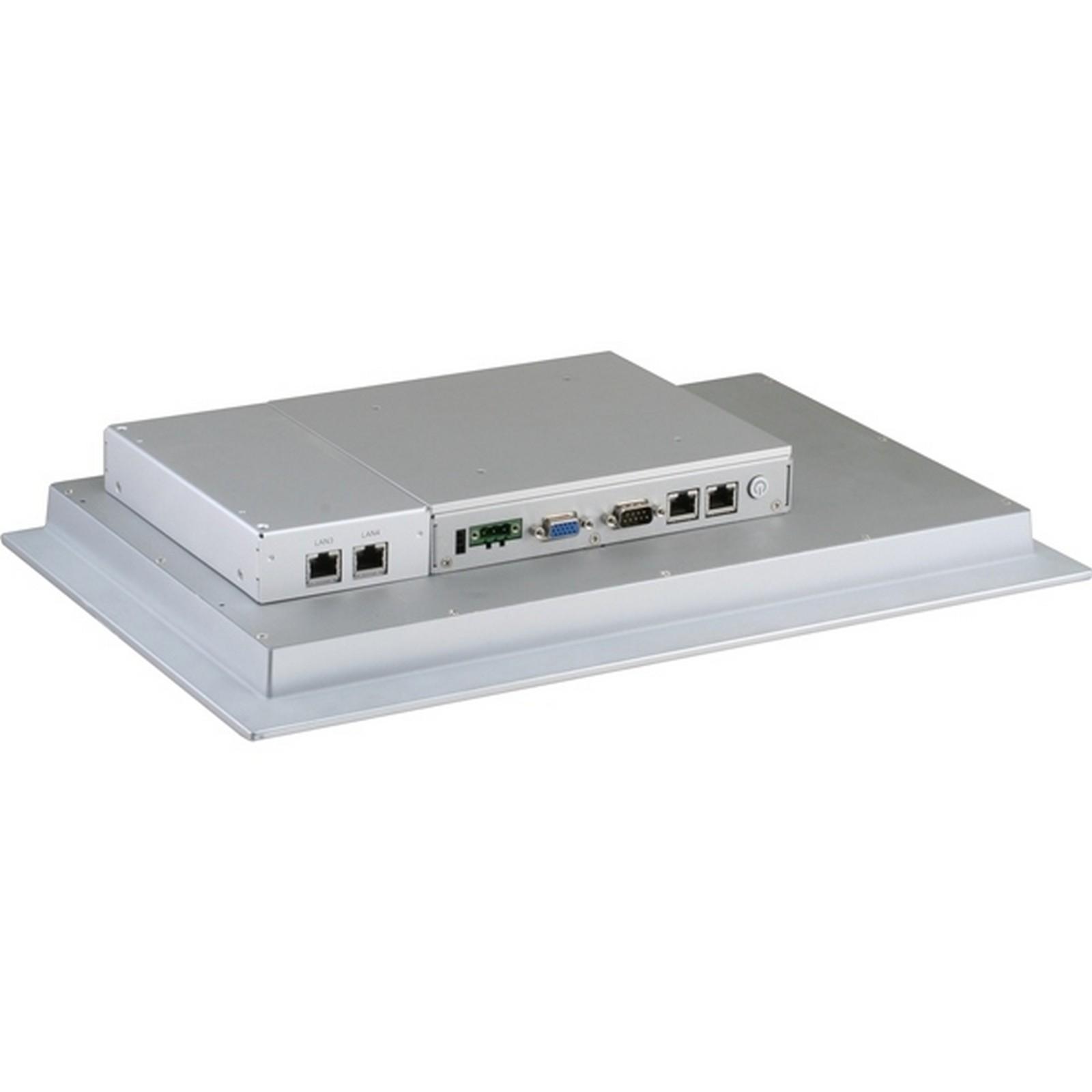

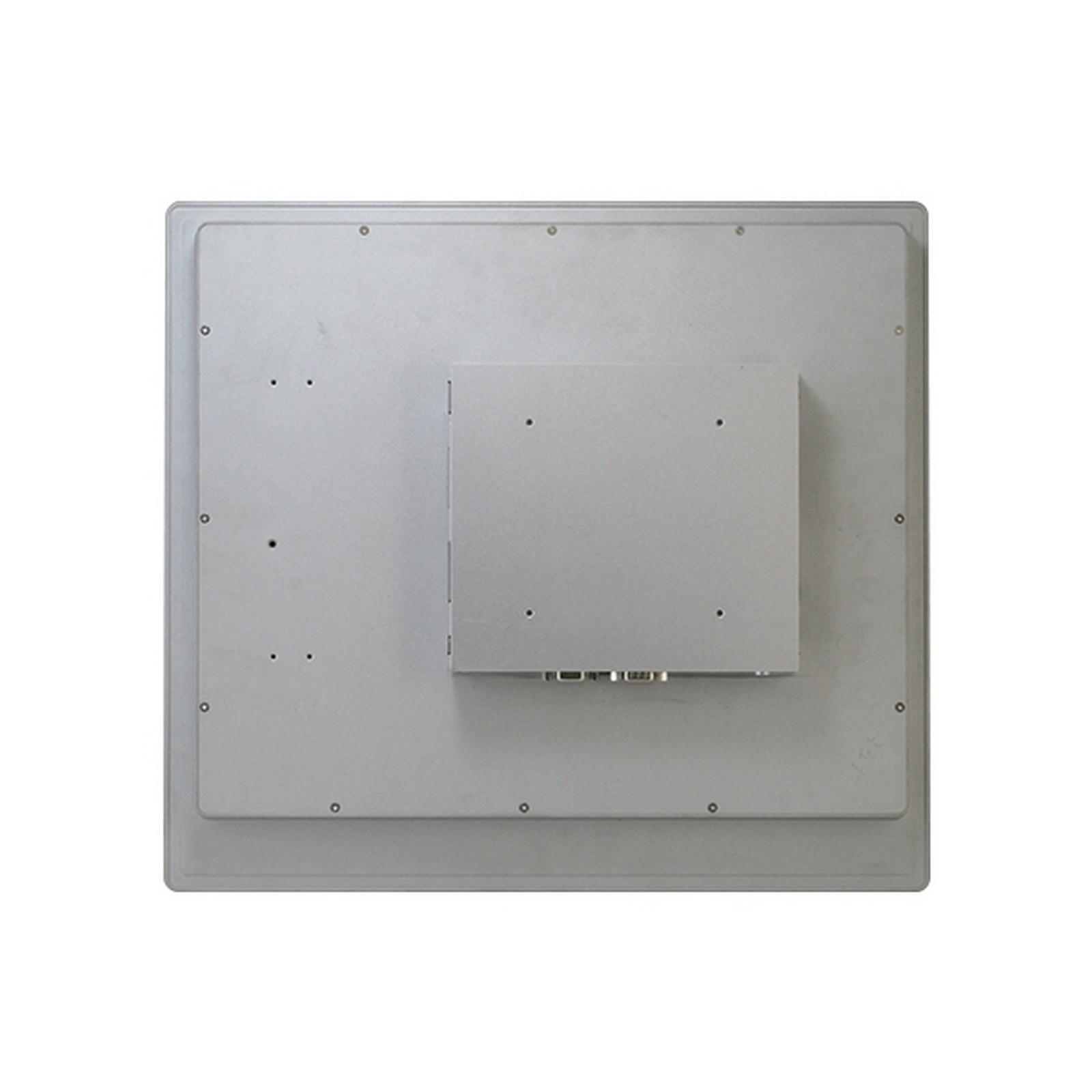

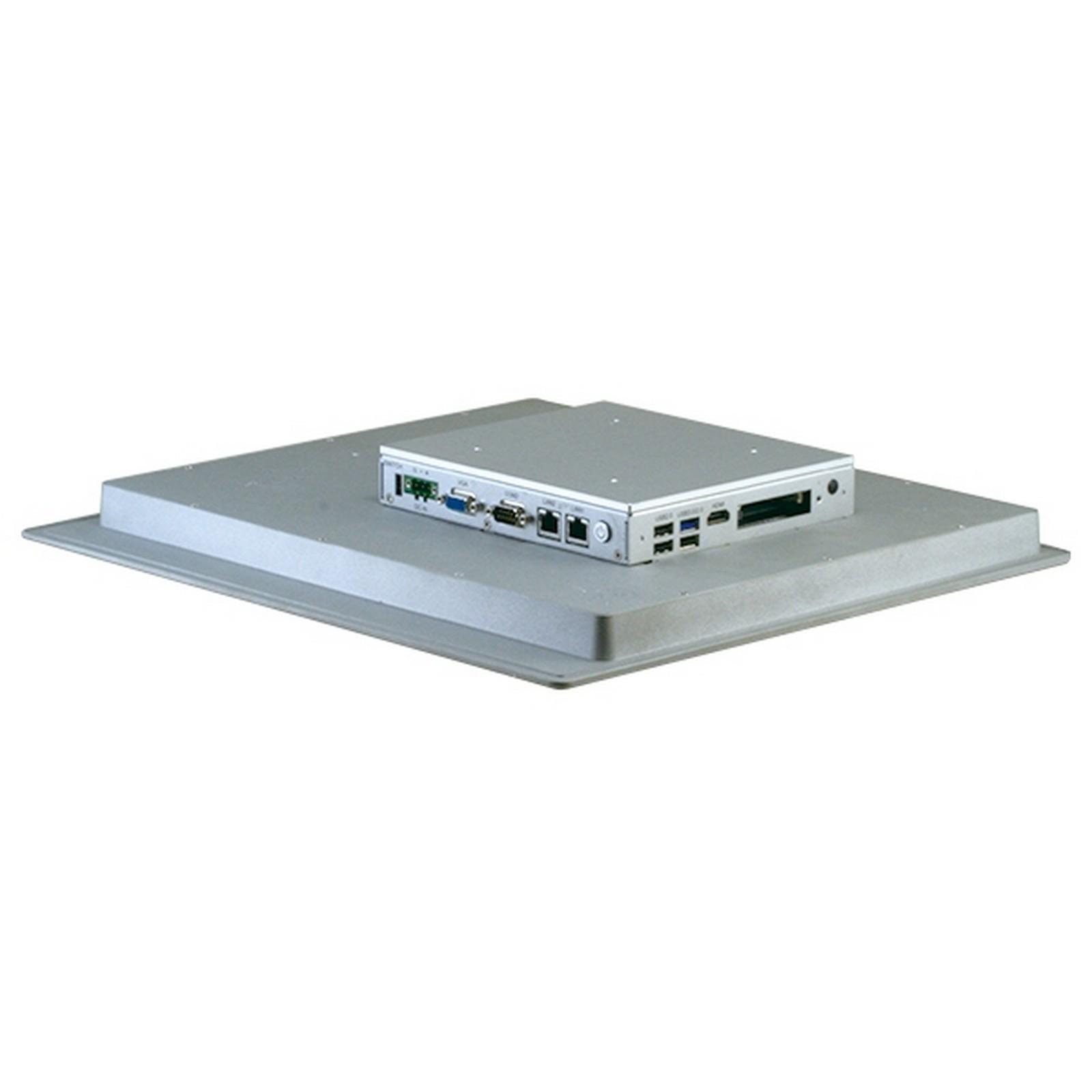

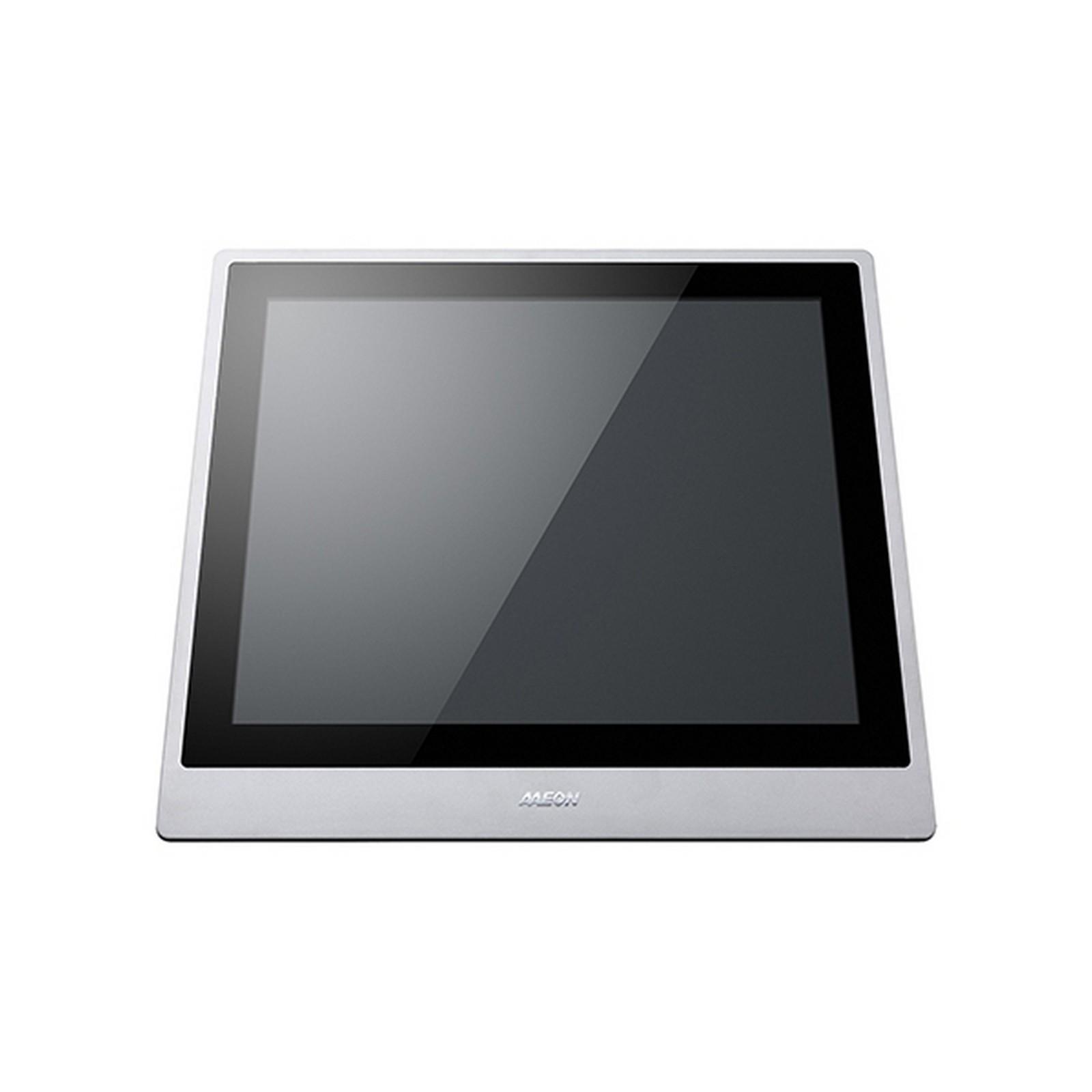

17” Modular HMI Panel PC with Intel® Celeron® J1900/ N2807 Processor

Product Feature

  • 17” (1280 x 1024) TFT LCD Display
  • Intel® N2807/J1900 Processor
  • P-CAP or Resistive Touch Screen Support
  • Aluminum Design
  • IP65 Compliant Front Bezel
  • Fanless Operation
  • Easily Expandable I/O by AAEON OMNI I/O Modules

17” Modular HMI Panel PC with Intel® Celeron® J1900/ N2807 Processor

SYSTEM
PROCESSORIntel® N2807 processor, 1.58 GHz Intel® Celeron® J1900 processor, 2 GHz
SYSTEM MEMORY204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB, (J1900)
204-pin DDR3L 1333MHz SODIMM x 1, up to 4 GB, (N2807)
LCD/CRT CONTROLLERIntegrated in processor
ETHERNETIntel® I211, 10/100/1000Base-TX x 2
I/O PORTUSB 2.0 Type A x 3, USB 3.2 Gen 1 Type A x 1
SMA Antenna hole x 1
HDMI x 1
CFast™ x 1
DB-9 Type RS-232/422/485 x 1
RJ-45 Type for 10/100/1000Base-TX x 2
DB-15 x 1 for VGA
3-pin terminal block x1 for 9~30 Vdc power input
LED Power on/off switch x1 (Power on = Orange, Power off =N/A)
STORAGE DISK DRIVECFast™ x 1, 2.5" SATA HDD bay x 1
EXPANSION SLOTMini card x 2, SIM card x 1, OMNI I/O connector x 1
OS SUPPORTWindows® 7, Windows® 8, Windows® 10, Linux kernel 2.6.x or higher
MECHANICAL
CONSTRUCTIONAluminum design (IP65 Front Frame)
MOUNTINGVESA 100/Panel Mount
DIMENSION16.14” x 14.57” x 2.32” (410mm x 370mm x 59mm)
GROSS WEIGHT15.84 lb (7.2 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 131°F (-10°C ~ 55°C) (J1900),
14°F ~ 140°F (-10°C ~ 60°C) (N2807) with 0.5 m/s airflow ( CF & HDD )
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY90% @40°C; non-condensing
ANTI-VIBRATION1 Grms/ 5~ 500Hz/ operation – with HDD
ANTI-SHOCK15 G peak acceleration (11 msec. duration) – with HDD
CERTIFICATIONCE/FCC class A
POWER SUPPLY
DC INPUTDC 9 (min.) ~ 30 (max.) V w/3-pin terminal block, ATX Power function
LCD
DISPLAY TYPE17" TFT-LCD, LED
MAX. RESOLUTION1280(H) x 1024( V)
MAX. COLORS16.7M colors (RGB 6-bits + Hi-FRC data)
LUMINANCE350 cd/m²
VIEWING ANGLE170°(H), 160°(V)
BACK LIGHTLED
BACK LIGHT MTBF (HOURS)50000
TOUCHSCREEN
TYPEP-CAP/ 5-wire resistive
LIGHT TRANSMISSIONP-CAP (85%), 5-wire Resistive (80% ± 5%)
Name Type Version Release Date
OMNI-3175-BT, datasheet Datasheet V2.0 07 January 2019
