BOXER-8221AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

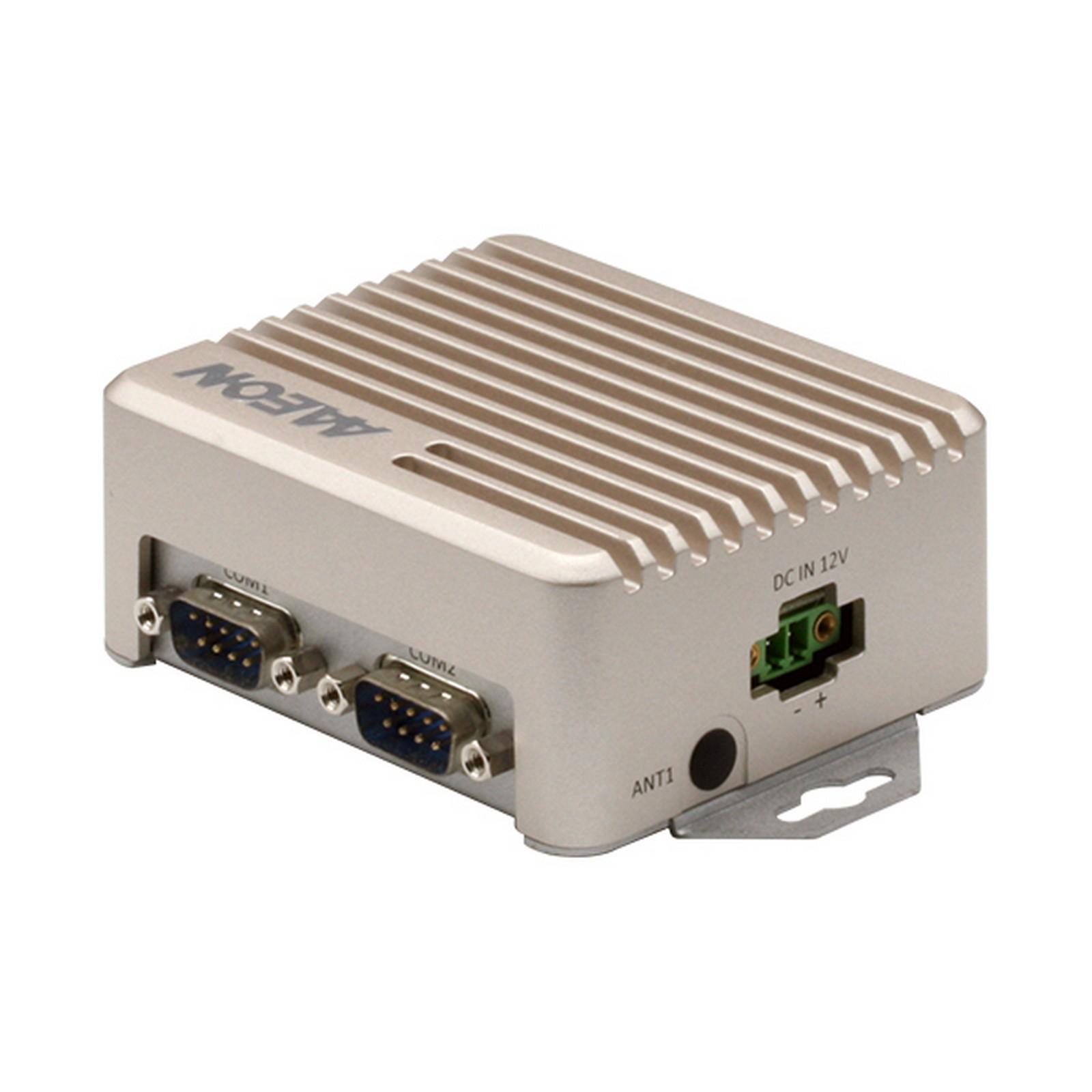

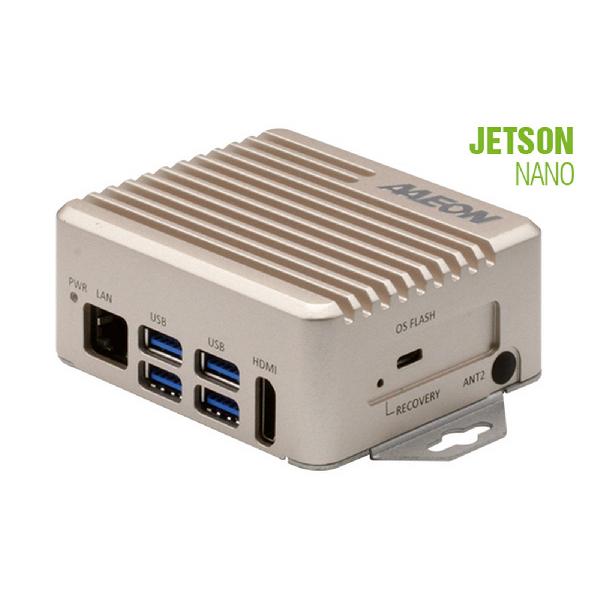

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson Nano

Product Feature

  • NVIDIA Jetson nano
  • Quad core ARM A57 Processor
  • 4GB LPDDR4 + 16GB Micro-SD or eMMC
  • LAN x 1 + RS-232 x 2
  • 12Vdc Power input

The BOXER-8221AI is a compact AI@Edge system powered by the NVIDIA Jetson Nano, the latest in edge computing technology from NVIDIA. The Jetson Nano SoC combines the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also provides the BOXER-8221AI with 4GB RAM and 16 GB eMMC storage.

With the NVIDIA Jetson Nano, the BOXER-8221AI is able to provide both performance and price suitable for entry to mid-level deployment of AI and edge computing applications. With four USB 3.2 Gen 1 ports and two COM ports, the BOXER-8221AI provides flexibility to integrate with a wide range of edge computing applications and projects.

The BOXER-8221AI is designed with AAEON’s dedication to providing rugged embedded PCs for industrial use. Its fanless design ensures long reliable operation, preventing dust or other contaminants from interfering with components. The BOXER-8221AI thermal design also allows the system to operate in temperatures from -20°C up to 50°C without a loss in performance, perfect for stable operation in almost every work environment.

SYSTEM
AI ACCELERATORNvidia Jetson Nano
CPUQuad Core ARM® Cortex®-A57 MPCore Proccessor
SYSTEM MEMORY4GB LPDDR4
STORAGE DEVICE32GB Micro-SD (A version) or 16GB eMMC (B version)
DISPLAY INTERFACEHDMI 2.0
ETHERNET10/100/1000Base-TX x 1
I/OUSB 3.2 Gen 1 x 4
LAN x 1
RS-232 x 2
HDMI x 1
MicroSD x 1
DC Power Input x 1
Recovery Button x 1
Micro-USB for Flash OS x 1
EXPANSIONM.2 E-Key 2230 x 1(for WiFi)
INDICATORPower LED x 1
OS SUPPORTLinux (AAEON ACLinux 4.9, Compliance with Ubuntu 18.04)
POWER SUPPLY
POWER REQUIREMENT12Vdc w/ 2-pin terminal block
MECHANICAL
MOUNTINGWallmount

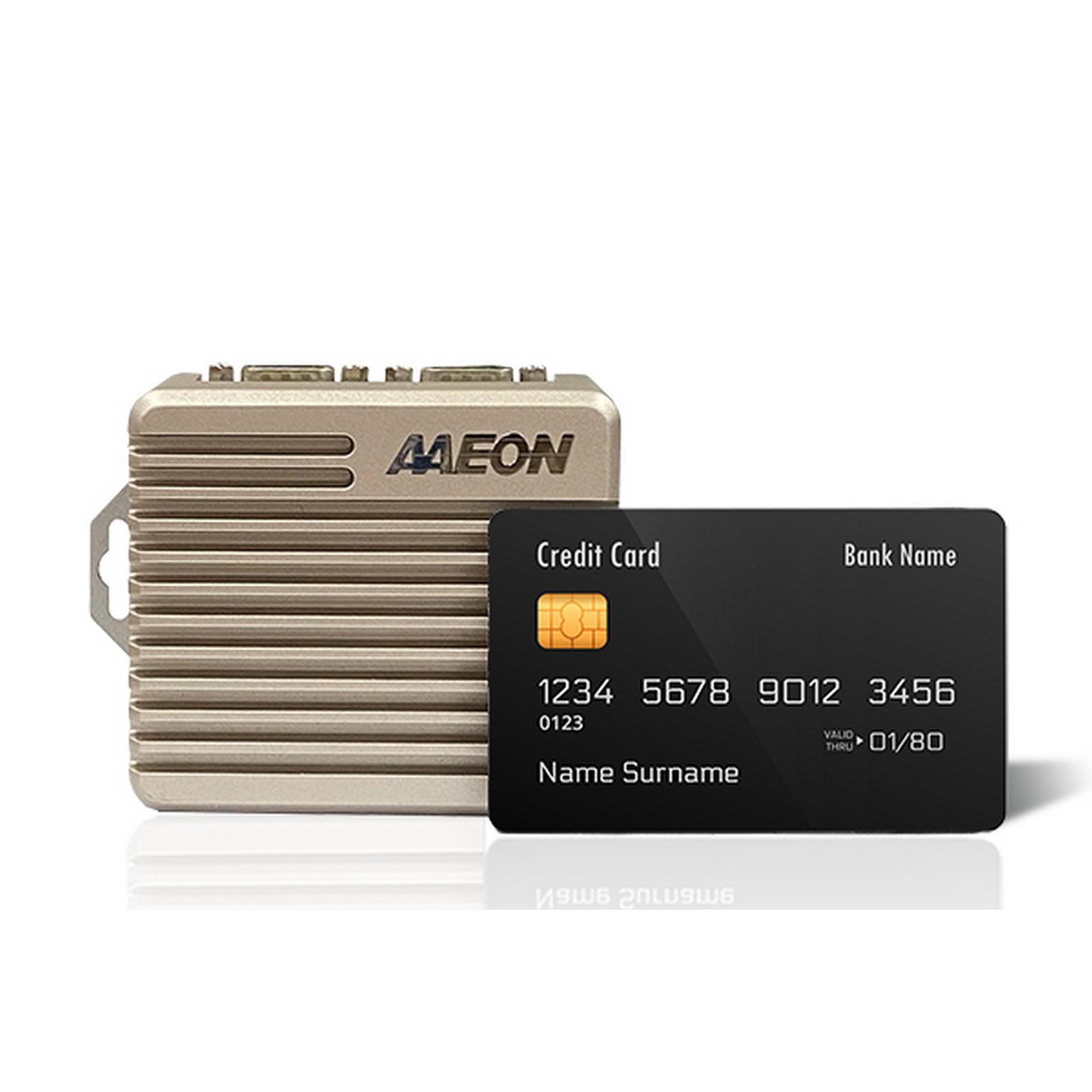

DIMENSION3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm)
GROSS WEIGHT2.20 lb (1 Kg)
NET WEIGHT0.88 lb (0.4 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-49°F ~176°F (-45°C ~ 80°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATION3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8221AI, datasheet Datasheet V4.0 26 August 2020
