BOXER-8120AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson TX2, 4 GbE LAN Ports

Product Feature

  • Nvidia Jetson TX2
  • HMP Dual Denver 2 + Quad ARM A57
  • Support AAEON ACLinux 4.9, Compliance with Ubuntu 18.04
  • 8GB LPDDR4, 32GB eMMC 5.1

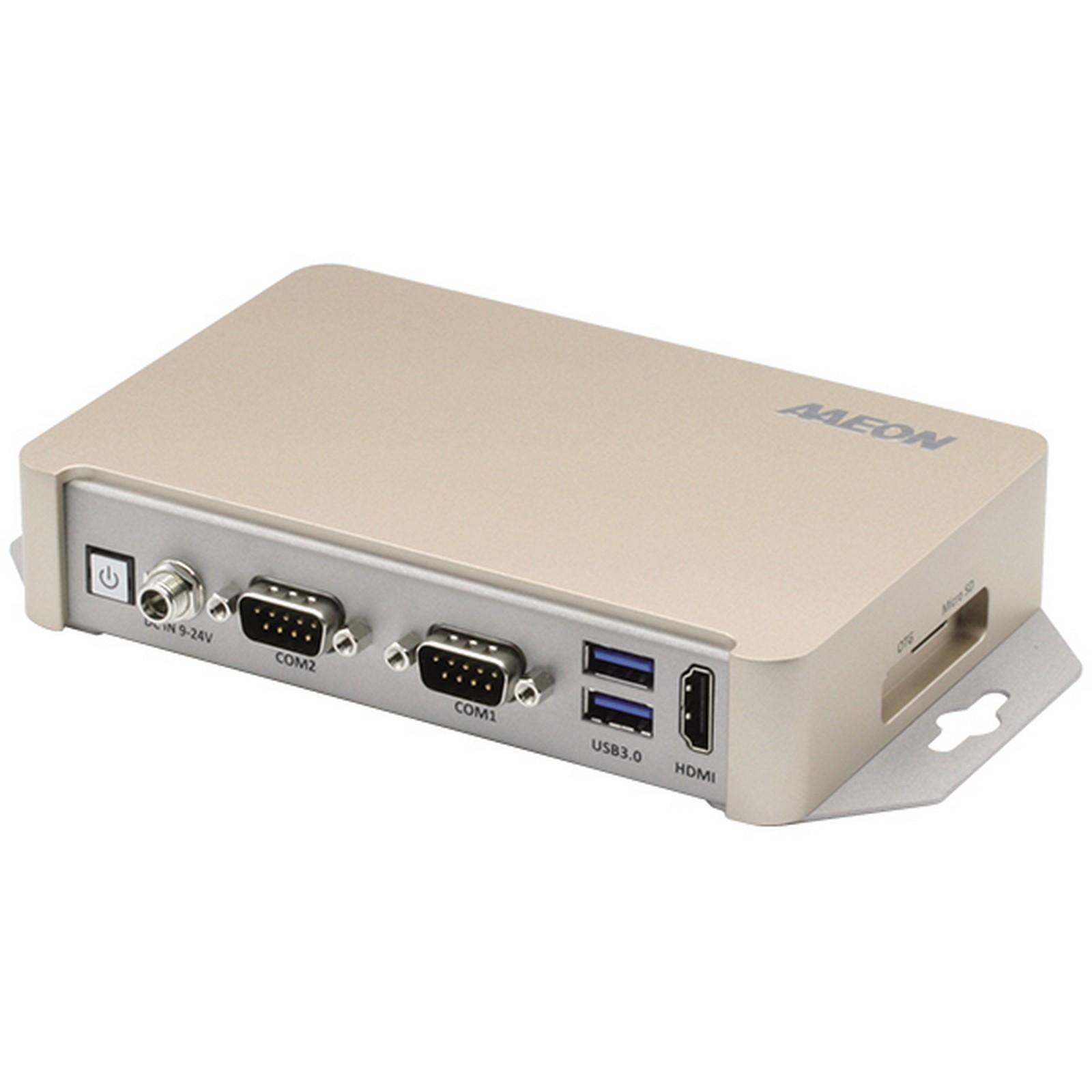

  • RS-232 x 2, USB 3.2 Gen 1 x 2, OTG x 1
  • HDMI 2.0 x 1, LAN x 4 (Intel i211*3, Native*1)

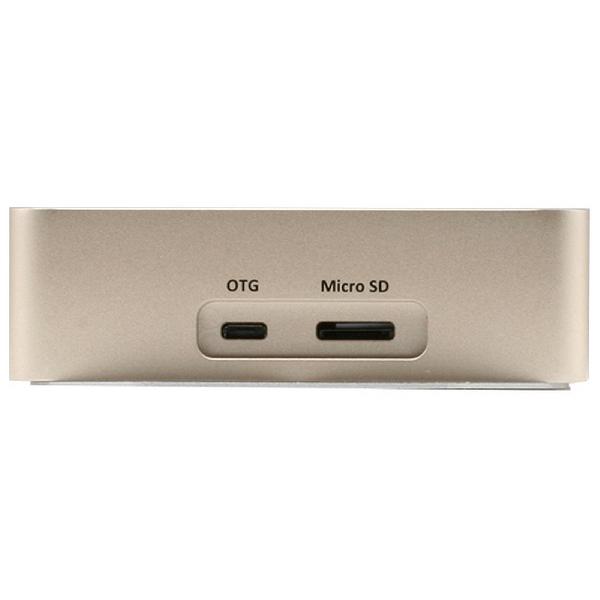

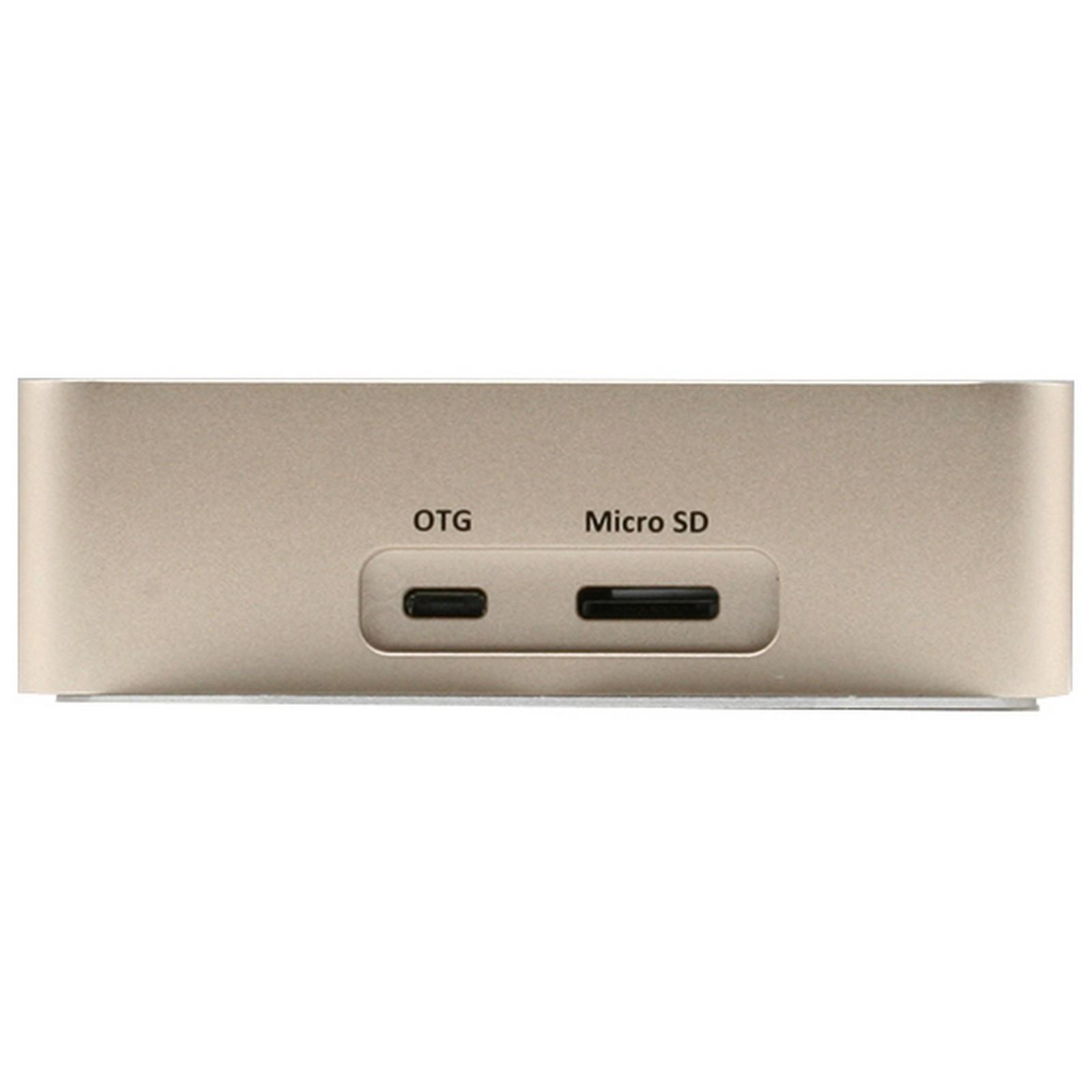

  • Micro-SD x 1, Remote On/Off
  • Power input: 10~24V

The BOXER-8120AI is designed for edge AI computing. Equipped with the NVIDIA Jetson TX2, it supports 256 CUDA cores and a range of AI frameworks including Tensorflow, Caffe2, and Mxnet. Users can also install their own AI inference software on the BOXER-8120AI.

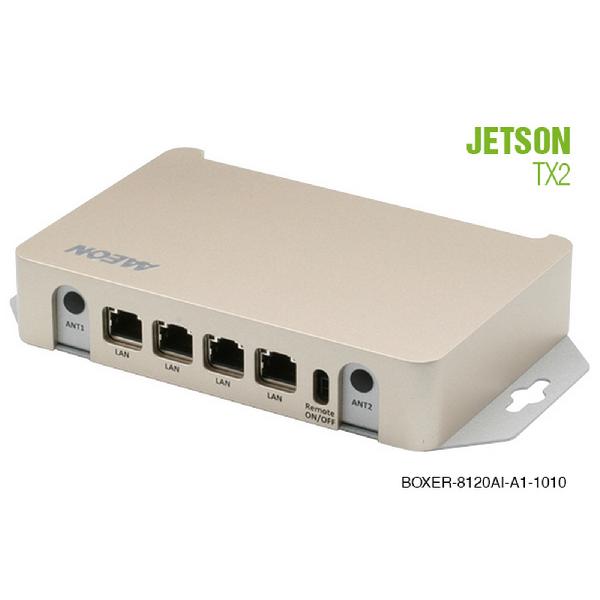

The BOXER-8120AI has four Intel LAN (i211) ports to support IP cameras, and it also boasts a series of rugged design features such as anti-dust specifications, a wide operating temperature range, a wide range power input, and an aluminum chassis.

The BOXER-8120AI’s compact, cost-effective design and powerful processing abilities mean you’ll be able to deploy your AI platform anywhere.



Applications

SYSTEM
AI ACCELERATORNvidia Jetson TX2
CPUHMP Dual Denver 2 + Quad ARM A57
SYSTEM MEMORY8GB LPDDR4
STORAGE DEVICE32GB eMMC 5.1
MicroSD x 1
DISPLAY INTERFACEHDMI 2.0
ETHERNET10/100/1000Base-TX x 4
I/OUSB 3.2 Gen 1 x 2
HDMI x 1
LAN x 4
COM x 2
OTG x 1
Power Button x 1
SMA Antenna Holes x 2
10~24V DC-In Power input x 1
Remote Power On/Off x 1
EXPANSIONMicroSD x1
SATA x1 (optional)
USB 2.0 x 3 (optional)
INDICATORPower LED
OS SUPPORTAAEON ACLinux 4.9, Compliance with Ubantu 18.04
POWER SUPPLY
POWER REQUIREMENT10~24V DC-in with DC Jack
MECHANICAL
MOUNTINGWall-mount
DIMENSION6.02" x 1.18" x 3.98" (153mm x 30mm x 101mm)
6.02" x 1.79" x 3.98" (153mm x 45.5mm x 101mm) for CS-N0001
GROSS WEIGHT4.40 lb (2 Kg)
5.51 lb (2.5Kg) for CS-N0001
NET WEIGHT2.20 lb (1 Kg)
3.31 Ib (1.5Kg) for CS-N0001
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 122°F (-20°C ~ 50°C, according to IEC682-14 with 0.5 m/s AirFlow;
with industrial Devices) for BOXER-8120AI-A1-1010
-4°F ~ 131°F (-20°C ~ 55°C, according to IEC682-14 with 0.5 m/s AirFlow;
with industrial Devices) for BOXER-8120AI-A1-CS-N0001
STORAGE TEMPERATURE-13°F ~ 176°F (-25°C ~ 80°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 5 Grms/ 5 ~ 500Hz/ operation
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8120AI, datasheet Datasheet V3.0 26 August 2020
