For IT professionals, file permissions configuration is a very important topic, especially in enterprise environments. Because the native Linux system file permission mechanisms are different than those in Windows, in the past, IT professionals had to create a separate set of permissions for files stored on NAS servers. This also limited the number of permission configuration options that were available to them.
In order to help IT professionals simplify their work, ASUSTOR has comprehensively integrated Windows ACL into ADM. Windows ACL provides a set of 13 different permissions settings, allowing administrators to configure permissions for individual files and folders that can be applied to different groups and users. Windows ACL permissions can be configured from within ADM's File Explorer or Microsoft Windows Explorer allowing administrators to easily manage permissions using familiar methods.
The scale of a business's Internet usage will shift in the wake of its expansion and development. A server that is providing stable service to 100 people today may not be able to handle the needs of tomorrow when the number of employees or applications expands, forcing the business to purchase additional equipment.
ASUSTOR's 70 Series devices help businesses meet the expansion needs of tomorrow, today. All devices in the series come equipped with 10GbE network card expansion slots12. Should a business decide to upgrade to an ultra-high-speed backbone network, the 70 Series devices will be able to seamlessly take advantage of this without being limited by the built-in gigabit Ethernet ports.
Furthermore, when more and more people start to access the NAS or when the number of installed applications increases, the amount of installed memory will be one of the limiting factors affecting the overall performance of the NAS. The AS7012RD and AS7012RDX both come with 2GB of built-in memory which can further be expanded to a maximum of 16GB2. Equipped with such flexible expansion features, ASUSTOR's 70Series NAS devices are the optimal choice for any growing business.
1. The AS7004T does not include a 10GbE network card expansion slot.
2. For a full list of compatible 10GbE network cards and memory, please visit: https://shop.asustor.com/
ADM 2.6 supports SMB 2.0 which reduces the burden of network traffic on the NAS while simultaneously providing greater data transfer capacity.In the ASUSTOR testing environment, SMB 2.0 was found to increase Windows networking performance by 30%-50%*. SMB 2.0 also significantly increases the number of concurrent Windows client connections and simultaneously open files, making ADM 2.6 even more suitable for large-scale Microsoft network environments.
* Actual performance may vary due to differences in the installation environment. SMB 2.0 is supported in Windows Vista and later versions of the Microsoft Windows operating system.
When there is a high load on the NAS, the CPU will begin to heat up, affecting the stability of the system. A common way of dealing with this is to lower the CPU frequency which will then cause the temperature to decrease. However, this will also lower the overall performance of the system.
ASUSTOR's 70 Series devices utilize fans with wide speed ranges combined with a smart speed control mechanism that allows the CPU to maintain a controlled operating temperature even under high loads. Under most circumstances the fans will operate at a low speed, conserving energy. When the system load and temperature increases, the fans will automatically increase their speed to cool the CPU without it having to lower its frequency. This allows the NAS to maintain stability and high performance even under high loads.

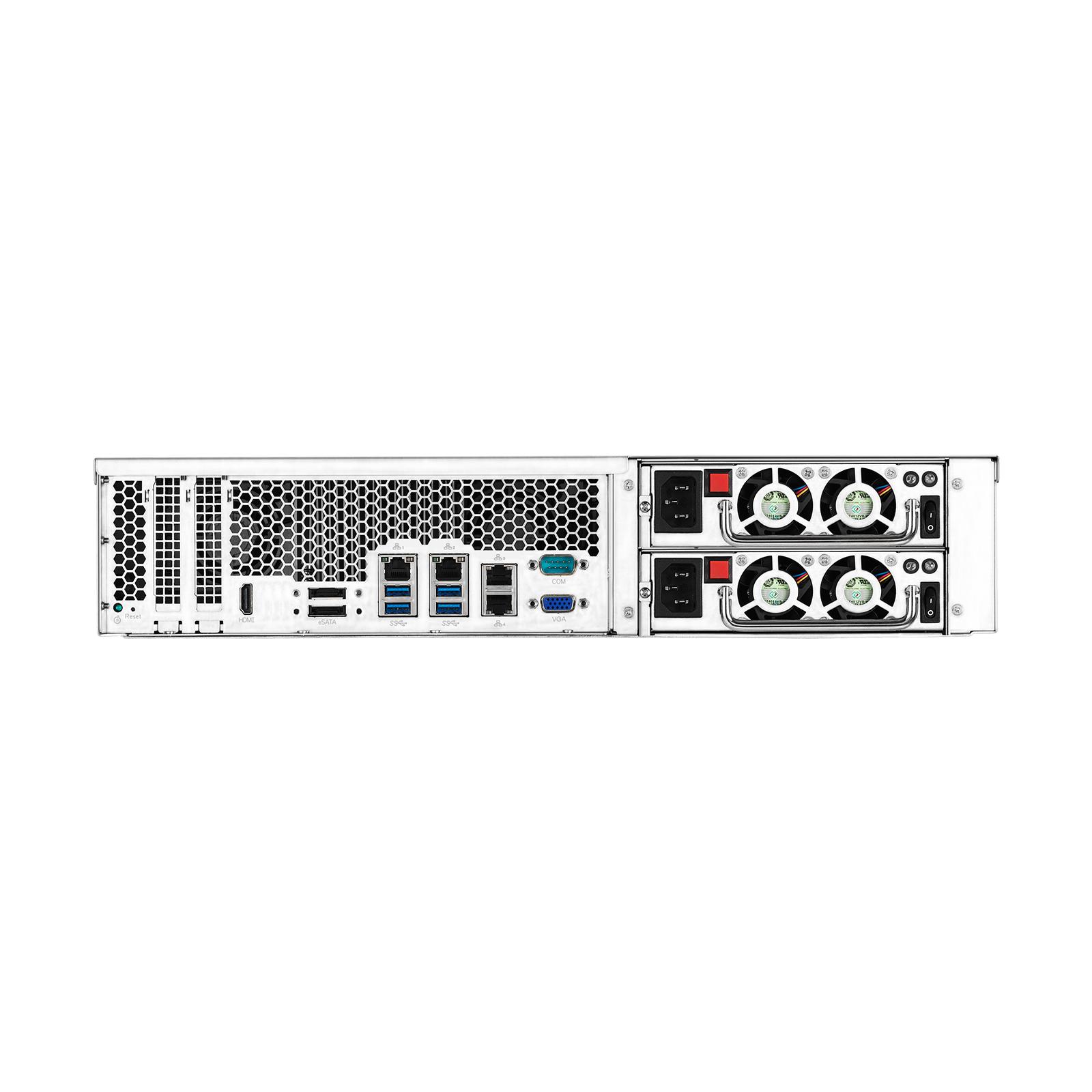

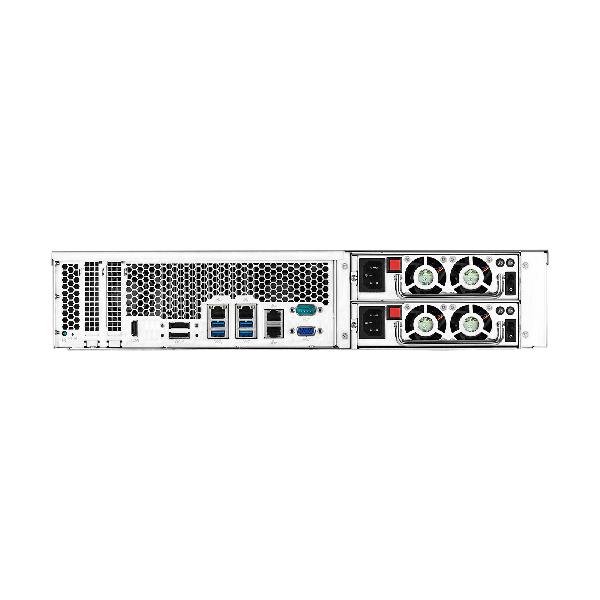

The AS7012RD / AS7012RDX features comprehensive backup solutions. The built-in redundant power supply and 4 Gigabit Ethernet ports effectively increase reliability, data integrity and execution speeds. The Ethernet ports and power supply all feature failover capabilities (when one fails, the other can continue to operate) in order to ensure for continuous data availability.
The powerful 70 Series devices provide you with stress free reliability when installing a surveillance system in your home or office environment. Installing the Surveillance Center App from App Central instantly turns your NAS into 24/7, high definition surveillance system. Surveillance Center provides comprehensive cross-platform support, allowing both Windows and Mac users to use familiar web browsers to access their surveillance feeds. Furthermore, ASUSTOR also offers the free AiSecure mobile app that gives users access to all their surveillance feeds while on the go. AiSecure also provides the ability to receive instant push notifications from Surveillance Center, allowing users to keep up with the latest developments. No matter if you need to protect individual assets, loved ones or your business, the powerful 70 Series devices are your optimal choice when creating a comprehensive surveillance system.
*Surveillance Center comes with 4 free IP camera channel licenses, which is higher than the industry standard. Users can also purchase add-on camera licenses to flexibly add new camera channels.
*Two different camera license packages are offered: single channel and 4 channels. Currently, the 70 Series devices can be expanded up to a maximum of 64 channels.
*The maximum number of cameras is based on the test results for each channel using 720P (1280x720), 30 FPS and H.264. Actual performance may vary due to camera settings and NAS load.
CPU Architecturex64 64-bitCPU FrequencyDual Core/Quad Core
AES-NI hardware encryption engine integrated
Memory Module Pre-installed4GB (1 x 4GB)Total Memory Slots4Memory Expandable up to32GB (4 x 8GB)
Flash Memory1GB DOM
HDD12 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
Maximum Internal Raw Capacity192 TB (16 TB HDD X 12, Capacity may vary by RAID types)Maximum Drive Bays with
24Maximum Raw Capacity with Expansion Units 384 TB (16 TB HDD X 24, Capacity may vary by RAID types)Supports Hot Swappable Drives
ExpansionUSB 3.0 x 4, eSATA x 2, 2 x for optional expansion 10-GbE / SAS cardNetworkGigabit Ethernet x 4
PCIe Expansion SlotsPCIe Expansion Slots: for optional 10GbE card and SAS card
HDMI OutputHDMI 1.4a x 1
System Fan60mm x 3Power Supply Unit / Adapter600W x2Input Power Voltage100V to 240V ACRedundant power supplyService LED IndicatorCertificationFCC, CE, VCCI, BSMI, C-TICK
122 W (Operation)
54.8 W (Disk Hibernation)
4.09 W (Sleep Mode)²
123 W (Operation)
55.6 W (Disk Hibernation)4.13 W (Sleep Mode)² Noise LevelN/AOperation Temperature0°C~40°C (32°F~104°F)Humidity5% to 95% RH
Size88(H) x 439(W) x 535(D) mmWeight13.74 kg / 30.29 lb
|Product Datasheet||Datasheet||V1.0||08 December 2020|
