EGPS-3401

Home  >   Innodisk  >   Embedded Peripherals  >
Storage

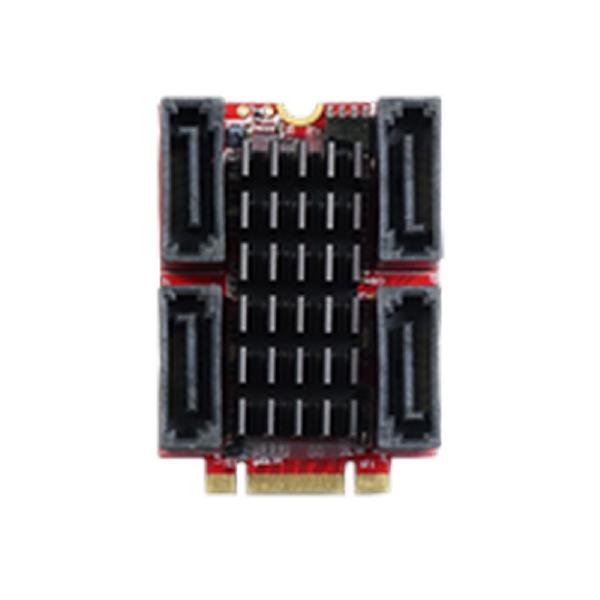

M.2 to four SATA III Module

Product Feature

  • PCI Express 2.0 to four SATA III ports
  • Supports AHCI, Port-Multiplier
  • Supports Native Command Queuing
  • Supports error reporting, recovery and correction
  • 30μ" golden finger, 3 years warranty
  • Industrial design, manufactured in Innodisk Taiwan
Module NameEGPS-3401
Module TypeM.2 to four SATA III Module
Form FactorM.2 3042-B-M
Input I/FPCI Express 2.0
Output I/FSATA III
Output connectorSATA 7pin x 4
Power Consumption2.74W (3.3V x 830mA)
Dimensions (W x L x H/mm)30 x 42 x 11
TemperatureOperation: STD temp: 0°~70°C
Storage: -55°C ~ +95°C
EnvironmentVibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
Name Type Version Release Date
EGPS-3401 Datasheet 1.0 12 April 2021
