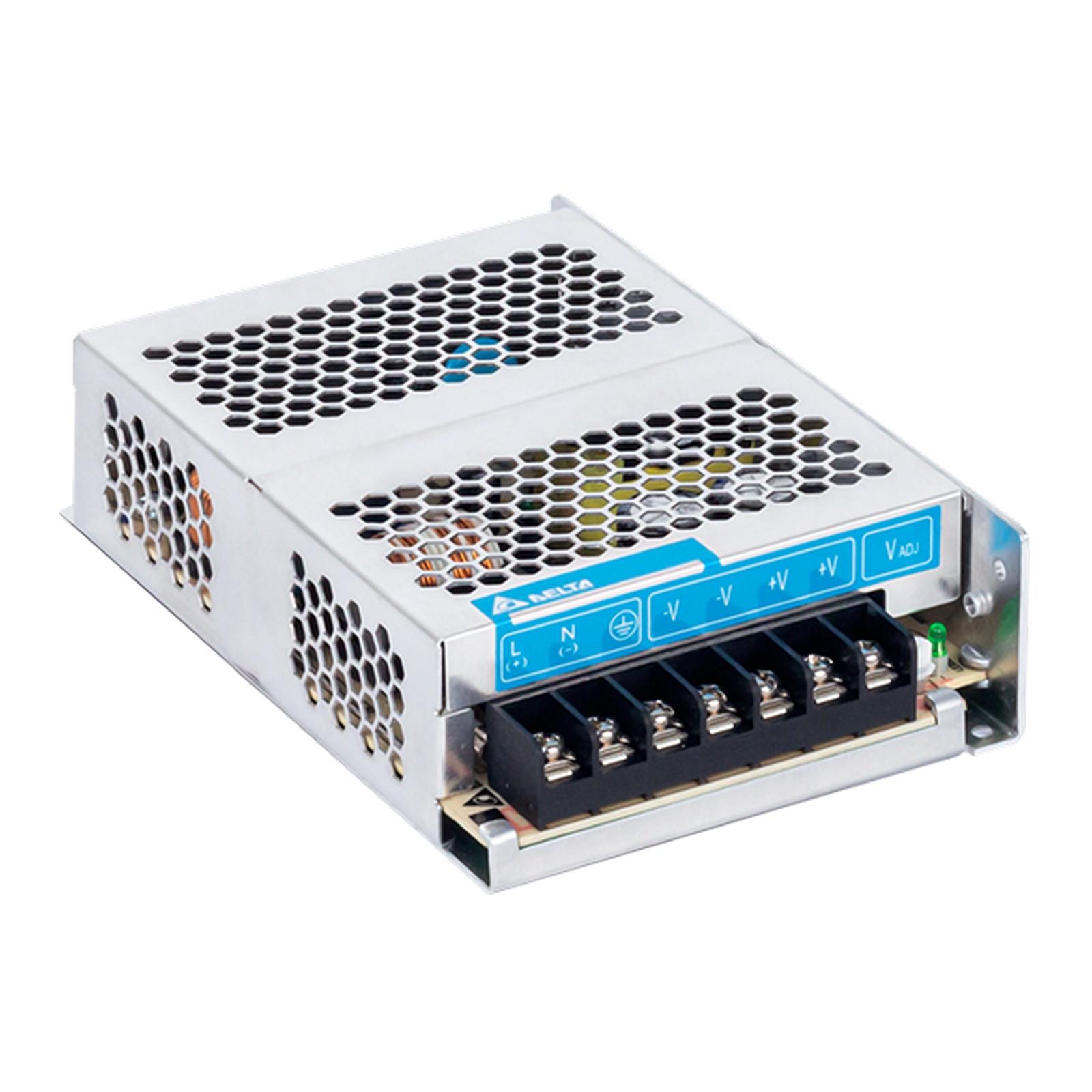

Panel Mount PMH Series

Product Feature

  • Household appliance approvals IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • Universal AC input voltage
  • Full power from -20°C to +50°C operation @ 5000m or 16400 ft. altitude
  • Full corrosion resistant aluminium casing
  • No load power consumption < 0.5W
  • High MTBF > 700,000 hrs as per Telcordia SR-332

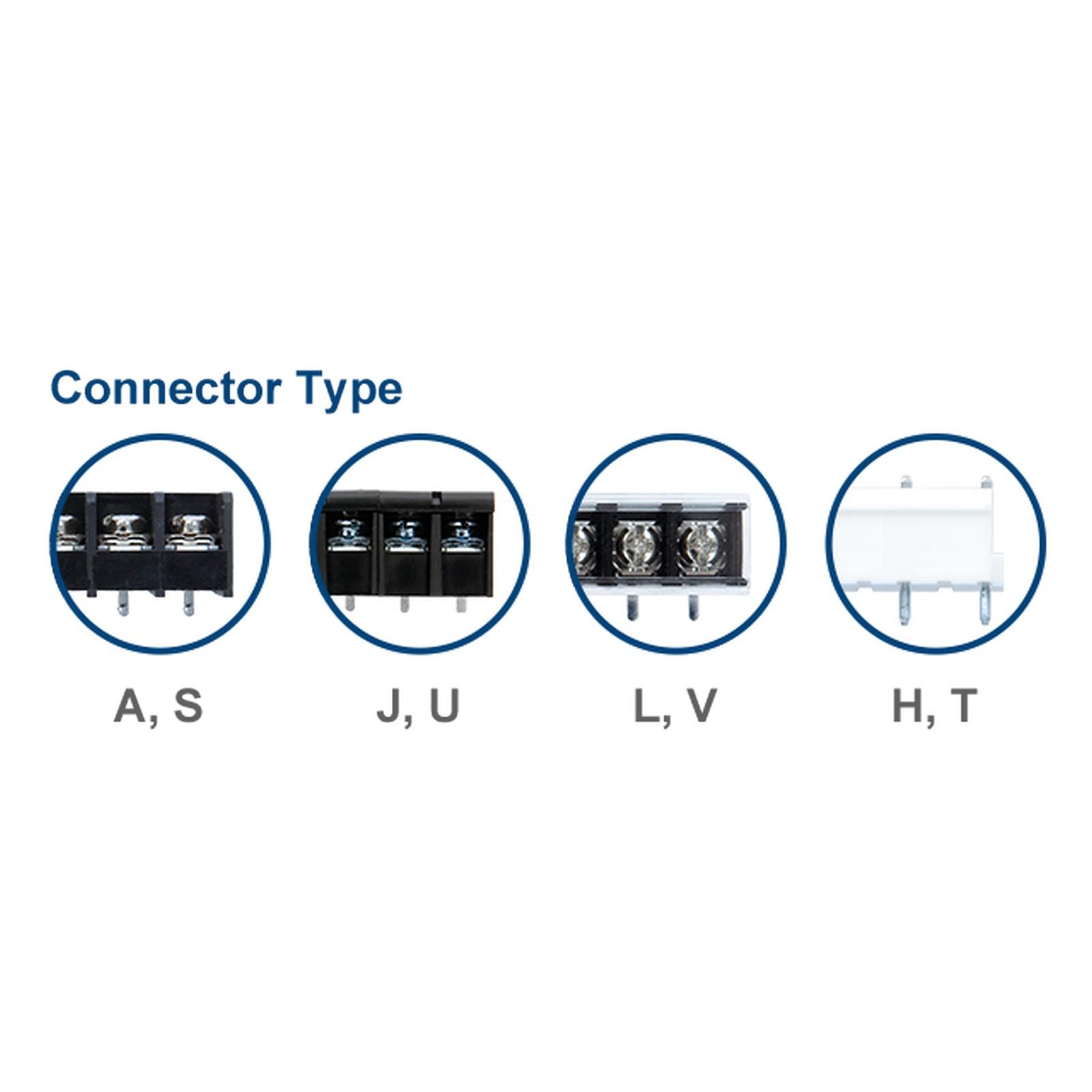

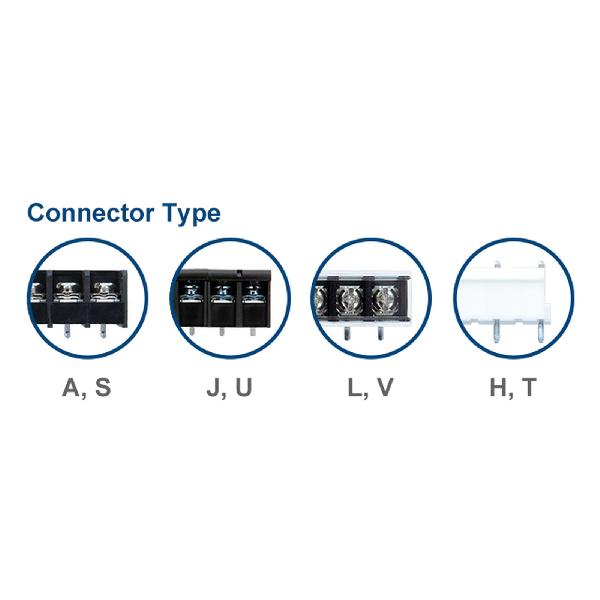

  • Versatile connector options available: IP20, Front Face and Harness connectors
  • Certified according to IEC/EN/UL 62368-1

Output Voltage

24V

Output Power

100W

Output Current

4.16A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

Unit Weight

0.43 kg (0.95 lb)

Output Current

4.16A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

100W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 85-264Vac input, 0-100% load)

PARD

< 100mVpp

Start-up Time

< 1300ms @ 100Vac (100% load)
< 750ms @ 240Vac (100% load)

Hold-up Time

> 15ms @ 115Vac, > 100ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

Start-up with Capacitive Loads

8,000μF Max

Rise Time

< 20ms @ nominal input (@ -20°C to 70°C)
< 30ms @ nominal input (@ < -20°C to -30°C)

Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

120-375Vdc

Input Current

< 1.90A @ 115Vac, < 1.10A @ 230Vac

Efficiency at 100% load

> 87.0% @ 115Vac, > 89.0% @ 230Vac

Max Inrush Current

(Cold Start)
< 50A @ 115Vac, < 100A @ 230Vac

Leakage Current

< 0.5mA @ 240Vac

Max Power Dissipation

No Load: < 0.5W @ 115Vac & 230Vac
100% Load: 15.0W typ. @ 115Vac & 12.2W typ. @ 230Vac

Case Chassis / Cover

Aluminium



Indicator

Green LED (DC OK)



Cooling System

Convection



Noise Sound Pressure Level (SPL)

< 25dBA



Unit Weight

0.43 kg (0.95 lb)

Dimensions

158 x 97 x 38 mm
6.22” x 3.82” x 1.50”

Operating Temperature

-30°C to +70°C

Storage Temperature

-30°C to +85°C

Power De-rating

-20°C to -30°C de-rate power by 2.0% / °C > 50°C de-rate power by 2.5% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,1 times per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

3

Bump Test (Operating)

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 6000 times in total

Over Voltage Category

II

Overvoltage

28.8-35.2V range, Hiccup Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed).

Degree of Protection

IP20 (PMH-24V100WC☐U and PMH-24V100WC☐J)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 60950-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16, IEC 62368-1

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.2KVac
Input to Ground: 1.5KVac

Output to Ground:
Output non-isolated to PE (common pins connect to PE) (PMH-24V100WC☐A, PMH-24V100WC☐J, PMH-24V100WC☐L, PMH-24V100WC☐H)
1.5KVdc (Output isolated to PE) (PMH-24V100WC☐S, PMH-24V100WC☐U, PMH-24V100WC☐V, PMH-24V100WC☐T)

Safety Entry Low Voltage

Output non-isolated to PE: PELV (EN 60335), SELV (EN 60950)
Output isolated to PE: SELV (EN 60335), SELV (EN 60950)

Emission

(CE & RE)
EN 55011, EN 55032, CISPR 32, FCC Title 47: Class B, EN 55014-1, EN 61000-6-3

Immunity

EN 55024, EN 61000-6-2, EN 55014-2

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Name Type Version Release Date
PMH-24V100WCCS Datasheet 1.0 19 April 2021
