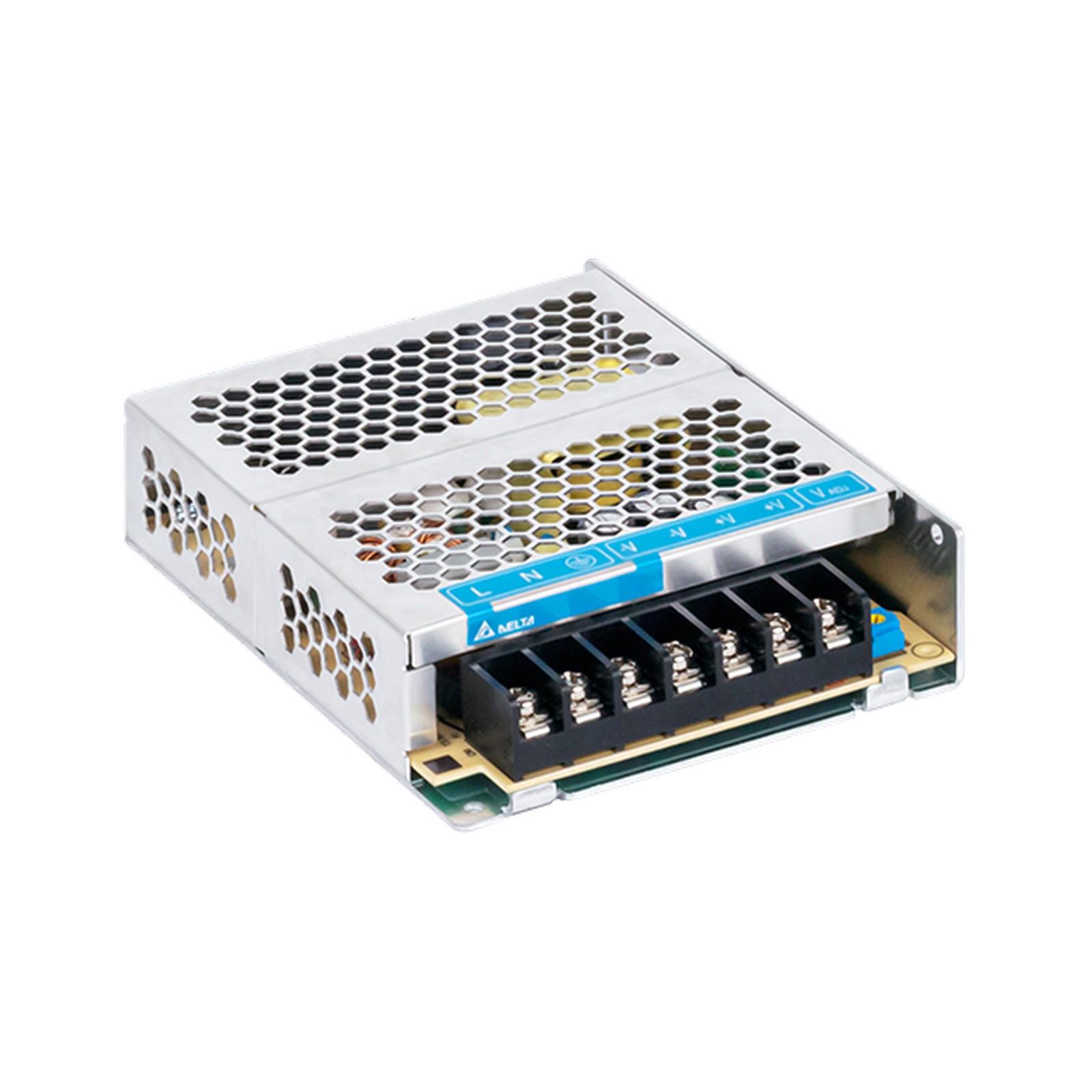

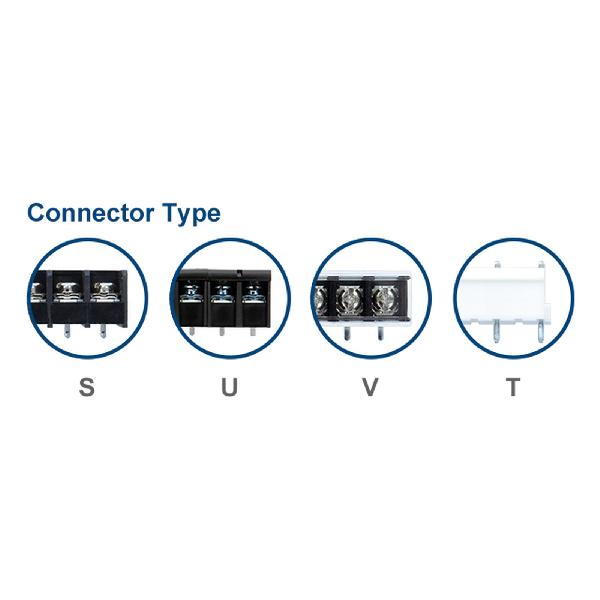

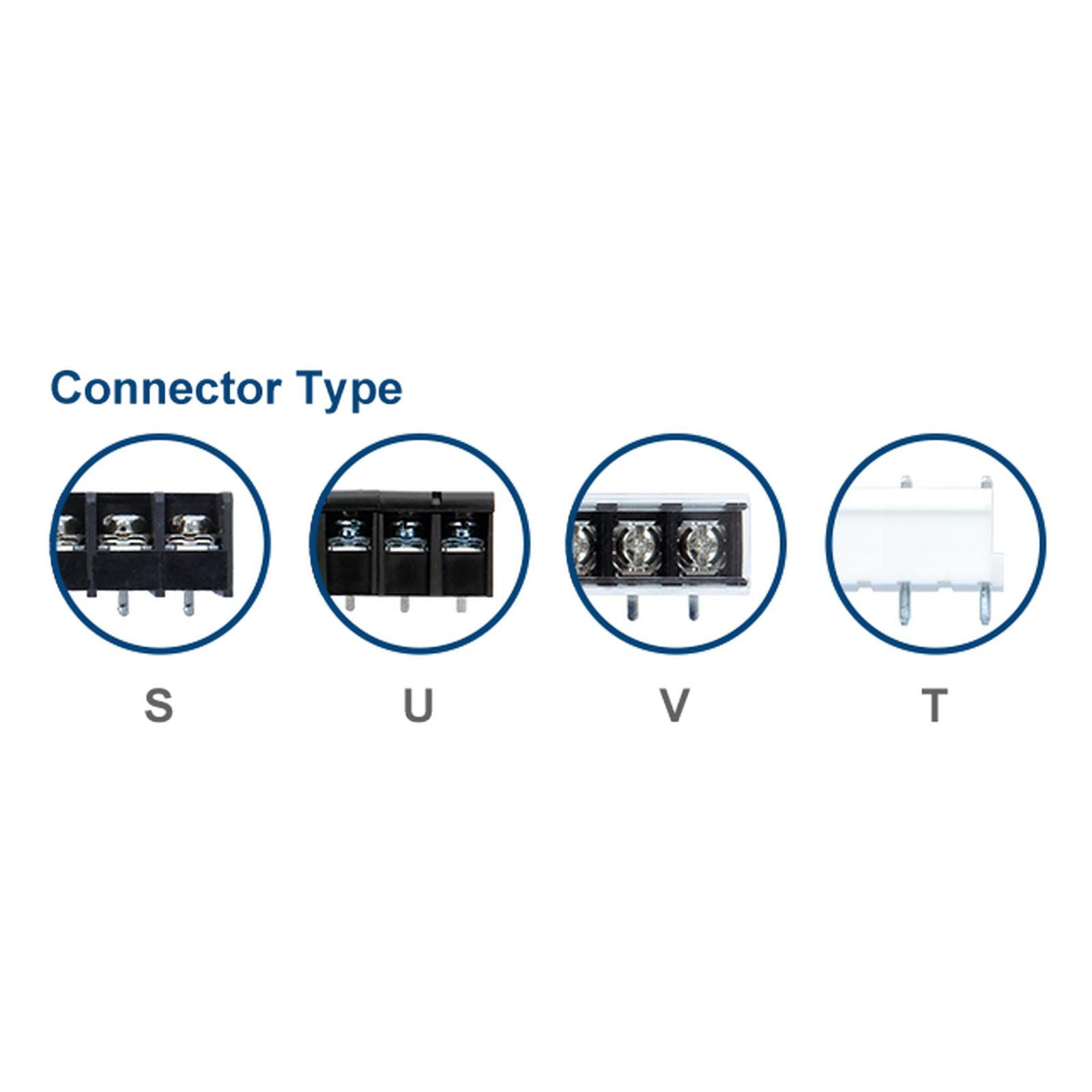

PMH-24V100WCMS

Output Current

3.8A

Output Voltage

24V

Output Voltage Adjustment Range

22-24Vdc

Output Power

91W

Line Regulation

< 0.5% (@ 100-264Vac input, 100% load)

Load Regulation

< 1.0% (@ 100-264Vac input, 0-100% load)

PARD

< 150mVpp

Start-up Time

< 2500ms @ 115Vac (100% load),
< 1500ms @ 230Vac (100% load)

Hold-up Time

> 10ms @ 115Vac, > 50ms @ 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 100-264Vac input, 0-50%, 0-100%, 50-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1kHz)

Start-up with Capacitive Loads

3,000μF Max

Rise Time

< 100ms @ nominal input (100% load)

Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-375Vdc

Input Current

< 1.90A @ 115Vac, < 1.20A @ 230Vac

Efficiency at 100% load

> 86% @115Vac, > 88% @ 230Vac

Max Inrush Current

(Cold Start)
< 25A @ 115Vac, < 50A @ 230Vac

Leakage Current

< 0.75mA @ 240Vac

Max Power Dissipation

No Load: < 0.3W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 17.0W @ 115Vac, < 15.0W @ 230Vac

Case Chassis / Cover

Aluminium

Indicator

Green LED (DC OK)

Cooling System

Convection

Unit Weight

0.31 kg (0.68 lb)

Dimensions

129 x 97 x 30 mm
5.08” x 3.82” x 1.18”

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

Temperature:
120Vac: < -25°C de-rate power by 5.0% / °C
120Vac and 240Vac: > 50°C de-rate power by 2.0% / °C
Input Voltage:
< 100Vac de-rate power by 1.33%/°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

2

Over Voltage Category

II

Overvoltage

< 35V, SELV Output, Latch mode

Overload / Overcurrent

105~130% of rated load current, Hiccup mode, Non-Latching (Auto-Recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Latch mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

Degree of Protection

IP20 (PMH-24V100WC☐U)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 60950-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1(File No. E191395)
CB scheme: IEC 60950-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16, IEC 62368-1

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0KVac
Input to Ground: 2.0KVac
Output to Ground: 1.0KVdc

Safety Entry Low Voltage

SELV (EN 60950-1)

Emission

(CE & RE)
EN 55011, EN 55032, CISPR 32, FCC Title 47: Class B, EN 55014-1, EN 61000-6-3

Immunity

EN 55024, EN 61000-6-2, EN 55014-2

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3

Component Power Supply for General Use

EN 61204-3
