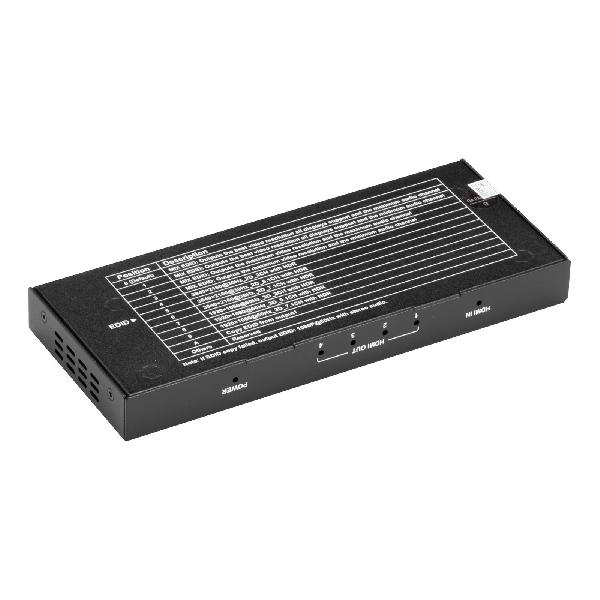

HDMI 2.0 4K60 Splitter - 1x4

Home  >   Black Box  >   VIDEO SPLITTERS  >
HDMI

Secure, reliable audio and 4K video distribution from one HDMI source to four HDMI displays.

Product Feature

  • Slim profile, space saving and easy-to-install
  • Distributes one HDMI source to four HDMI displays
  • Supports HDMI 2.0 with resolutions up to 4K @ 60 Hz 4:4:4 8-bit and HDCP 2.2
  • Multi-channel PCM, Dolby TrueHD and DTS HD audio supported up to 7.1 ch
  • Easy EDID management allows for best video and audio quality
  • Locking HDMI connectors keep your cables securely attached
  • CE, FCC, IC, RCM and VCCI approvals

Ensure your 4K content is always on display on the right screens. The HDMI 2.0 Splitter supports HDMI 2.0 with resolutions up to 4K @ 60 Hz 4:4:4 8-bit and is HDCP 2.2 compliant. This device also supports EDID and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content to the displays.

With increased bandwidth up to 18 Gbps, you can split video signals to four displays while maintaining:

  • Higher resolutions
  • Higher frame rates
  • Multiple full HD streams in the same pipe
  • 21:9 aspect ratio
Compliance
UL2
General
ApprovalsCE, FCC, IC, RCM, VCCI, RoHS2, UL
Bandwidth (Maximum)18 GB/s
CE ApprovalYes
DIP Switch(2) for audio and video EDID options
HousingMetal
Humidity10% to 90%, non-condensing
Operating Temperature32°F to 113°F (0°C to 45°C)
PowerInput: 100-240 VAC, 50-60 Hz, Output: 12 VDC, 0.5 Amp, Output Connector: 2.5-mm barrel connector (center positive)
ResolutionUp to 4096 x 2160 @ 60Hz
RoHSYes
Storage Temperature-4°F to 158°F (-20°C to 70°C)

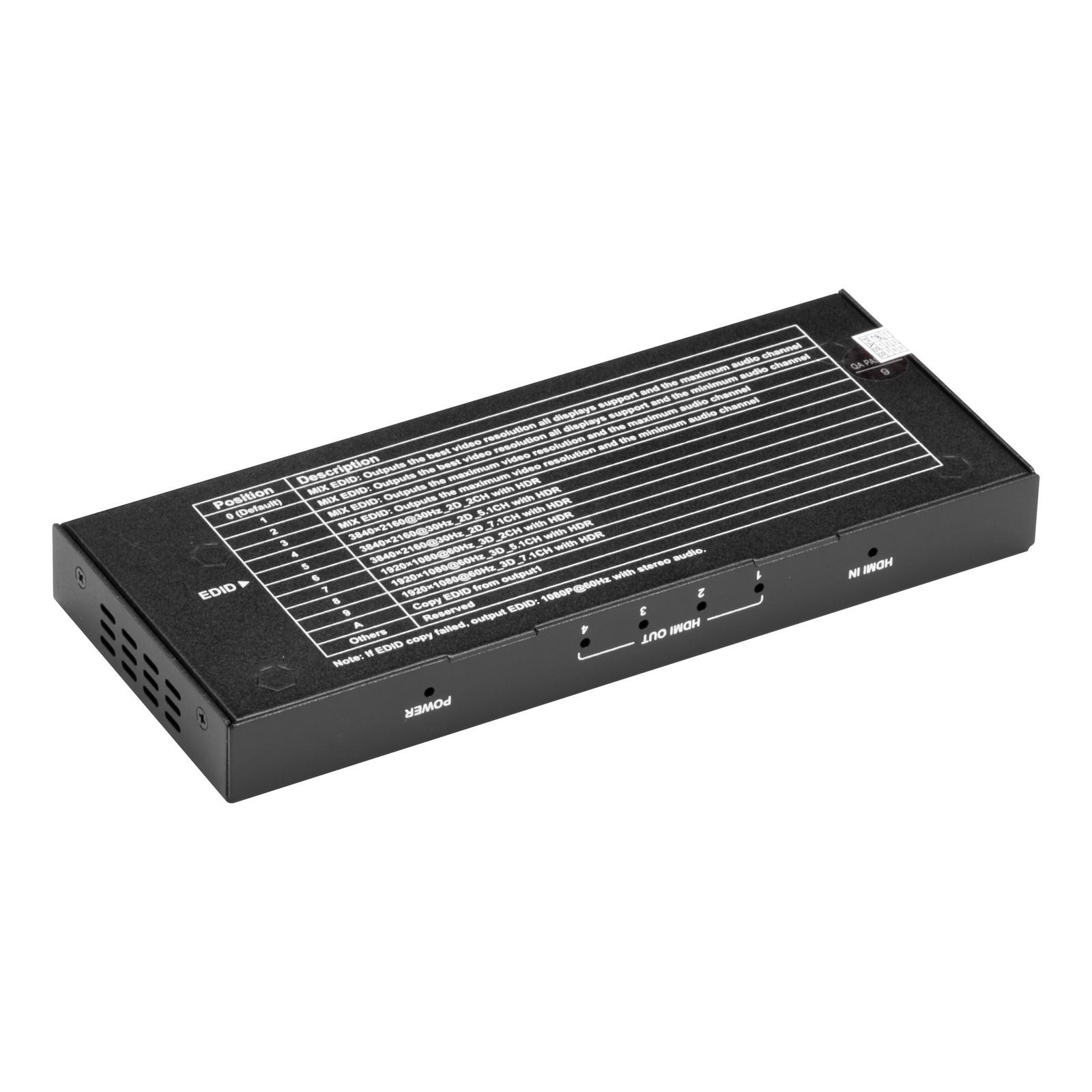

User Controls(1) 16 Position EDID Dial Switch
Item Specifications

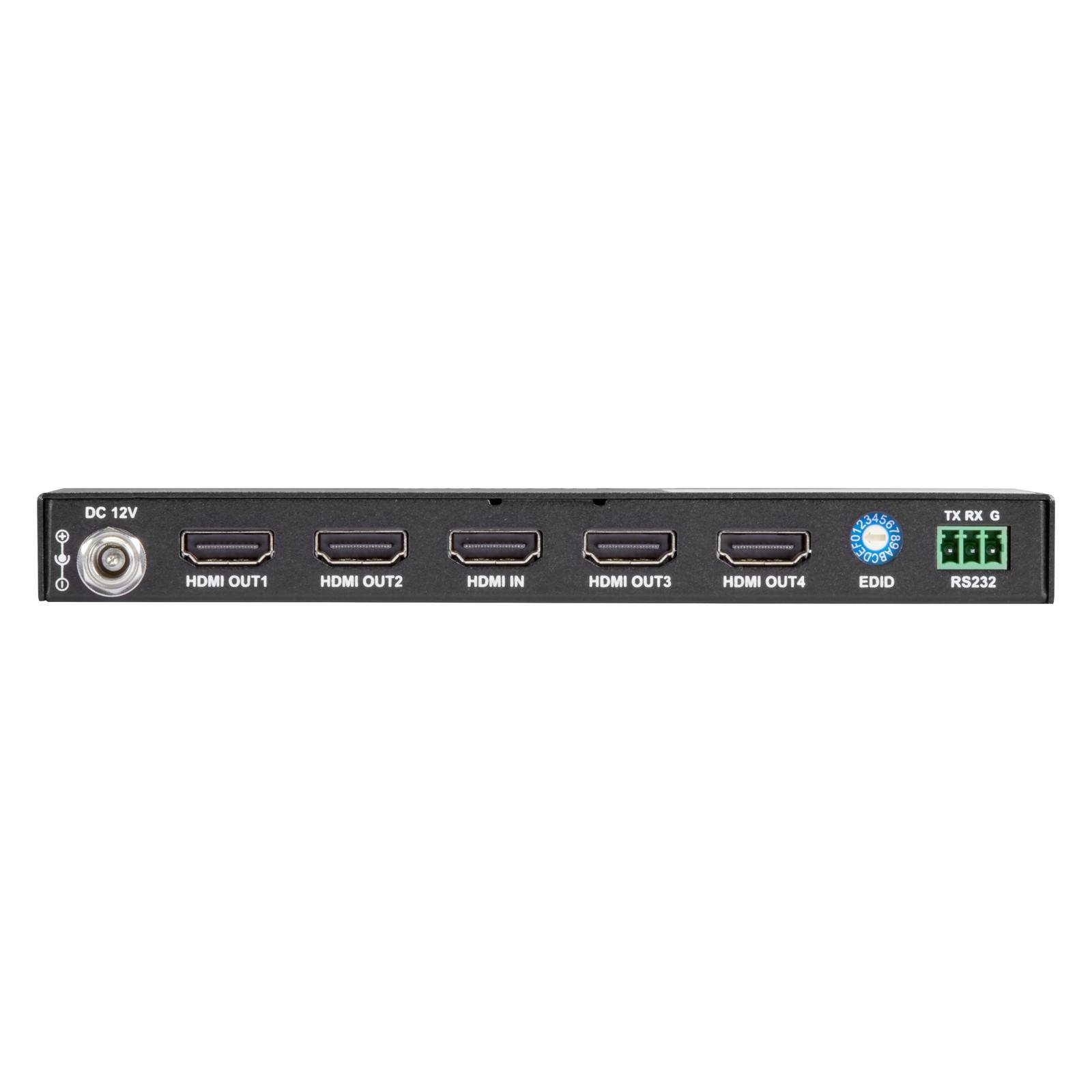

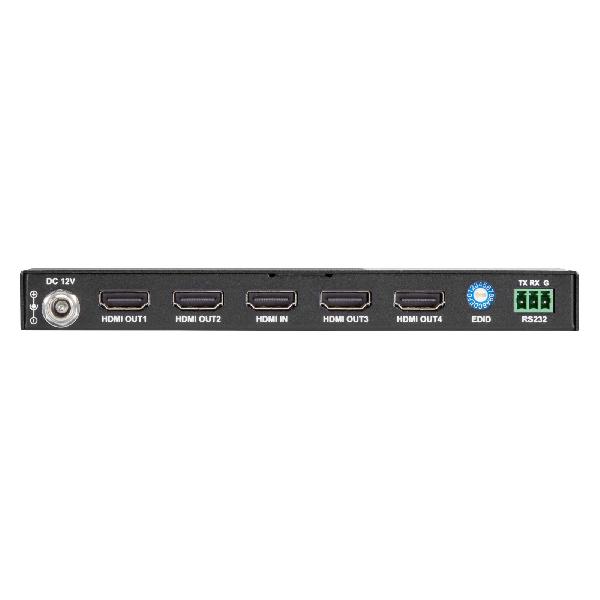

Connectors(5) HDMI Female (1 input/4 output), (1) Locking power connector
HDMI Input Count (Unit A)1
HDMI Output Count (Unit A)2

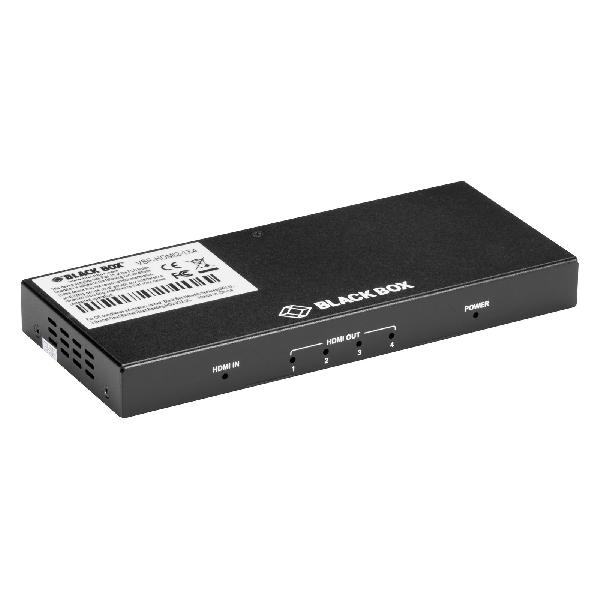

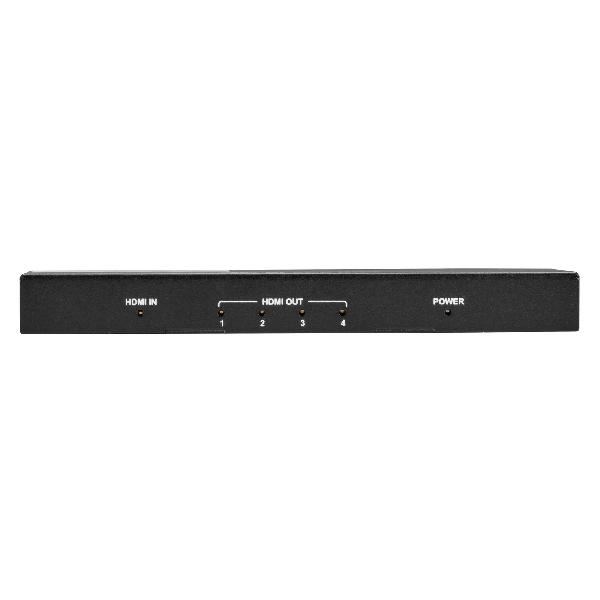

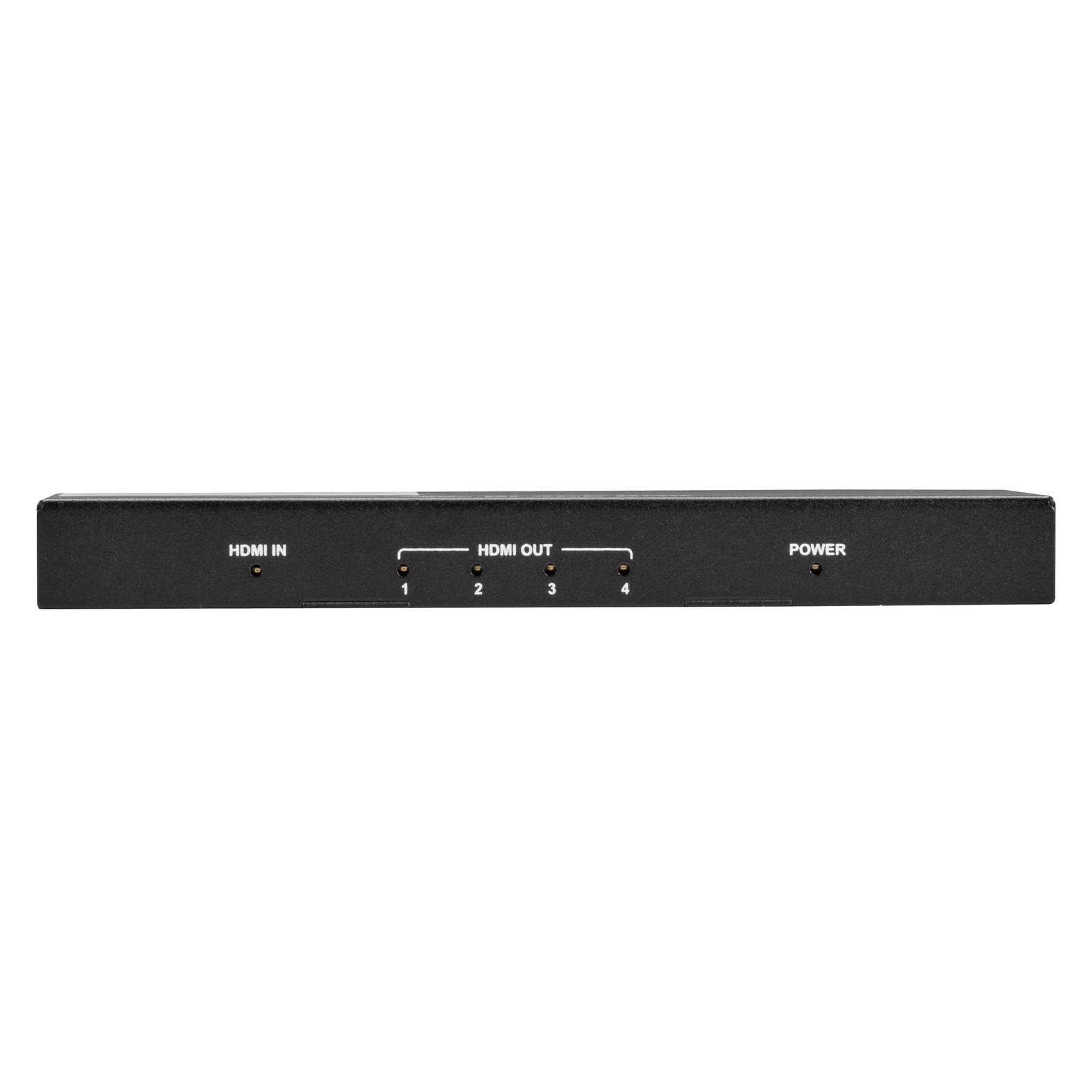

Indicators(1) Power LED, (1) HDMI Input status LED, (4) HDMI Output Status LED
Weight0.66 lbs (0.3 KG)
Physical
Digital AudioTrue
EDID/DDC ManagementCopy
HDCP Version
HDMI Version2
Name Type Version Release Date
HDMI 2.0 4K60 Splitter - 1x4 Manual Manual 10 May 2021
HDMI 2.0 4K60 Splitter - 1x4 Datasheet Datasheet 10 May 2021
