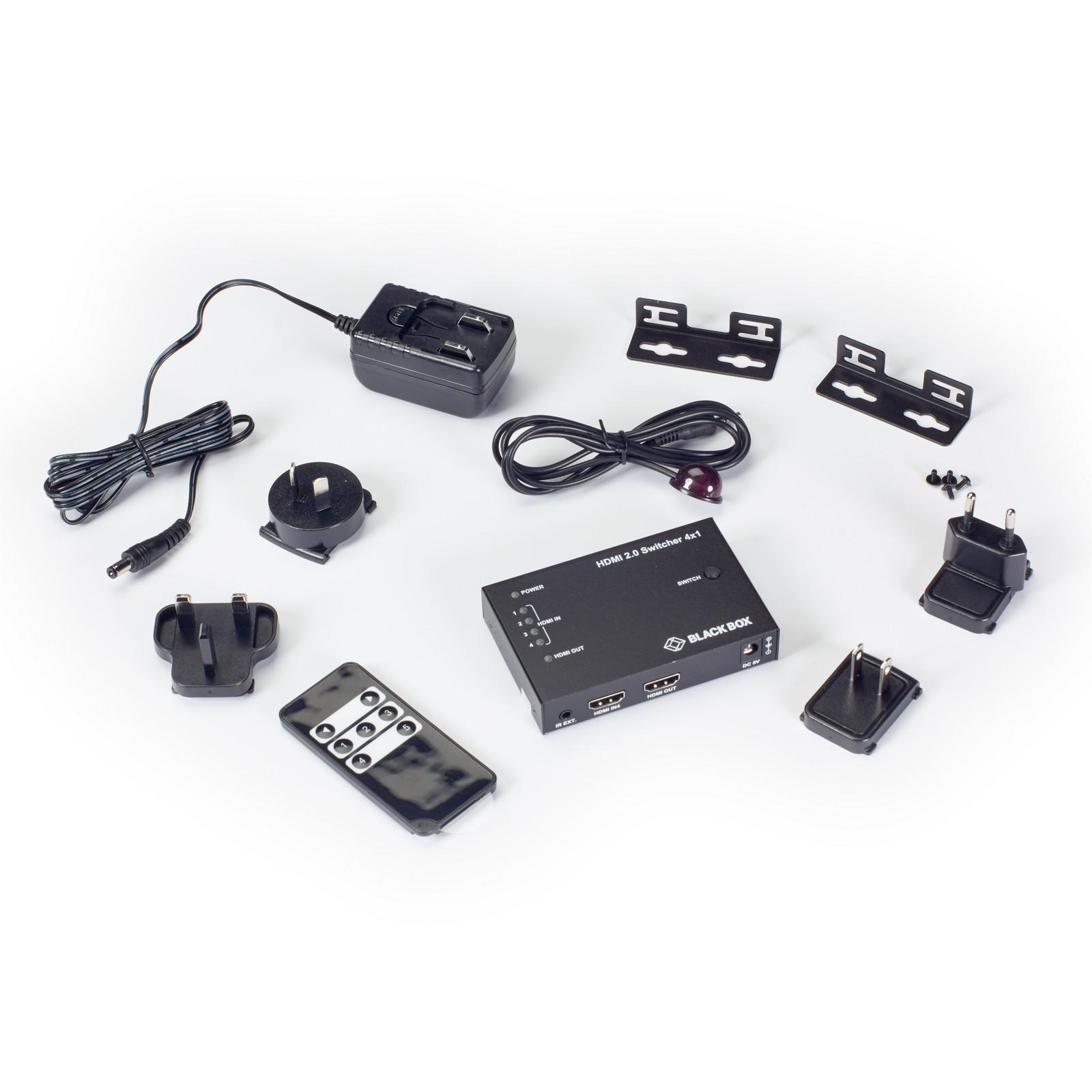

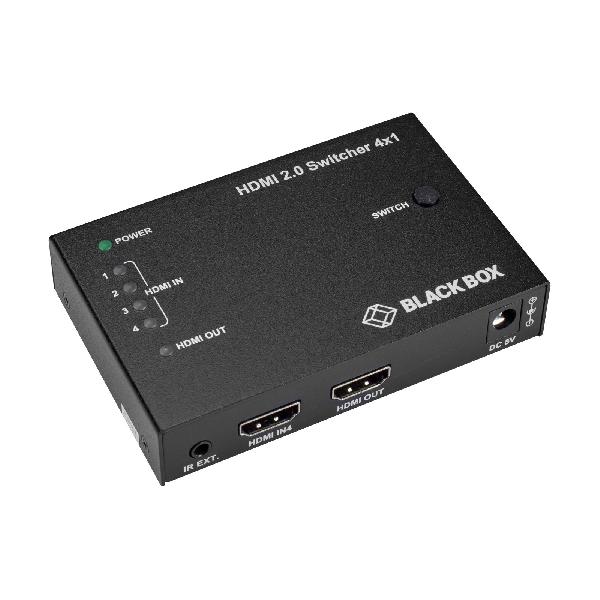

Switching between four HDMI sources to a single display is easier and more reliable. The HDMI 2.0 Video Switch - 4K60, HDCP, 3x1 features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K @ 60 Hz 4:4:4 8-bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through a top panel button, IR remote, and automatic switch. The switch is small, compact and easy to install, giving you the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility
With increased bandwidth up to 18 Gbps, you can switch signals from four sources to a single display while maintaining:
| Compliance | |
| FCC | |
| General | |
| Humidity | 10% to 90% non-condensing |
| Material | Steel |
| Operating Temperature | 32 to 113 deg. F (0 to 45 deg. C) |
| RoHS | Yes |
| Storage Temperature | -4 to 158 deg. F (-20 to 70 deg. C) |
| User Controls | (1) Switch Button |
| Item Specifications | |

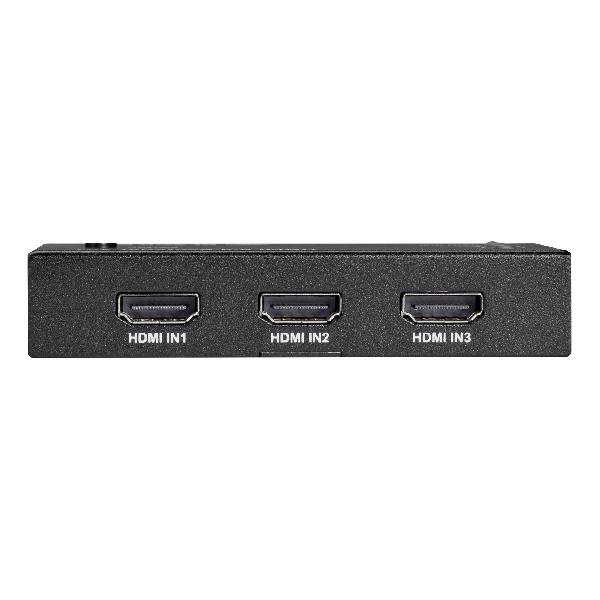

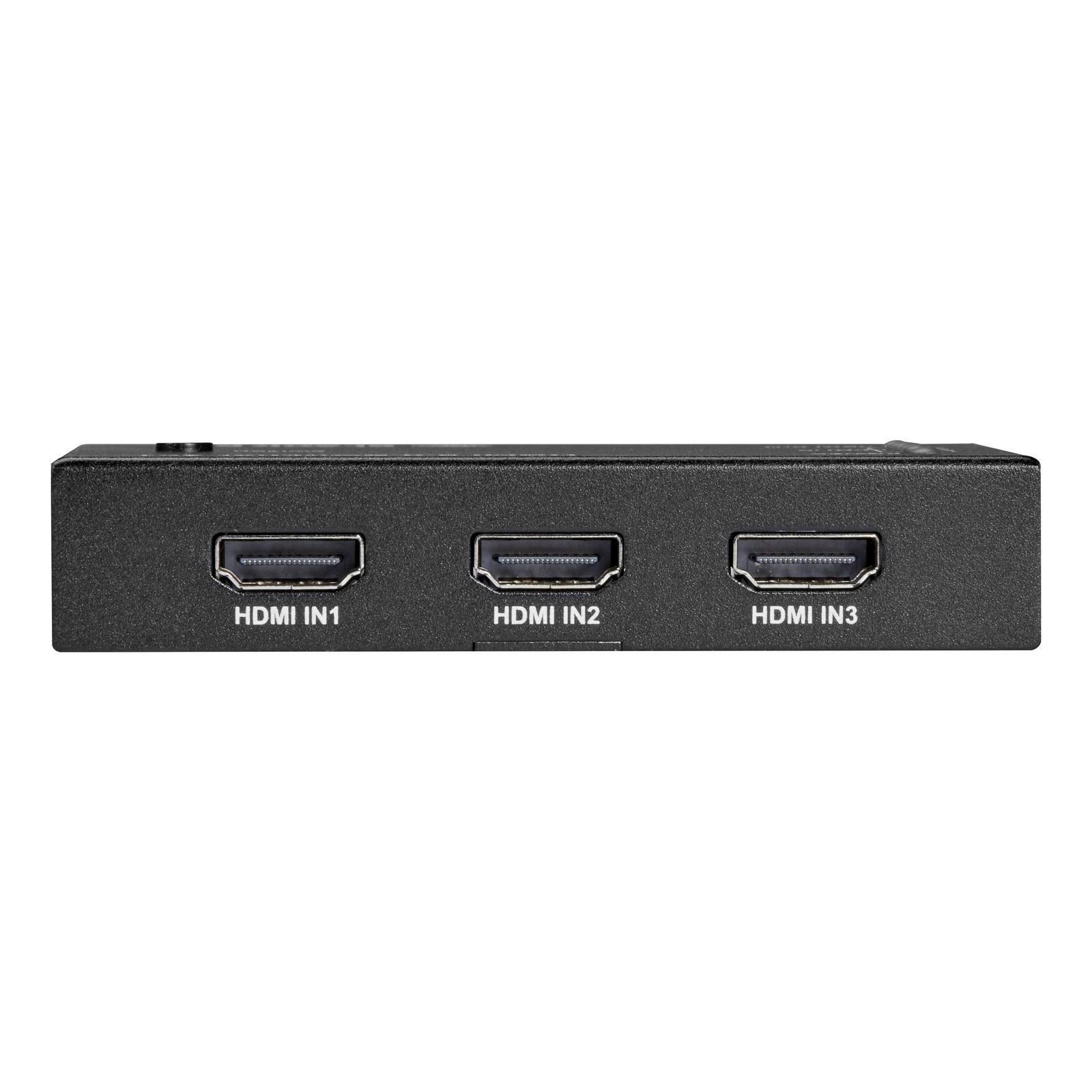

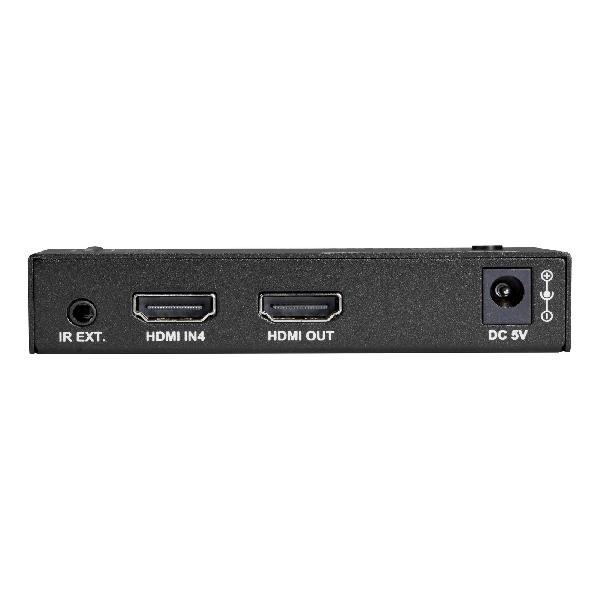

| Connectors | (4) HDMI females for input, (1) HDMI female for output, (1) 3.5 mm connector for IR Receiver |
| Dimensions | 3.94 x 0.77 x 2.61 inches (100 x 19.5 x 66.2 mm) |
| Indicators | (4) LEDs for Input Status, (1) LED for Output Status, (1) LED for power status |
| Weight | 0.49 lbs (0.22 kg) |
| Name | Type | Version | Release Date | |
| HDMI 2.0 Switches and Splitters | Datasheet | 17 May 2021 | ||
| HDMI 2.0 Video Switch — 4 x 1 | Manual | 17 May 2021 |
