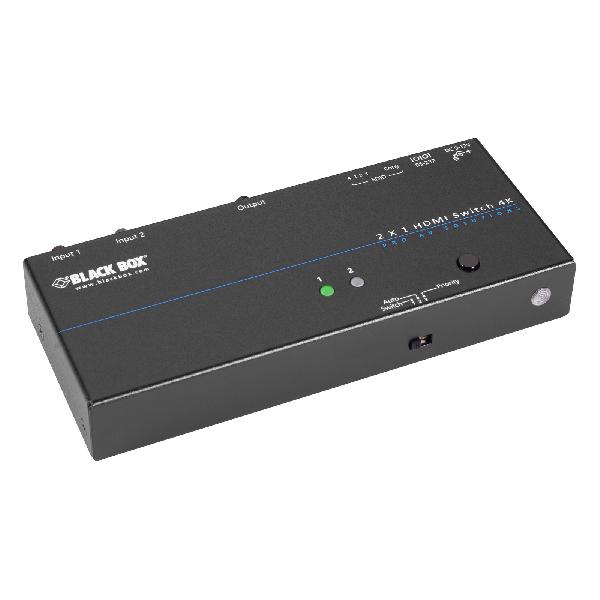

The 4K 2 x 1 HDMI Switch enables switching between two HDMI sources to a single display. The switch supports resolutions up to 4K (UHD) and has a smart auto switching function that enables the device to automatically switch to a source when it becomes active. Advanced EDID functionality enables the switch to either read and copy EDID automatically from screens, or audio/video EDID information can be copied manually.
| General | |
| Altitude | 10,000 ft. |
| Approvals | CE, RoHS2, FCC, CSA, TUV, UL |
| Humidity | 80% |
| Material | Steel |
| MTBP | 50,000 hours |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Power | Desktop-type power supplyInput: 100-240 VAC, 50-60 Hz, 45 VAInput Connector: IEC320 C14Output: 9 VDC, 1.5 Amp over a 2.5-mm barrel plug (center positive) |
| Resolution | Up to 4K x 2K@30Hz (3840 x 2160) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| User Controls | (1) switch button(1) EDID copy button(1) EDID switch for EDID selection(1) EGO setting switch for auto functions |
| Item Specifications | |

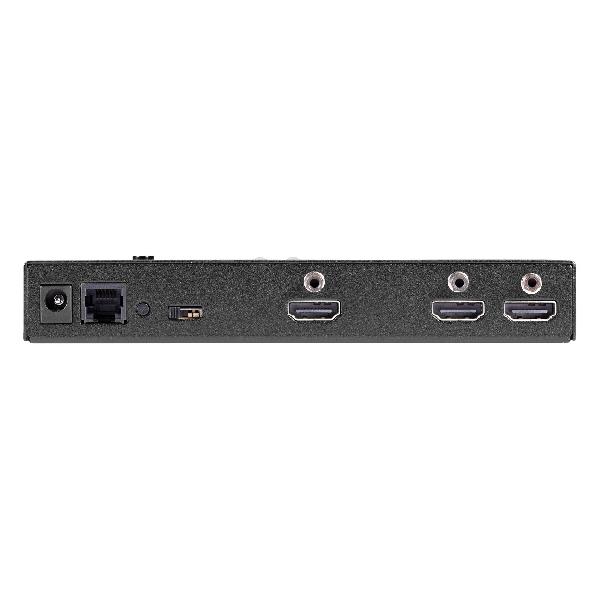

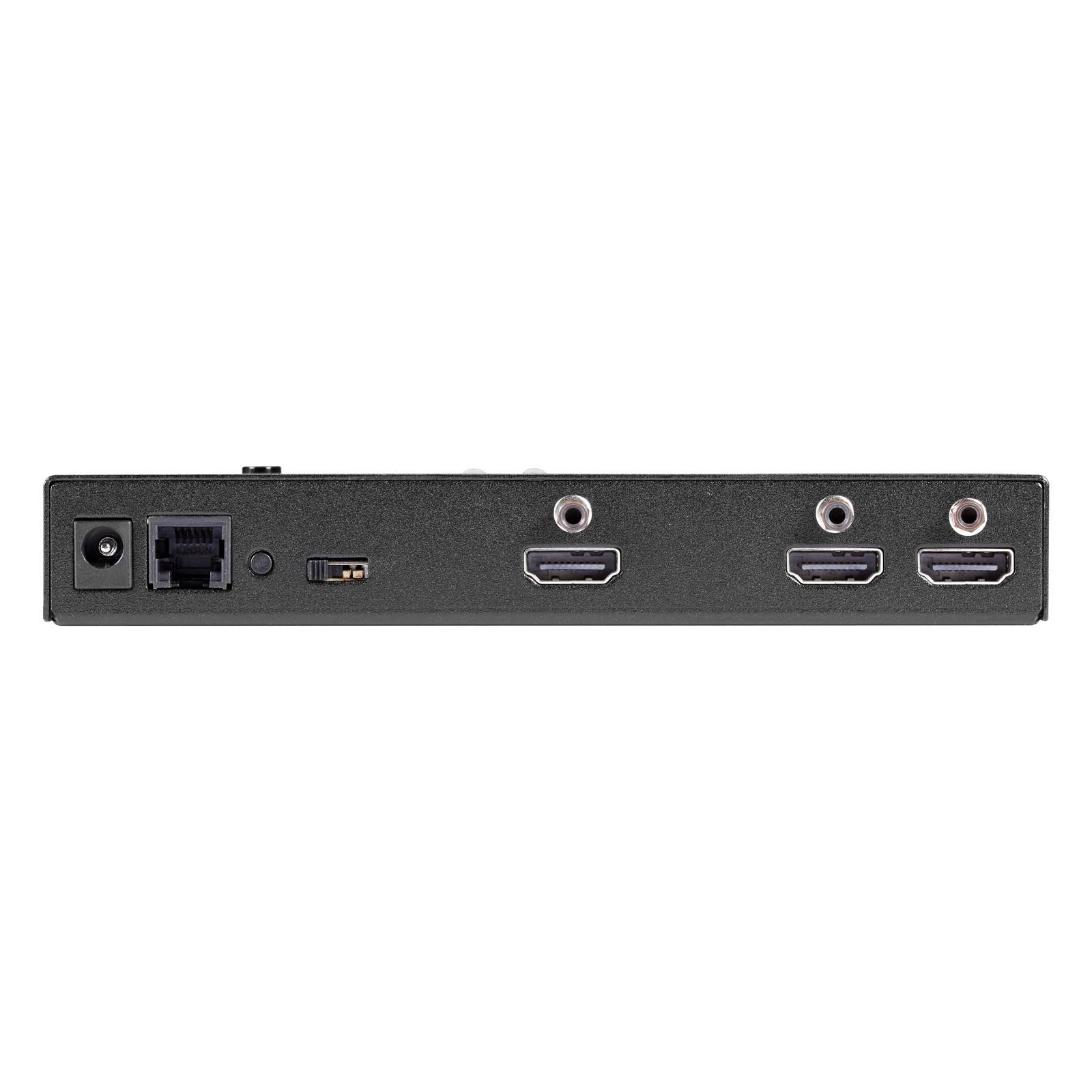

| Connectors | Input: (2) HDMI female Ouput: (1) HDMI female Control Port: (1) RS-232 |
| Dimensions | .8"H x 6.14"W x 2.6"D (2 x 15.6 x 6.5 cm) |
| Indicators | (4) LEDs for input status |
| Weight | Unit: 1.5 lb. (.68 kg) Shipping: 2.09 lb. (.95 kg) |

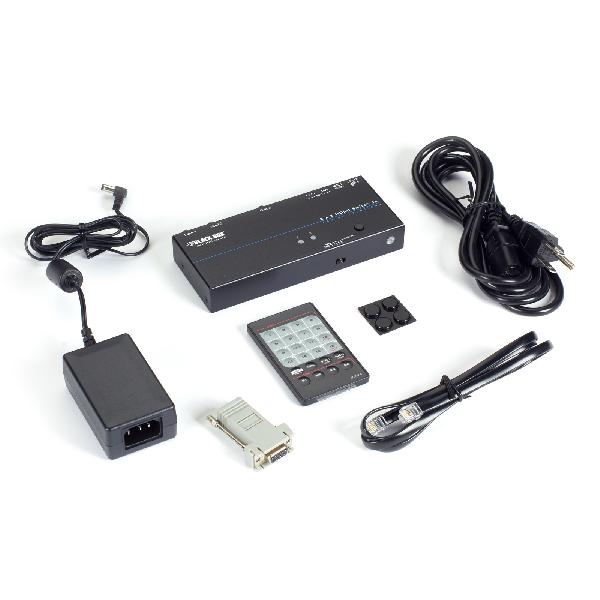

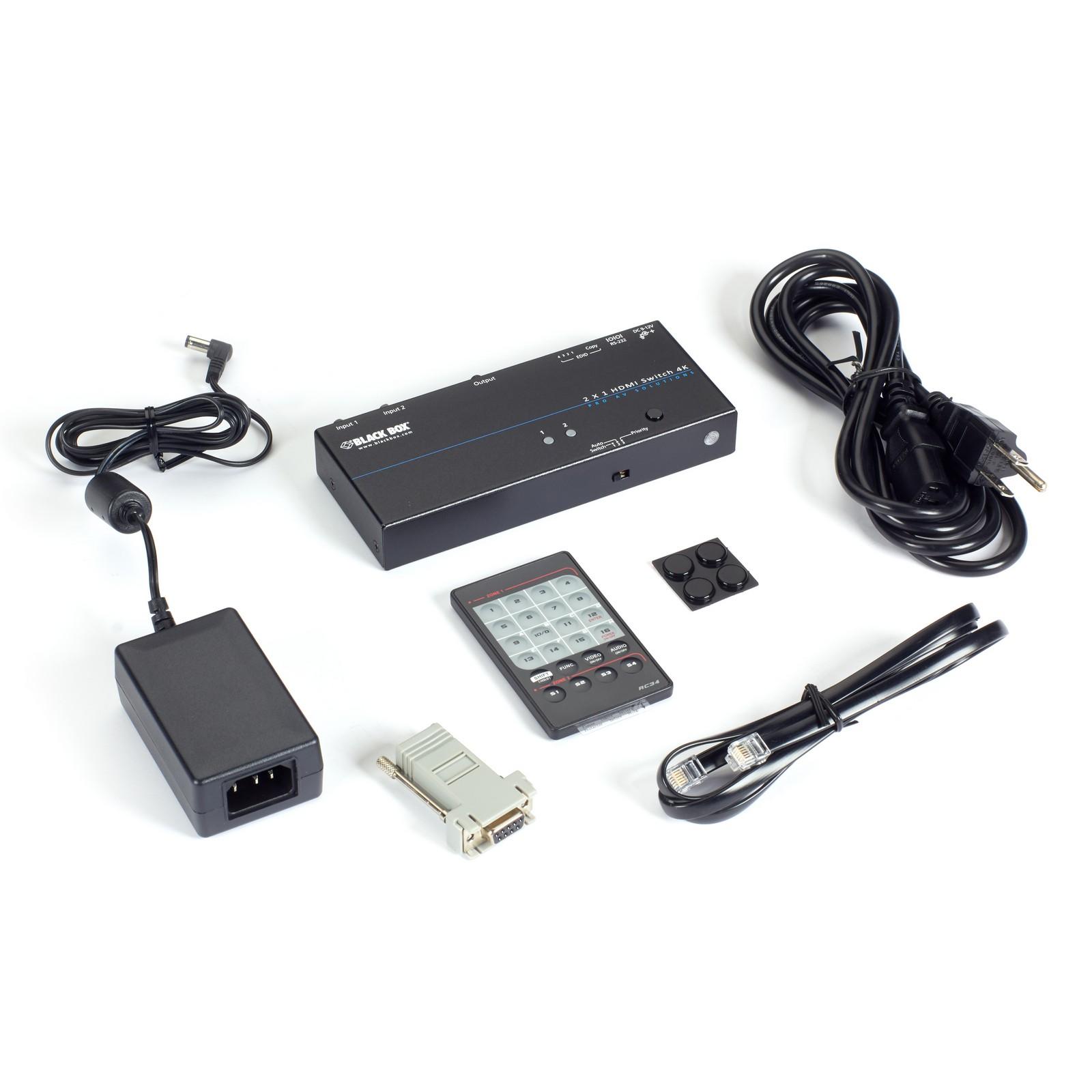

Product Includes:
| Name | Type | Version | Release Date | |
| 2 x 1 or 4 x 1 HDMI Switch 4K | Datasheet | 17 May 2021 |
