Video Matrix Switcher - HDMI 2.0, 4x4

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

Switch four HDMI 2.0 and HDCP 2.2 compliant signals.

Product Feature

  • Four SPDIF ports provide de-embedded HDMI audio output
  • Supports 4K x 2K @ 60 HZ 4:4:4 and 1080p 3D signals
  • Supports HDMI 2.0, HDCP 2.2 compatible, and is backward compatible to the earlier versions
  • Transmits 4K x 2K @ 60 Hz 4:4:4 signal up to 16.4-ft via HDMI port

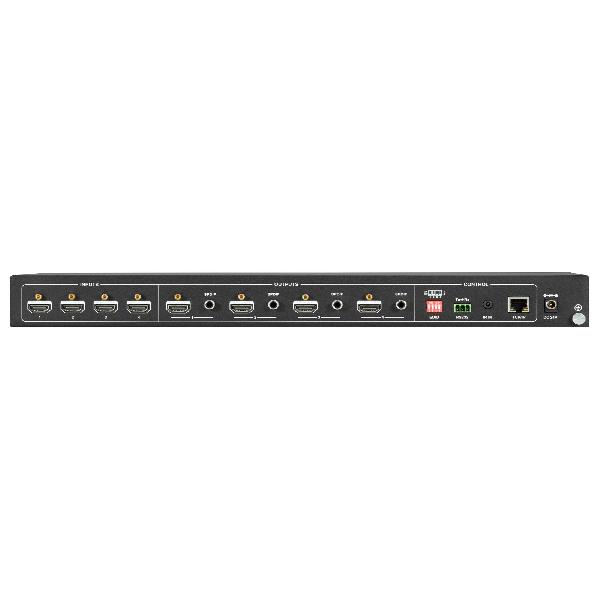

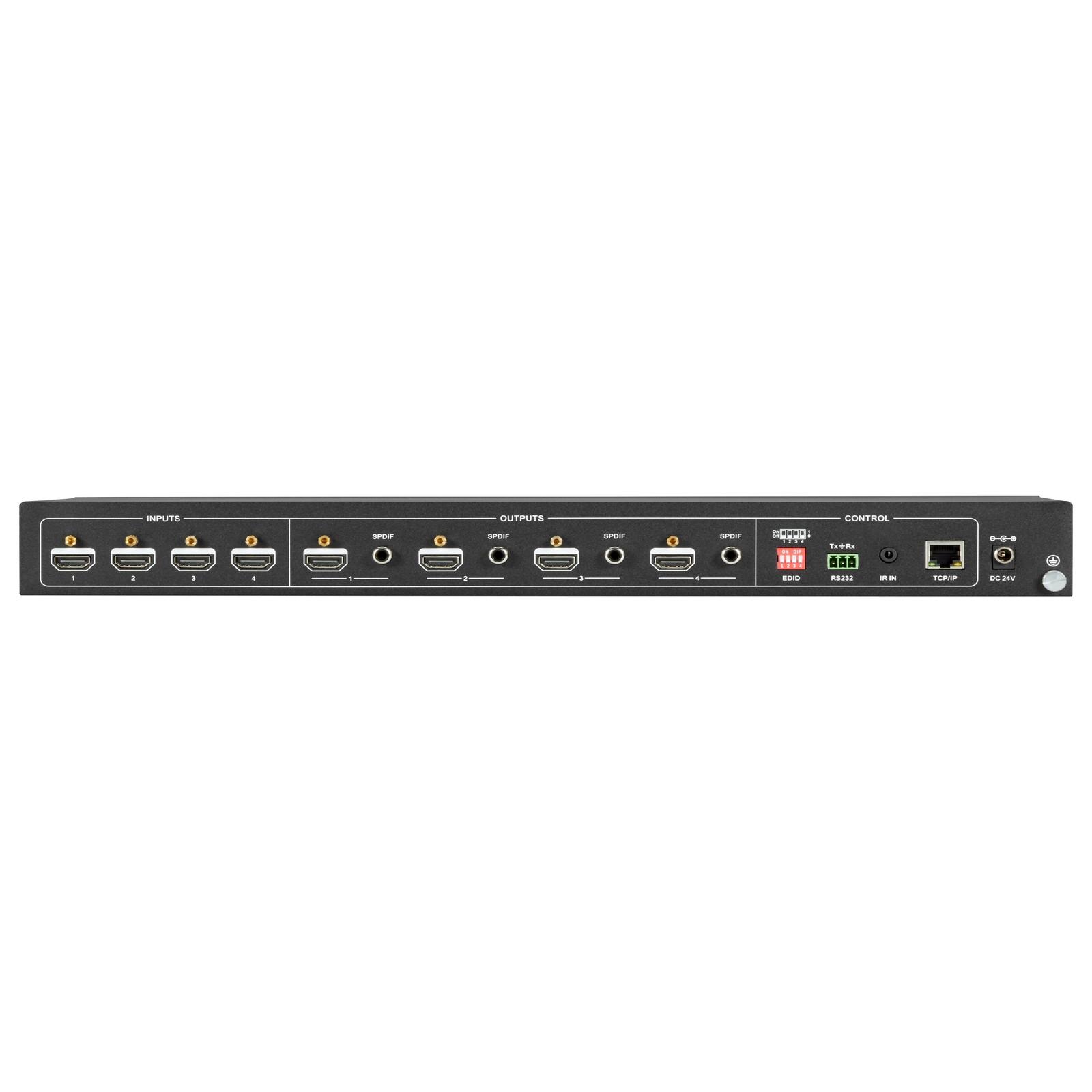

  • Provides powerful EDID management, built-in EDID can be invoked via DIP switch on rear panel, RS232 comman or web-based GUI
  • Controllable via front panel button, IR, RS232, TCP/IP or web-based GUI

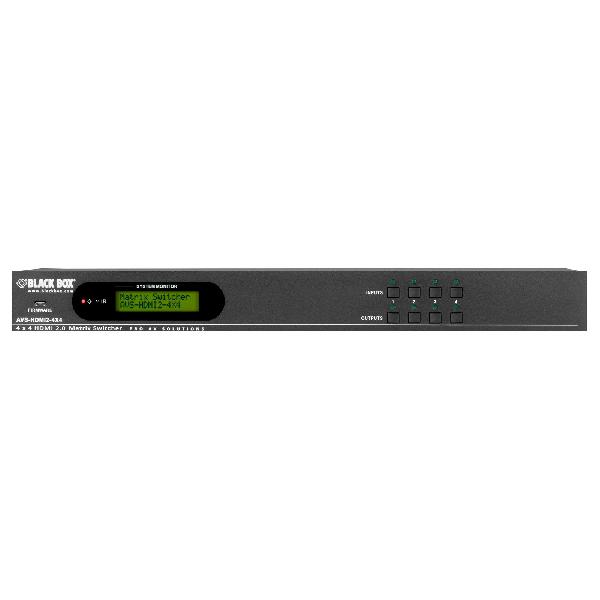

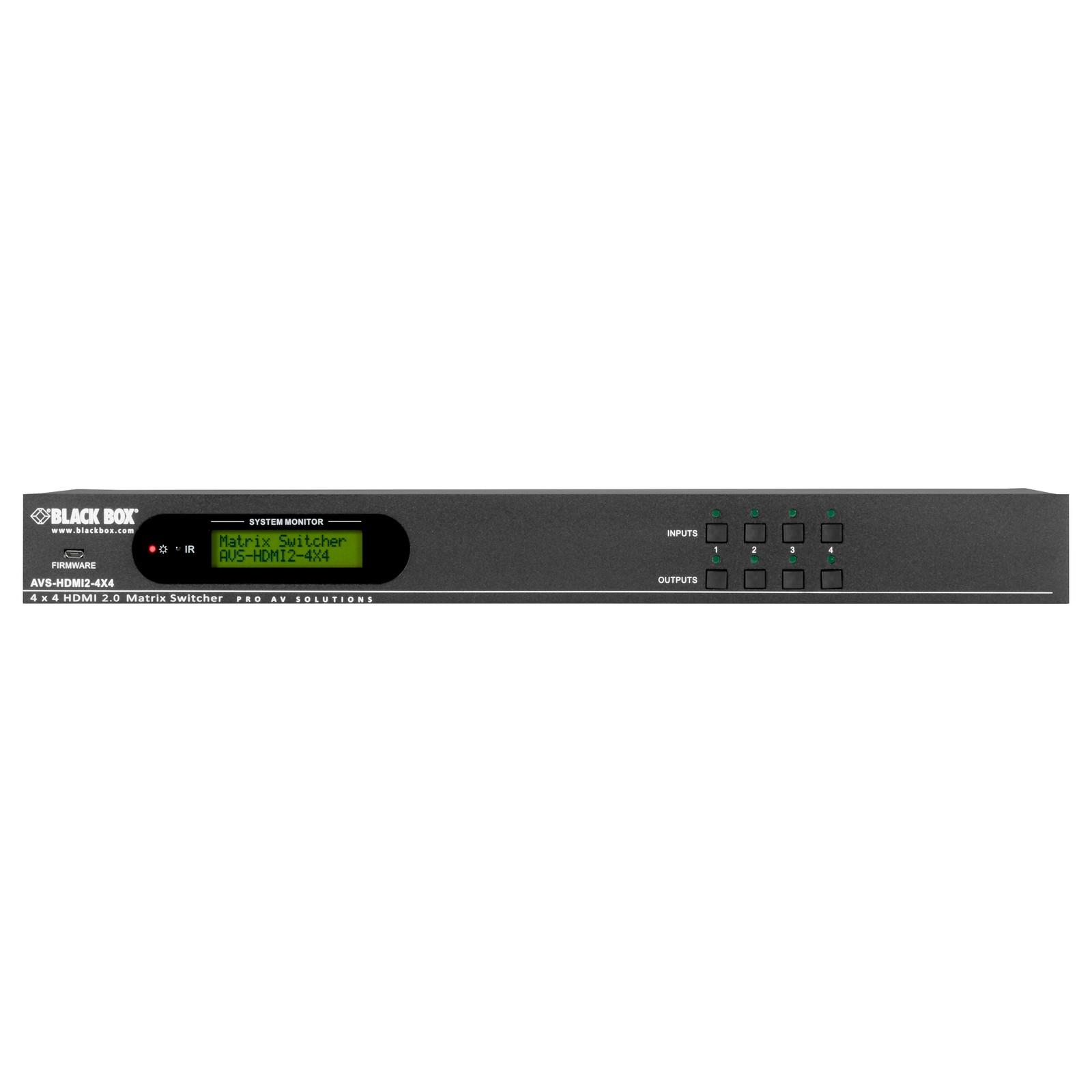

  • LCD screen shows real-time I/O connection status
  • Convenient firmware upgrade through micro USB port
  • Easy installation with rackmounting design

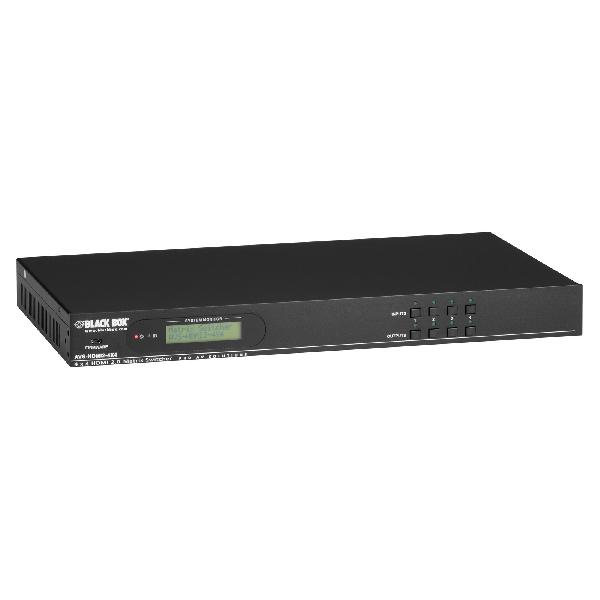

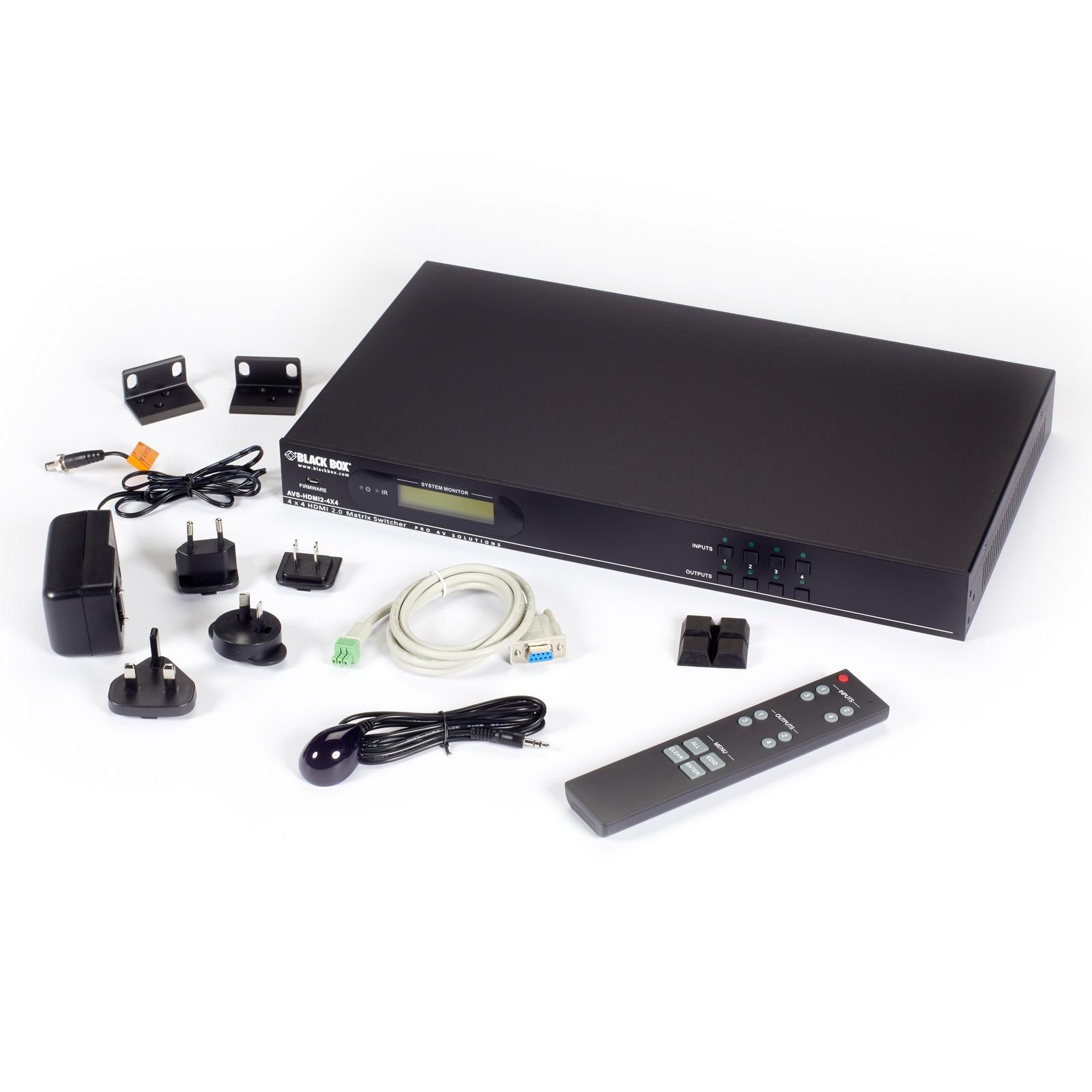

The Video Matrix Switch is a professional 4K 4x4 HDMI 2.0 Matrix Switch with 4 HDMI inputs, 4 HDMI outputs, and 4 SPDIF audio outputs. It is designed for switching four HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing.

You can control the unit via the front panel, IR, RS-232, TCP/IP and web-based GUI.

The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

Control
Audio SignalDolby Digital, DTS, DTS-HD
Video SignalHDMI 2.0 & HDCP2.2
Control Signal(1) IR IN, (1) TCP/ IP, (1) RS-232
Control Connector(1) 3.5-mm mini jack, (1) RJ45 female, (1) 3-pin pluggable terminal block
General
EDID FunctionManagement: Built- in EDID data and manual EDID management
Humidity10 to 90 % relative
Operating Temperature14 to 131° F (-10 to 55° C)
PowerAC Adapter Input: 100 to 24 0 VAC, 50/60 Hz;
Output: 24-VDC, 1.25 A;
Consumption: 14 W (max)
Resolution640 x 480 @ 60 Hz, 4K x 2K @ 6 0 Hz 4:4:4, 1080p 3D
Item Specifications
Connectors (Output)(4) HDMI Type A female, (4) Coax
Dimensions1.7" H x 17.2" W x 9.3" D (4 .4 x 4 3.7 x 23.6 cm)
Weight3.8-lb. (1.75 kg)
Video
Input(4) HDMI
Output Signal(4) HDMI, (4) SPDIF audio
Input Connector(4) HDMI Type A Female
Name Type Version Release Date
Video Matrix Switches HDMI 2.0 Datasheet 17 May 2021
avs-hdmi2-4x4_user_manual Manual 17 May 2021
