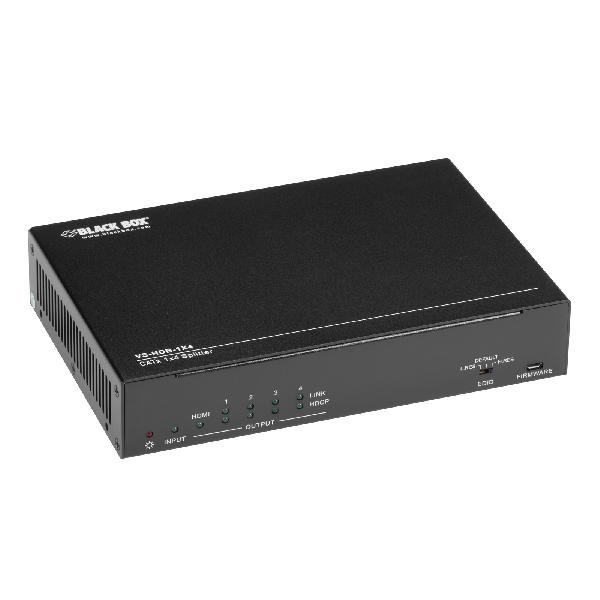

CATx Video Splitter - 1x4

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

Split a single HDMI input into 4 CATx outputs.

Product Feature

  • Splits a single HDMI input to (4) CATx outputs and (1) HDMI loop output
  • Supports video resolutions up to 4K @ 60-Hz 4:2:0
  • Extends 1080p signals on each output to a distance up to 229-ft. and 4K signals to a distance up to 131-ft, over a CATx ethernet cable
  • Supports the Power over Cable (PoC) feature, allowing the compatible CATx receivers to be powered by the splitter over the Ethernet cables
  • Supports bidirectional IR and RS232 pass-through and loop out
  • Smart EDID management, features DIP switch to select the output resolution to match the connected displays
  • Fully compliant with teh HDMI 1.4 specification
  • Supports HDCP pass-through management
  • Supports firmware update

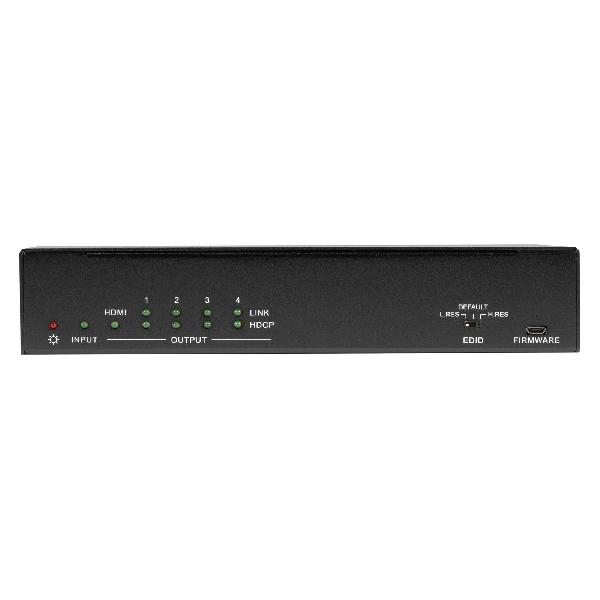

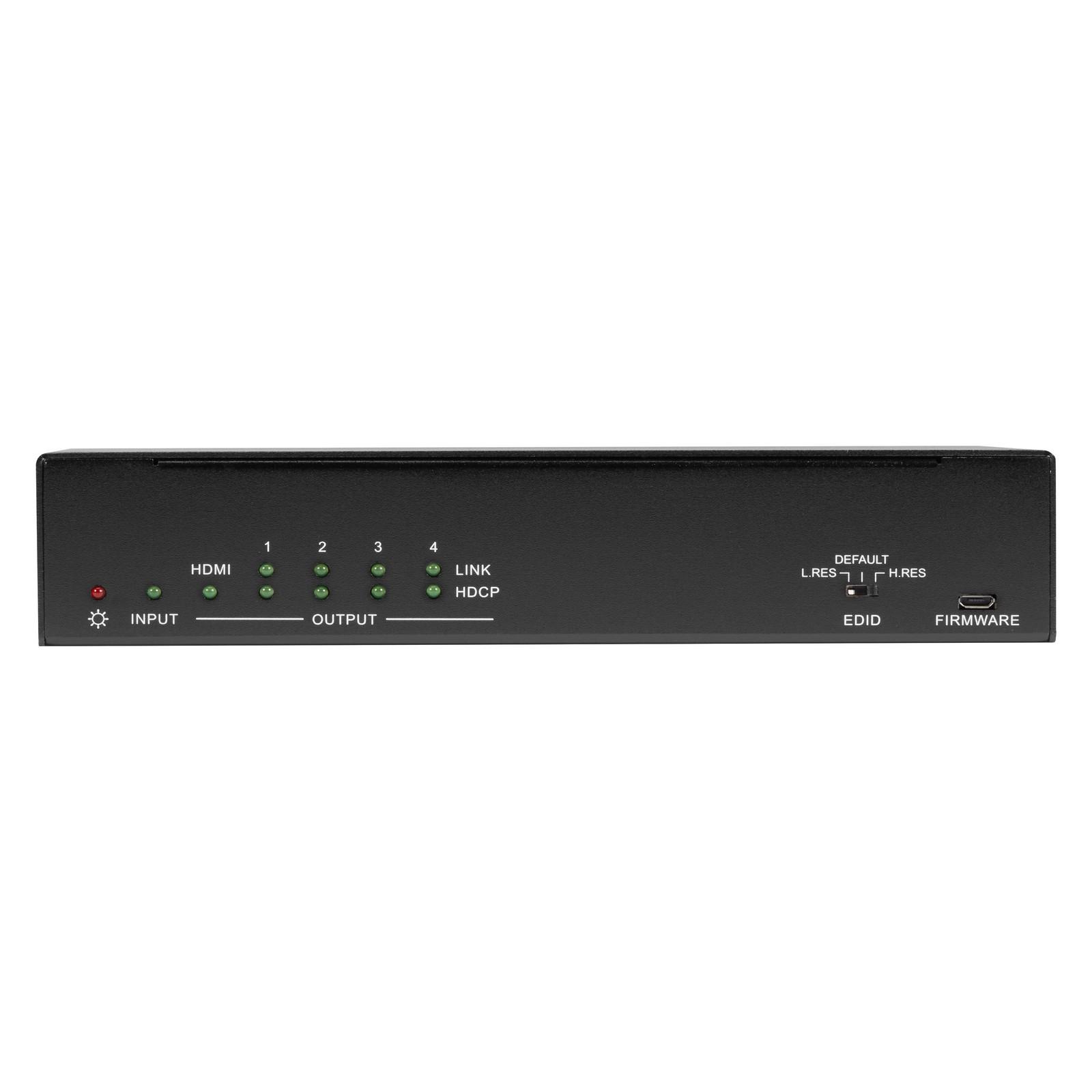

  • Intuitive indicator for connection status

The CATx Video Splitter, 1 x 4, 4K UHD, Smart EDID accepts a single HDMI input and splits it into four CATx outputs. The splitter is designed with an HDMI loop out, which is intended to cascade to additional units. It supports video resolutions up to 4K @ 60 Hz and all HDMI audio formats. It can extend 1080p signals on each output to a distance up to 229 feet (70 meters) and 4K signals to a distance up to 131 feet (40 meters) over a single CATx Ethernet cable. Supports the Power over CATx (PoC) feature, which allows the compatible receivers to be powered from the splitter over the Ethernet cables. It also supports bidirectional IR and RS-232 pass-through and loop output.

Compliance
UL2

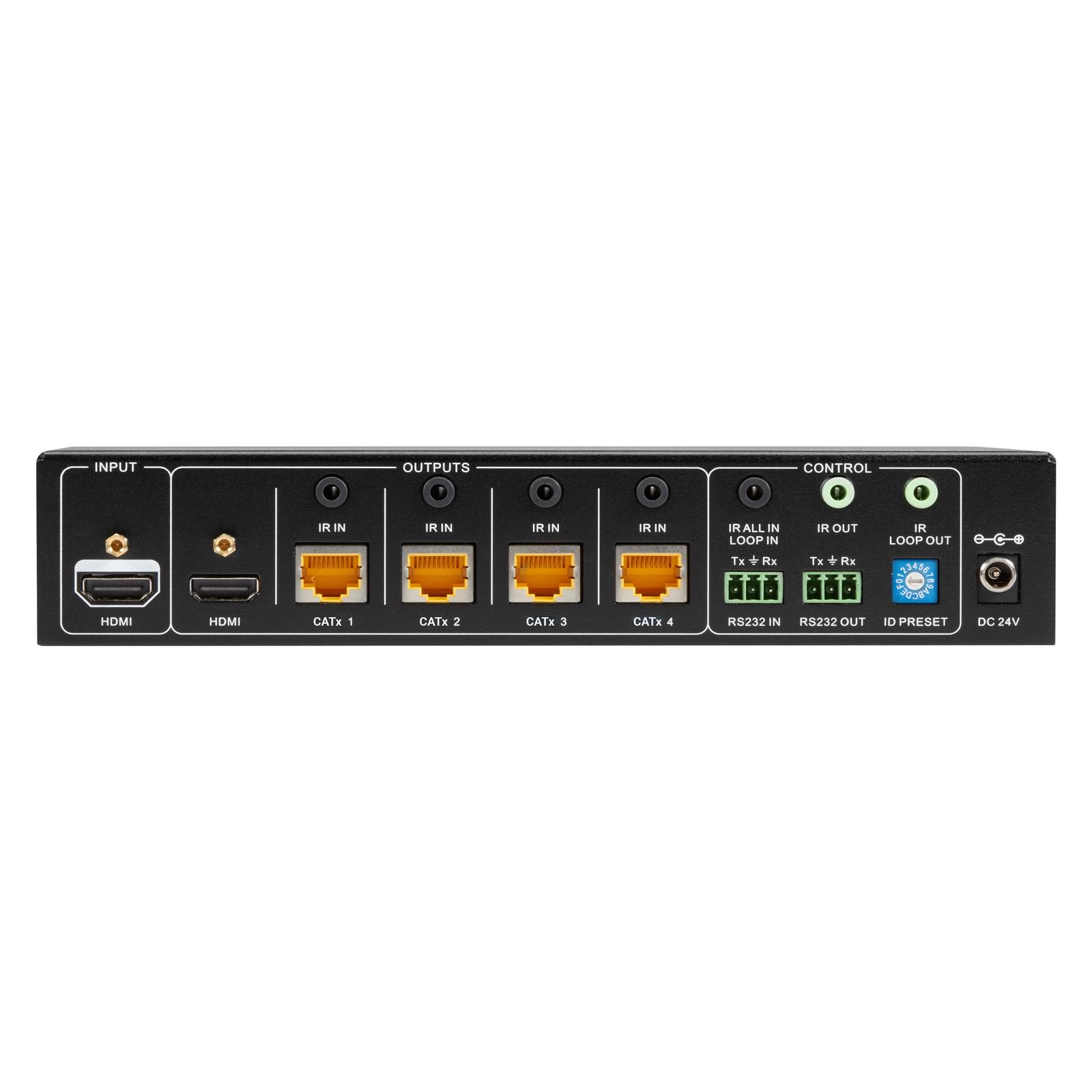

Control
Control Port(1) EDID, (1) ID PRESET, (1) IR ALL IN/LOOP IN, (1) IR OUT, (1) IR LOOP OUT, (1) RS-232 IN, (1) RS-232 OUT
Control Connector(1) 3-pin DIP switch, (1) DIP switch, (3) 3.5-mm mini jacks, (2) 3-pin Phoenix connectors
Environmental
Humidity10 to 90% relative humidity
Operating Temperature14 to 131° F (-10 to 55° C)
Storage Temperature-13 to +158° F (-25 to +70° C)
Item Specifications
Connectors (Output)(1) HDMI Type A female, (4) RJ45
Dimensions1.7” H x 8.7” W x 5.8” D (4.4 x 22 x 14.8 cm)
HDMI Input Count (Unit A)1
HDMI Output Count (Unit A)1
Weight1.6 lb. (0.7 kg)
Physical
HDMI Version
Power
Input24-VDC, 2.71 A
Consumption45W (max)
AC Adapter Input100-240 VAC, 50/60 Hz
Video
Input ResolutionUp to 4K x 2K @ 60 Hz 4:2:0
HDMI StandardHDMI 1.4 with HDCP 2.2
Output ResolutionHDMI: Up to 4K x 2K @ 60 Hz 4:2:0;
CATx: Up to 4K x 2K @ 60 Hz 4:2:0
Output(1) HDMI, (4) CATx
Input Connector(1) HDMI Type A female
Input(1) HDMI
Transmission ModeCATx
Transmission Distance1080p < or = 229 feet (70 meters);
4K < or = 131 feet (40 meters)

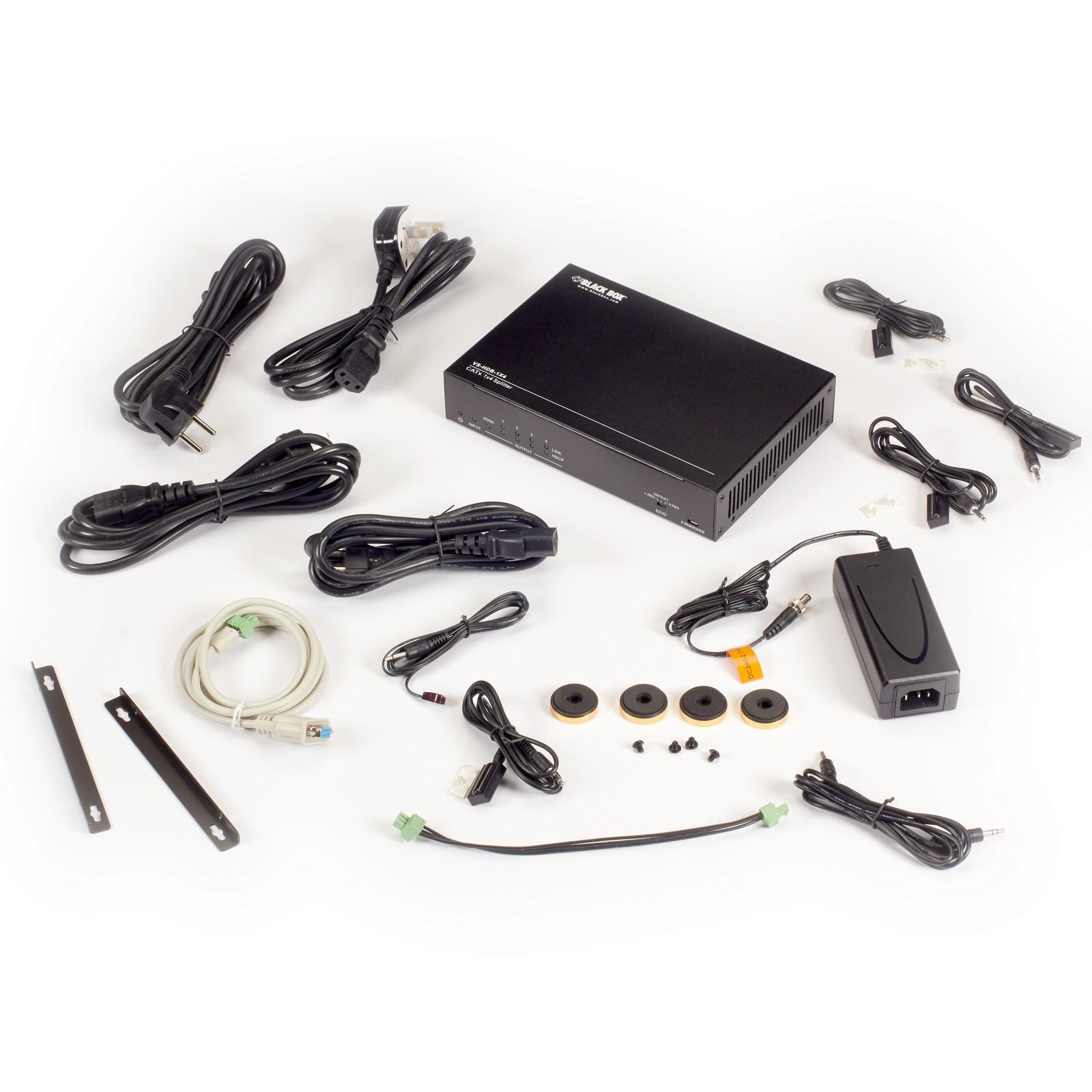

Product Includes:

  • (1) CATx Video Splitter, 1x4, 4K UHD, SMART EDID
  • (2) Mounting ears with (4) screws
  • (4) Circular plastic cushions
  • (1) 3-pin to 3-pin RS232 cable (for RS232 Loop out cascading)
  • (1) 3-pin to DB9 RS232 cable
  • (1) 3.5-mm audio cable (for IR loop out cascading)
  • (4) IR receivers
  • (1) IR emitter
  • (1) Power adapter (24 VDC, 2.71 A)
Name Type Version Release Date
CATx Video Splitter 1 x 4 Datasheet 19 May 2021
CATx Video Splitter 1 x 4 Manual 19 May 2021
