Modular Matrix Switcher – 4K Seamless, I/O Auto Detect, 16-Port

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

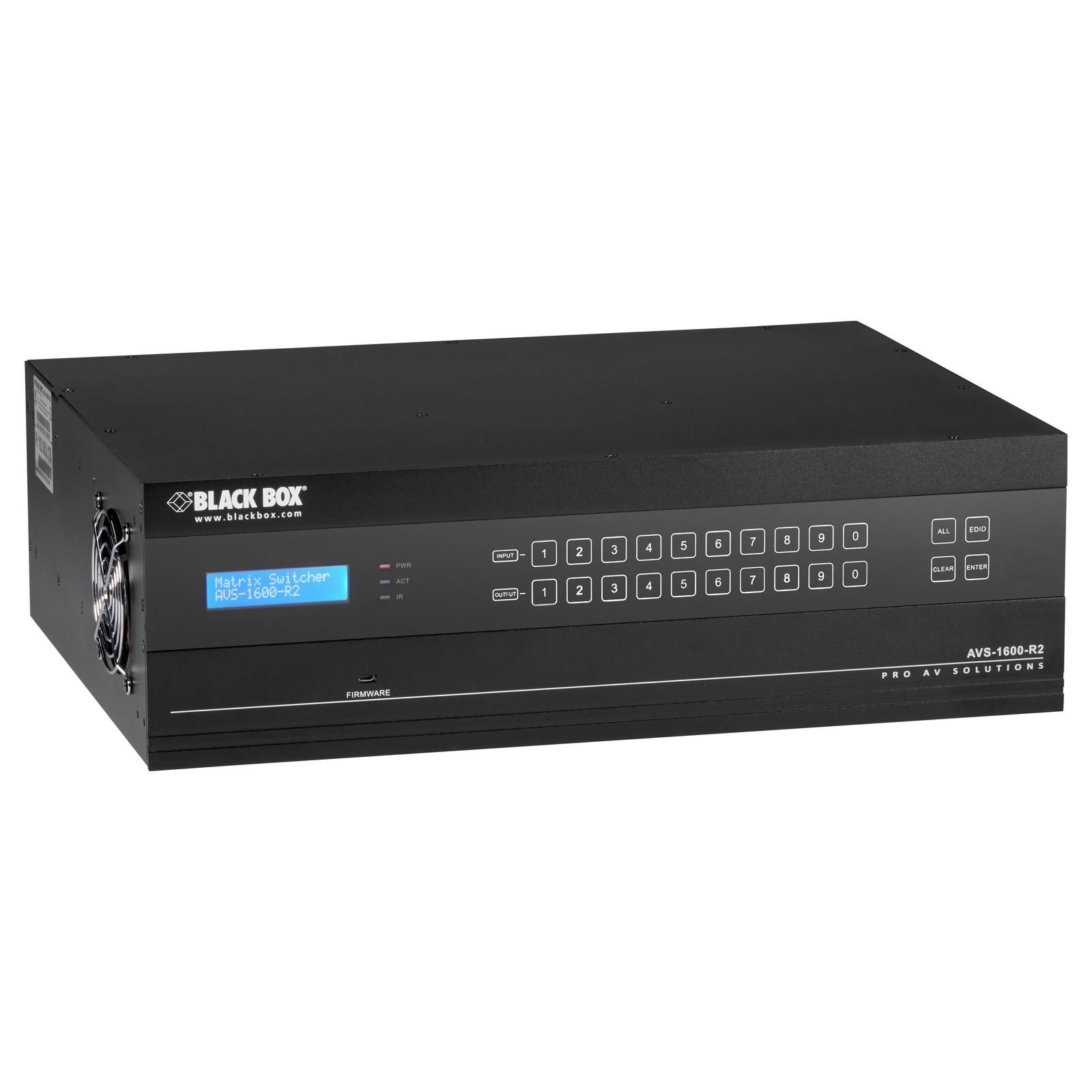

Modular Matrix Switcher.

Product Feature

  • Has 12 card slots for flexible input/output combination, and 4 slots for output signal cards
  • Comprehensive signal card compatibility: HDMI/CATx/VGA
  • Automatically recognizes input/output signal cards
  • Powerful EDID management
  • UPnP enables quick-connection to GUI
  • HDCP Compliant
  • Seamless AV distribution through different AV signals

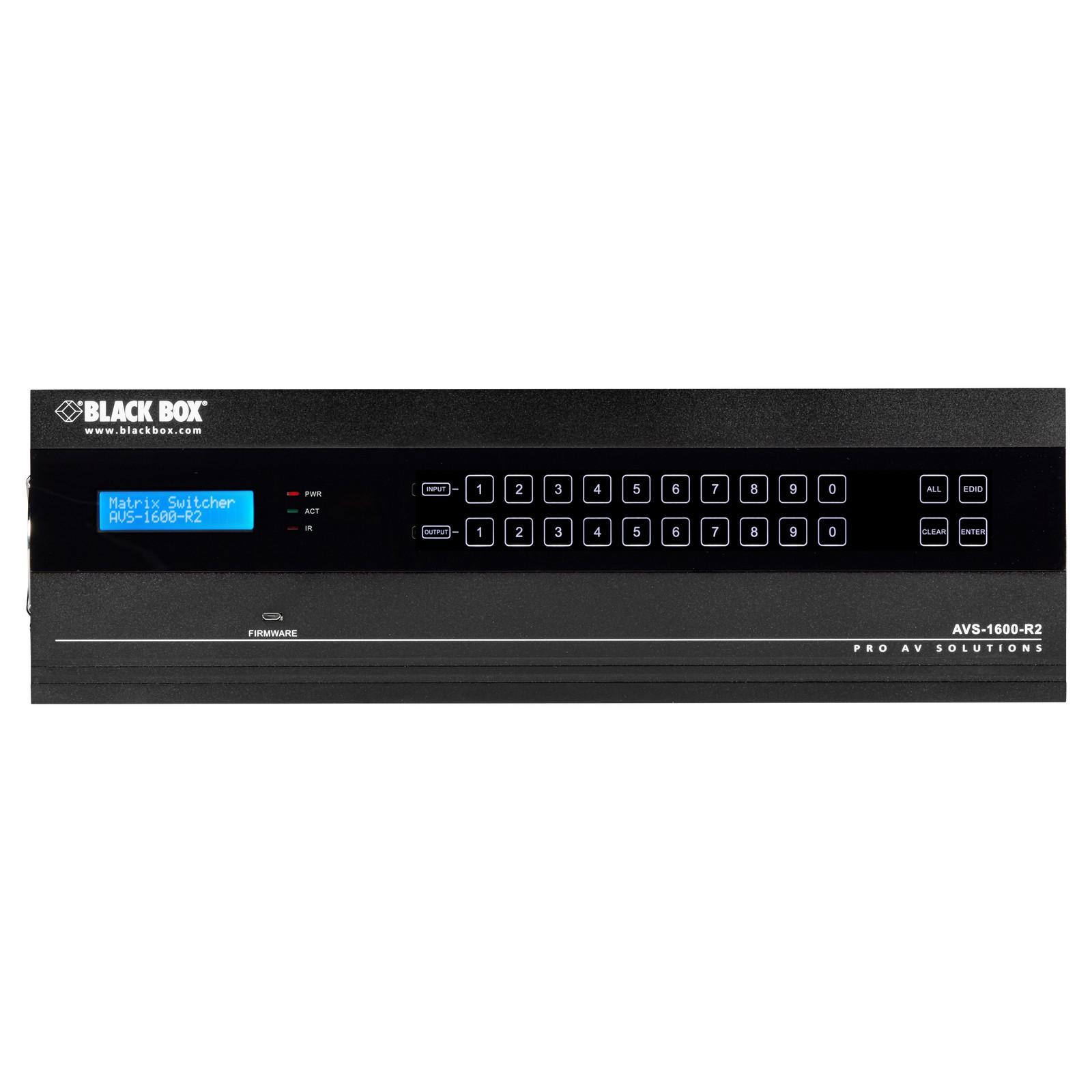

  • Controllable via front panel buttons, IR, RS-232 and TCP/IP

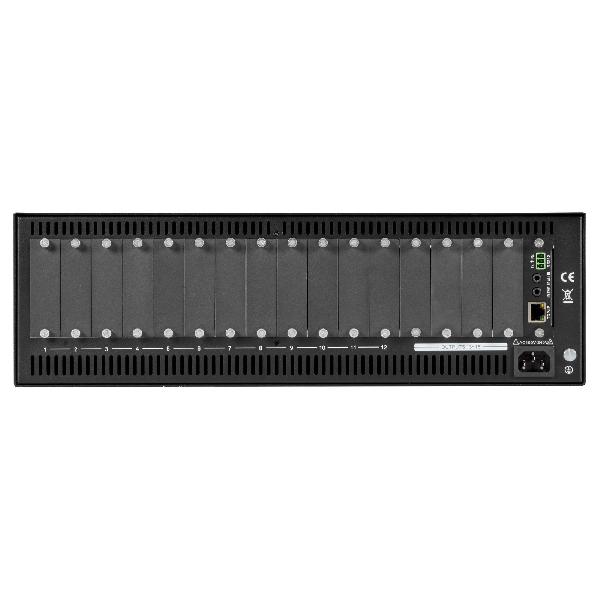

The Matrix Switcher chassis uses 12 card slots for flexible input and output signal card combinations, and 4 card slots for output signal cards. Select from HDMI audio, or CATx extension cards. All the cards support seamless distribution and hot-plug..

General
Humidity10 to 90% relative humidity
Operating Temperature14 to 131° F (-10 to 55° C)
PowerPower Supply: 100 to 240 VAC;
Power Consumption: 13 W (no load)
Storage Temperature-13 to 158° F (-25 to 70° C)
Item Specifications
Dimensions5.2”H x 19.0”W x 12.6” D (13.2 x 48.3 x 32.0 cm)
Weight3.8 lb. (1.71 kg)

Product Includes:

  • (1) Modular Matrix Switcher 16 port, 4K Seamless, I/O Auto detect
  • (1) IR receiver
  • (2) mounting ears
  • (1) IR remote
  • (4) plastic cushions
  • (1) RS-232 cable
  • (1) power cord
Name Type Version Release Date
Modular Matrix Switches Datasheet 19 May 2021
Modular Matrix Switches Manual 19 May 2021
