Modular Matrix Switcher Video Input Card HDMI 4K Audio

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

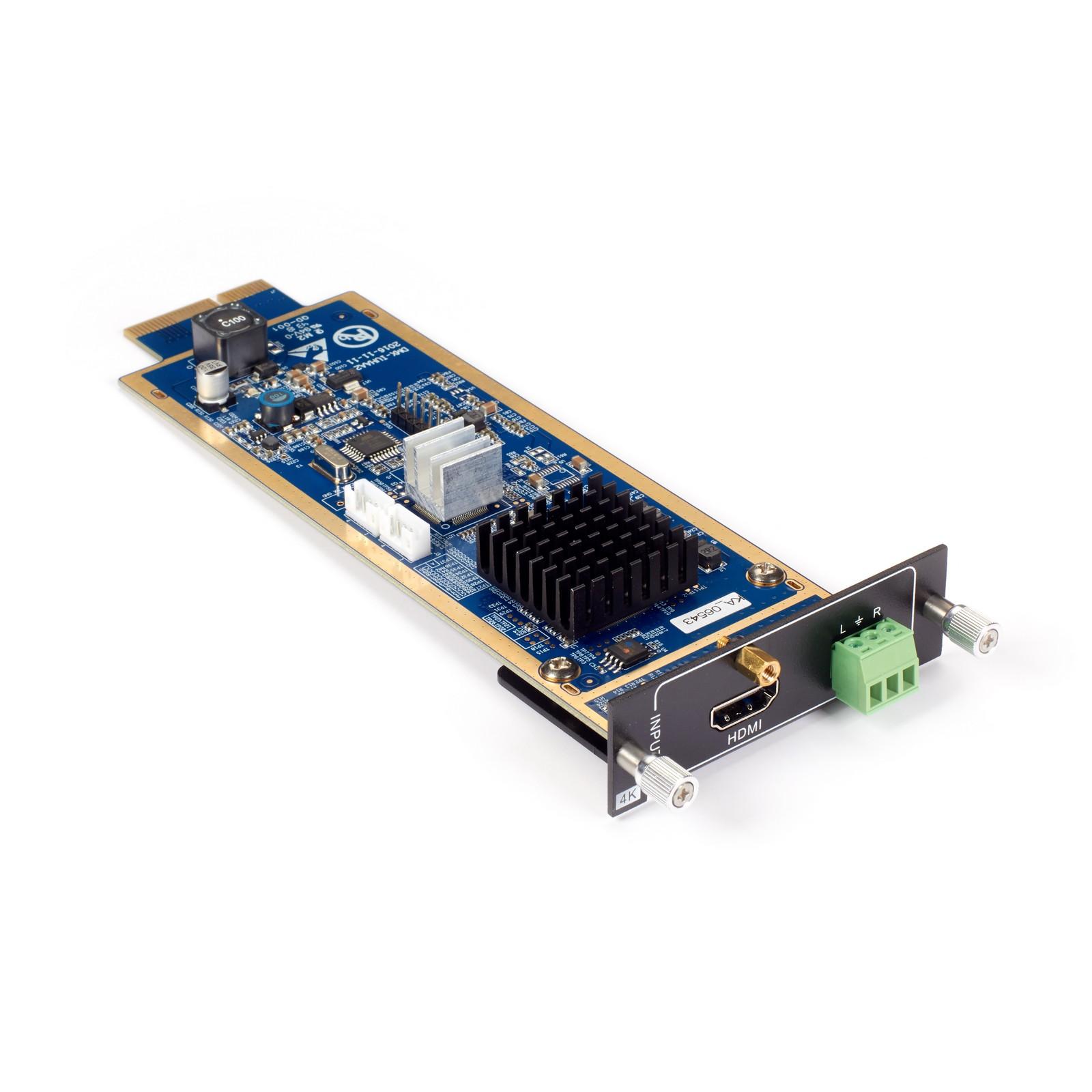

Modular Matrix Switcher Video Input Card.

Product Feature

  • Auto-detect input resolution
  • Max resolution: 4K ×2 K @ 60 Hz 4:2:0
  • The default output resolution is 4K × 2K @ 30 Hz and it can be adjusted via commands or GUI. Resolutions supported include 4K × 2K @ 60 Hz, 1024 × 768 @ 60 Hz, 1920 × 1080p @ 60 Hz and 1280 × 720 @ 60 Hz.
  • Support EDID Management; default EDID: 4K × 2K @ 30 Hz and DDC communication
  • Input audio source selectable via command or GUI, including HDMI embedded audio (default), and external analog audio

These are Single 4K seamless HDMI I/O signal cards. The cards are HDMI 1.4 and HDCP 2.2 compliant, and can transmit an HDMI/ DVI-I/DVI-D signal.

General
Power4 W
Item Specifications
Dimensions9.5”L x 4.5”W x 2.75”H
Weight0.219
Video
Input Connector(1) 19-pin Type A Female HDMI; (1) 3-pin pluggable terminal block
Input(1) HDMI, (1) Analog audio
Name Type Version Release Date
Modular Matrix Switches Datasheet 20 May 2021
