USB 3.1 Extender over Fiber – Multimode, 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extends USB 3.1 signals point-to-point up to 200 meters over multimode fiber.

Product Feature

  • USB speeds 10x faster than any other USB 2 extender on the market.
  • Extends USB signals point-to-point up to 200 meters over multimode fiber.
  • Four auto-negotiating USB 3, 2, and 1 ports.
  • True plug-and-play setup that requires no software drivers.
  • 100-/1000-Mbps Ethernet side channel and LAN pass-through.
  • Works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.

Extend Any USB Device
The USB 3.1 Extender allows you to extend any USB device. The extender is compatible with all USB 3.1 Gen 1 (5 Gbps) devices and is backward compatible with USB 2.0 and 1.1.

Extend USB Signals up to 200 Meters
Extend USB signals wherever you need them to go. This USB 3.1 Extender extends device signals point-to-point up to 200 meters over multimode fiber.

Faster than Any USB 2 Extender
Never worry about slow USB transfer speeds again. This USB 3.1 Extender provides USB speeds 10x faster than any other USB 2 extender on the market. This makes large file and multiple file transfers significantly faster, saving you valuable time.

General
CompatibilityDevice: All device types & classes (control, interrupt, isochronous & bulk); Host: OHCI, UHCI, EHCI, xHCI
BandwidthUSB: up to 5-Gbps
Available CurrentRemote: 1.2A (6W) per USB port
Connected Devices (Maximum)30
Operating Humidity10-80%, non-condensing
Operating Temperature32° - 122°F (0° - 50°C)
RangeUp to 200m over multimode fiber
SpeedUSB - SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
Item Specifications

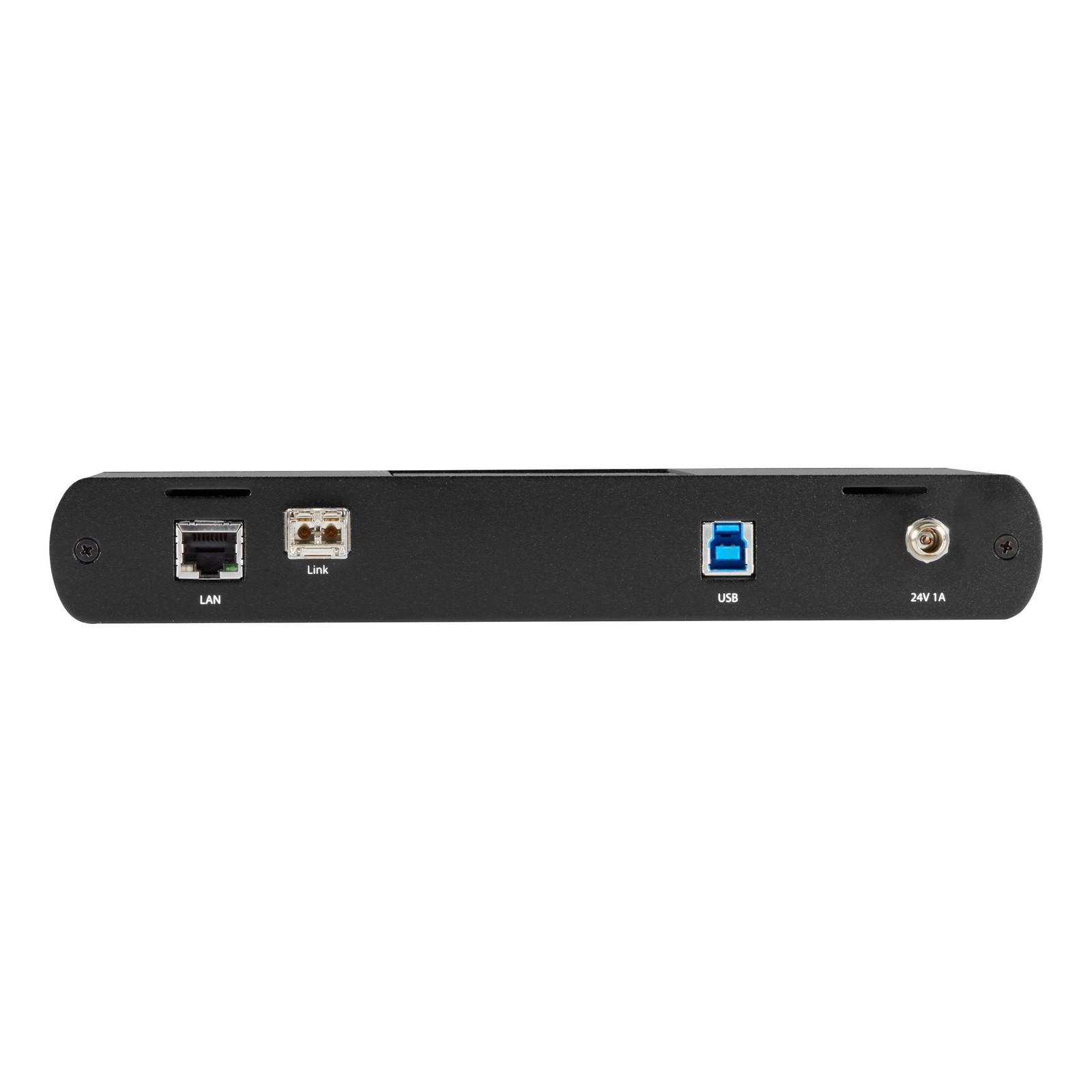

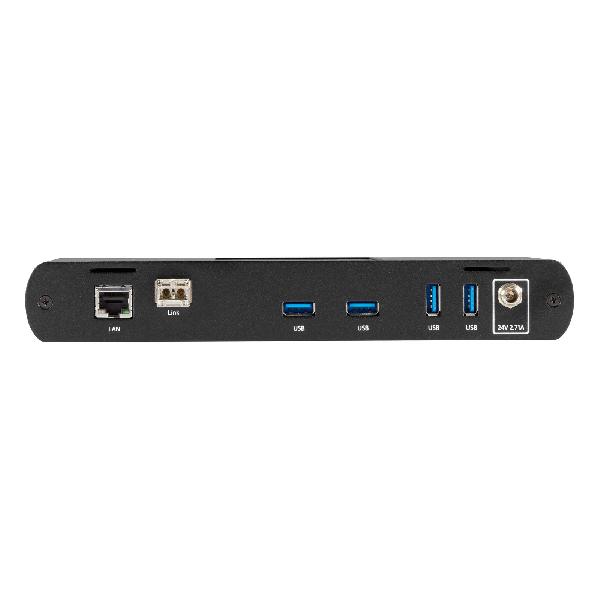

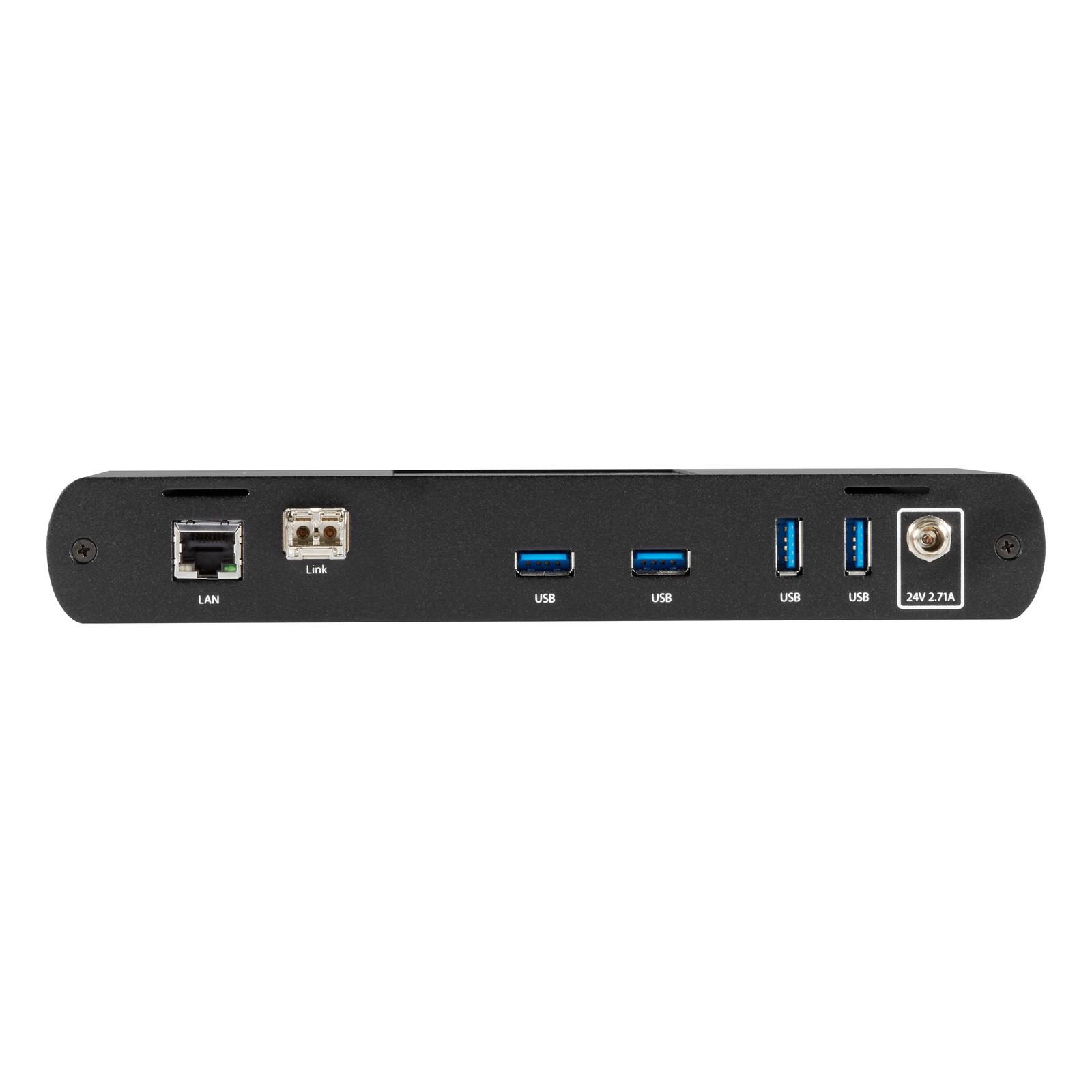

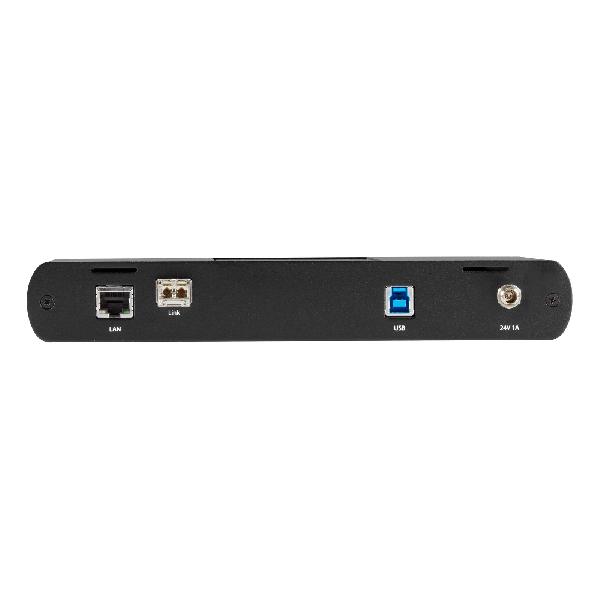

ConnectorsLocal: (1) USB 3.1 B receptacle, (1) RJ45 Ethernet 100/1000, (1) duplex LC Link, (1) 24V 1A DC locking jack; Remote: (4) USB 3.1 A receptacle, (1) RJ45 Ethernet 100/1000, (1) duplex LC Link, (1) 24V 2.71A DC locking jack
DimensionsTX and RX each - 5.4" x 9.1" x 1.3" (137.3mm x 232.1mm x 33.0mm)
Weight4.2 lb. (1.9 kg)

Product Includes:

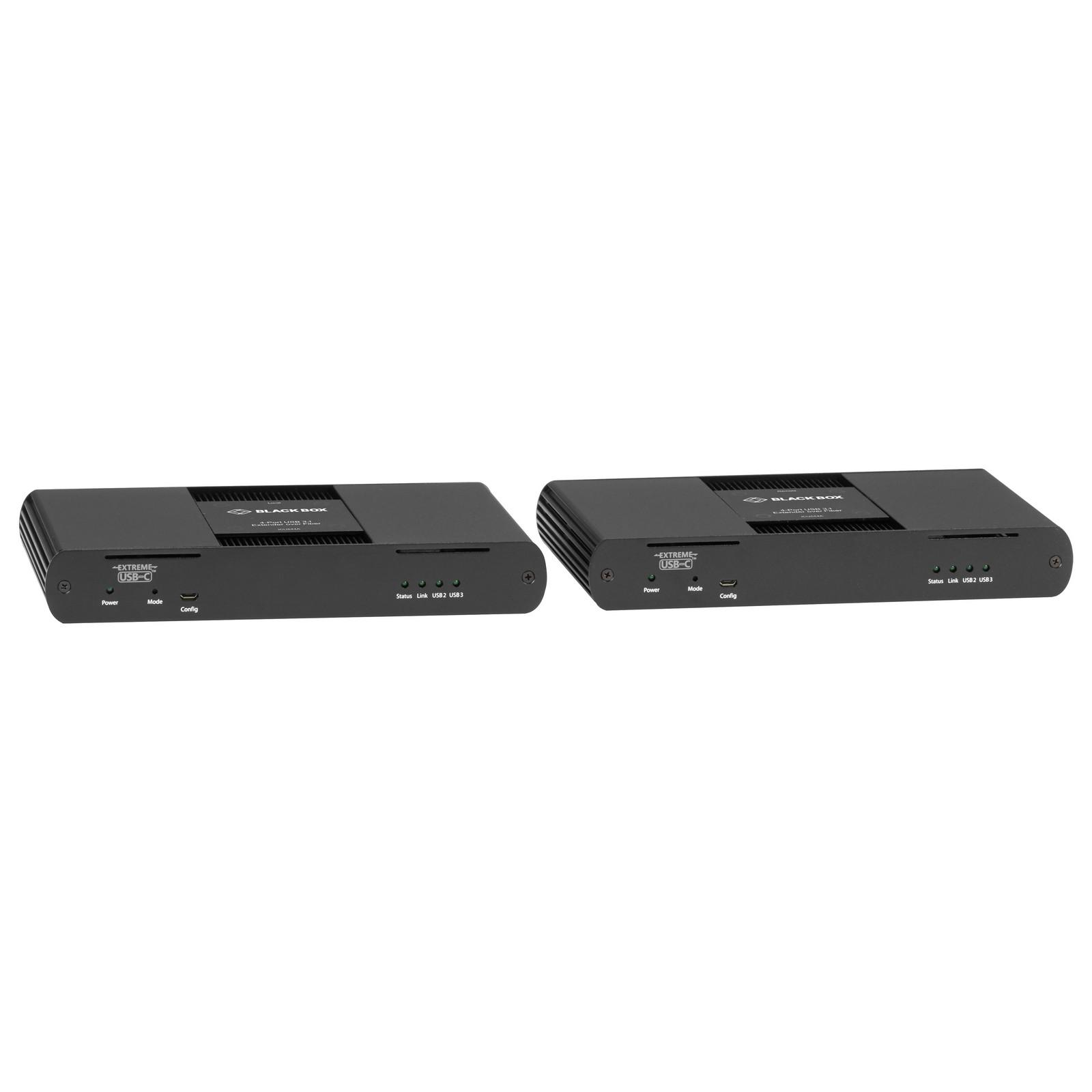

  • (1) Local Extender
  • (1) Remote Extender
  • (1) USB 3.1 Gen 1 Cable
  • (2) International Locking AC Adapters
  • (2) Country-Specific Power Cords
  • (1) Quick Start Guide
Name Type Version Release Date
USB 3.1 Fiber Extender Manual 09 August 2021
