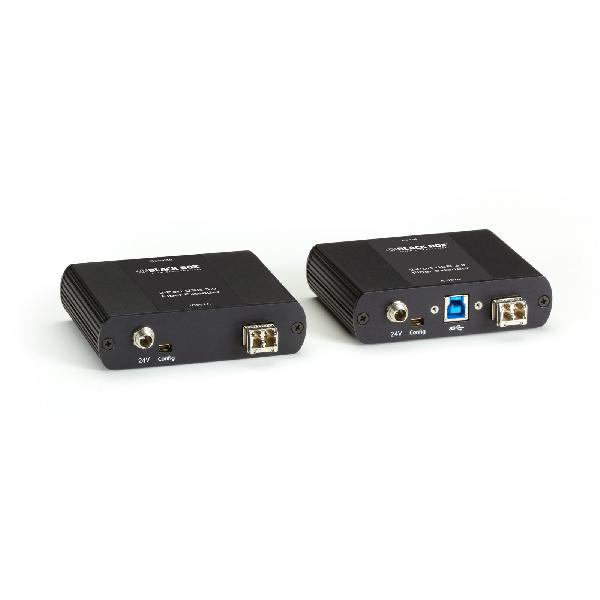

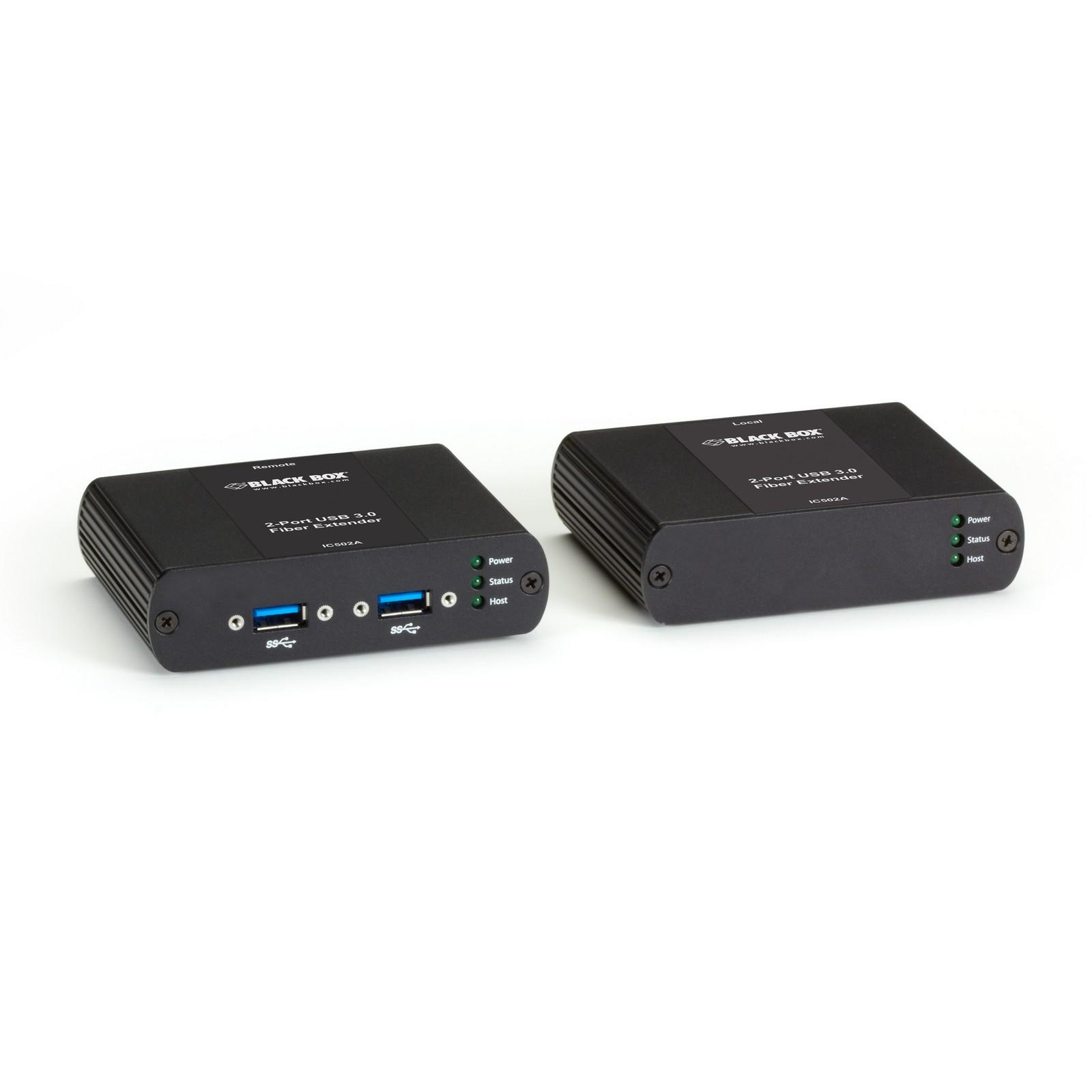

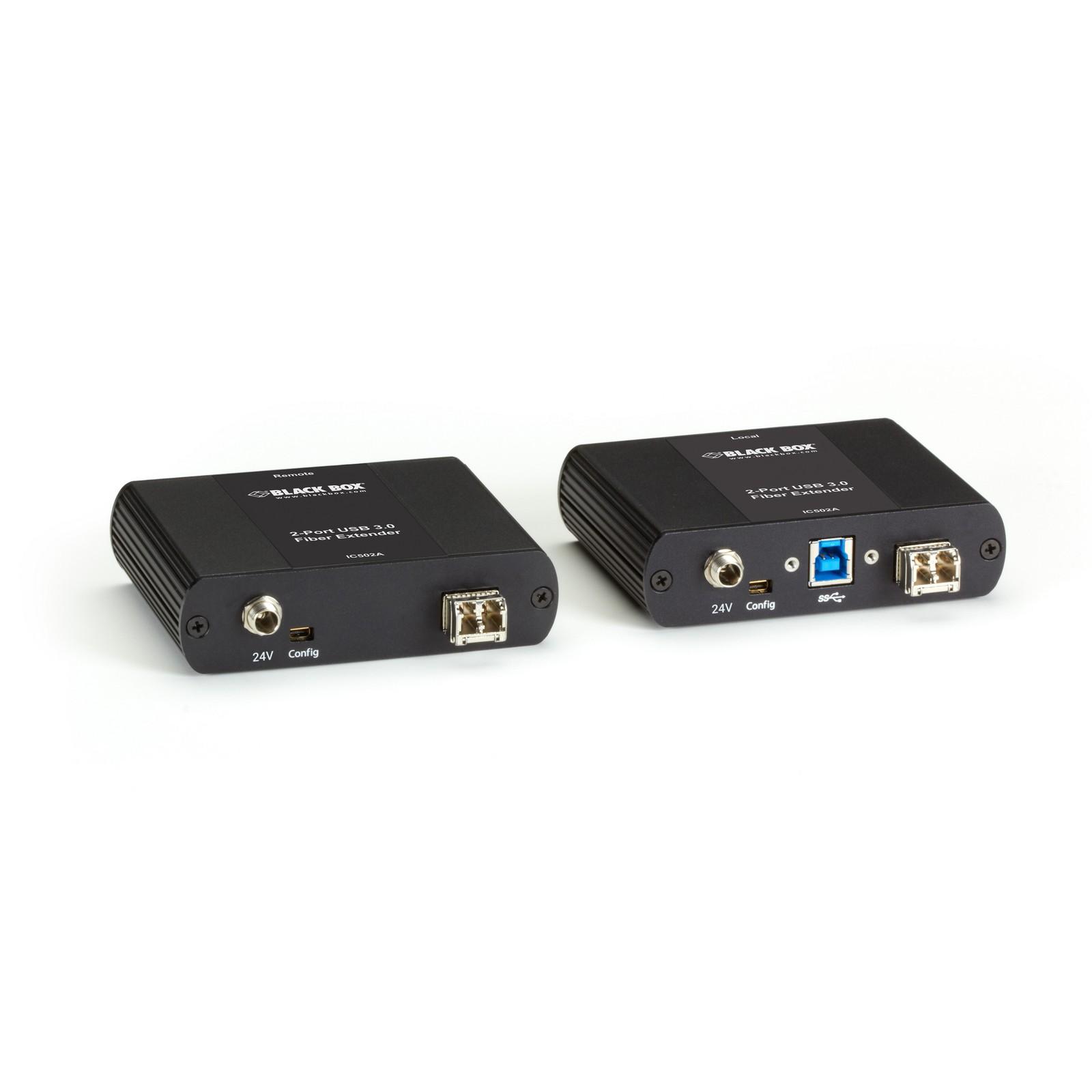

USB 3.0 Extender - Multimode, 2-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals.

Product Feature

  • Extends USB 30 signals up 100 meters (330 ft) over OM3 multimode fiber cable
  • Transfers at 5-Gbps speeds—ten times faster than USB 20
  • Receiver supplies 900 mA power to the remote USB devices
  • Plug and play No drivers to install on your computer
  • Features locking USB power ports for secure plug-ins
  • Works with Windows®, Mac® OS X®, and Linux® systems
  • Does not support USB 20 or USB 11 interfaces

Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or "SuperSpeed USB" standard, the extender boasts speeds up to 5 Gbps, about ten times that of USB 2.0. This way, you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous, full-duplex data transfer. Plus, it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power, the extender is ideal for connecting industrial USB 3.0 machine vision cameras, particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms


General
ApprovalsCE, RoHS
Distance100 m (330 ft.)* maximum
PowerLocal unit: From the USB bus; Remote unit: From 100-240 VAC, 50-60 Hz adapter (included); Output: 24 VDC (locking)
SpeedsUp to 5 Gbps
Item Specifications
ConnectorsLocal unit: USB: (1) USB 3.0 Type B F (locking); Interconnect: (2) LC fiber; Remote unit: USB: (2) USB 3.0 Type A F (locking); Interconnect: (2) LC fiber
DimensionsEach unit: 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
IndicatorsOn each unit: (3) LEDs (Power, Link, Host)

Product Includes:

  • Local extender unit
  • Remote extender unit
  • USB 3.0 cable
  • Power supply with country-specific cord
  • Quick start guide
Name Type Version Release Date
Manual Manual 18 August 2021
